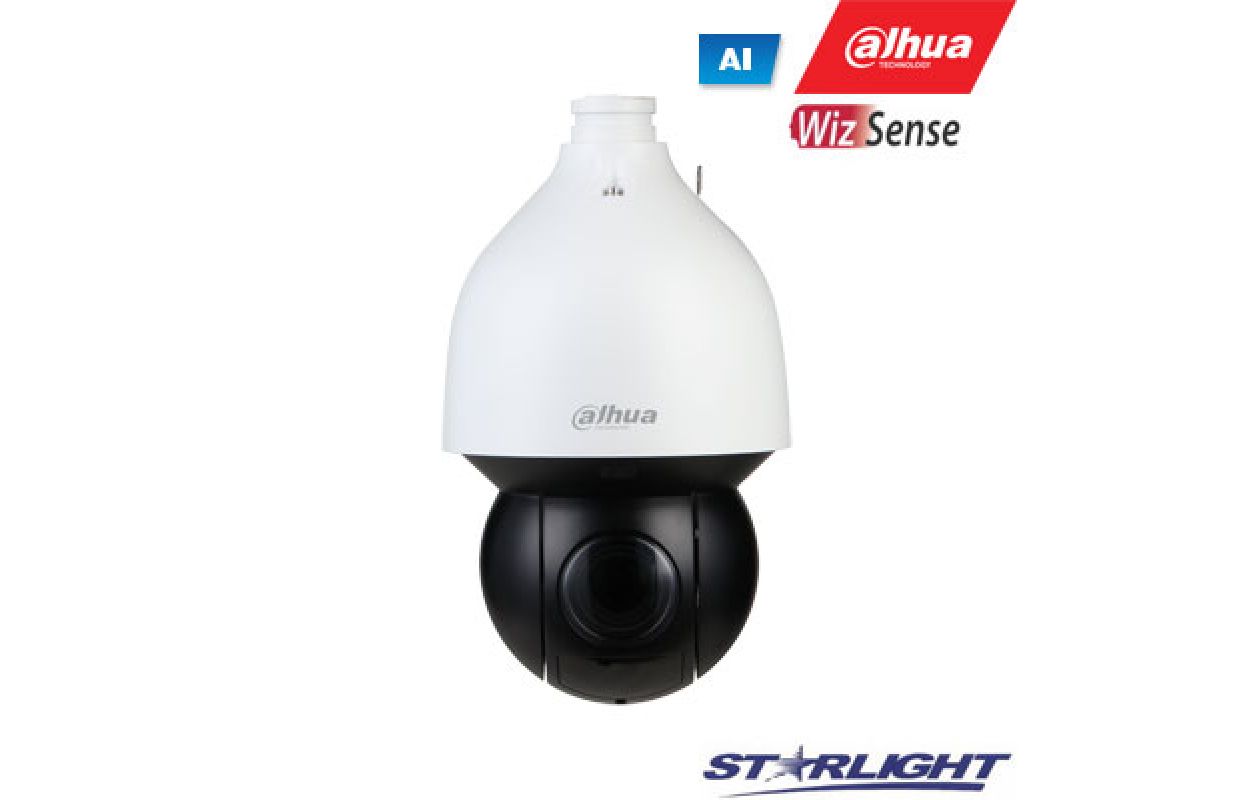

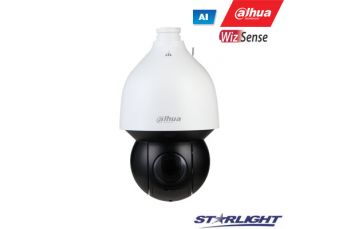

8Мп IP PTZ камера SD5A825-HNR-YA (SD5A825HNRYA)

Camera

Image Sensor

1/1.8" STARVIS™ CMOS

Pixel

8MP

Max. Resolution

3840 (H) x 2160 (V)

ROM

8 GB

RAM

2 GB

Electronic Shutter Speed

1/1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

Color: 0.005 Lux@F1.6
B/W: 0.0005 Lux@F1.6
0 Lux (IR on)

Illumination Distance

150 m (492.13 ft)

Illuminator On/Off Control

Zoom Prio/Manual/SmartIR

Illuminator Number

4 (IR Light)

Lens

Focal Length

5.4 mm–135 mm

Max. Aperture

F1.6–F4.0

Field of View

H: 61.6°–3.6°; V: 35.7°–2°; D: 66.6°–4°

Optical Zoom

25x

Focus Control

Auto/Semi-Auto/Manual

Close Focus Distance

0.5 m–7 m (1.64 ft–22.97 ft)

Iris Control

Auto/Manual

DORI Distance

Detect

Observe

Recognize

Identify

2700 m (8858.27 ft)

1066 m (3497.38 ft)

540 m (1771.65 ft)

270 m (885.83 ft)

PTZ

Pan/Tilt Range

Pan: 0°–360° endless
Tilt: -15°–+90°, auto flip 180°

Manual Control Speed

Pan: 0.1°–300°/s
Tilt: 0.1°–200°/s

Preset Speed

Pan: 400°/s; Tilt: 300°/s

Presets

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Support

Idle Motion

Preset/Tour/Pattern/Scanning

Protocol

DH-SD
Pelco-P/D (auto recognition)

General Intelligence

IVS

Object Abandoned/Missing

Event Trigger

Motion detection, video tampering, scene changing, Network disconnection, IP address conflict, illegal access, and storage anomaly.

Artificial Intelligence

Perimeter Protection

Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.

Auto tracking

Support

Video

Compression

H.265+; H.265; H.264+; H.264; MJPEG (sub stream)

Streaming Capability

3 streams

Resolution

4K (3840 x 2160); 1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280 x 720); D1 (704 x 576); CIF (352 x 288)

Frame Rate

Main stream: 8M/1080p/1.3M/720p (1–25/30 fps)
Sub stream 1: D1/CIF (1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p (1–25/30 fps), D1/CIF (1–25/30 fps)

Bit Rate Control

Variable/Constant

Bit Rate

H.264/H.265: 32 kbps–8192 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Support

WDR

120 dB

HLC

Support

White Balance

Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp

Gain Control

Auto/Manual

Noise Reduction

2D/3D

Motion Detection

Support

Region of Interest (RoI)

Support

Image Stabilization

Electronic

Defog

Support

Digital Zoom

16x

Flip

0°/180°

Privacy Masking

Up to 24 areas, and up to 8 areas in the same view

S/N Ratio

? 56 dB

Audio

Compression

G.711A; G.711Mu; G.726; AAC; G.722.1; G.723; G.729; PCM; MPEG2-Layer2

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP

Interoperability

ONVIF Profile S&G&T; CGI;

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth 64M)

Storage

FTP; Micro SD card (256 G)

Browser

IE7 and later versions
Chrome 42 and later versions
Firefox 52ESR and earlier versions
Safari

Management Software

Smart PSS; DSS; Easy4ip

Mobile Phone

iPhone/iPad/Android/Windows Phone

Certifications

Certifications

CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014

UL:UL60950-1+CAN/CSA C22.2,No.60950-1

Port

Audio I/O

1 (Line in; bare wire)/1 (Line out; bare wire)

Alarm I/O

2/1

Power

Power Supply

DC 24 V/2.5 A ± 25%

PoE NOT SUPPORTED

Power Consumption

11 W
20 W (PTZ pan/tilt, IR on )

Environment

Operating Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Operating Humidity

? 95%

Structure

Casing

Metal

Dimensions

Ё190 mm x 332 mm (7.48" x 13.07")

Net Weight

4.7 kg (10.36 lb)

Gross Weight

8 kg (17.64 lb)
