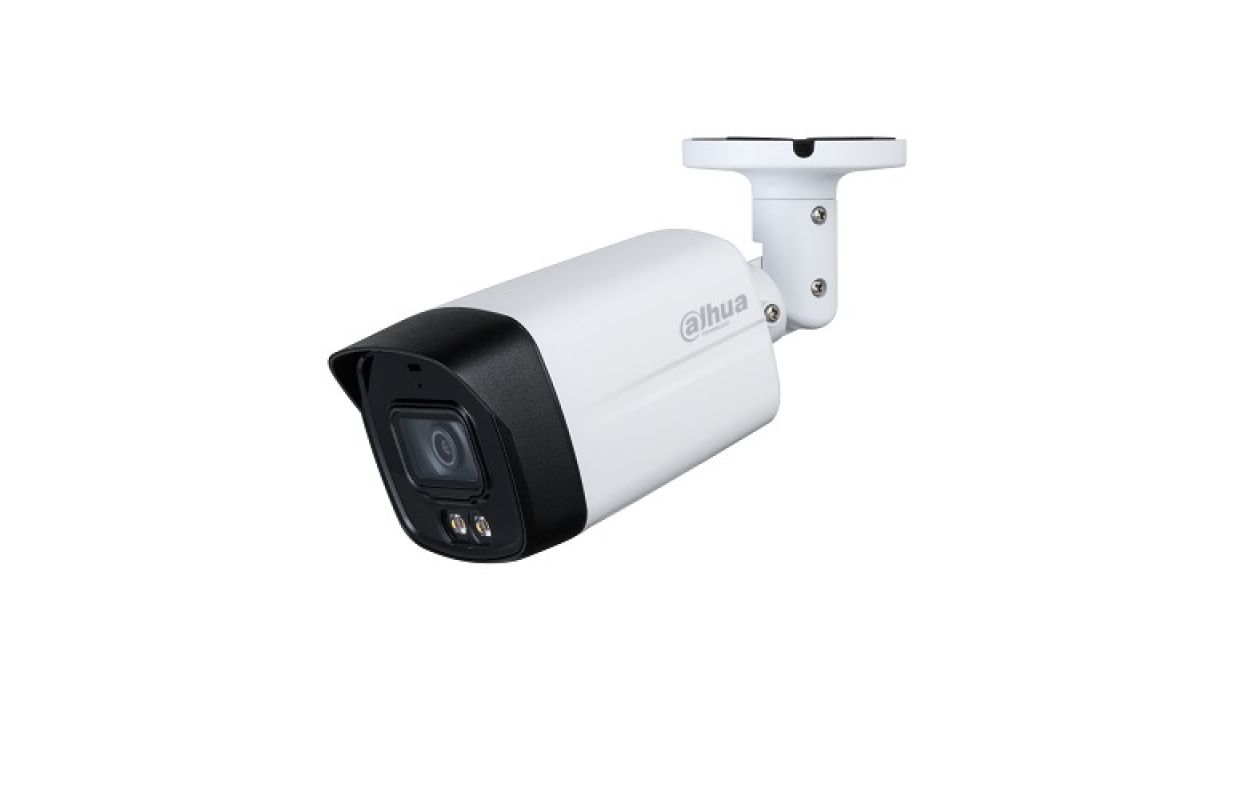

HD-CVI kameras. STARLIGHT cilindriskā 8 MP, 2,8 mm apz. F2.0, LED IR, WDR, mikrofons (HFW1801TLMIL)

Camera

Image Sensor

4K CMOS

Max. Resolution

3840 (H) Ч 2160 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s

Min. Illumination

0.01 lux@F2.0 (Color, 30 IRE)
0.001 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

IR: 40 m (131.23 ft)

Warm light: 40 m (131.23 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (Warm light); 2 (IR light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm

Max. Aperture

F2.0

Field of View

2.8 mm: H: 106°; V: 56°; D: 125°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 1.3 m (4.27 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

88 m

(288.71 ft)

35.2 m (115.49 ft)

17.6 m

(57.74 ft)

8.8 m

(28.87 ft)

Video

Video Frame Rate

CVI:
PAL: 4K@15 fps; 5M@25 fps; 4M@25 fps; 1080p@25 fps
NTSC: 4K@15 fps; 5M@25 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4K@15 fps
NTSC: 4K@15 fps
TVI:
PAL: 4K@15 fps
NTSC: 4K@15 fps
CVBS:
PAL: 960H
NTSC: 960H

Resolution

4K (3840 Ч 2160); 5M (2880 Ч 1620); 4M (2560 Ч 1440); 1080p (1920 Ч 1080); 960H (960 Ч 576/960 Ч 480)

Day/Night

Auto(ICR)/Color/B/W

BLC

BLC; HLC; WDR; HLC-Pro

WDR

120 dB

White Balance

Auto; Area white balance

Gain Control

Auto/Manual

Noise Reduction

3D NR

Illumination Mode

Smart IR&WL; WL Mode; IR Mode

Defog

Electronic defog

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B;
UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel built-in MIC

Power

Power Supply

12 VDC ± 30%

Power Consumption

Max 5.7 W (12 VDC, LED on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

<95% (RH), non-condensing

Protection

IP67

Anti-corrosion Level

Low

Structure

Casing Material

Metal front cover + plastic rear barrel + metal bracket

Product Dimensions

198.4 mm Ч 80.2 mm Ч 76.2 mm (7.81" Ч 3.16" Ч 3.00")

Net Weight

0.30 kg (0.66 lb)

Gross Weight

0.48 kg (1.06 lb)

Installation

Wall mount; ceiling mount; vertical pole mount
