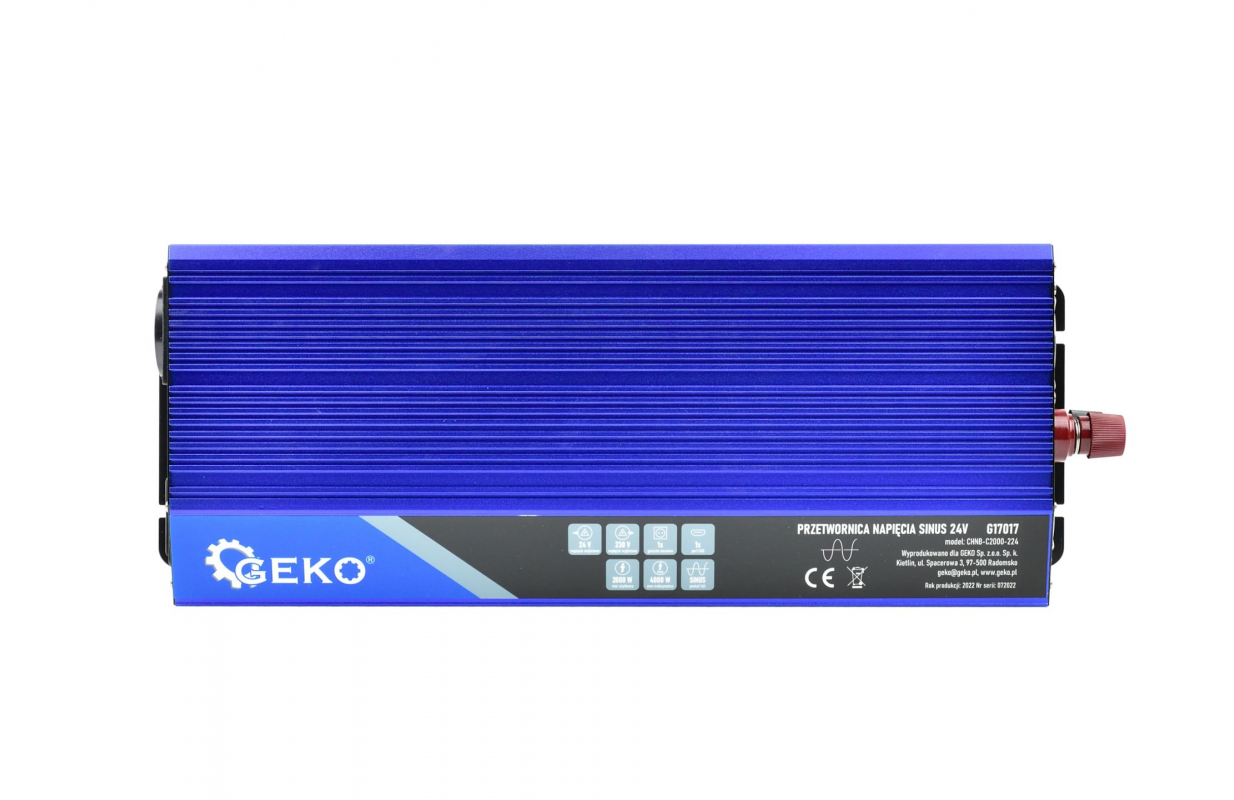

Voltage Converter SINUS 24V/230V 2000/4000W (G17017)

24V/230V Voltage Converter, 2000/4000W – pure sine wave.

Voltage converters are designed to convert DC from 24V battery systems into AC 230V. The device is equipped with a USB port for powering and charging mobile devices.

Sine wave converters, unlike traditional AC/DC converters, output AC voltage from a sine wave signal (the same as in the electrical grid). These types of converters are ideal for powering devices such as power tools, pumps, electronics, and household appliances.

Product Specifications:

• Voltage converter with pure sine wave signal
• It is perfect for powering devices such as refrigerators, TVs, computers/laptops, etc.
• Ideal for trucks and motorhomes with a 24V electrical system
• Has a USB port for powering and charging mobile devices
• Equipped with Type F socket and universal socket

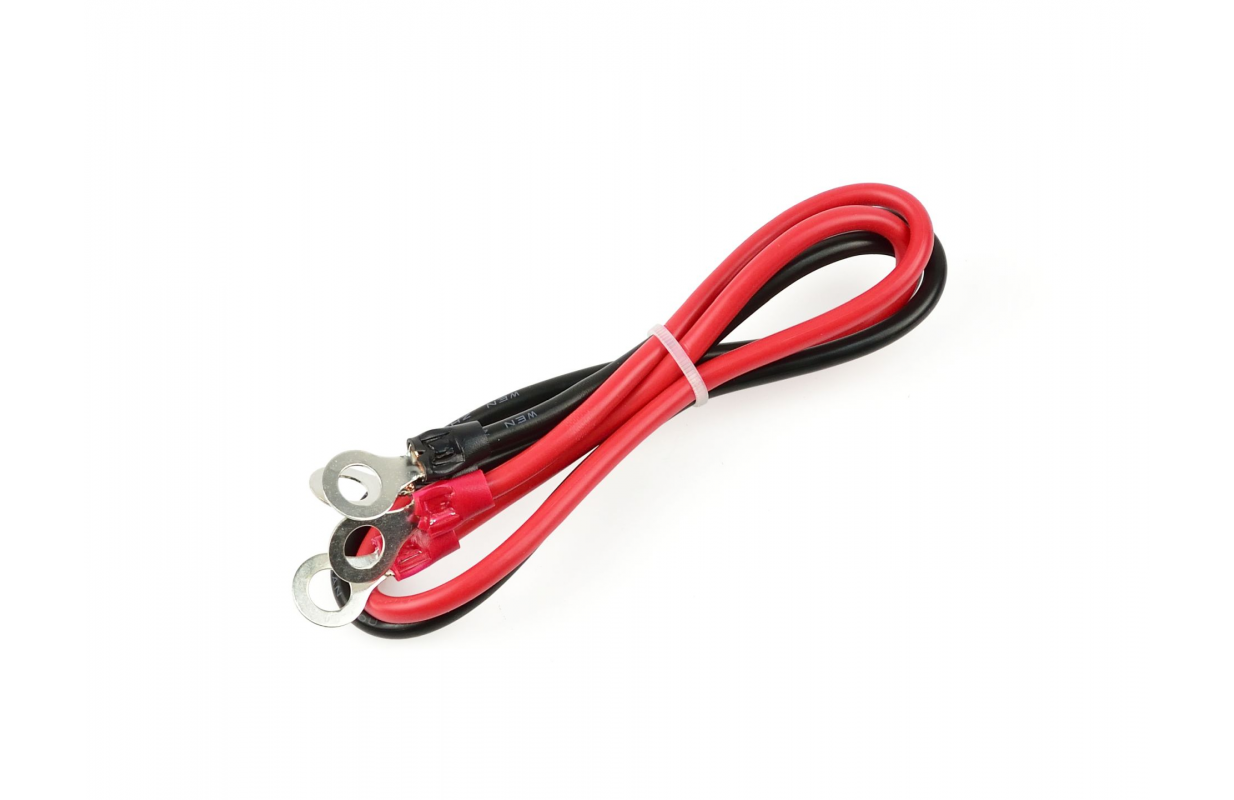

• Comes with a cable for connecting to the battery

Technical Specifications:

Input Voltage (DC)

• Maximum input voltage: 30V
• Rated input voltage: 24V
• Rated voltage: 24V
• Minimum operating voltage: 21V
• Input voltage range: 21 - 30V

Output Voltage Data (AC)

• Maximum output power: 4000W
• Continuous output power: 2000W
• Output voltage range: 220-250V
• Rated voltage: 220, 230, 240V
• Voltage waveform: pure sine wave
• Voltage frequency: 50,60Hz
• Efficiency: 93%
• USB port: 5V/500mA

General Data

• Dimensions (H x W x D): 458x166x90 mm
• Net weight: 4.18 kg
• Transformer: High-frequency transformer
• Cooling: Fan
• Protection class (IP ): IP20
• Operating temperature: 0-40°

Safety Features

• Fuse: 4 x 30A
• Protection: Reverse polarity protection, Low voltage protection, Overvoltage protection, Overload protection, Short circuit protection, Overheat protection
