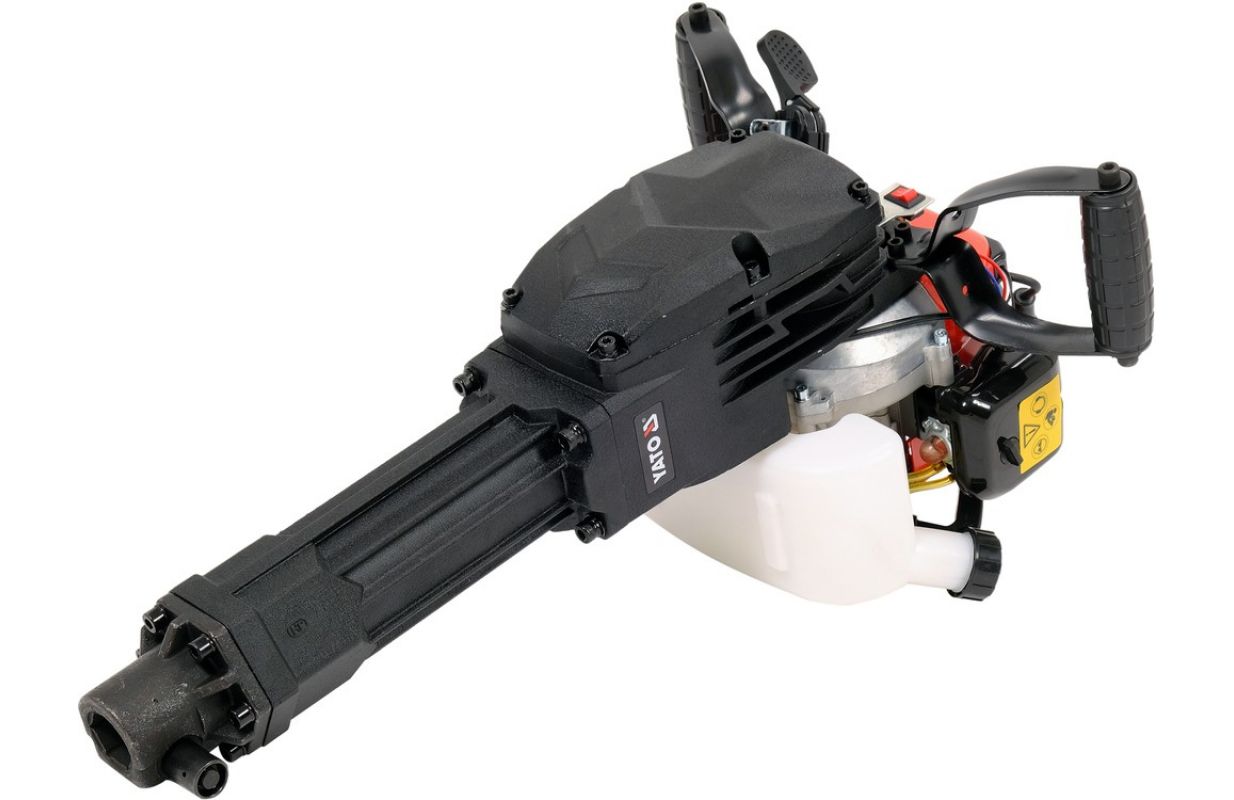

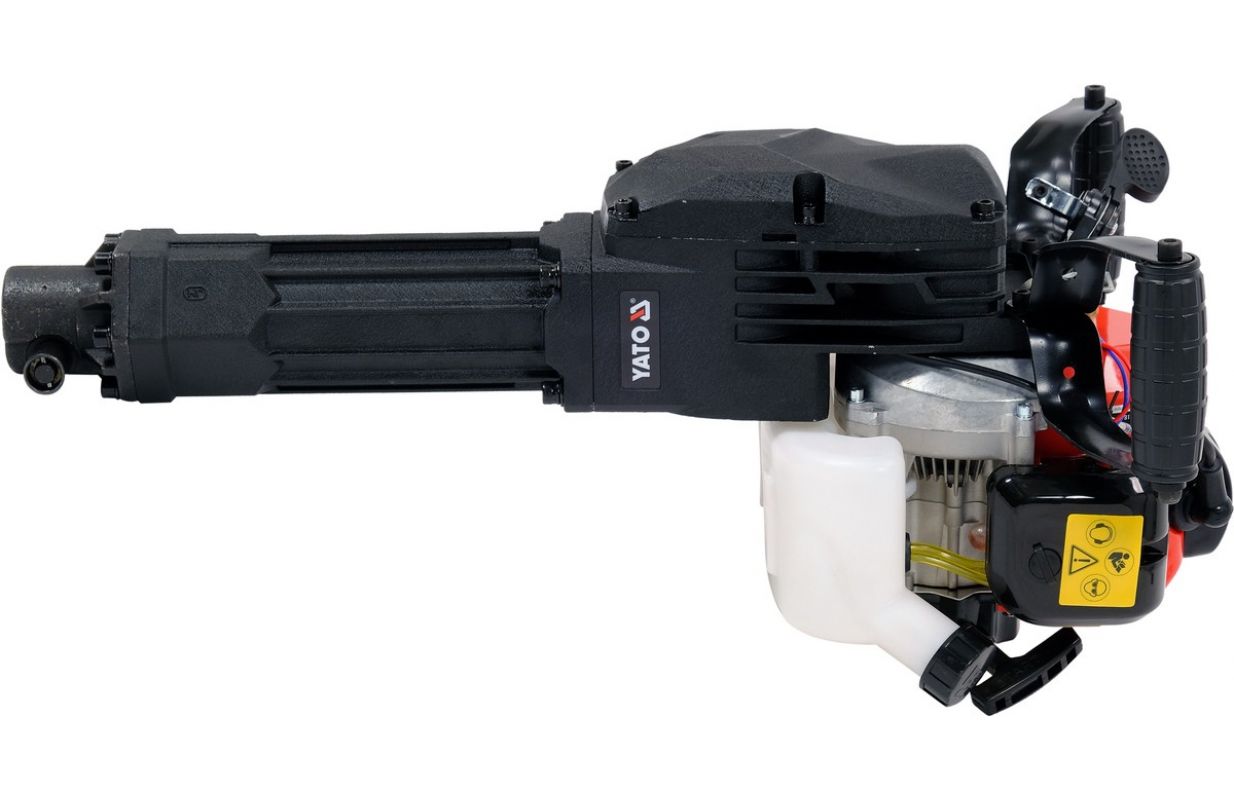

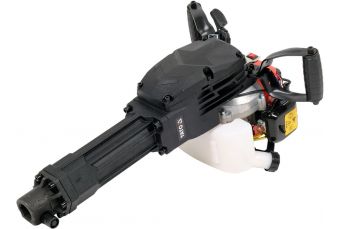

Petrol demolition hammer 55j (YT-82007)

Demolition hammer powered by two-stroke internal combustion engine.

A percussion force of 55J efficiently crushes reinforced concrete used in foundations and natural stone.

In addition to the chiseling function, this type of hammer has the ability to work as a soil compaction jumper.

The design weighs 11kg and this makes the operation of the device comfortable. The hammer is operated without much effort by one person. The low fuel consumption (0.9L/mth) makes the device very economical.

Unlike electric hammers, there is no need for heavy generators, which weigh at least 40 kg, requiring a two-person team.

Additional information:

• udar, combustion-pneumatic
• two-stroke engine
• proportion of gasoline 95PB/oil: 30:1
• possibility to work as a soil compaction jumper (with a 30mm hex foot)
• complete with a set of wrenches for servicing and a tank for preparing fuel mixture

Parameters:

• fuel tank capacity [l]: 1.1
• impact frequency [min-1]: 1500
• single stroke energy [J]: 20 - 55
• tool handle: HEX 30 mm
• engine: 1E44F-E; number of cylinders: 1; number of bars: 2; air-cooled
• spark plug type: L8RTC
• engine displacement [cm3]: 51.7
• engine power [kW]: 1.3
• maximum engine speed [min-1]: 6000
• maximum engine speed without load [min-1]: 7000 ± 300
• max. fuel consumption [l/h]: 0.6

The inset tool in the form of a chisel, chisel or punch is locked in the handle with a rotating lock.

The cube-shaped handle on one face has a groove that allows the handle lock to rotate and lock the tool working tool in the handle.

Regulation of the speed is made by a lever located at the handle.

Usage warnings:

Keep a safe distance from the hot surface.
Check the fuel system for fuel leaks.
Stop operation of the device before refueling the tank.

Technical data

Brand	Yato
Entity responsible for this product in the EU
Series	GRF
Application	concrete, asphalt, natural and artificial stone, granite
Functions	forging
Toolholder type	hexagonal
Rotations	6000 min⁻¹
Power	1.3 kW	1.74 KM
Impact frequency	1500 min⁻¹
Hammering energy	20-55 J
Engine (motor) capacity	51.7 cm³
Holder size	30 mm
Fuel tank capacity	1.1 l
Oil and fuel ratio	30:1
Max. fuel consumption	0.6 l/h
Cooling	air
Stroke	yes, combustion-pneumatic
Ignition plug type	L8RTC
Engine (motor) type	1E44F-E
Cylinders number in engine (motor)	1
Strokes number in engine (motor)	2
Acoustic pressure	83.0 ± 3.0 dB(A)
Acoustic power	104.0 dB(A)
Vibrations	31.87 ± 1.5 / 31.10 ± 1.5 m/s²
Weight	15.5 kg
Symbol	YT-82007
