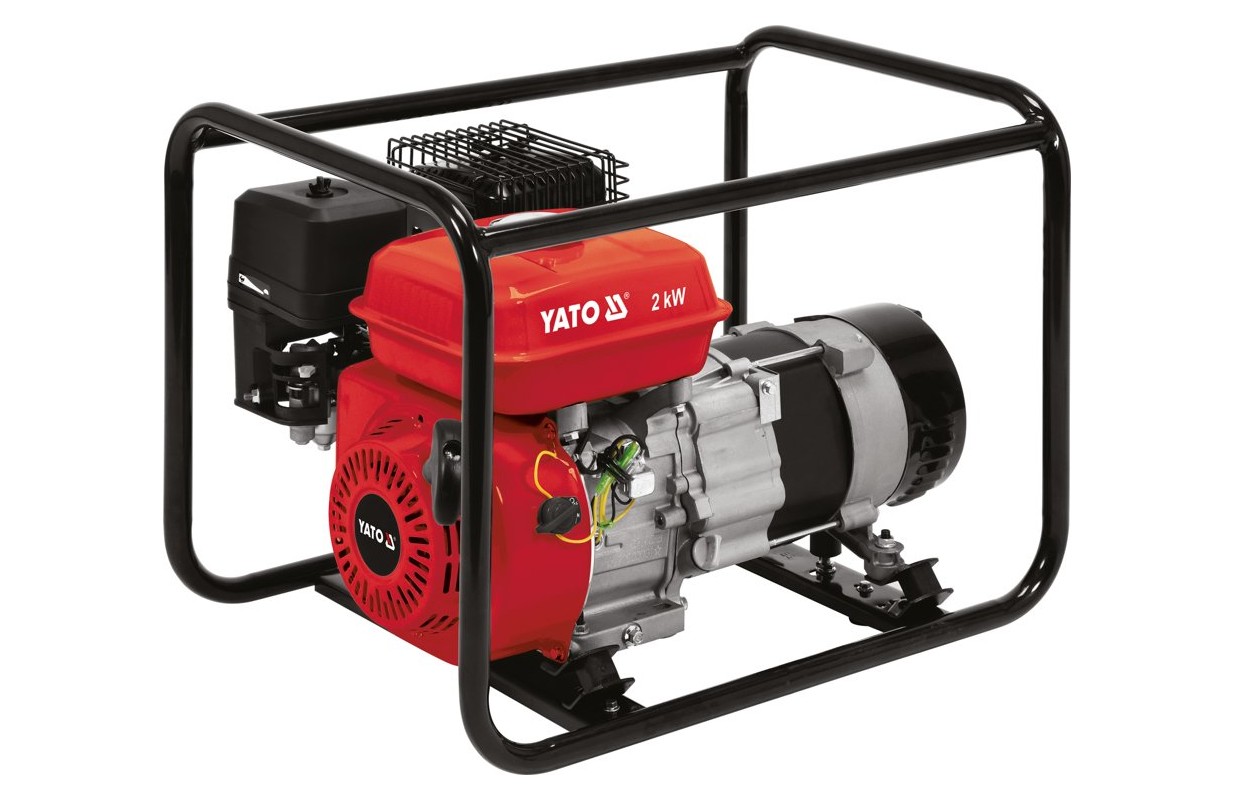

Power generator 2200w avr (YT-85451)

4-stroke air-cooled generator. Indispensable wherever the lack of electric power does not allow to carry out construction, cleaning and road works. Fuel tank with a capacity of 3.6 l enables the device to work for 8 hours.

• AVR voltage stabilization protects powered electrical equipment from damage and ensures that the unit reaches full power
• thermal protection against overload
• motor type: OHV
• durable and easy-to-use starting system
• .overheat-resistant winding
• frame made of powder-coated 22 mm thick tubing
• socket: 2 x 230 V
• noise level: 95 dB
.
• fuel type: unleaded gasoline

The generator has possibility to work in economy mode, then the engine speed is automatically regulated depending on the connected load. This reduces noise and fuel consumption.

Parameters:

Current:

• Rating frequency [Hz]: 50
• COP generator power [W]: 2000
• maximum power (S2 5 min) [W]: 2200
• power factor: 1.0
• rated current (A.C.) [A]: 8.7
• electrical insulation class: I
• enclosure protection (IP) rating: IP23M
• performance class: G1
• performance class: A

POWER:

• Number of cylinders: 1
• Number of clocks: 4
• fuel type: unleaded gasoline
• oil type [SAE]: 15W-40
• Fuel consumption (at 75% load) [l/h]: 2.54
• Engine capacity [cm3]: 196
• maximum power [kW]: 2
• maximum rpm [min-1]: 3600
• cooling: air
• fuel tank capacity [l]: 3.6
• oil tank capacity [l]: 0.6
• spark plug type: F7RTC

EQUIPMENT:

• size dimensions (L x W. x height) [mm]: 585 x 425 x 425
• weight [kg]: 35
• operating temperature range [deg. C]: 0 - +40
• maximum operating altitude [m above sea level]: 1000

.

Usage warnings:

Warning 1. Read the operating instructions and labels before starting work. 2. Attention! Exhaust gas is toxic. Do not operate the generator indoors without adequate ventilation. 3. Keep children away from the generator. 4. Do not refill fuel and oil while the generator is running. 5. If the generator will be placed in a closed room, measures must be taken to prevent fire and explosion. 6. Do not connect the generator to the home electrical network. 7. Do not use the generator in high humidity conditions. 8. Keep flammable products away from the generator. 9. When refueling: - stop the engine, - do not smoke, - do not spill fuel.
Keep a safe distance from the hot surface.

Technical data

Brand	Yato
Entity responsible for this product in the EU
Series	GRF
Moc maksymalna	2200 (S2 5 min) W
Power	2000 W
Voltage	230 V a.c.
Frequency	50 Hz
Engine (motor) capacity	196 cm³
Socket quantity	2
Fuel tank capacity	3.6 l
Fuel type	unleaded petrol
Oil tank capacity	0.6 l
Oil type	15W-40
Max. fuel consumption	2.54 l/h
Alternating current	8.7 A
Wheels	no
Transportation holder	no
Dimensions	585x425x425 mm
Cooling	air
Automatic voltage regulation	yes
Engine (motor) type	CP168FB
Ignition plug type	F7RTC
Max. engine (motor) power	3.6 kW
Max. engine (motor) rotations	3600 min⁻¹
Idling speed engine (motor) rotations	1800 min⁻¹
Cylinders number in engine (motor)	1
Strokes number in engine (motor)	4
Compression degree	(8.5 ± 0.2) : 1
Power factor	1
Working temperature range	0~40 ˚C
Max. operating altitude	1000 m n.p.m.
Quality class	A
Performance class	G1
Electric insulation class	I
Protection grade	IP23M
Acoustic pressure	72.7 ± 2.03 dB(A)
Acoustic power	92.2 ± 2.03 dB(A)
Weight	35 kg
Symbol	YT-85451
