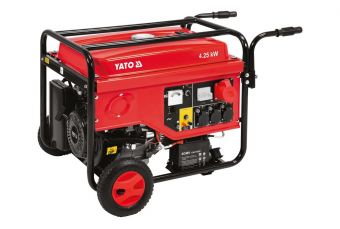

Power generator 5500w avr (YT-85460)

A high-powered generator set, suitable for operation in harsh conditions and under full load. Its design makes it possible to supply power to buildings and machinery, for example, during prolonged network failures or wherever both 1-phase (230 V) and 3-phase (400 V) power is needed. Useful for construction sites, repair services and farms.

• starting system with a key or traditionally - with a cable
• possibility to connect high-power devices, such as a welder, concrete mixer, brick saw, plastering unit or pump
• AVR voltage stabilization
• 4-stroke OHV engine
• insulated copper winding protected against overheating thanks to thermal cut-out switch 10
• maximum alternator power: 5500 W, constant power: 4250 W
• 3 230 V sockets and 1 400 V socket
• oil type: SAE 10W-40
• spark plug type: F7RTC spark plug
• handles and pumped wheels for easy transport

Usage warnings:

Warning 1. Read the operating instructions and labels before starting work. 2. Attention! Exhaust gas is toxic. Do not operate the generator indoors without adequate ventilation. 3. Keep children away from the generator. 4. Do not refill fuel and oil while the generator is running. 5. If the generator will be placed in a closed room, measures must be taken to prevent fire and explosion. 6. Do not connect the generator to the home electrical network. 7. Do not use the generator in high humidity conditions. 8. Keep flammable products away from the generator. 9. When refueling: - stop the engine, - do not smoke, - do not spill fuel.
Keep a safe distance from the hot surface.

Technical data

Brand	Yato
Entity responsible for this product in the EU
Series	GRF
Moc maksymalna	5500 (S2 5 min) W
Power	4250 W
Voltage	230 a.c., 400 a.c. (3P/N/PE), 12 d.c. V
Frequency	50 Hz
Engine (motor) capacity	389 cm³
Socket quantity	3 (230 a.c. x2, 400 a.c.)
Fuel tank capacity	25 l
Fuel type	unleaded petrol
Oil tank capacity	1.1 l
Oil type	10W-40
Max. fuel consumption	4.27 l/h
Direct current	8.3 A
Alternating current	5.2 A
Wheels	yes
Wheel quantity	2
Transportation holder	yes
Handle quantity	2
Dimensions	680x510x540 mm
Cooling	air
Automatic voltage regulation	yes
Engine (motor) type	CP188F
Ignition plug type	F7RTC
Max. engine (motor) power	7.5 kW
Max. engine (motor) rotations	3600 min⁻¹
Idling speed engine (motor) rotations	1800 min⁻¹
Cylinders number in engine (motor)	1
Strokes number in engine (motor)	4
Compression degree	8.5 : 1
Power factor	1
Working temperature range	0~40 ˚C
Max. operating altitude	1000 m n.p.m.
Quality class	A
Performance class	G1
Electric insulation class	I
Protection grade	IP23M
Acoustic pressure	75.0 ± 2.62 dB(A)
Acoustic power	93.7 ± 2.62 dB(A)
Weight	85 kg
Symbol	YT-85460
