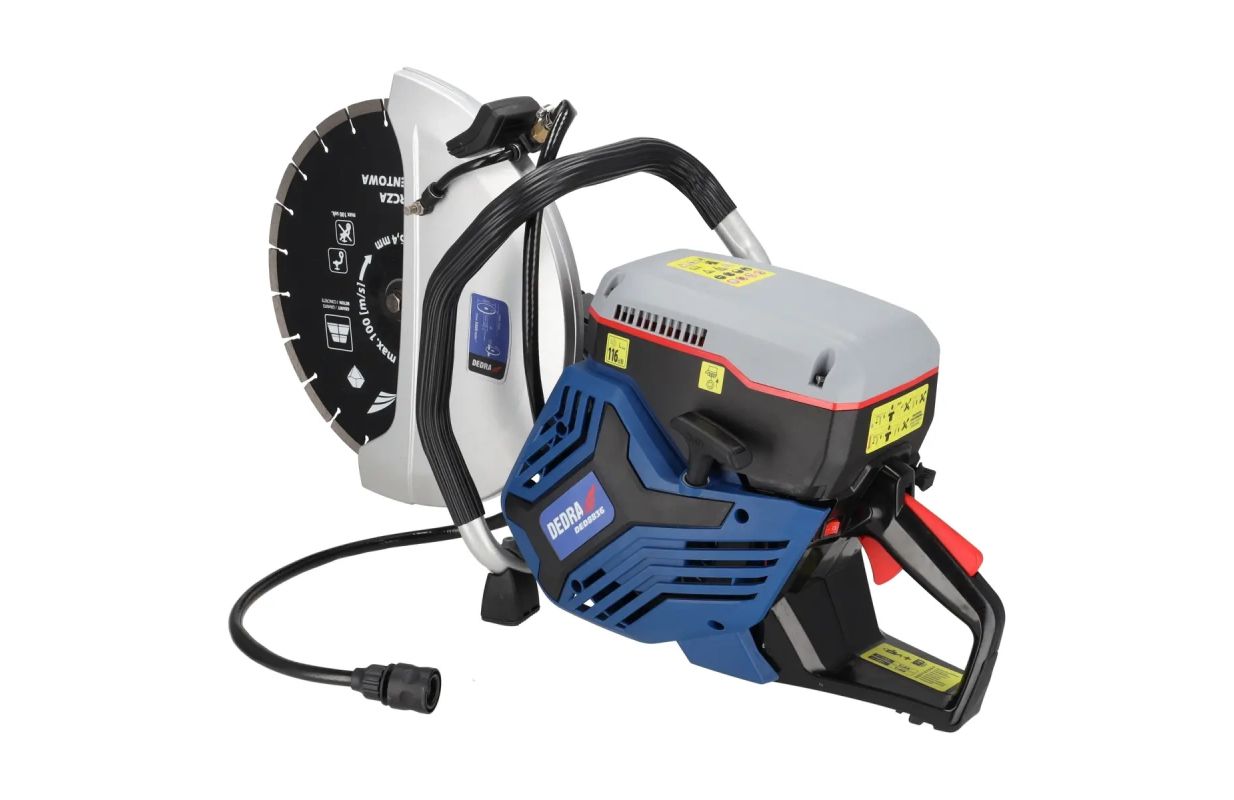

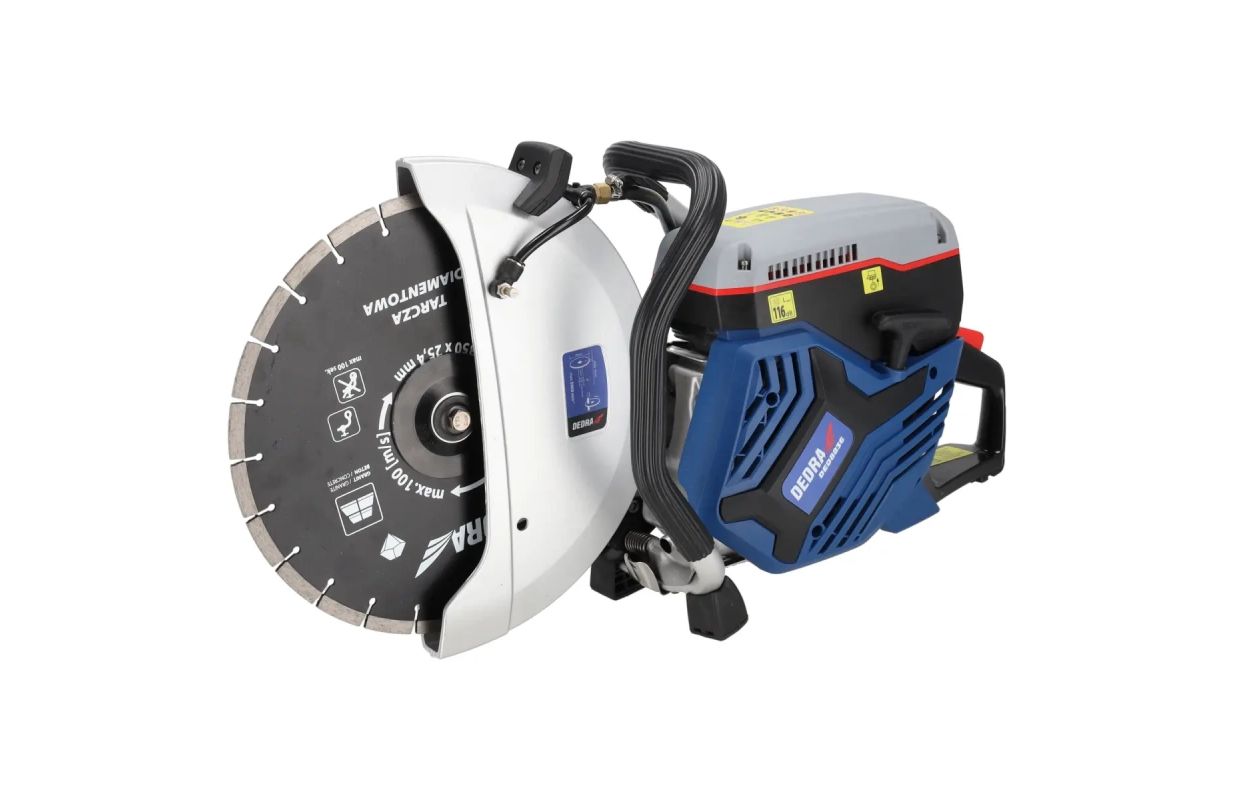

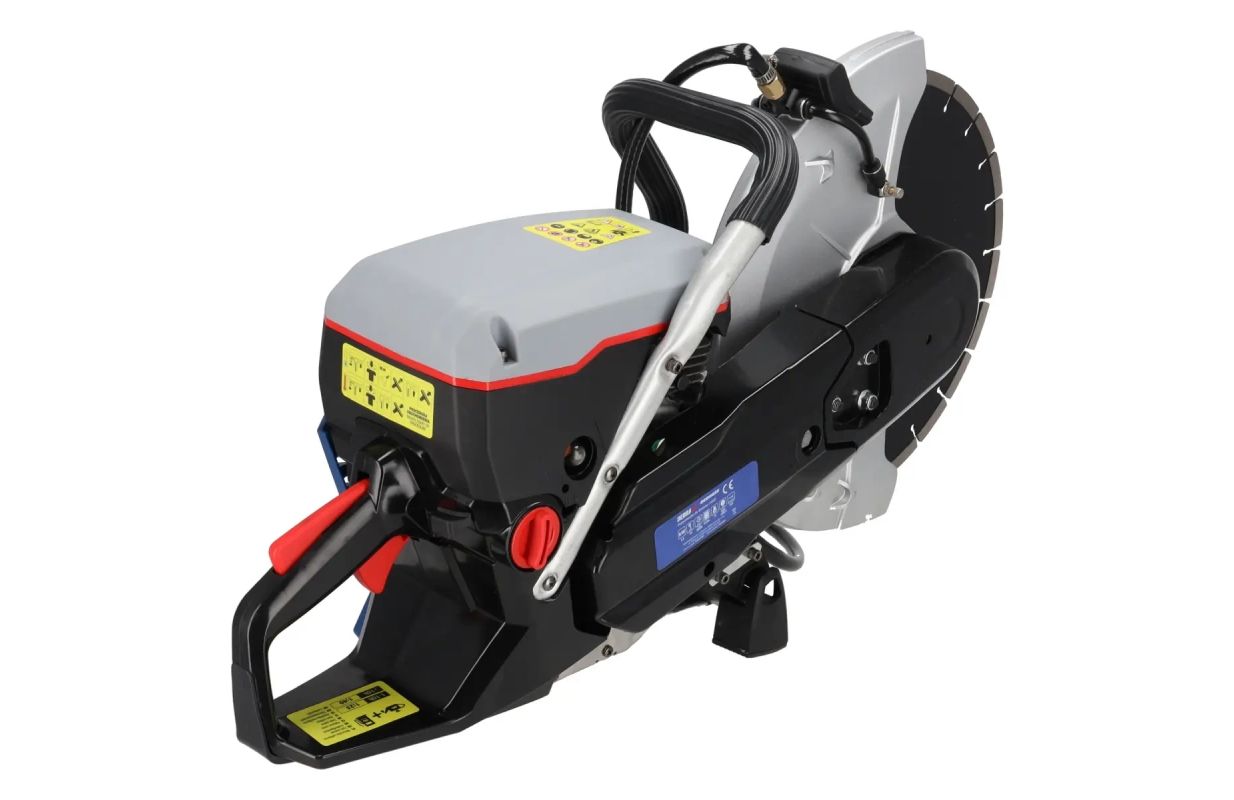

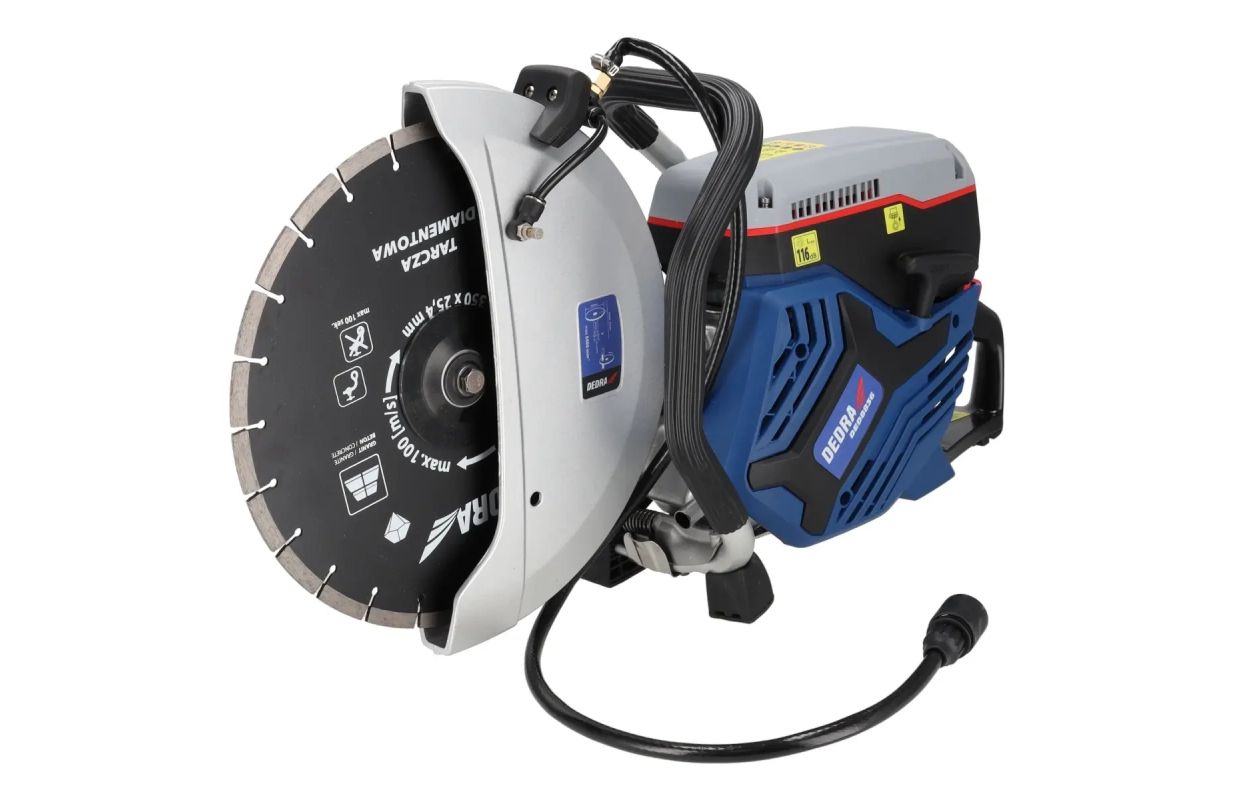

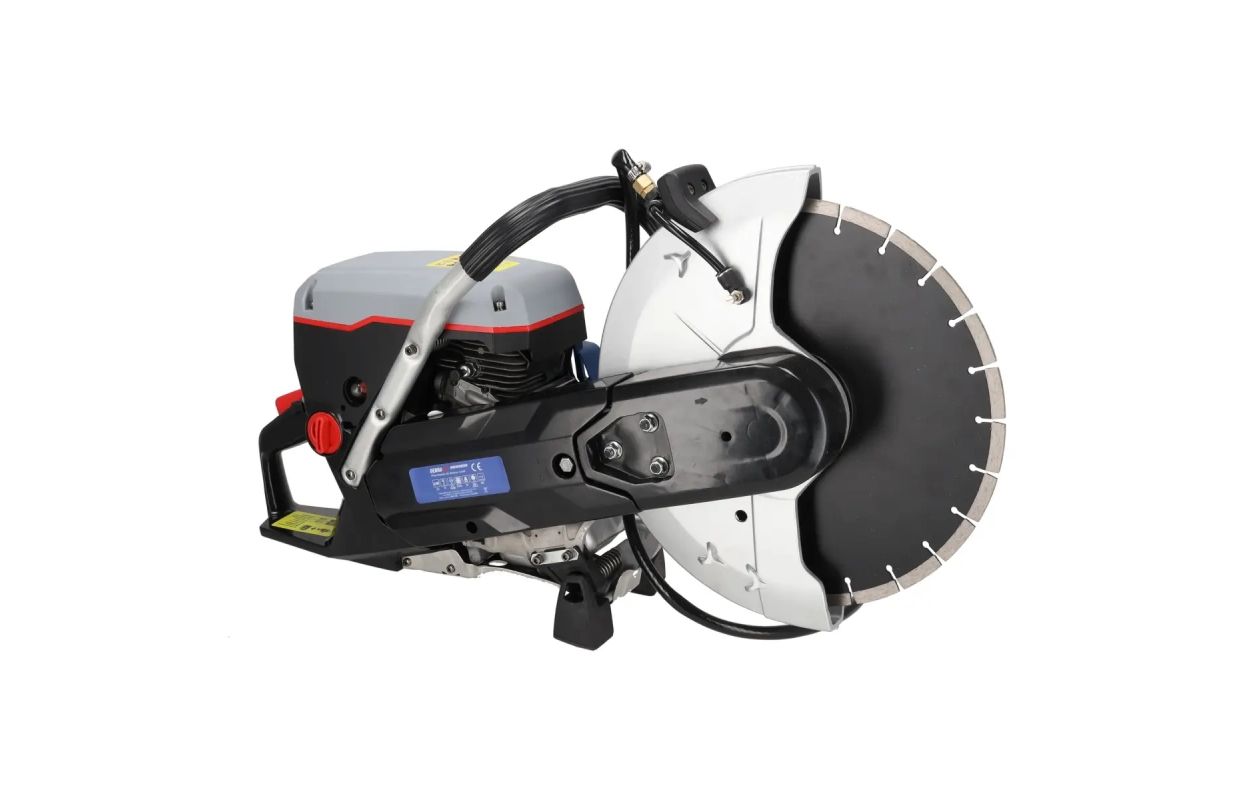

Gasoline cutting machine for concrete, asphalt, and metal 350 mm 3.5 kW (DED8836)

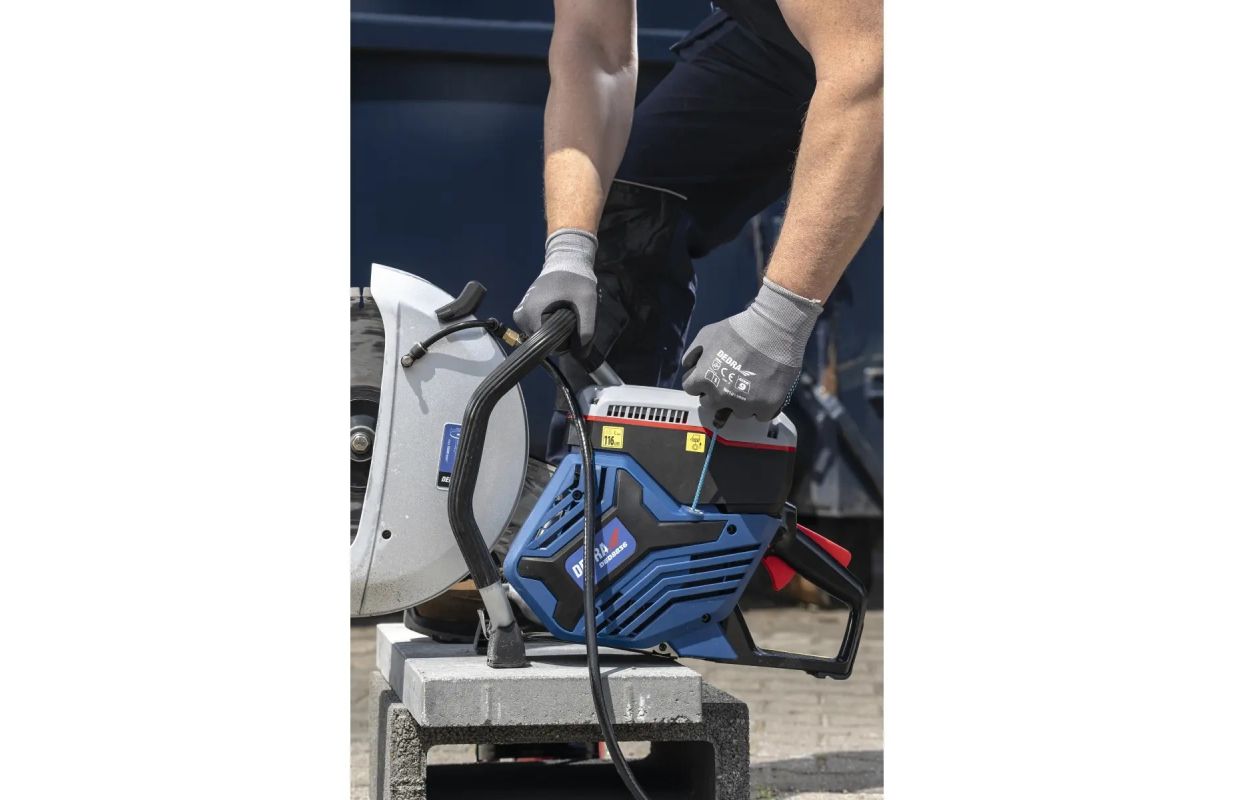

The DEDRA DED8836 gasoline saw is a powerful and reliable tool designed for cutting hard-to-process materials such as concrete, reinforced concrete, asphalt, or metal.

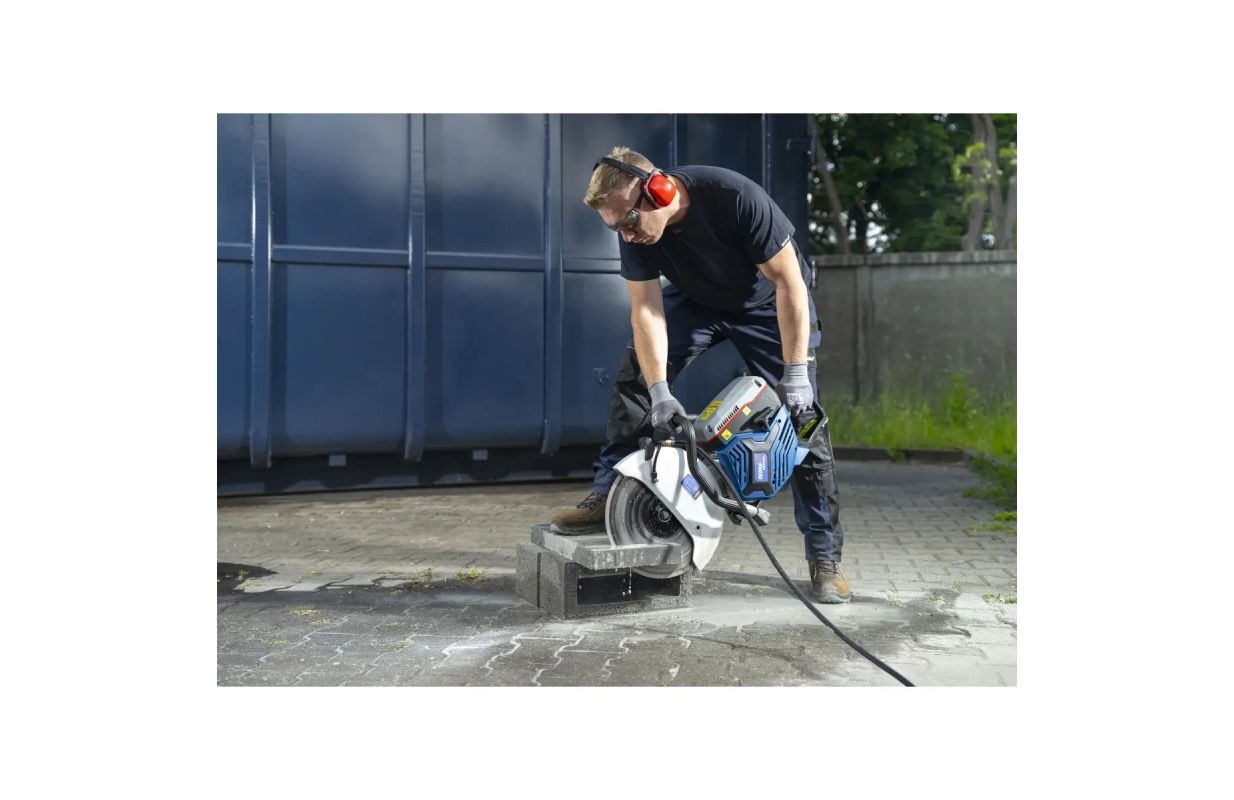

It is excellent for use on construction sites, during road works, installation tasks, as well as during demolition and dismantling. The device successfully handles cutting road surfaces, curbs, pipes, beams, and rebar, making it a useful tool in general, road, and civil engineering construction.

The saw stands out with its powerful two-stroke gasoline engine, which provides high performance and stable operation even in challenging conditions. The manual start allows for quick operation, and the thoughtful design makes it easy to use and ensures precise cutting. By using the appropriate discs, it can cut deeply into hard and dense materials.

One of the advantages is the water cooling system, which effectively reduces dust during operation. This significantly improves the comfort and safety of the operator by reducing the number of particles in the air. Additionally, the adjustable protective cover protects against debris and further enhances safety.

The engine casing is made of durable material with increased resistance to mechanical damage. The ergonomic, non-slip main handle and additional handle provide a secure grip and better control over the cut. The protective cover of the disc improves operator safety by effectively shielding against debris. These features make the saw suitable for professional construction use.

To ensure maximum cutting efficiency, we recommend using the diamond disc H1183A.

Specifications of the DED8836 gasoline saw:

• Water cooling and dust protection - increase efficiency and protect the disc and engine from wear
• Dual air filtration system - protects the engine from contamination
• Decompression valve - facilitates and speeds up engine starting
• Two-stroke engine - provides greater power in a compact body, suitable for intensive work
• Air cooling - protects the engine from overheating during prolonged use
• Durable casing - made of impact-resistant plastic, extending the device's lifespan
• Ergonomic handles - provide a secure grip and better control
• Disc protective cover - protects the operator from debris
• Can cut concrete, reinforced concrete, asphalt, and metal - wide range of applications in construction

Technical data:

• Engine type: gasoline, two-stroke, single-cylinder, air-cooled
• Power: 3.5 kW
• Engine displacement: 74 cm³
• Start: manual
• Revolutions:
  • engine: max. 9500 rpm
  • shaft: max. 5500 rpm
• Cutting depth: max. 123 mm
• Disc size: 350x25.4 mm
• Fuel mixture: 40:1
• Fuel tank capacity: 950 ml
• Application: for cutting concrete, asphalt, metal
• Weight: 13.5 kg

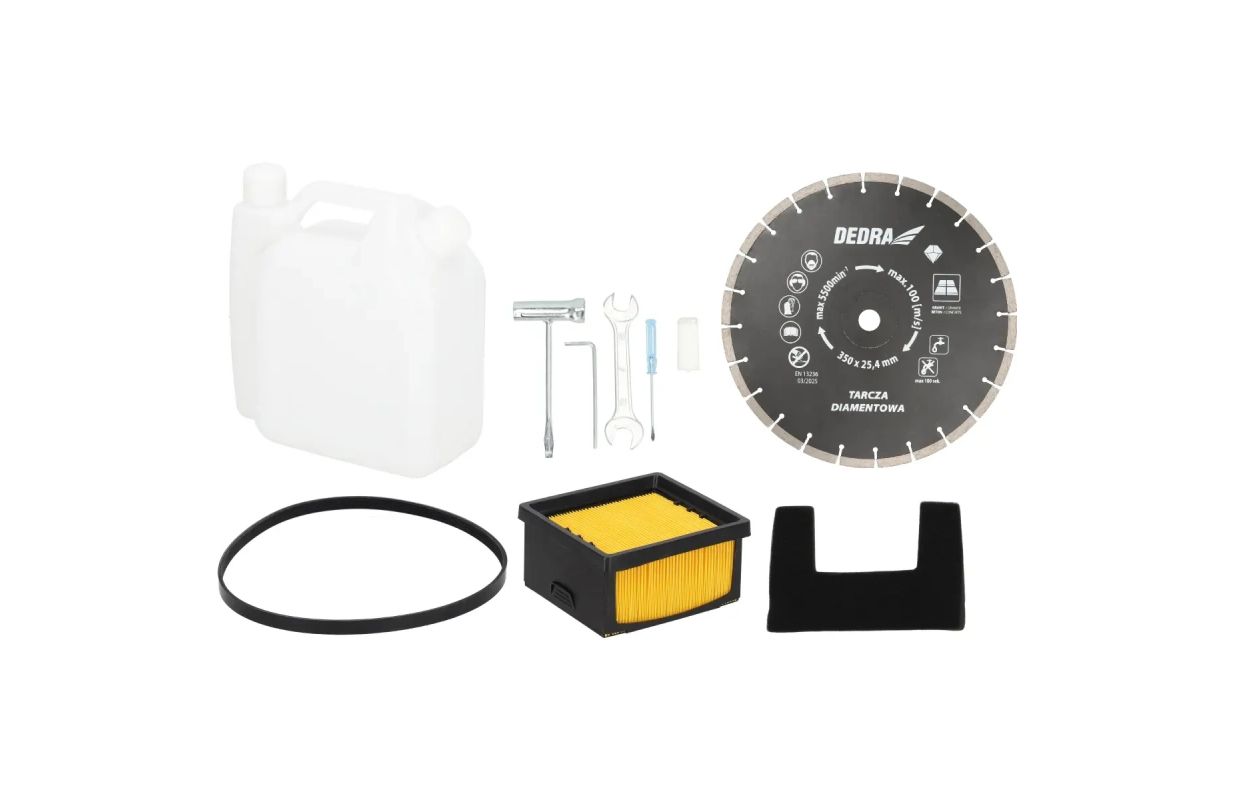

Package includes:

• Gasoline saw [1 pc]
• Disc 350x25.4 mm [1 pc]
• Drive belt [1 pc]
• Screwdriver for carburetor adjustment [1 pc]
• Hex key [1 pc]
• Universal key [1 pc]
• Spare carburetor filter [1 pc]
