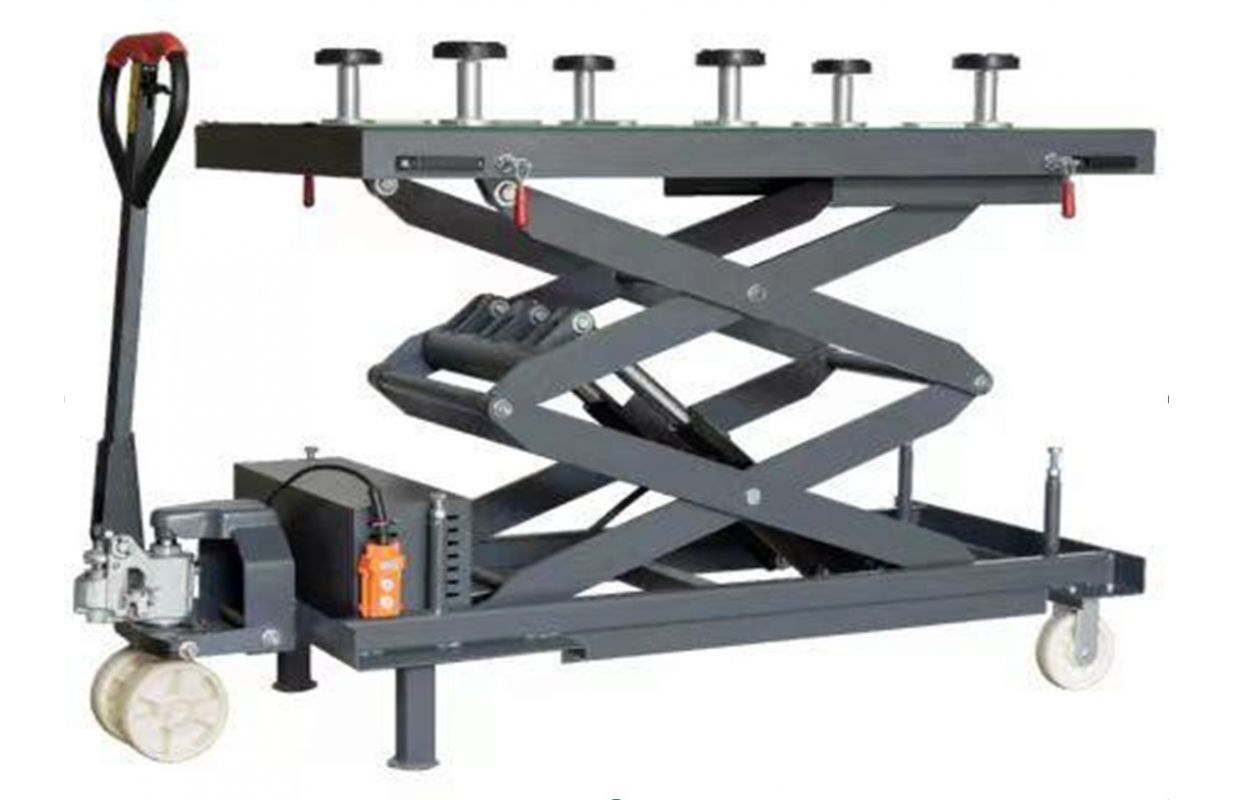

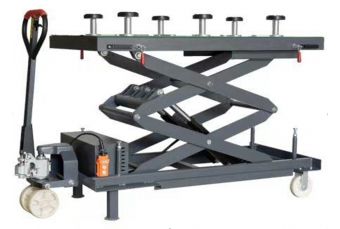

Disassembly of the battery of a new energy vehicle and lifting platform (H2100)

Lifting machine for the disassembly and assembly of automotive batteries on new energy sources: ZY-T2100 support head pull
Parameters:
Load capacity: 1500 kg
Table size: 1500 * 800 mm
Minimum height: 500 mm
Maximum height: 1850 mm
Voltage: 220 V / 50 Hz / 1 phase
Power: 0.75 kW
Functions:
Standard sealed oil cylinder, reinforced shear fork; The support head pull is more labor-intensive, driven by a 220 V motor, and the handle button is used to control lifting and lowering; Equipped with an intermediate mechanical self-locking safety device, the automatic unlocking device is safe and durable; The tabletop can slide from all sides within a radius of 30 mm, facilitating the alignment of screws during disassembly and assembly; The tabletop is equipped with adjustable raised legs, making it easier to accurately support the battery loading points and facilitating the transportation of the battery in conjunction with a stacker trolley.

Load capacity: 1.2 tons Minimum height: 550 mm
Maximum height: 1850 mm
C.Z. / G.Z.: 380/400 kg
Table size: 1500 * 800 mm Packaging size: 1720 * 820 * 620 mm

Vehicle, disassembly of battery packs and lifting platform for vehicles on new energy sources

Head pull, with 6 adjustable raised legs on the table, adjustable front, back, left, right, and tilt
