Description

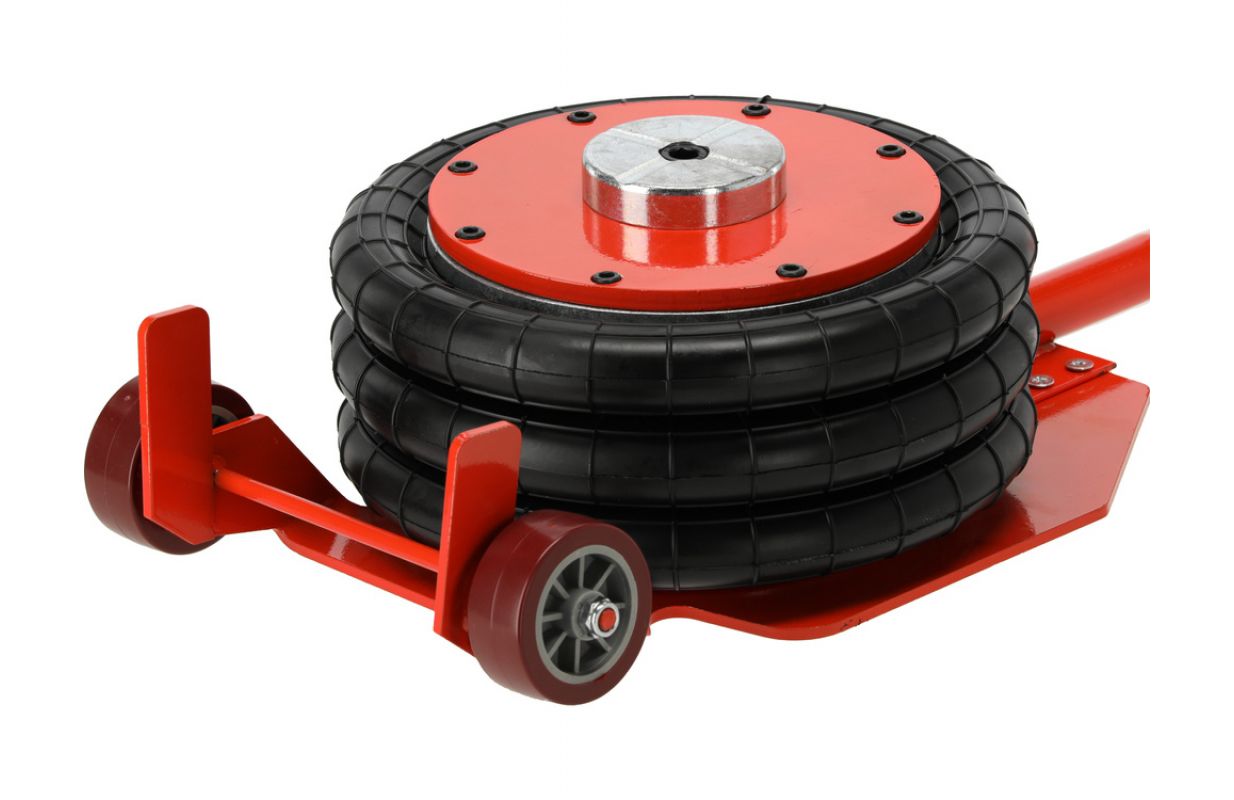

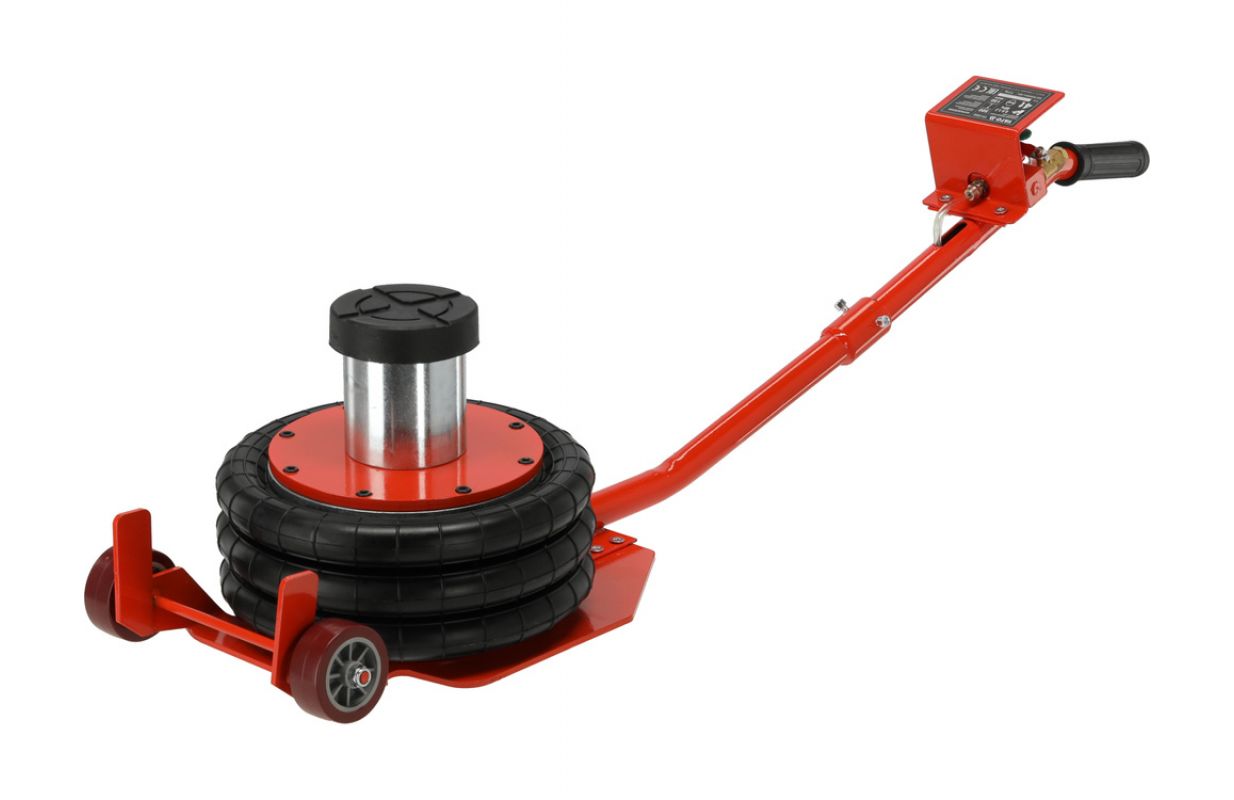

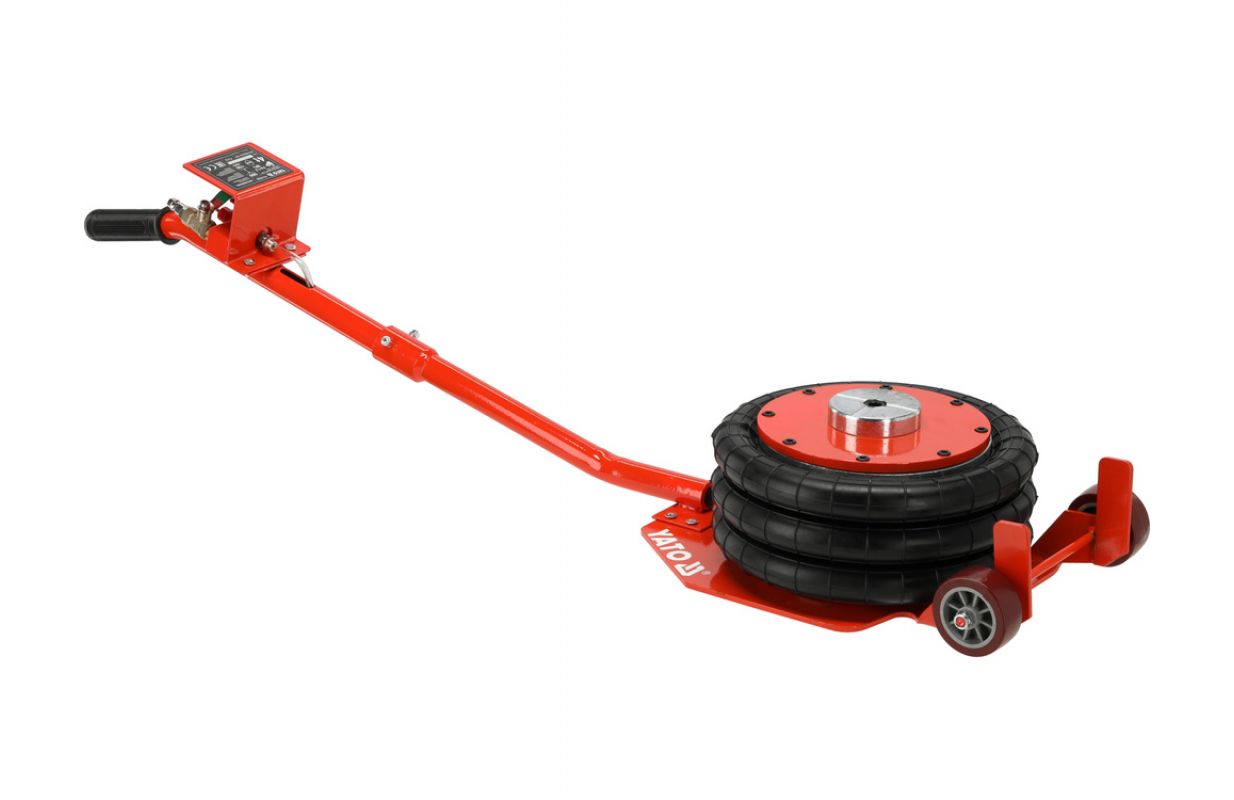

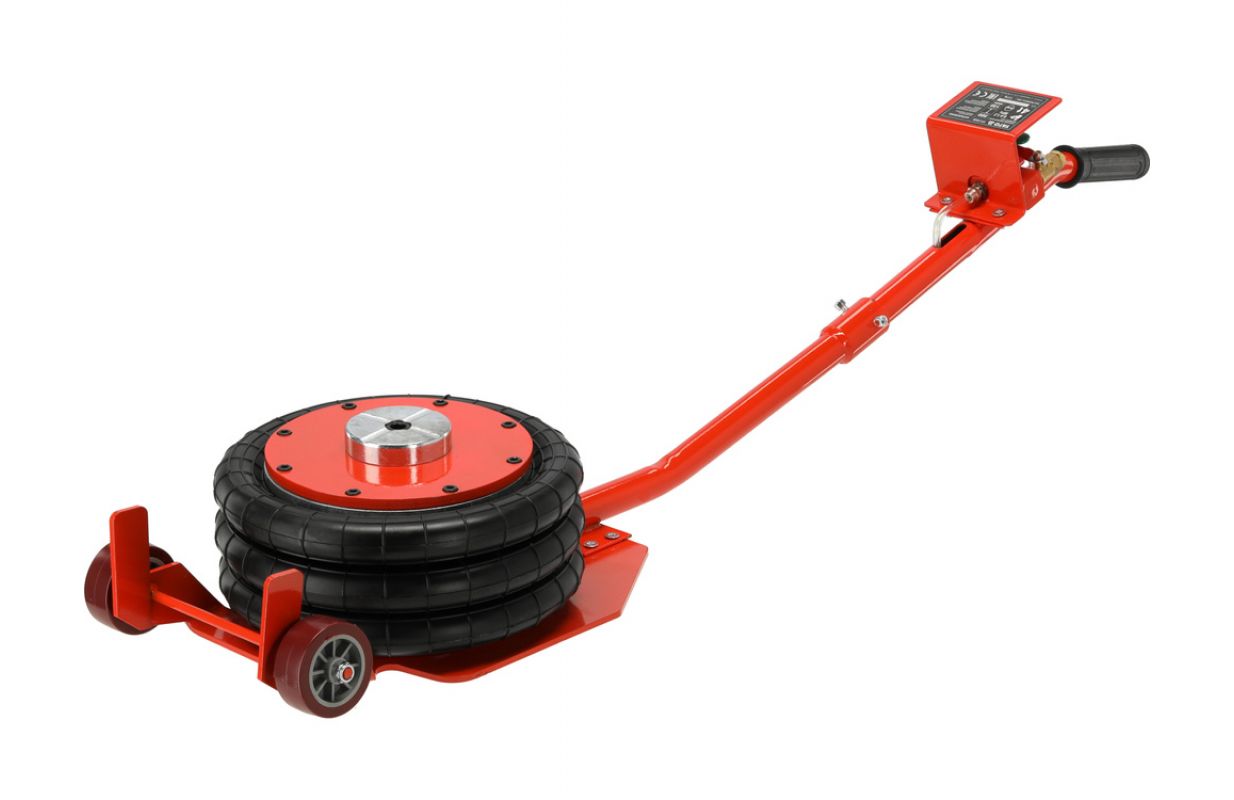

The snowman-type pneumatic jack with a lifting capacity of up to 4 tonnes enables cars and vans to be lifted very quickly and effortlessly. The large lifting range takes into account cars with higher suspension, ensuring that service work can be carried out comfortably and safely.

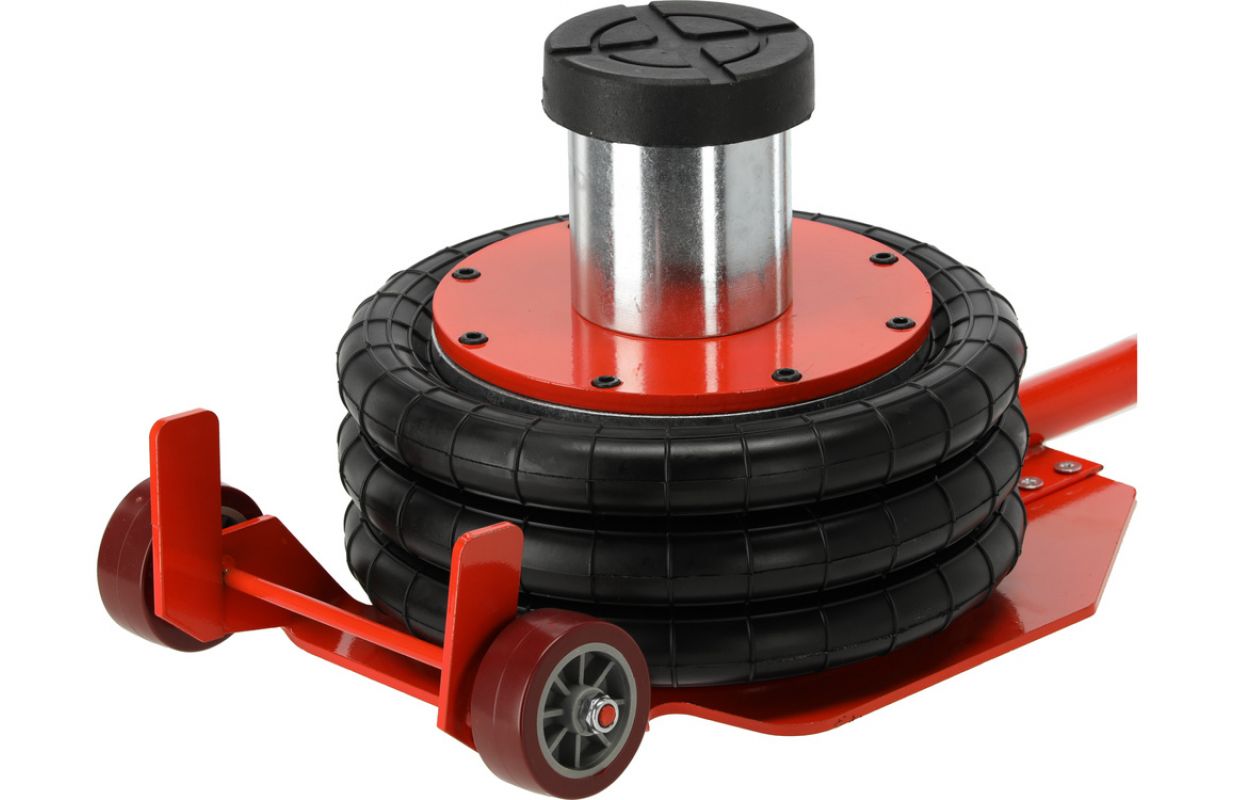

The ability to remove the 8 cm lifting column allows the lift to be used in a reduced range of 15-42 cm.
Technical data
| Brand | Yato |
| Entity responsible for this product in the EU | |
| Series | GRF |
| Max. lifting capacity | 4 t |
| Lifting range | 150-500 mm |
| Min. lifting height | 150 mm |
| Max. lifting height | 500 mm |
| Operating pressure | 0.8-1.2 MPa |
| Air connection diameter (PT) | standard |
| Air supply hose inside diameter | 3/8" (9.5 mm) |
| Material | iron, rubber |
| Working temperature | -30 ~ +50 ˚C |
| Acoustic pressure | <70 dB(A) |
| Acoustic power | <80 dB(A) |
| Weight | 17.5 kg |
| Set includes | lift, booster cushion |
| Symbol | YT-17233 |
