TUYA Smart 3-channel switch for electrical devices that supports remote control via Wi-Fi with Tuya Smart and Smart Life apps; mounting on DIN rail, with metering.
Features:

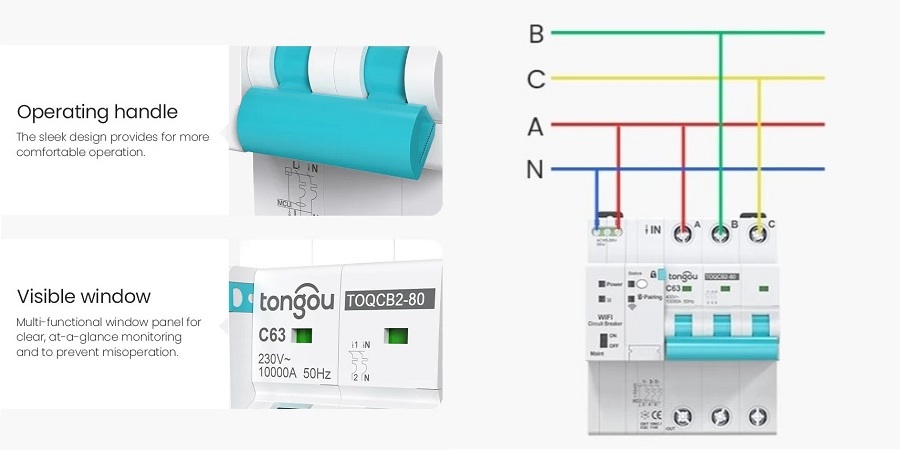

Smart Wi-Fi circuit breaker allows you to monitor electricity (voltage, power, current) and control energy consumption using the mobile app Tuya Smart or Smart Life (Android, IOS). Easy to mount on the Din rail and control remotely with a smart device. With RS485 communication interface. With switch and pairing buttons and their corresponding LED indicators, mechanical safety lock operating (ON/OFF) handle.
Different control modes: Remote (by phone), by voice, manual, by schedule or smart scene. No matter which way you use it, the status of the devices is synchronized.
Remote control: TuyaSmart and SmartLife send data to the cloud platform via a WiFi router, paired with home WiFi through the app, so you can turn electrical devices on / off from anywhere using your smartphone or tablet.
Voice Control: The switch is compatible with Amazon Alexa and Google Assistant, allowing you to turn on / off your home devices even when your hands are busy.
Smart scene. Supports a variety of scenarios: Triggered (devices or groups of devices) on / off by temperature, humidity or other environmental conditions from sensor; or by scheduled time or device states.
Device grouping: Control multiple devices with one touch or voice command.
Timing: set scheduled / countdown timers to turn on / off at specified time.

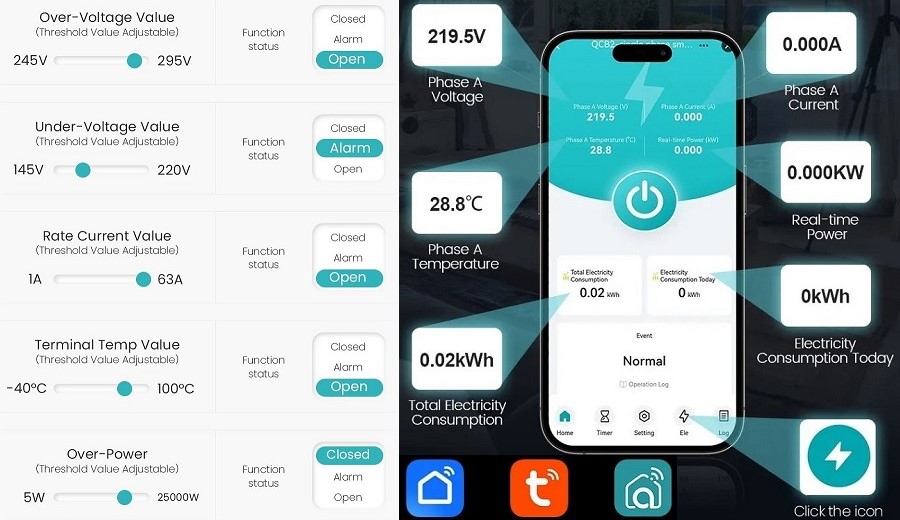

Sync status: real-time device status provided to App (settings, power consumption, etc.) and receive event notifications for maximum security.
Energy saving: With the help of the Tuya app, combining lighting and other devices according to environmental and weather conditions or setting a schedule allows you to reduce energy consumption, saving you time as well.
Share control: control your smart home together with your family members.
Compatibility: with Amazon Alexa, Google Assistant, IFTTT.
App support: Free iOS and Android TuyaSmart and SmartLife APP.
Security. This miniature circuit breaker protects against overvoltage, short circuit, undervoltage and leakage.
Specifications:
Rated voltage: AC 400 V.
Frame current: max. 63A.
Frequency: 50/60Hz.
Wi-Fi frequency: 2.4 GHz.
Number of poles: 3.
Works with Amazon Alexa & Google Assistant.
App: TuyaSmart / SmartLife (Android, iOS).
Installation: on DIN rail, 35mm.
Overvoltage / short circuit / undervoltage / leakage protection.
Electricity metering accuracy: 1.0 class.
Communication protocols: WiFi 2.4Hz (default)/ ZigBee 3.0/ 4G.
Short circuit breaking capacity: Icn=Ics=10kA (IEC 60898).
Operating system support: Android, iOS, HarmonyOS.
Operating temperature: -25°C ~+65°C (max).
Mechanical life:> 10000 times.
Electrical life: > 6000 times.
Weight: 564 g.

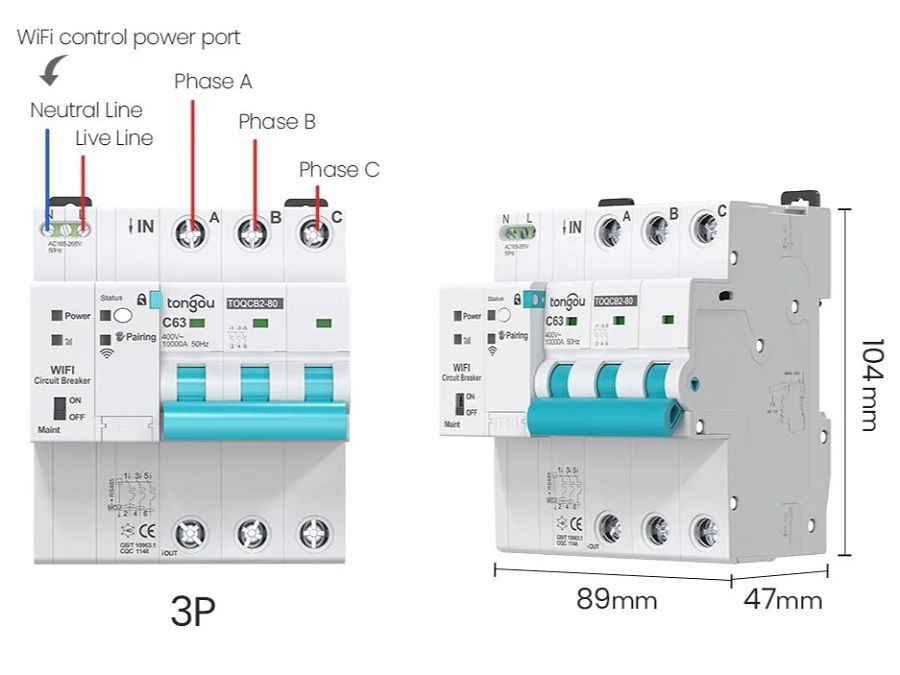

Dimensions: 89x47x104mm.
Warranty: 24 months.
