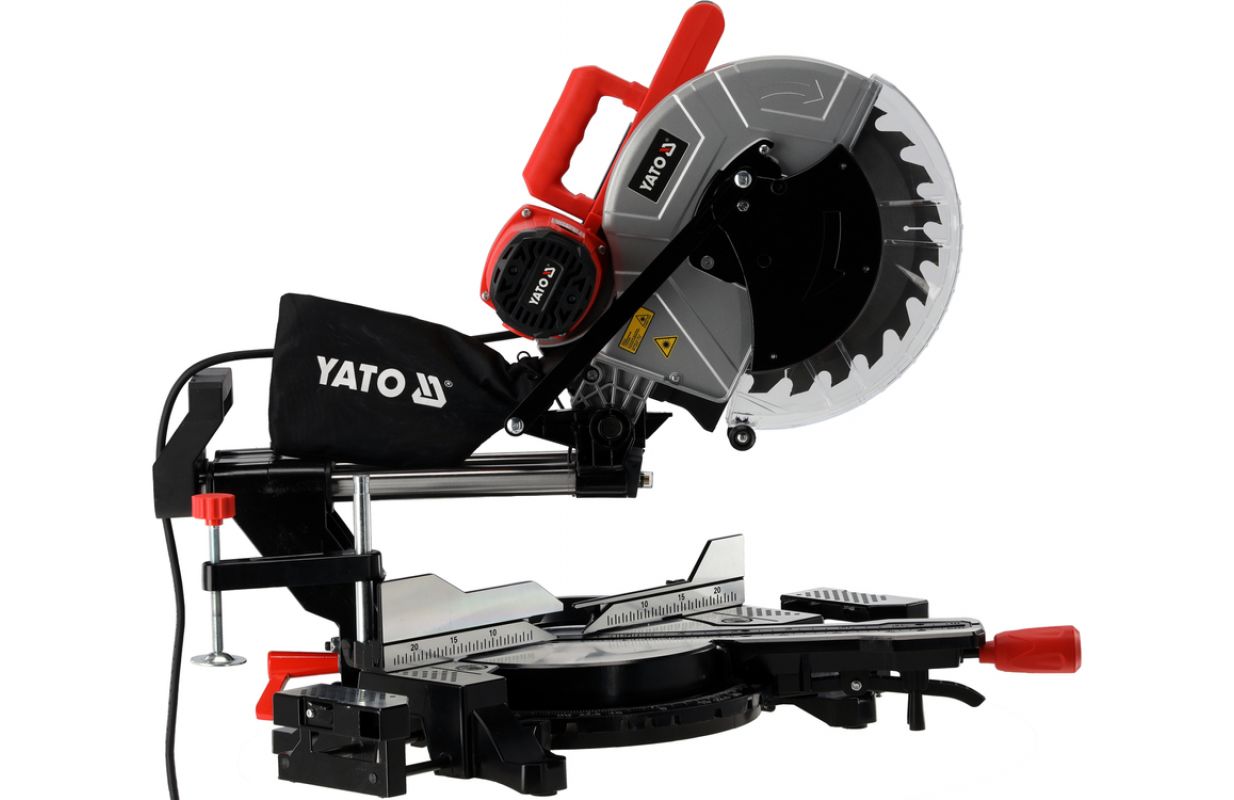

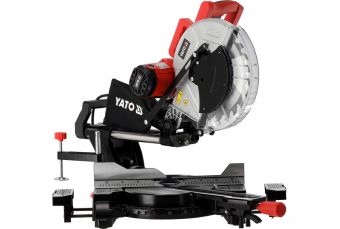

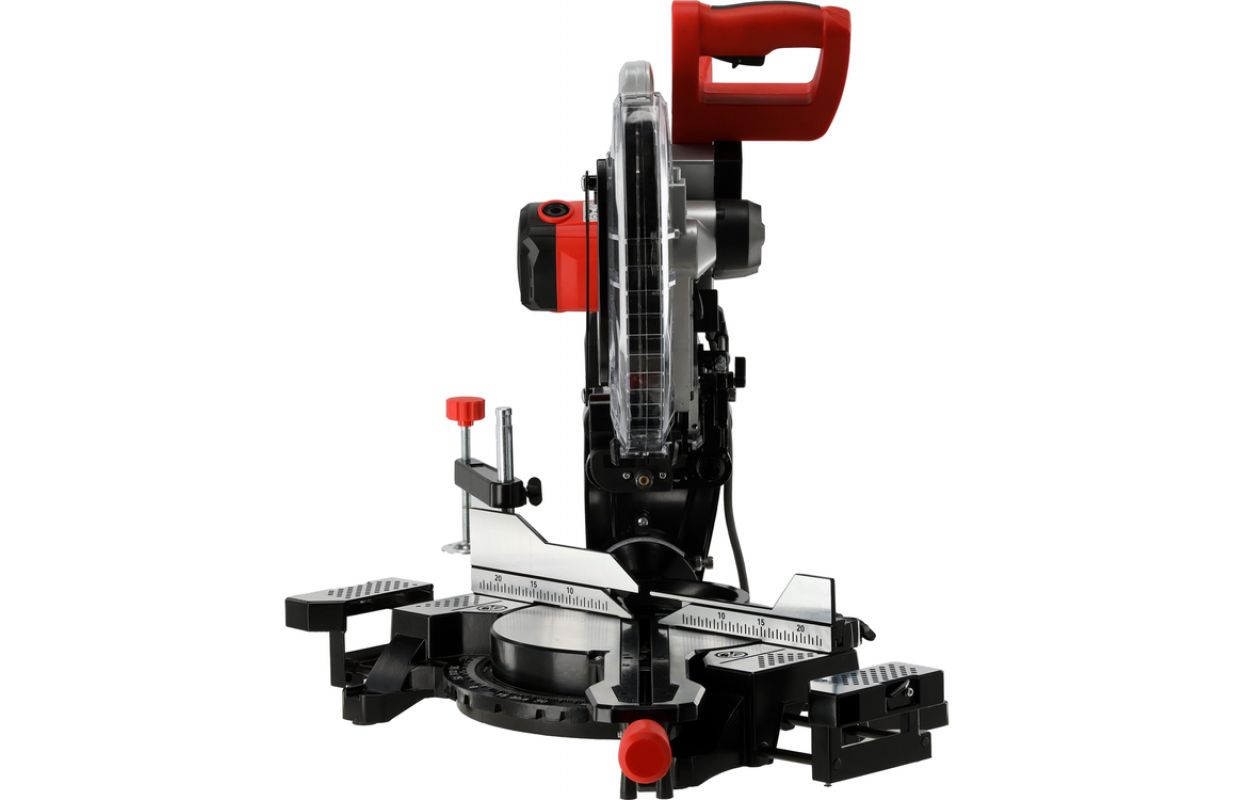

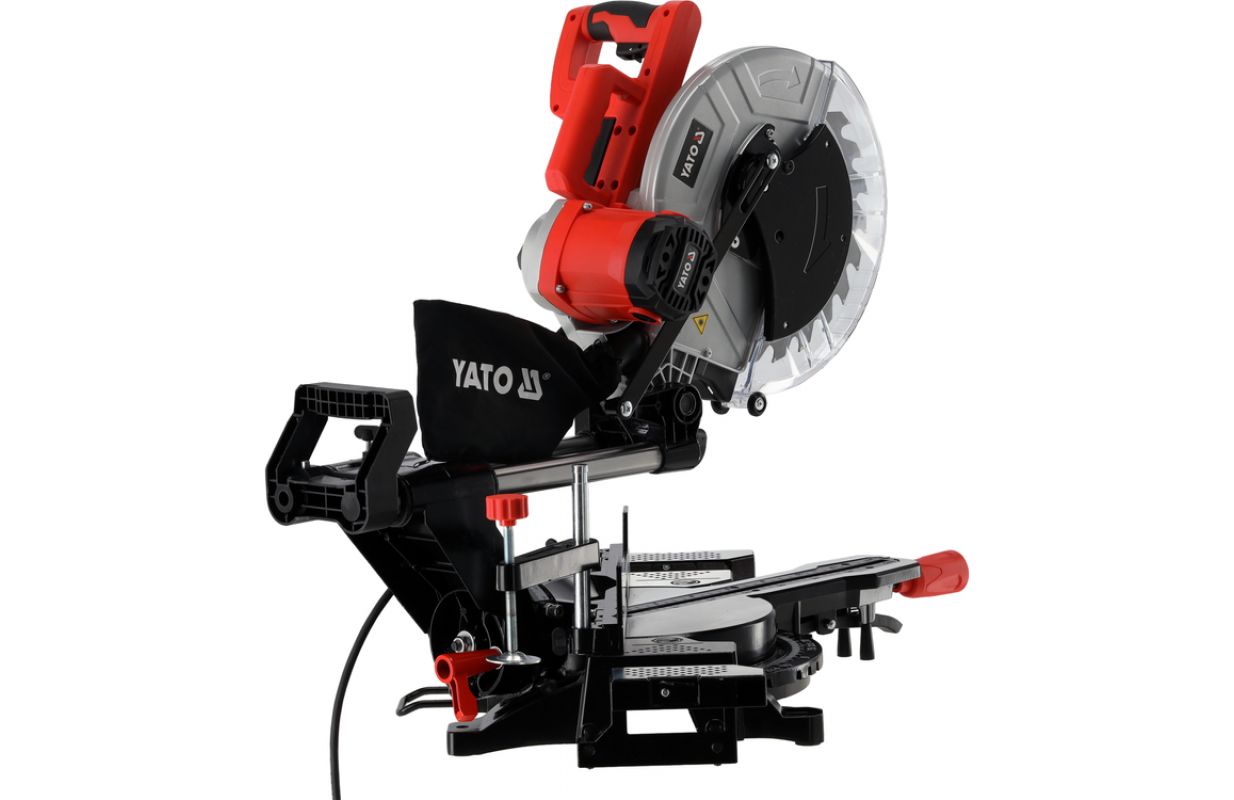

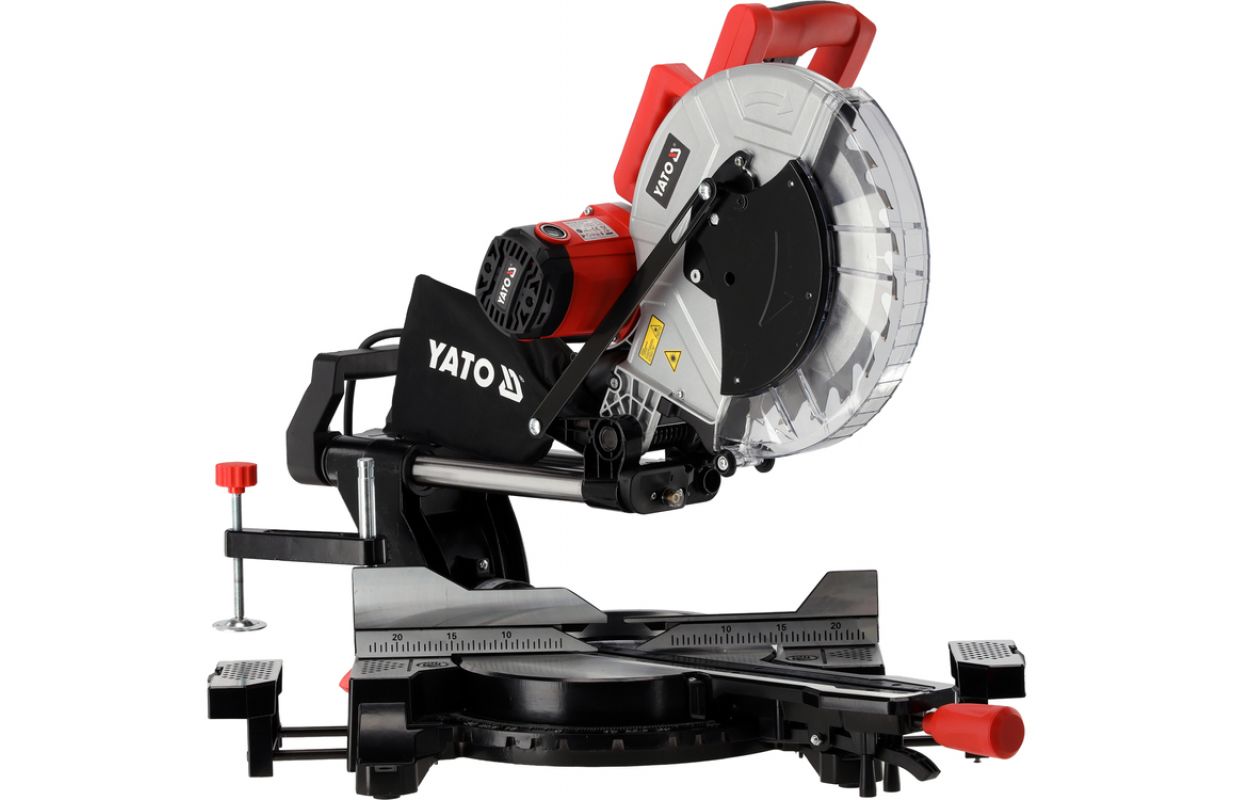

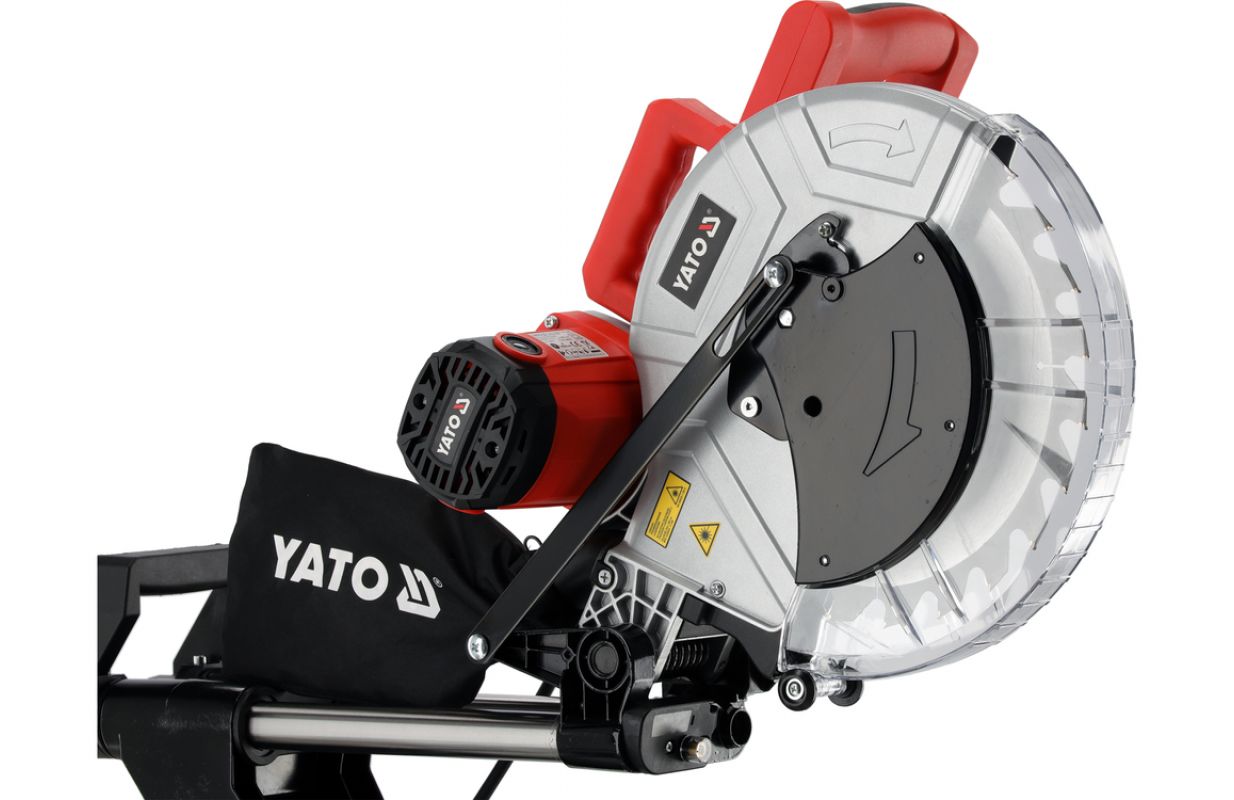

The YT-82176 saw is designed for precise and repeatable cutting of wood and wood materials during carpentry, assembly, and finishing work. The large 305 mm diameter blade, wide adjustment range, and guiding head allow for efficient processing of workpieces with large cross-sections and lengths. The saw is intended for straight, angled, and double angled cuts, enabling the execution of complex angular joints with high precision.

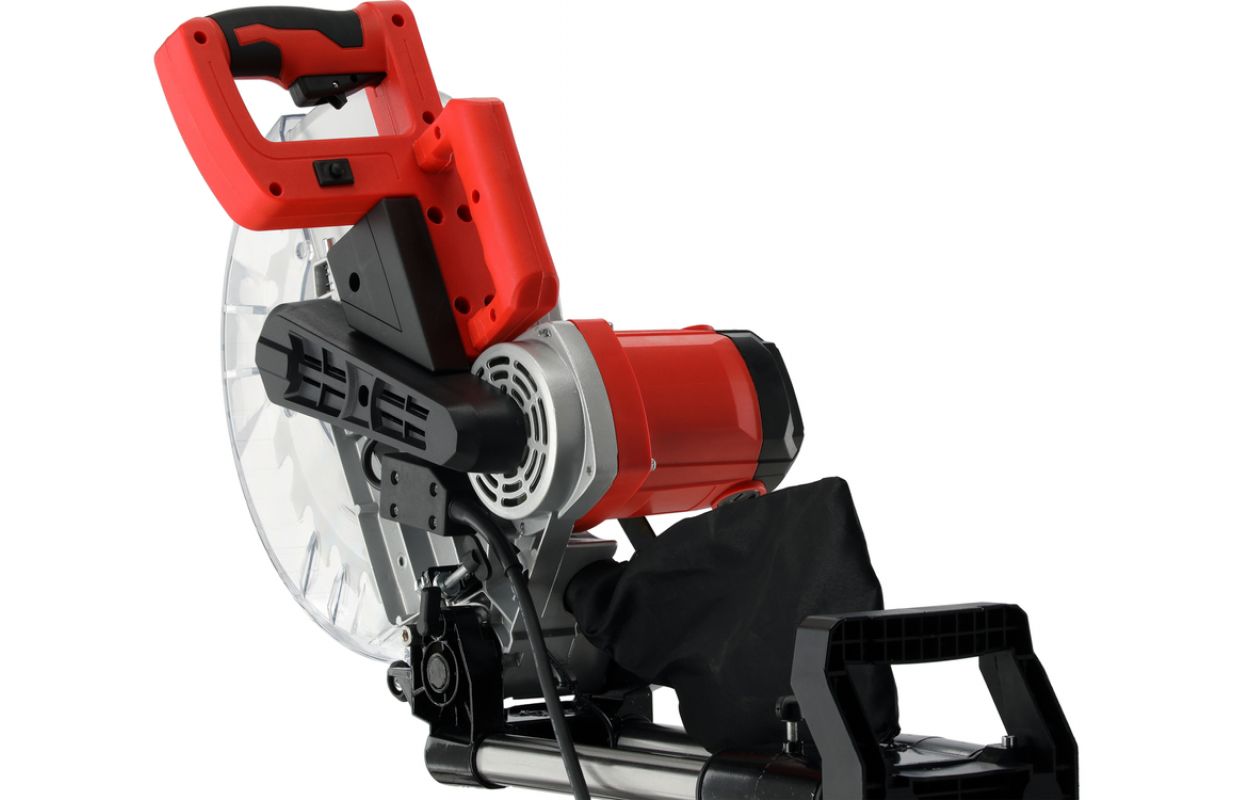

A powerful 2000 W motor and stable operating system ensure smooth blade guidance during intensive work in the workshop and on assembly. The rotating work table with a clear angular scale, feed locking option, and laser indicator for the cutting line increase the accuracy of material positioning and facilitate serial cuts at a specified angle.
Key features and specifications:
Direct drive
Maximum power: 2000 W
Speed: 3800 rpm
Blade: 305 x 30 x 2.8 mm
Incoming blade: 24 teeth
Bevel cut range: -45° to +45°
Head tilt: 45° in both directions
Power cable: 3 m
Insulation class: II
Device weight: 20.7 kg
Maximum cutting range:
105 x 330 mm – Straight cut 0° / 0°
105 x 230 mm – Bevel 45° / 0°
60 x 330 mm – Tilt 45° left
60 x 230 mm – Tilt 45° left + tilt 45° left
35 x 330 mm – Tilt 45° right
35 x 230 mm – Bevel cut 45° + tilt 45° right
Design and functionality:

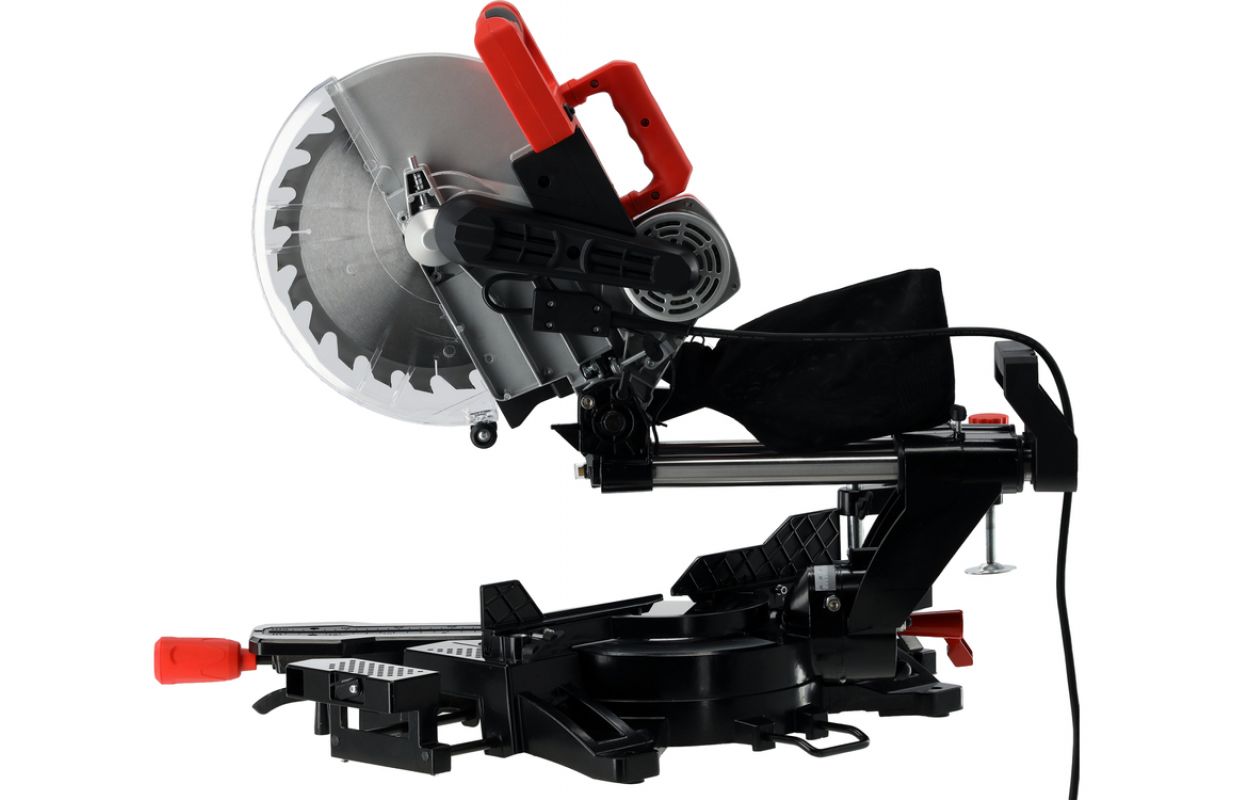

Sliding head on guides for cutting wide workpieces
Feed locking option for standard cuts without head movement
Rotating work table with clicks for standard angular settings
Laser indicator for the cutting line to enhance material guidance accuracy

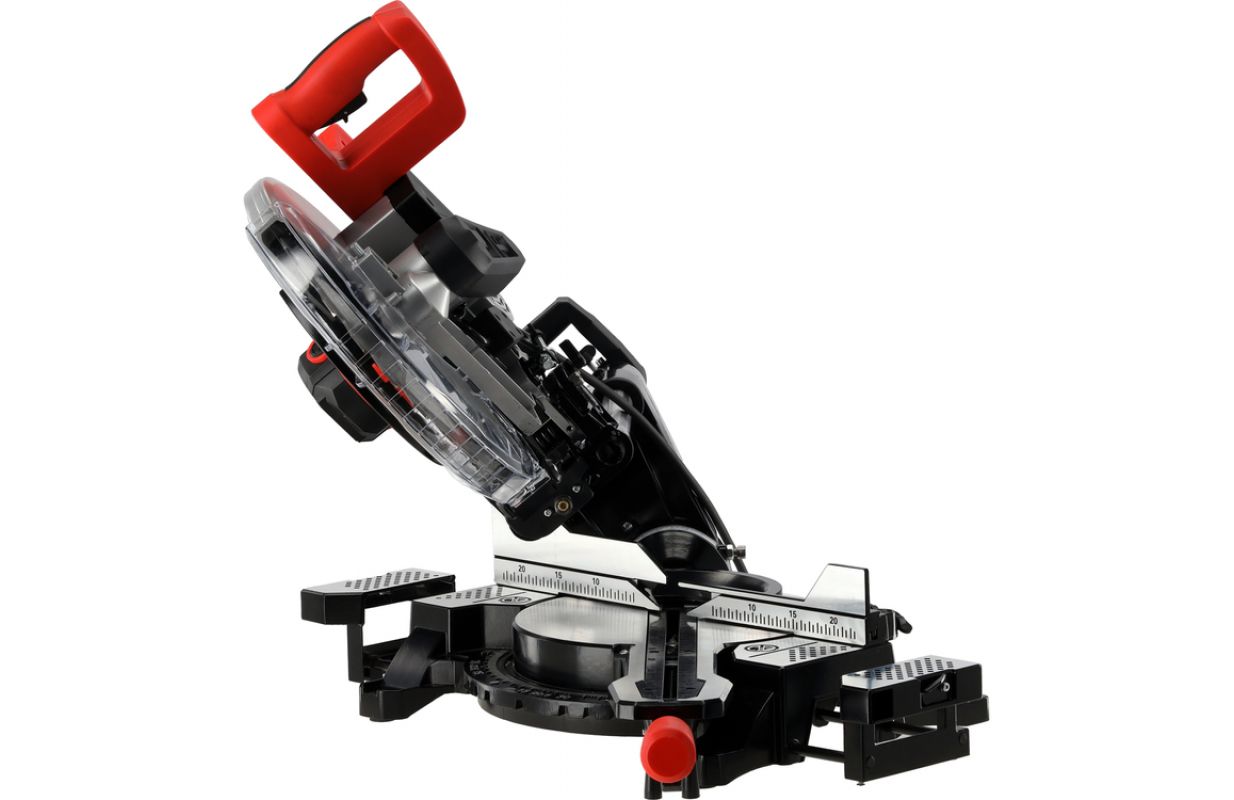

Two-sided head tilt system for complex angled cuts
Table extensions for improved support of long workpieces
Material clamp stabilizes the workpiece during operation
Spindle lock for easy blade replacement
Effective dust removal system with the option to connect a dust collection bag or external dust extractor
Ergonomic transport handle for easy carrying
Standard equipment:
Saw with 24 teeth
Dust collection bag
Table clamp
Adjustment screws for moving the cutting head
Acoustic parameters:
Sound pressure level LpA: 95.2 ± 3.0 dB(A)
Sound power level LwA: 108.2 ± 3.0 dB(A)
The device is designed for intermittent operation with an S6 cycle of 40%, making it ideal for intensive work in the workshop. The smooth movement of the head along the guides allows for wide cuts, while the slip lock function provides greater control during precise cutting of short workpieces. The combination of high power and extensive adjustment options makes the YT-82176 model suitable for producing carpentry products and processing structural elements that require precise material matching and a wide cutting range.
