Battery Ratchet | 160 Nm | 18V | 4Ah (YT-828030)

Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.

Series
GRF

Holder size
1/4" (6.3 mm)

Max. torque
160 Nm

RPM
0-1100 / 0-1450 / 0-1750 min⁻¹

Impact frequency
0-1500 / 0-2100 / 0-2600 min⁻¹

Voltage
18 V DC

Battery type
Li-ion

Battery capacity
4000 mAh

Charger included
yes

Charging time
2 h

Motor type
brushless

Tool holder type
Driver

Stroke
yes

Electronic speed control
yes

Speed switch
yes

Fast charging
yes

Charge level indicator
yes

Electrical insulation class
III

Acoustic pressure
98.0 ± 3.0 dB(A)

Acoustic power
106.0 ± 3.0 dB(A)

Vibrations
19.0 ± 1.5 m/s²

Weight
1.25 kg

Set includes
ratchet, 1/4" (6.3 mm) (F) x 1/2" (12.7 mm) adapter, battery, charger

Symbol
YT-828030

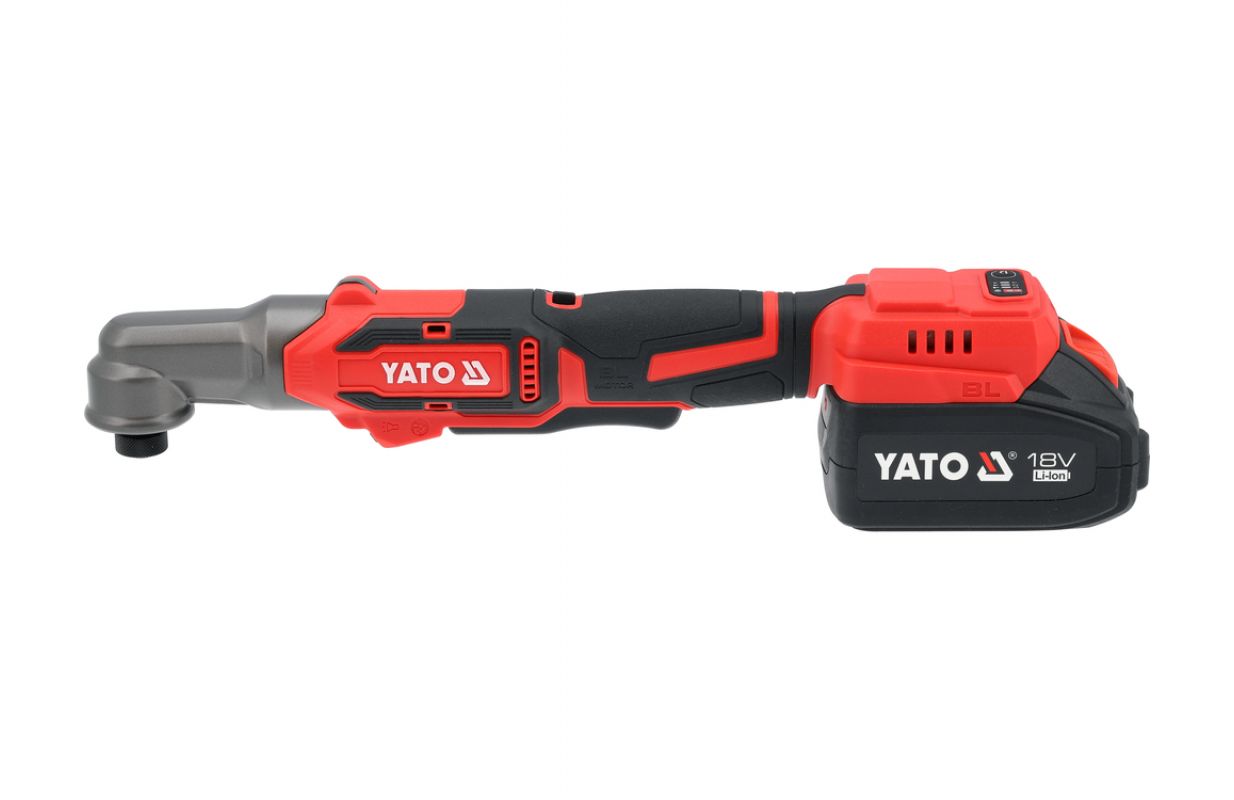

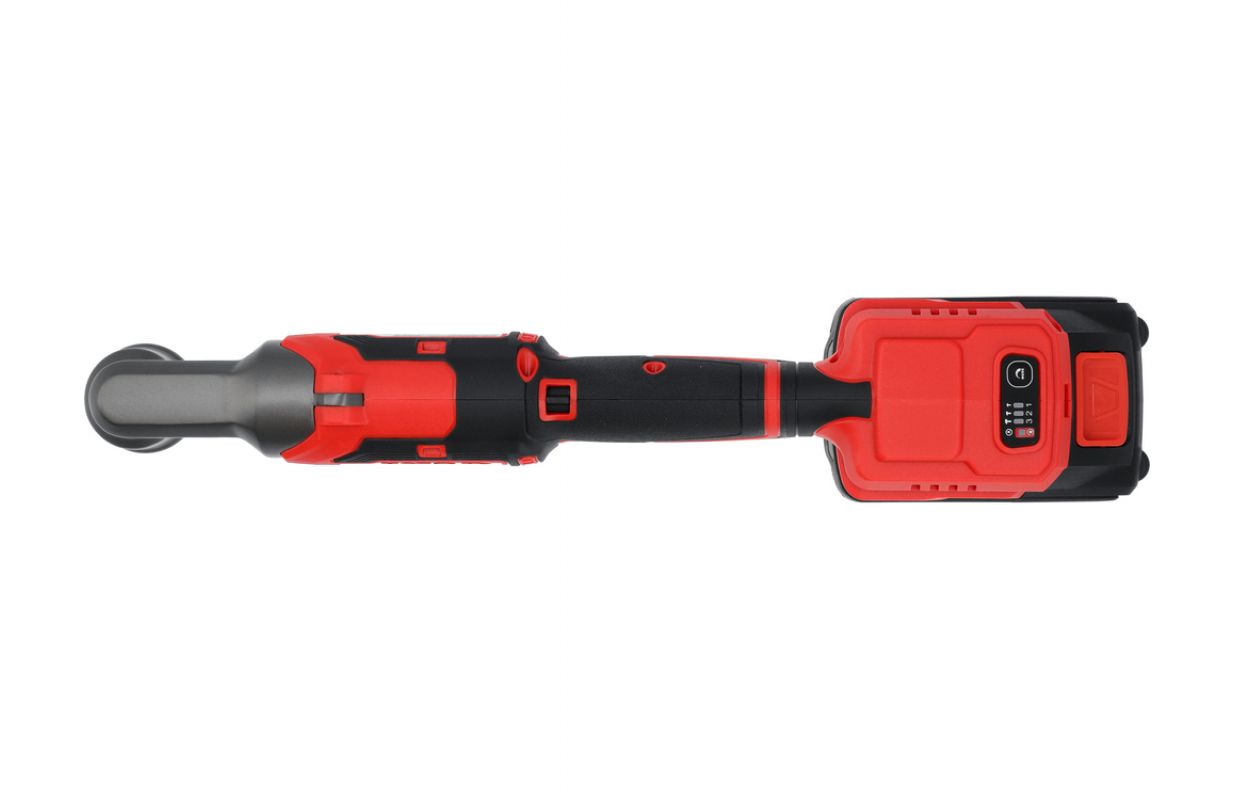

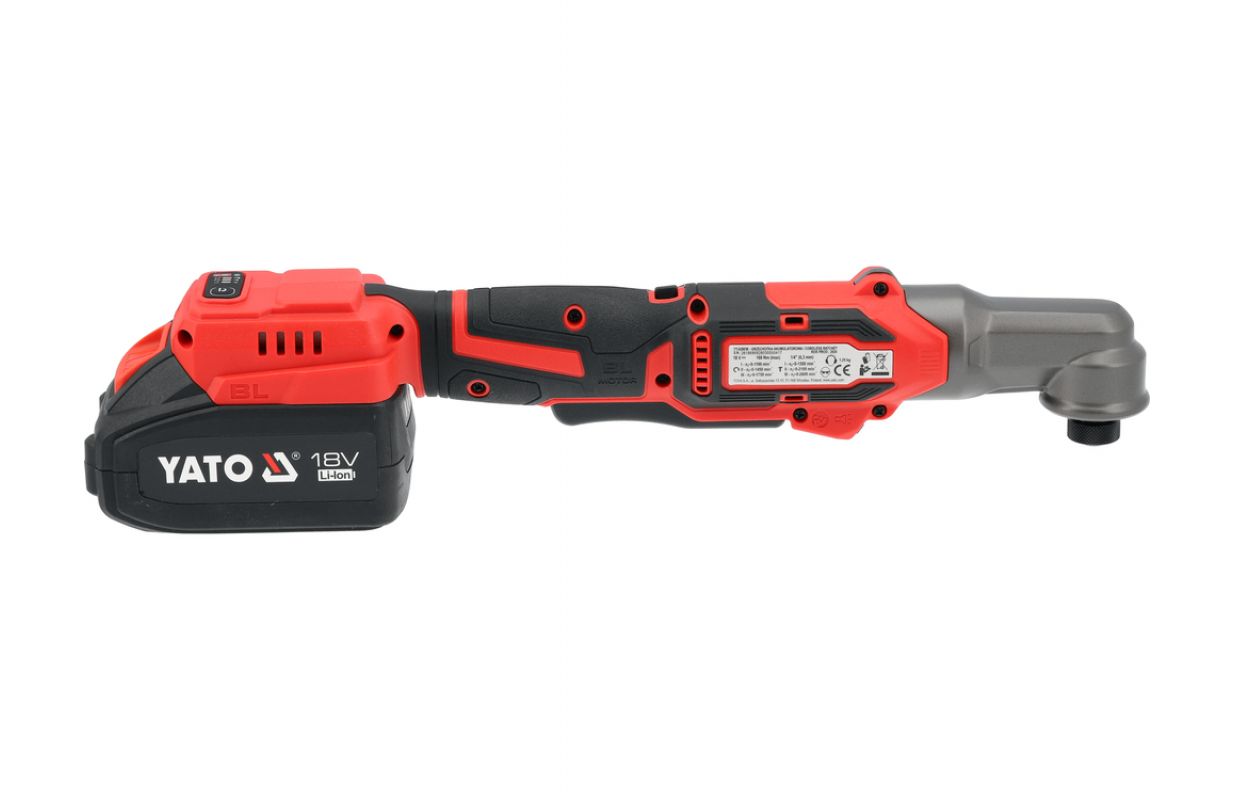

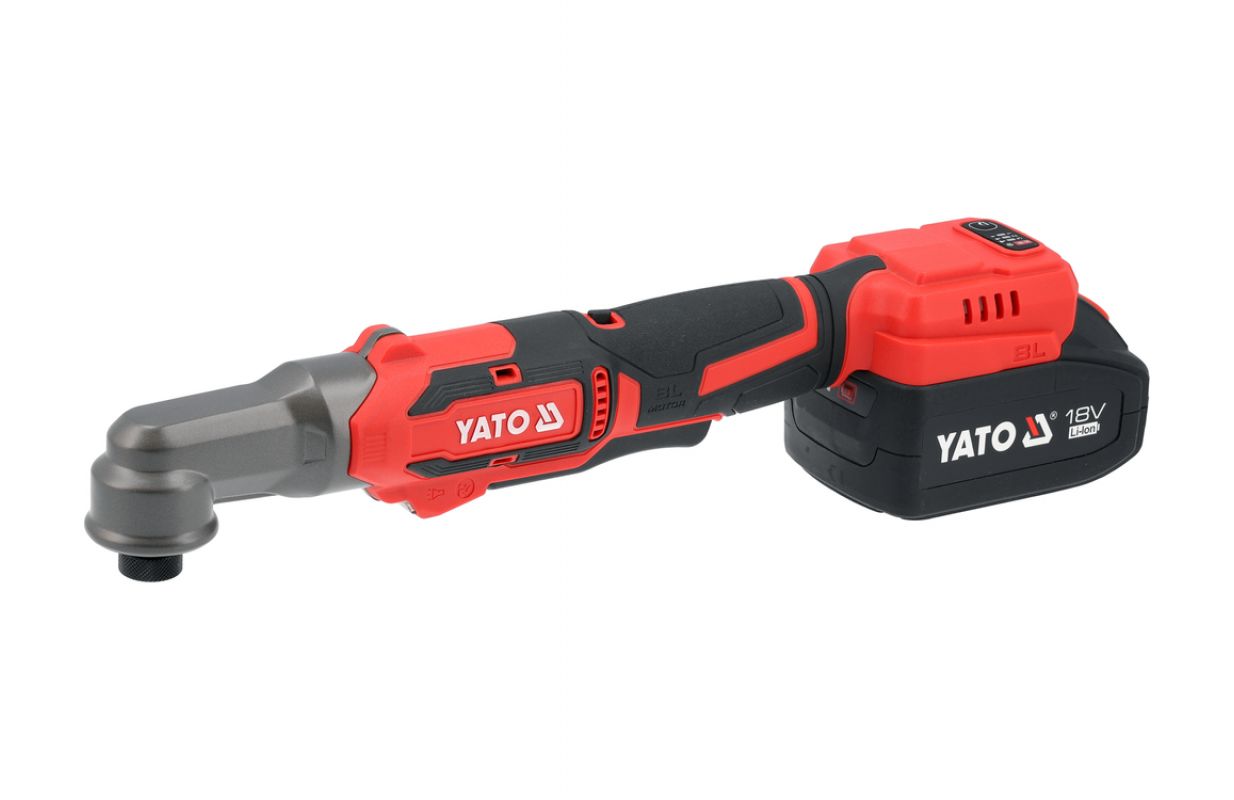

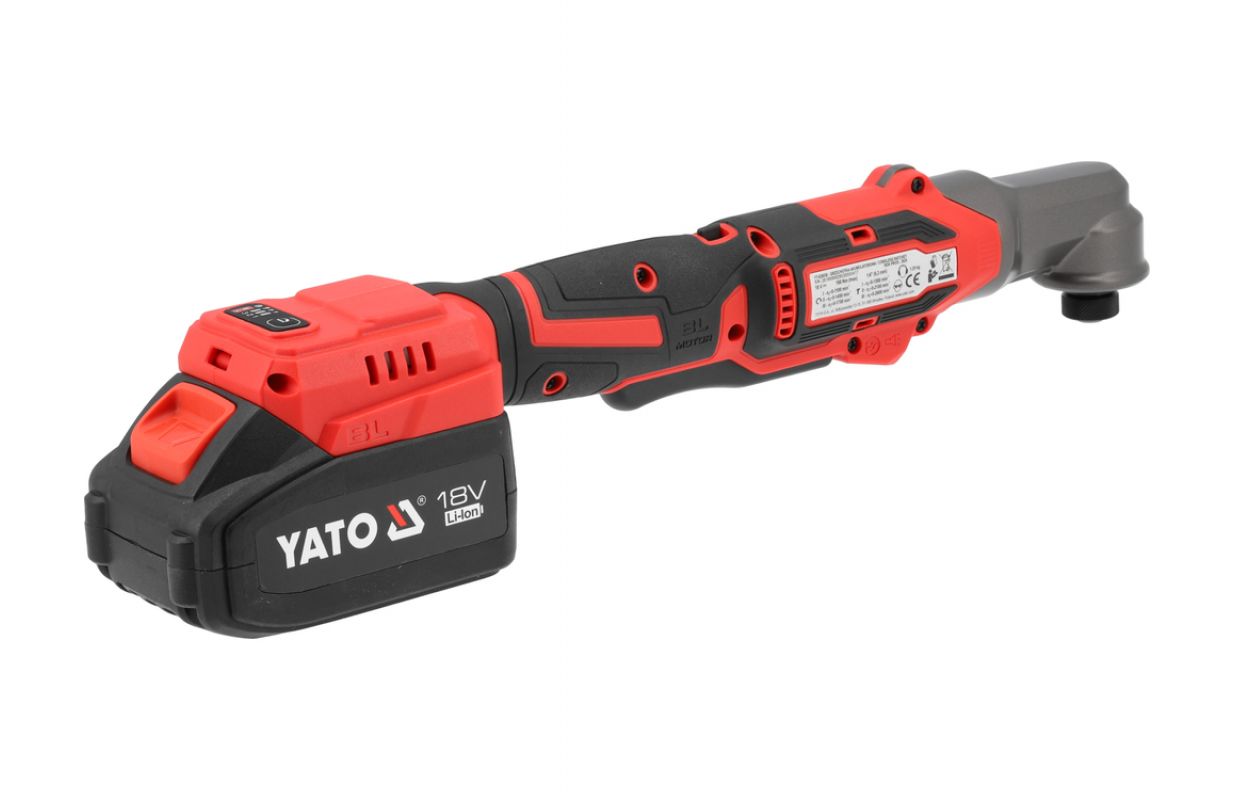

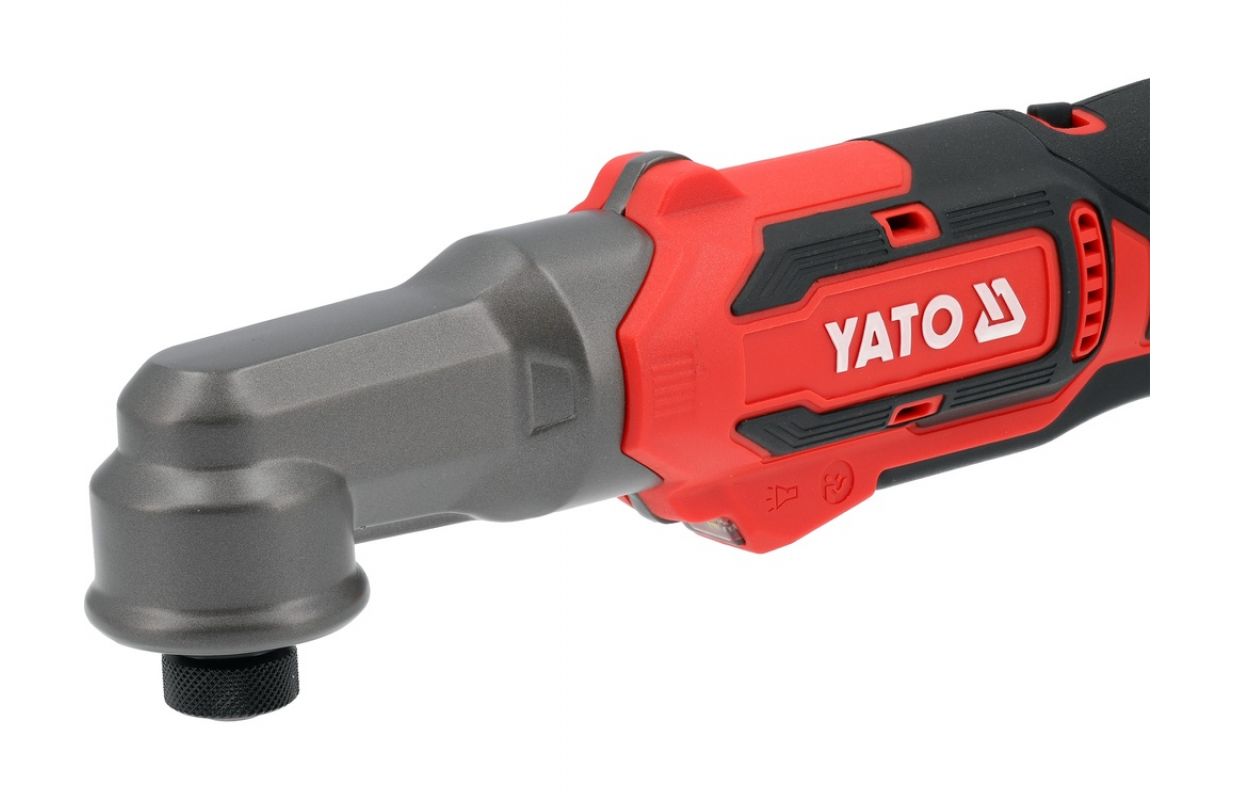

Product description
The 18 V cordless impact wrench is a tool designed for effectively loosening and tightening screws, nuts, and bolts, even in challenging operating conditions. With its impact function, it allows for efficient work with stuck connections, reducing the risk of damaging fasteners. Its compact design and battery operation provide convenience without access to an electrical outlet.

The brushless motor ensures high efficiency, durability, and stable operating parameters. The control panel allows you to select one of four modes, enabling torque and impact frequency adjustments according to the specific task. The direction switch facilitates mode changes, while the standard 1/4” chuck ensures compatibility with a wide range of bits designed for impact loads.

Key product features:

• 18 V battery power provides mobility and convenience during work
• The impact mechanism allows for effective loosening of stuck screws
• The brushless motor increases the tool's durability and efficiency
• Maximum torque of 160 Nm allows for working with demanding connections
• 1/4” (6.3 mm) chuck is compatible with bits designed for impact loads
• 3 speed settings:
• 1st gear: 0-1100 rpm
• 2nd gear: 0-1450 rpm
• 3rd gear: 0-1750 rpm
• 3 impact frequency settings:
• 1st gear: 0-1500 impacts/min
• 2nd gear: 0-2100 impacts/min
• 3rd gear: 0-2600 impacts/min
• The control panel with 4 operating modes allows for precise parameter adjustments
• The direction switch (left/right) facilitates mode changes

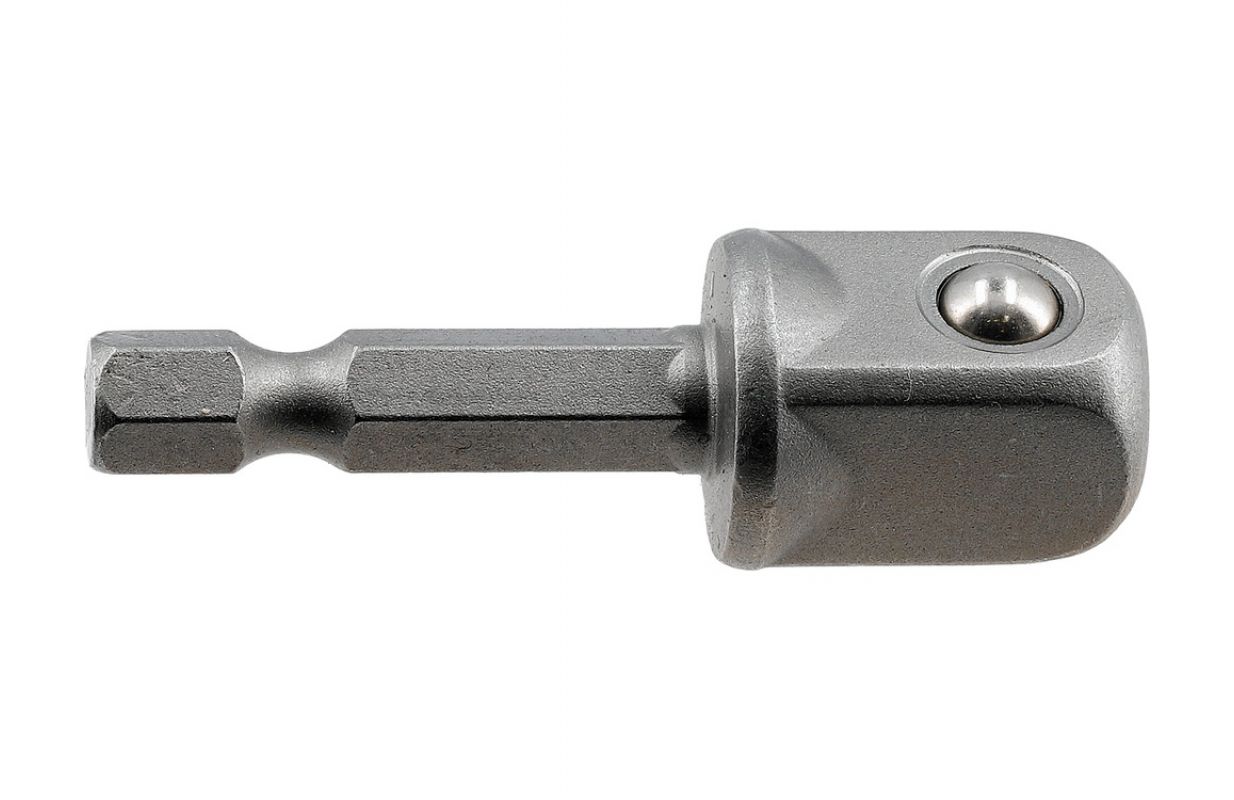

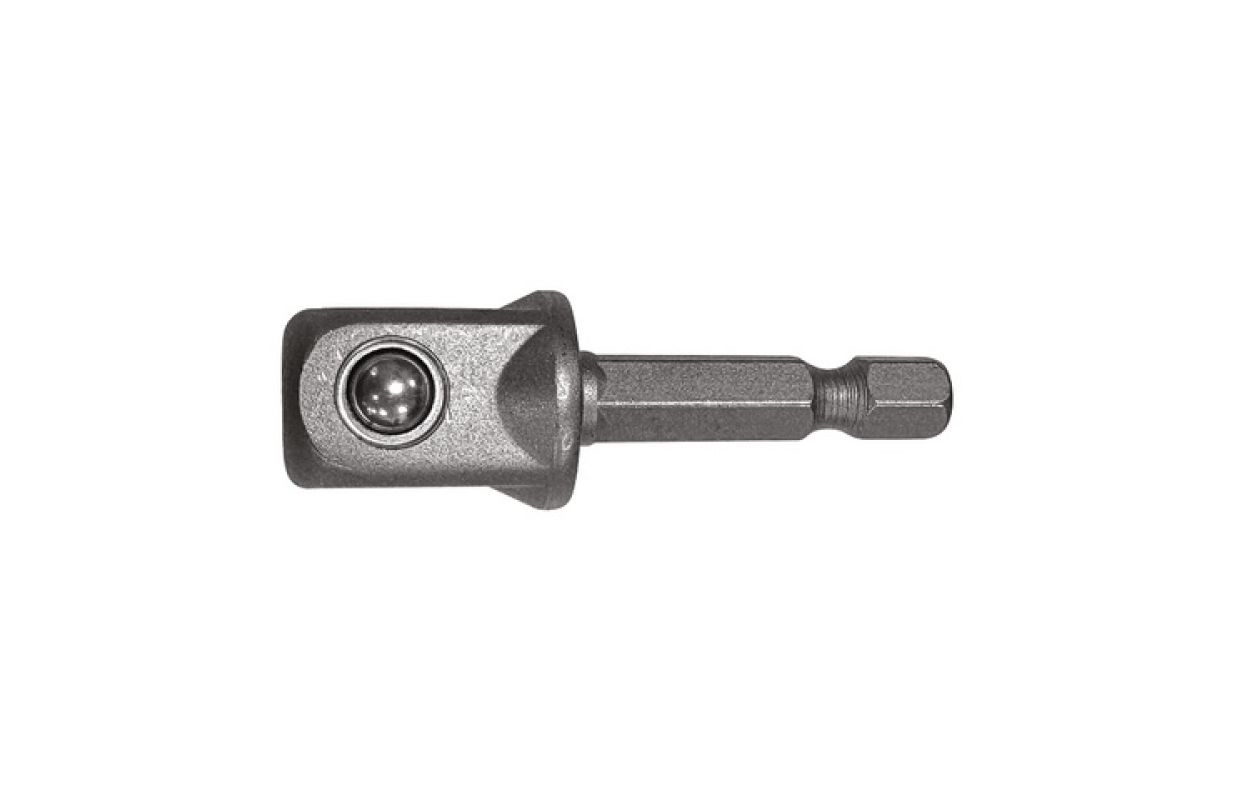

• 1/4” to 1/2” adapter included for use with sockets
• Weight of 1.25 kg provides good control and comfort for the user

Available versions:

• YT-828030 – set with 4 Ah battery and charger
• YT-828031 – tool only, compatible with YATO 18 V batteries (YT-828461, YT-828462, YT-828463, YT-828464, YT-82845) in a professional-style online store.
