Description

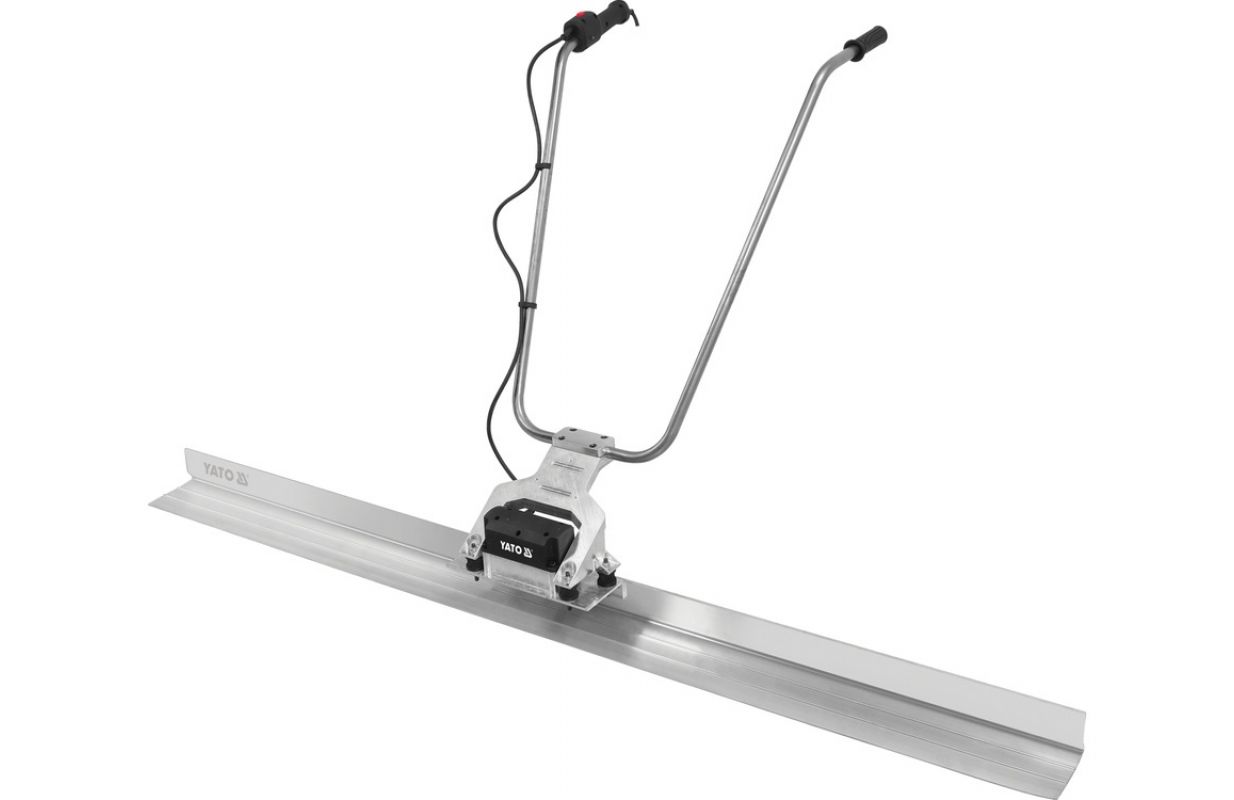

Electric vibrating bar with a profile width of 1 m. Profile made of high-strength aluminium alloy. The batten is used for levelling and venting concrete when pouring ceilings, concrete sub-floors and concrete screeds.
Technical data
| Brand | Yato |
| Entity responsible for this product in the EU | |
| Series | GRF |
| Power | 240 W |
| Rotations | 6000 / 10000 min⁻¹ |
| Voltage | 230 V a.c. |
| Frequency | 50 Hz |
| Profile length | 1 m |
| Profile material | aluminium |
| Electric insulation class | II |
| Protection grade | IPX4 |
| Acoustic pressure | 88.0 ± 3.0 dB(A) |
| Acoustic power | 96.0 ± 3.0 dB(A) |
| Vibrations | 4.3 ± 1.5 m/s² |
| Weight | 8.3 kg |
| Set includes | vibrating strip, aluminum profile 1 m |
| Application | for leveling and simultaneously de-aerating concrete when pouring ceilings, concrete bases under floors and concrete screeds |
| Compatible with | YT-82612, YT-82613 |
| Symbol | YT-82611 |
