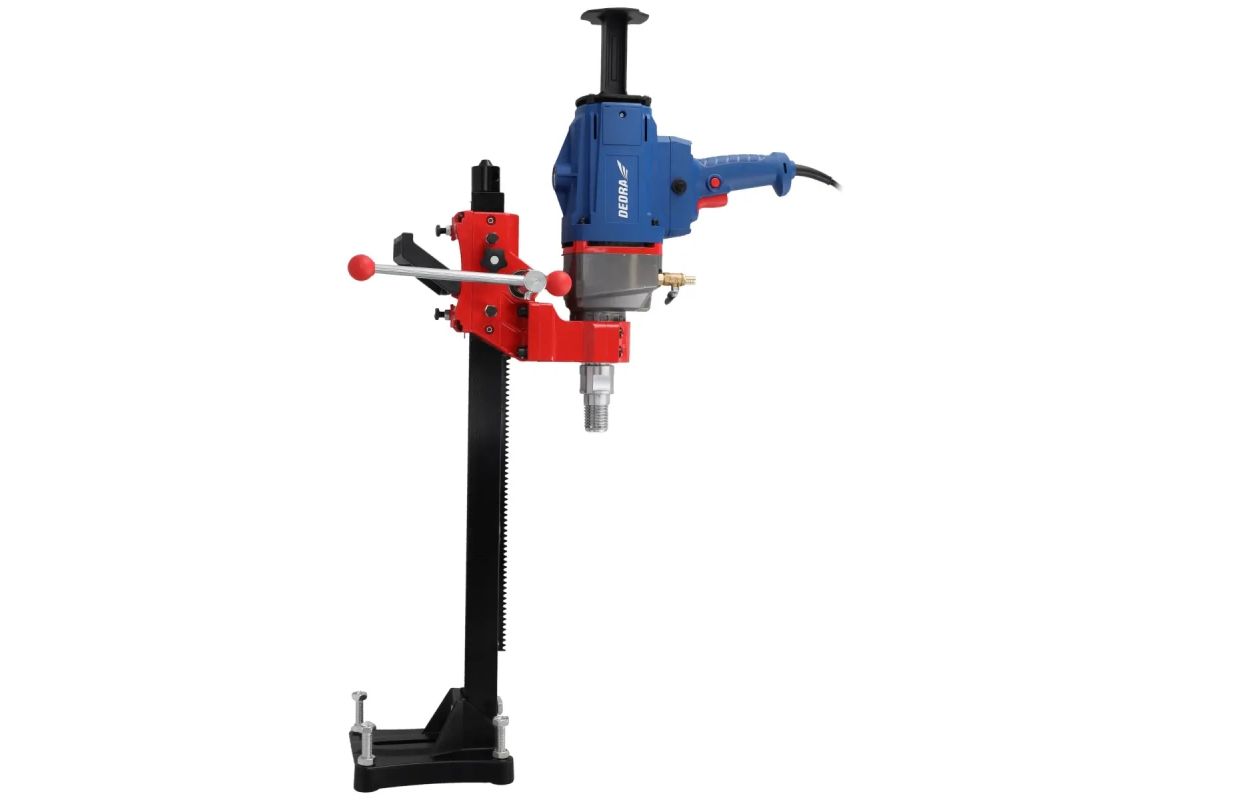

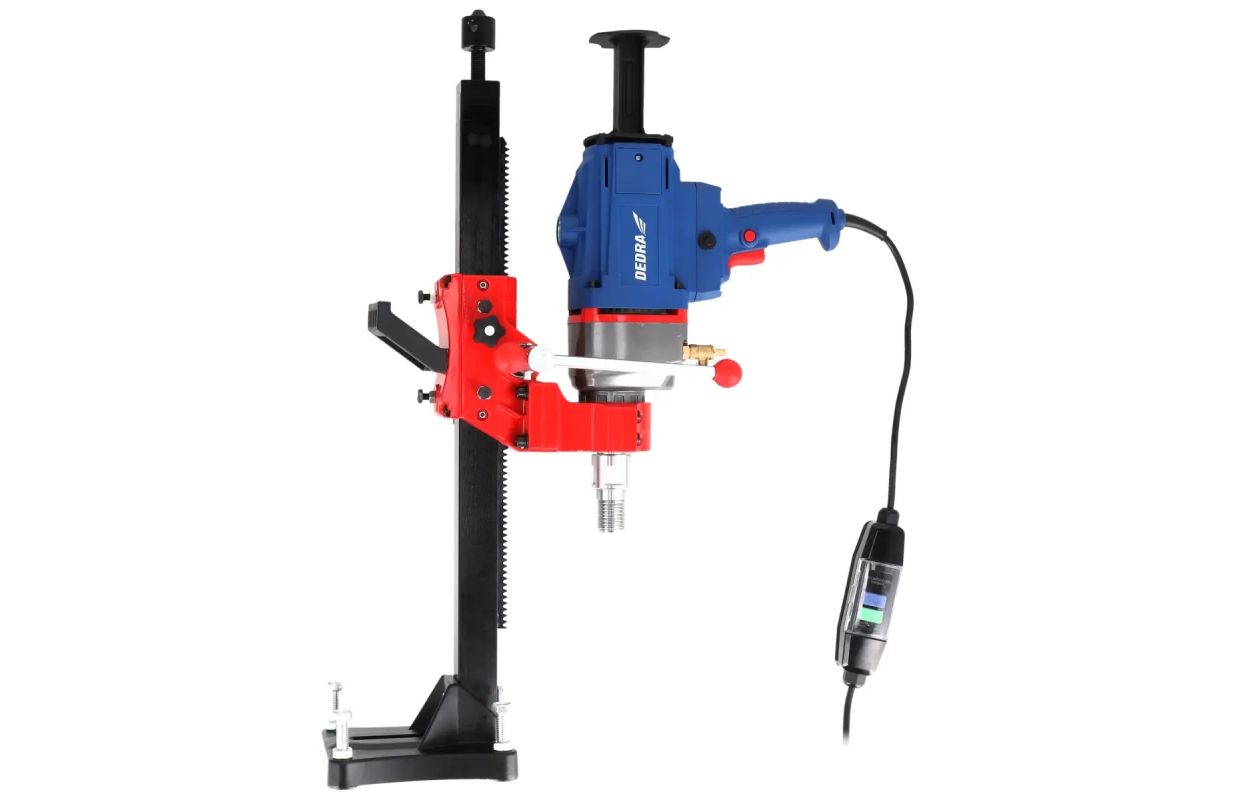

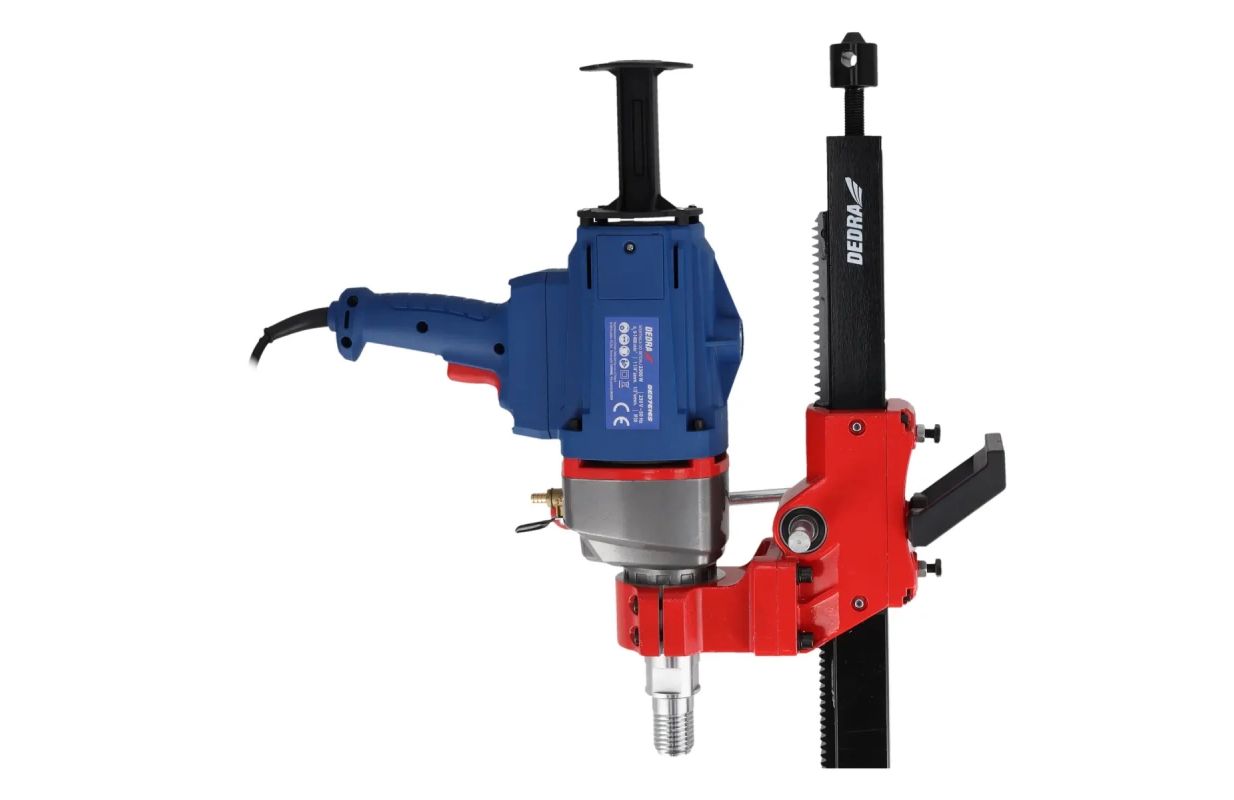

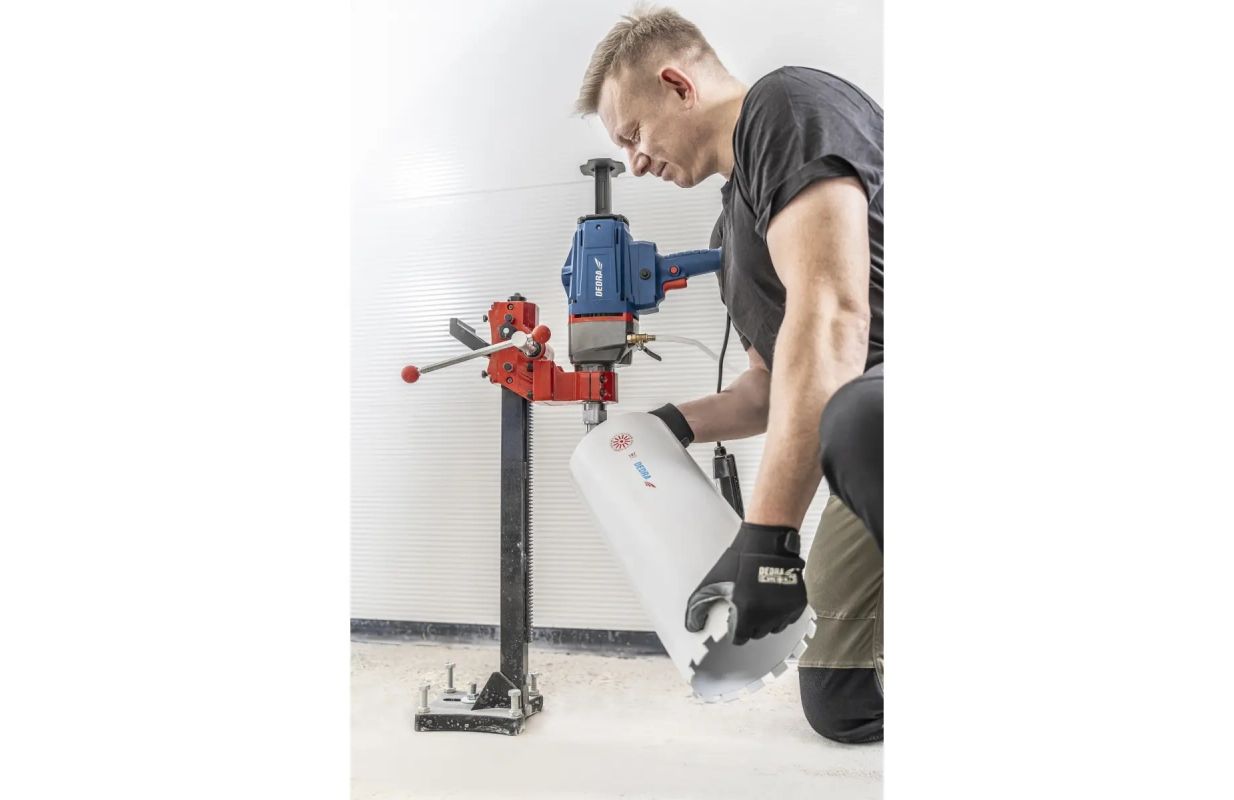

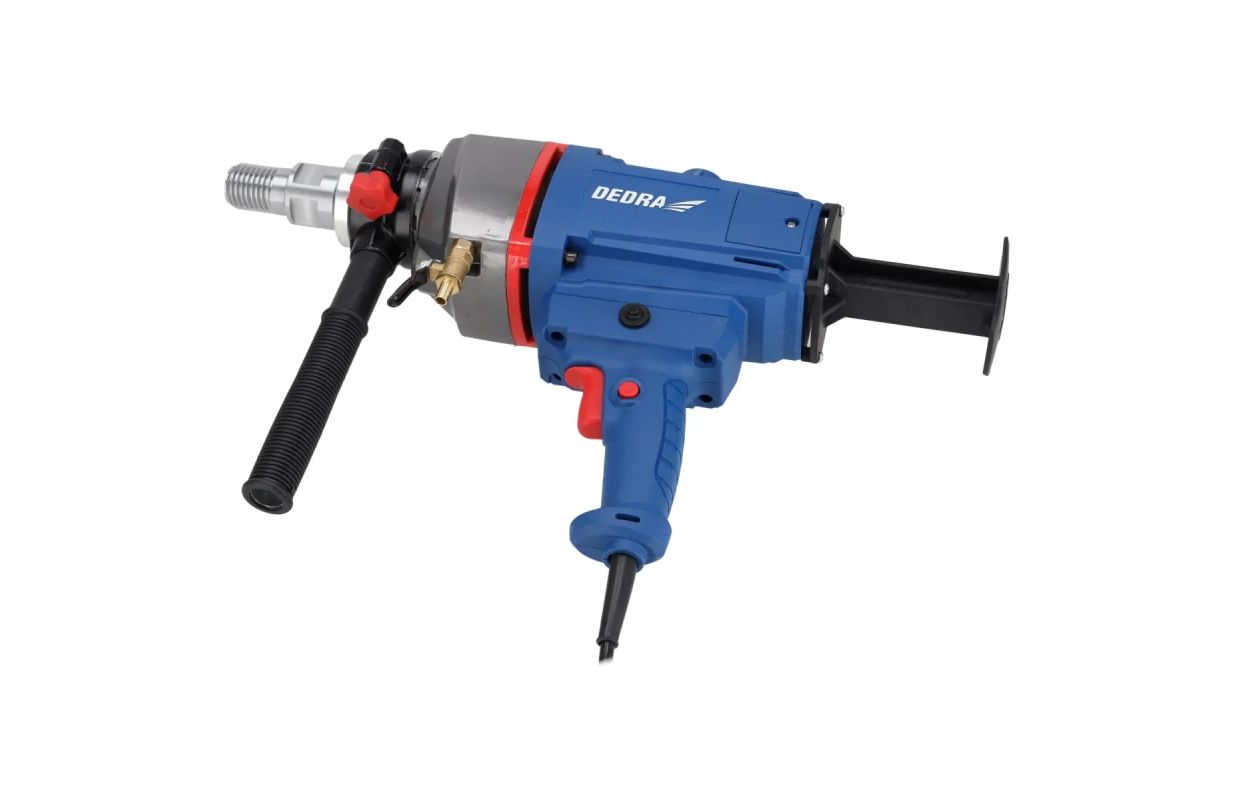

Concrete drilling machine, max. diameter 205 mm, 2300 W (DED7616S)

DED7616S - is a drilling machine designed for non-impact drilling in various construction materials, concrete, and other hard surfaces.

Diamond crowns allow for effective drilling in very hard materials, making this drill an indispensable tool in both construction and repair. The device is designed to work with water, which serves as a coolant and reduces dust formation, improving working conditions, especially in enclosed spaces.

The new, innovative water supply system for cooling the crown is separated from the gearbox and lubrication, significantly reducing the risk of damage compared to previous sealing solutions. Water is supplied through a copper tube directly to the shaft, eliminating the need for sliding seals that could allow water to enter the gearbox.

An important feature of this model is the sturdy tripod, which ensures the stability of the equipment during operation, minimizing vibration and providing drilling accuracy. Additionally, the drilling machine is equipped with a soft start function, which reduces sudden jolts during startup, and a no-load speed adjustment function, allowing the drilling speed to be adapted to the specific material.

The drill also has a PRCD automatic switch that protects the operator from the risk of electric shock, providing additional safety.

NOTE: Avoid working in dry conditions or underwater. Use only with diamond crowns, with a maximum diameter of 205 mm. The equipment should only be used in rooms with effective ventilation. It is not intended for outdoor use.

Features of the DED7616S concrete mixer:

• Tripods - provide stability during drilling, improving work accuracy and reducing the risk of errors.
• Innovative water supply system - allows water to be supplied directly to the drilling area for effective cooling.
• Soft start - prevents sudden jolts during startup.
• Infinitely adjustable speed - allows adapting the speed to the hardness of the material.
• PRCD switch - switch with electric shock protection.
• Mechanical clutch - protects the user from injury during manual drilling.
• Support handle - provides better control over the tool, making it easier to manage.
• Universal mounting 1 ¼'' - allows easy adaptation of various attachments, increasing the versatility of the equipment.

Technical data of the DED7616S concrete mixer:

• Voltage: 230V
• Frequency: 50 Hz
• Motor power: 2300W
• Speed: 0-1400RPM
• Number of gears: 1
• Maximum drilling diameter: Ø205mm
• Tripod clearance: 470mm
• Mounting thread:
  • external: 1 1/4”
  • internal: 1/2”
• Protection class: IP20
• Weight: approximately 16 kg (without installed crown)

Included:

• Concrete drilling rig [1 pc.].
• Tripod with a set of mounting elements [1 pc.]
