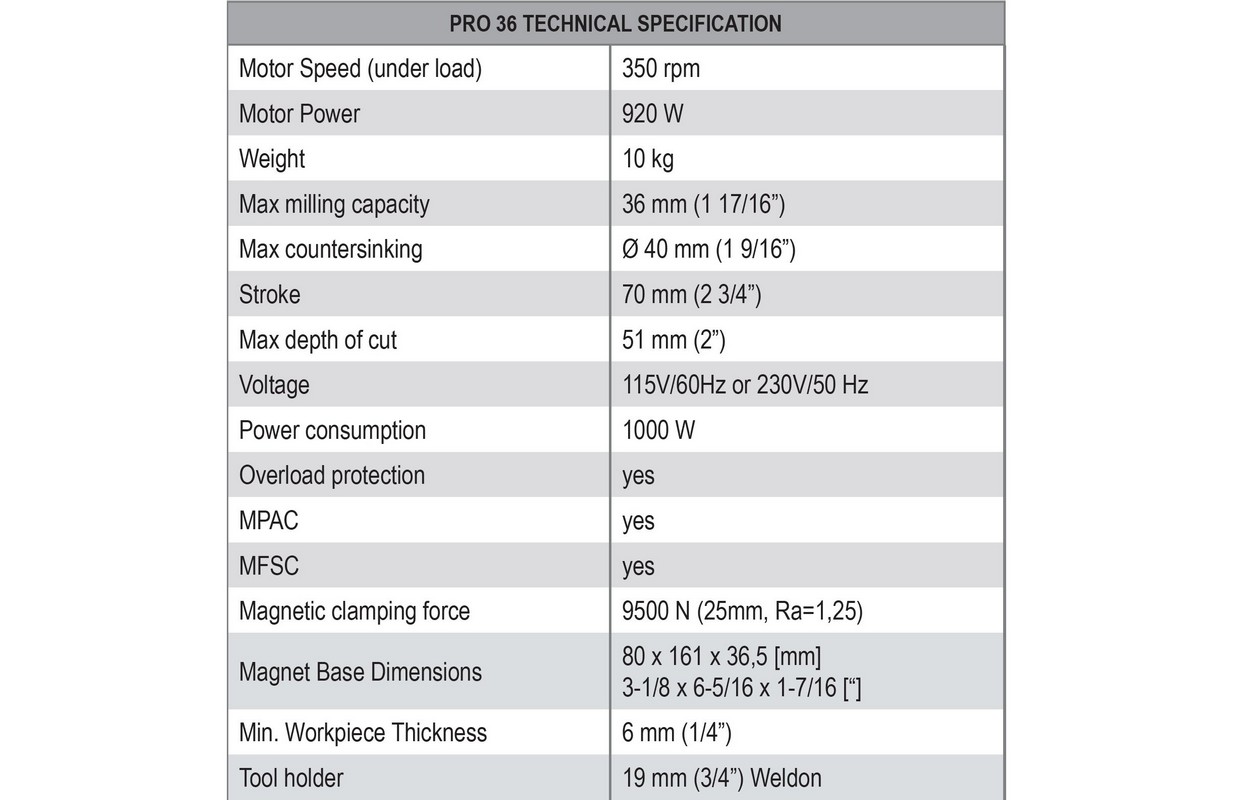

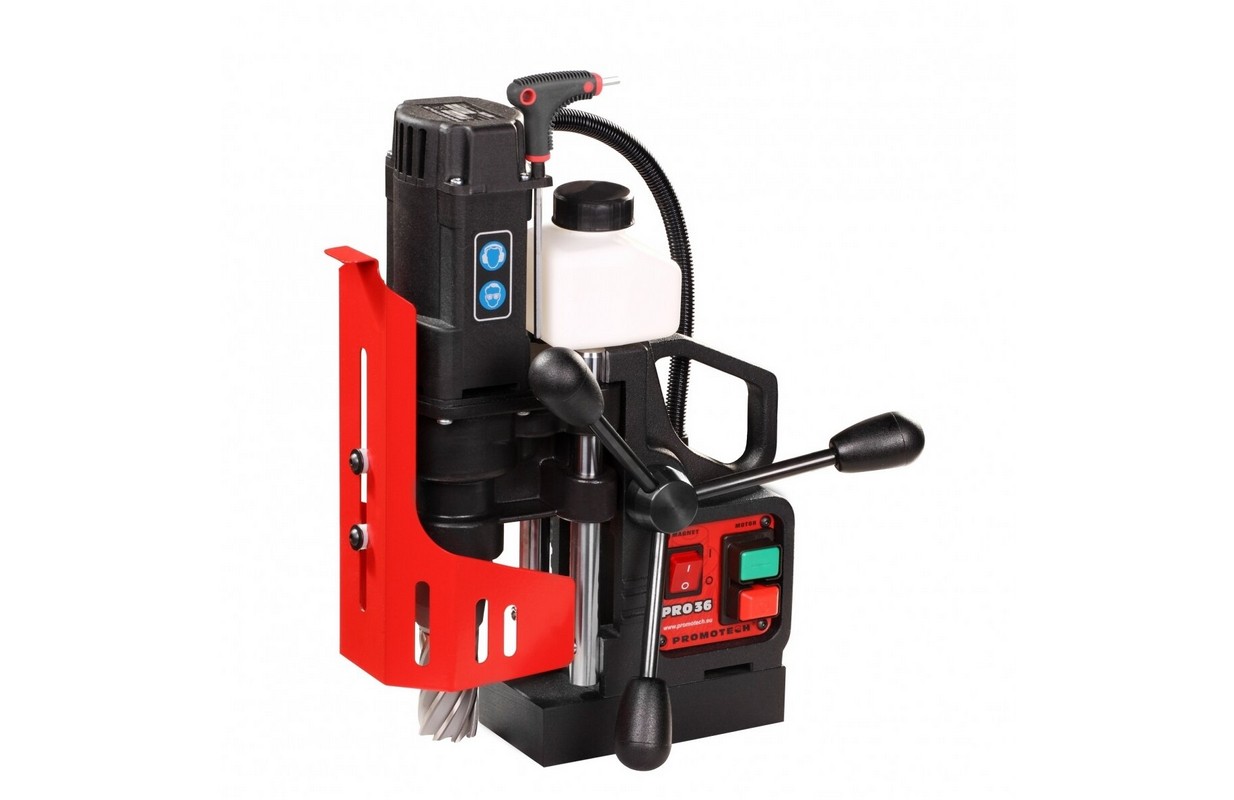

Compact Magnetic Drill PRO 36 920W/230V (PRO36)

Voltage 220-240 V, 50/60 Hz
Power 920 W
Motor speed 350 rpm (under load)

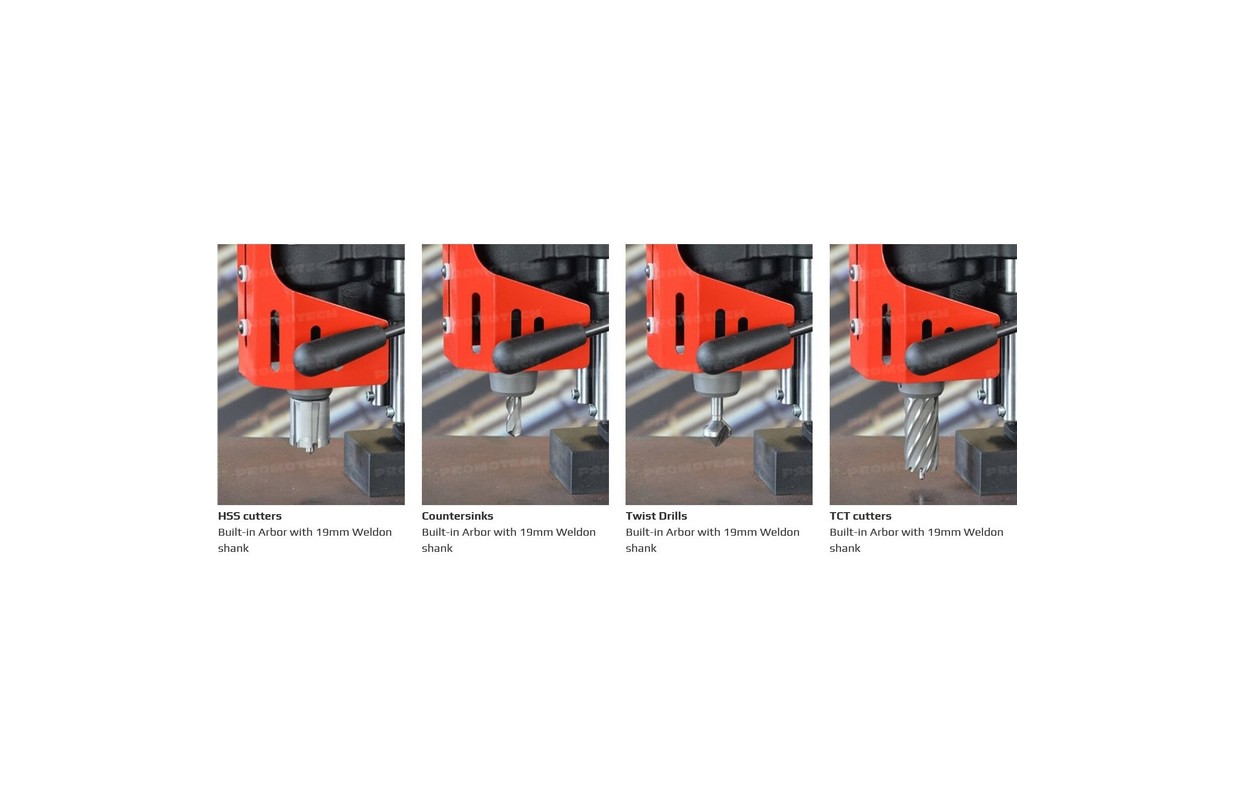

Holder 19 mm (3/4") Weldon
Max. milling diameter 36 mm (1-7/16")
Max. drilling diameter 16 mm (10/16")
Max. countersinking Ø 40 mm (1-9/16")
Maximum cutting depth 51 mm (2 inches)
Min. workpiece thickness 6 mm (1/4")
Stroke 70 mm (2-3/4")
Magnetic holding force 969 kg (9500 N) / 25 mm, Ra = 1.25 /
Dimensions of the magnetic base 80 x 161 x 36.5 mm (3-1 / 8 x 6-5 / 16 x 1-7 / 16 (""))
Maintenance-free rail guide system equipped with a state-of-the-art electromagnetic base with magnetic field shape control system (MFSC) and magnetic force adhesion control module (MPAC), which determines the adhesion strength of the electromagnetic base and protects the machine and operator
ESSS (Electronic Stabilization Program)

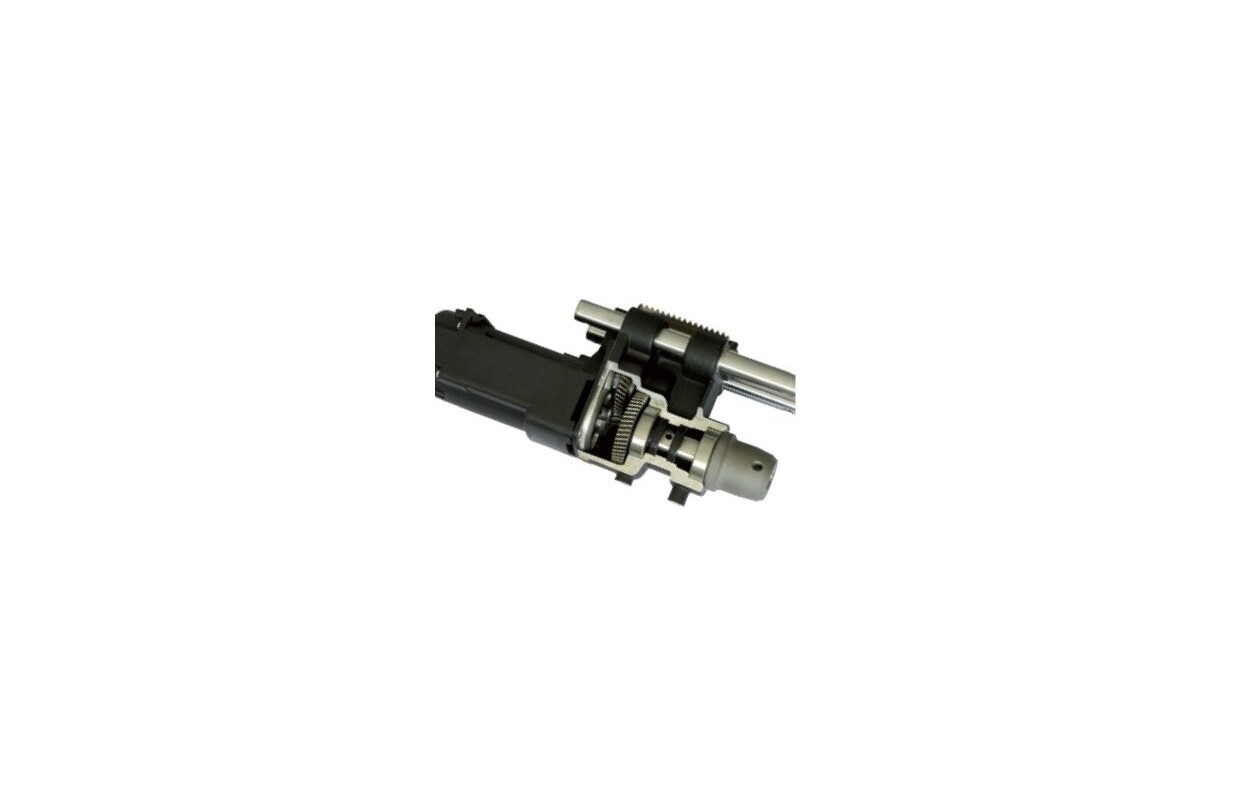

Specially designed motor with reinforced gearbox
Motor overload protection system protects the machine from accidental damage during heavy work.
Included: magnetic drilling machine, 4 mm hex key, fastening strap, plastic case.

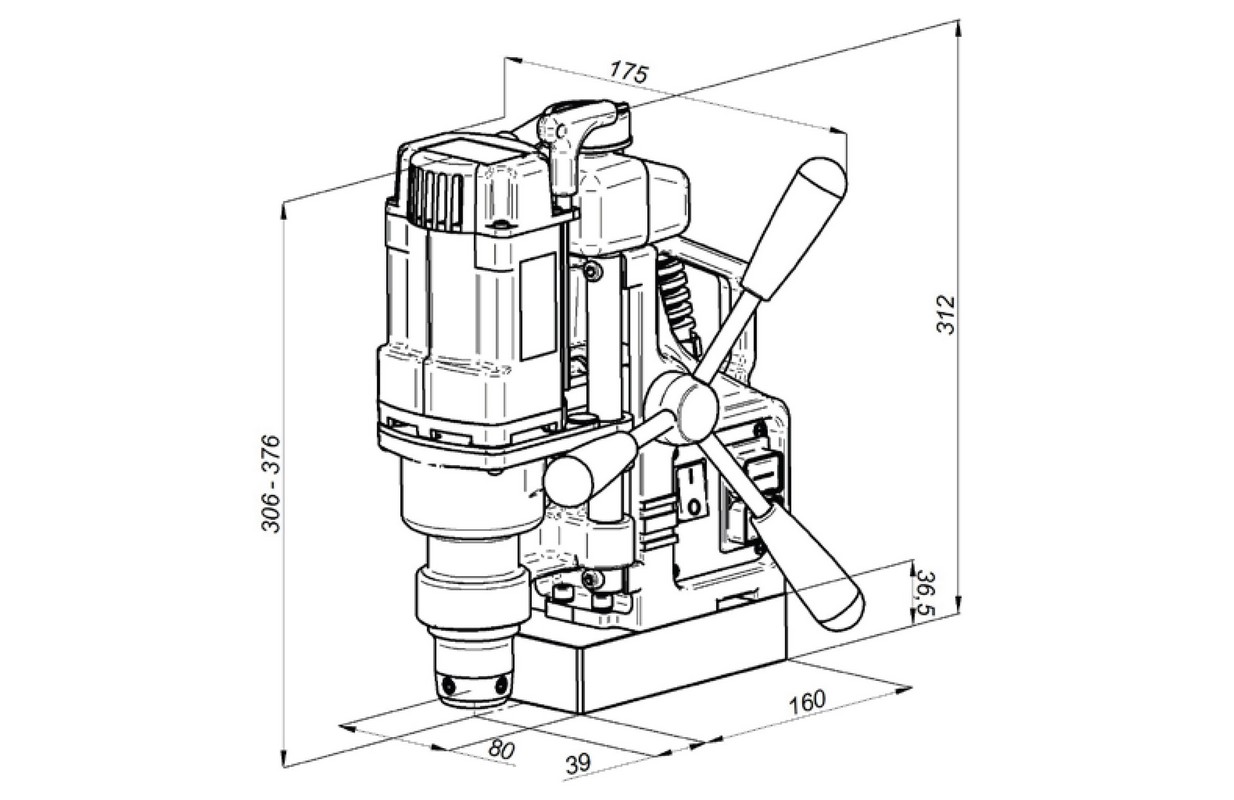

Dimensions 314 x 179 x 330 mm
Noise level ~ 85 dB
Protection class IP 20
Electrical insulation class I
Operating temperature 0-40 ° C (32 - 104 F)
Weight 10 kg (22 pounds)
CE compliance
12 months warranty
Manufacturer: PROMOTECH, Poland
