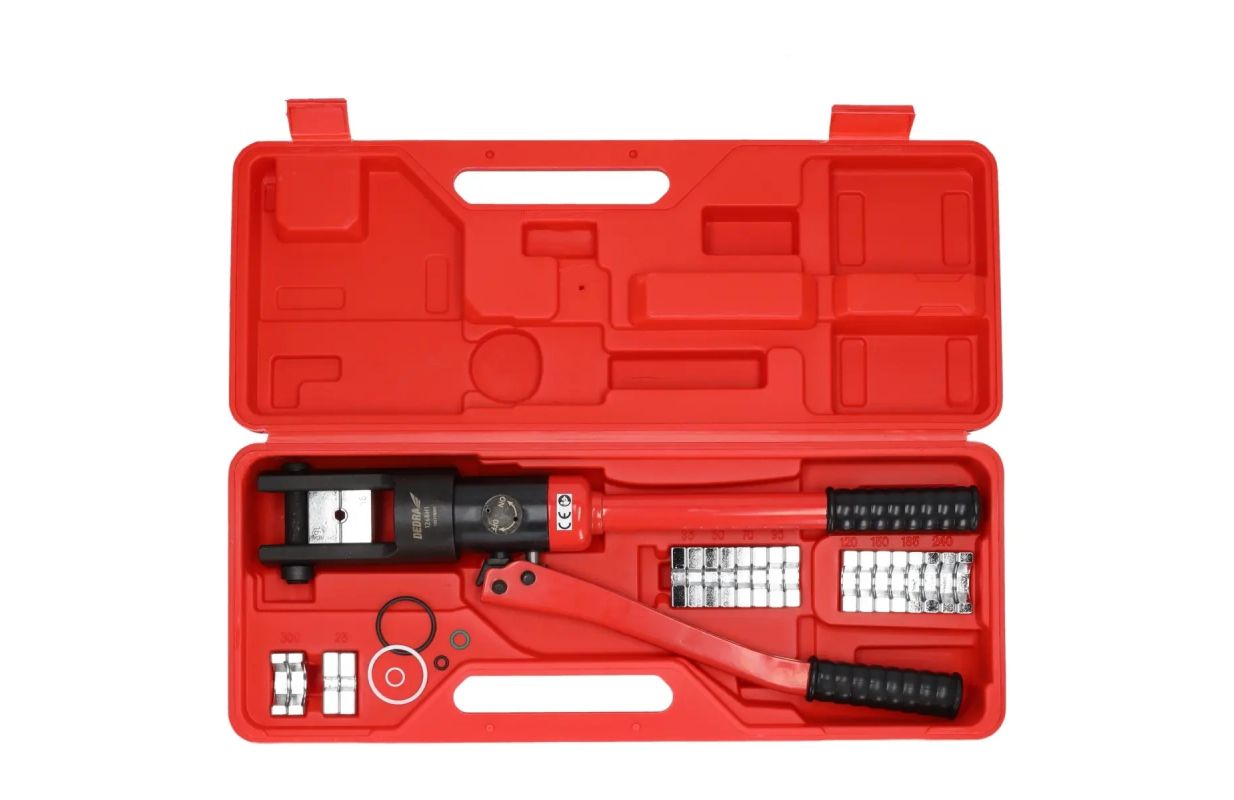

Hydraulic manual tip crimping press, DEDRA 1268H1 (1268H1)

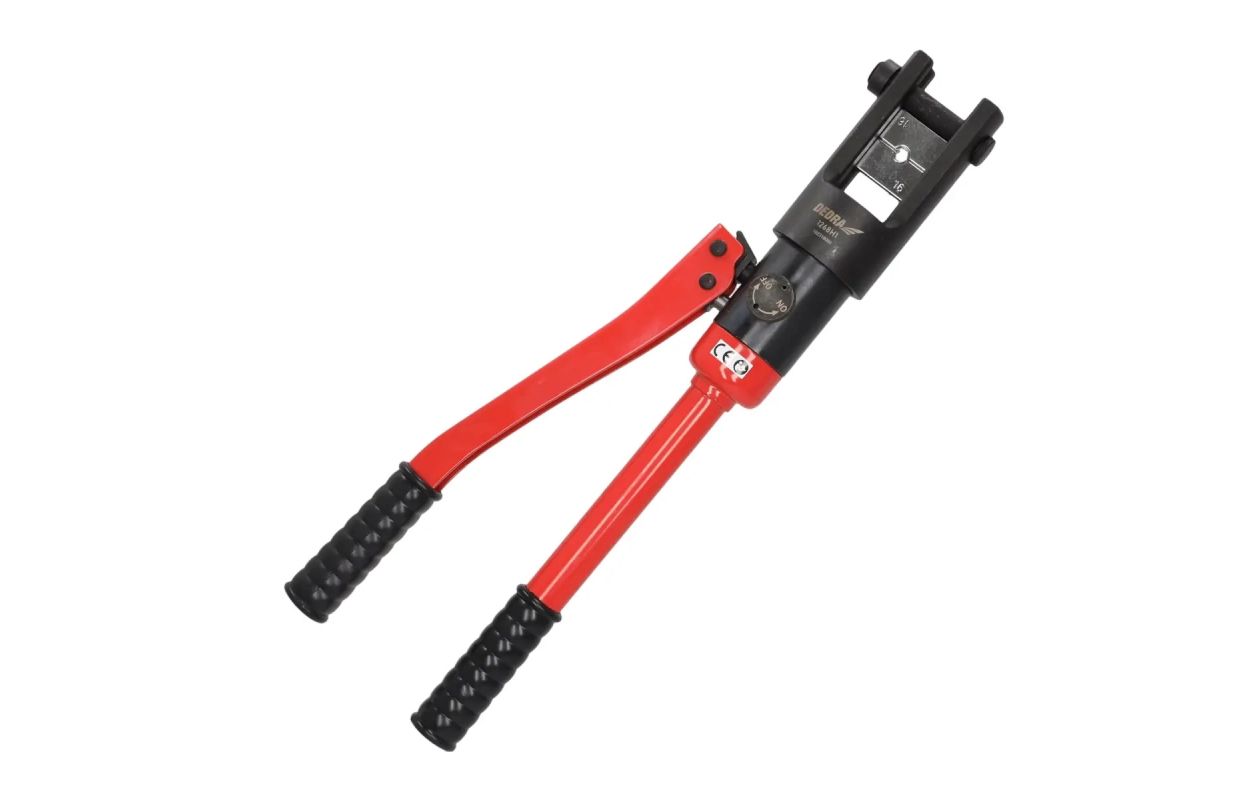

The DEDRA 1268H1 hydraulic hand press is a tool designed for effectively crimping terminals on electrical wires or for crimping ropes.

Powered by a hydraulic cylinder, it generates high clamping force, making crimping large terminals effortless. Matrices locking the stop pin eliminate unwanted movements, thus ensuring control over the work to be done and guaranteeing stability and safety during the process. In addition, the press is equipped with a rotating head and a movable arm, which increases its versatility and flexibility in adapting to different shapes and sizes of materials.

The steel housing ensures the tool's durability, while the soft plastic-covered handle increases comfort.


Features of the DEDRA 1268H1 manual hydraulic press:

• Hydraulic cylinder - generating high clamping force
• Locking matrix for the stop pin
• 180° rotating head
• Movable actuator arm
• Ergonomic handles for comfortable and secure grip

Technical specifications of the DEDRA 1268H1 manual hydraulic press:

• Workmanship material: steel housing, soft plastic covered handle
• Crimping type: hexagonal
• Press force: 9 tons
• Length: 480 mm
• Stroke: 18mm

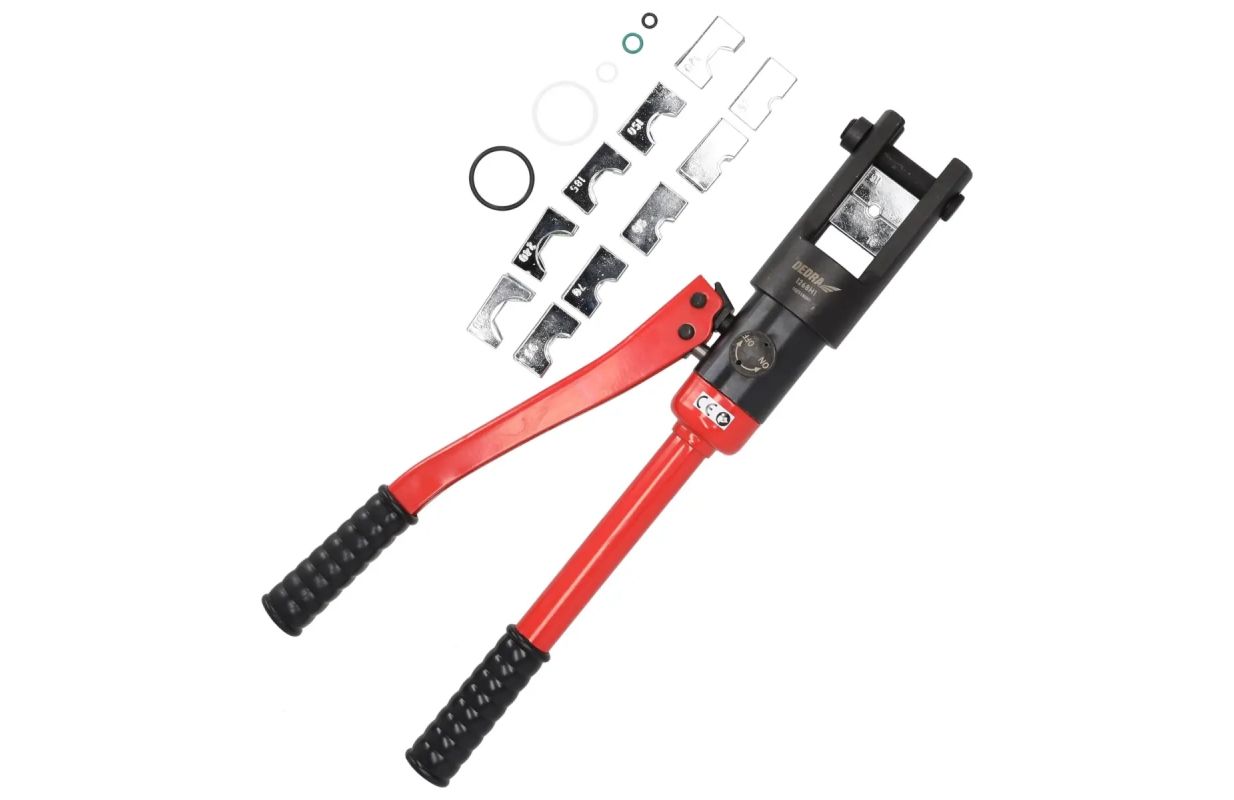

• Crimping jaw size: 16,25,35,50,70,95,120,150,185,240,300 mm²
• ALUMINIUM crimping range: 16-240 mm²
• Copper crimping range: 16-300 mm²
• Weight: 7 kg
