Device for checking the cooling system and replacing coolant | 12 V DC | 30 W | 0.2 MPa (YT-06725)

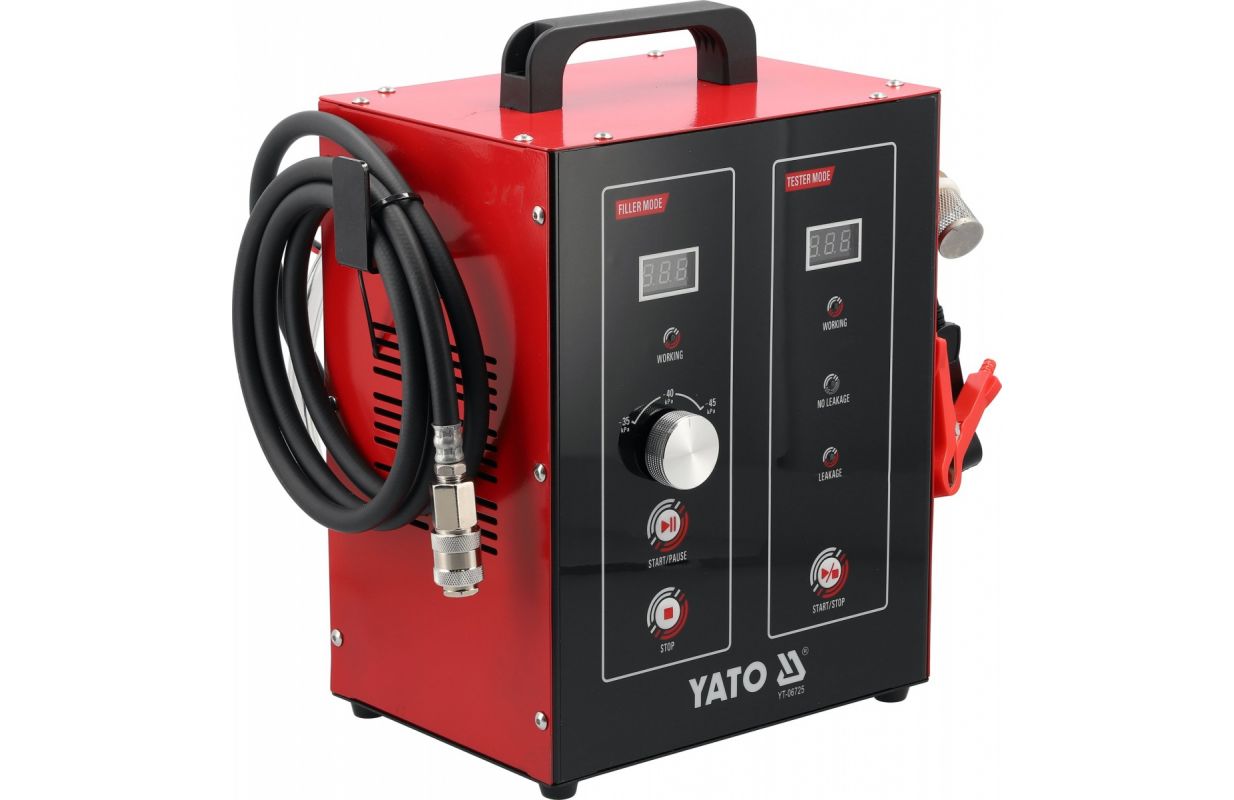

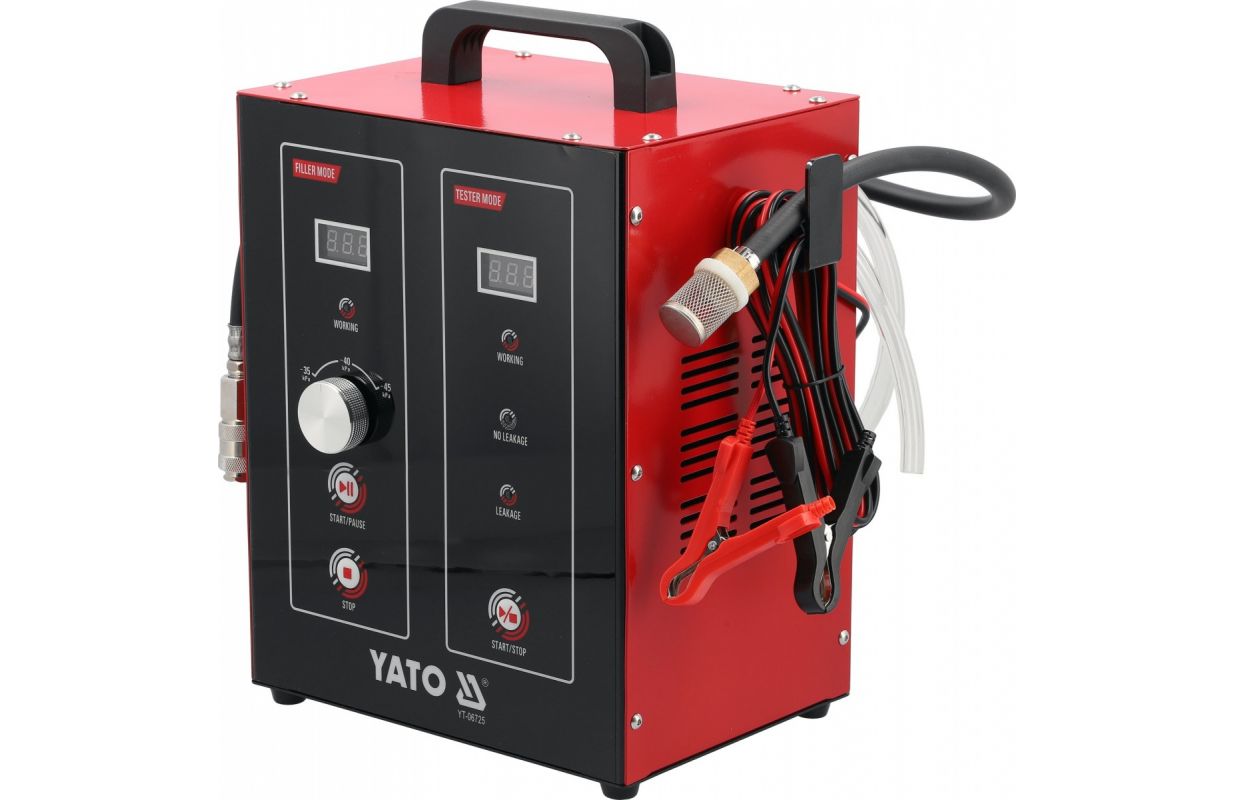

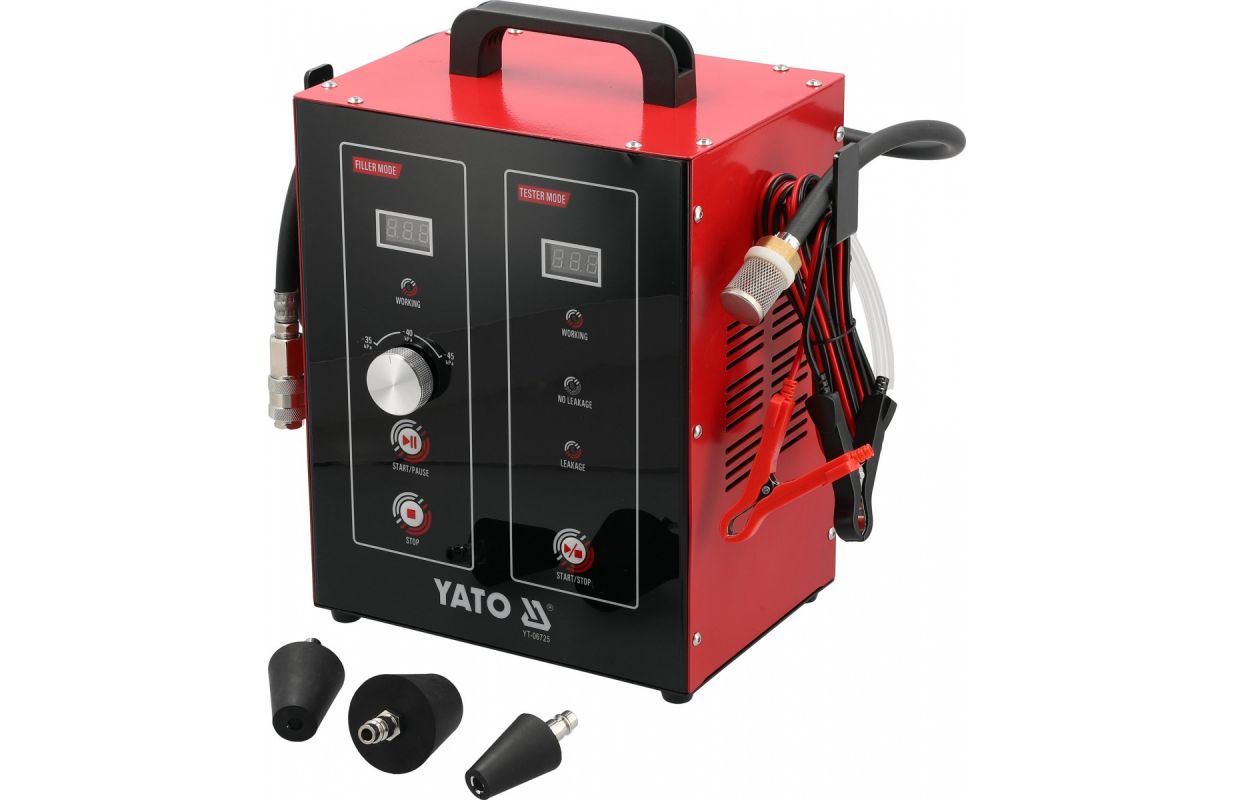

Coolant Replacement Device YT-06725 is a professional service tool designed for comprehensive maintenance of the cooling system in passenger cars and light commercial vehicles. It allows for both leak testing and efficient filling of the system with fresh coolant using vacuum technology. Powered by a 12-volt car battery, the device ensures ease of use both in the workshop and in the field.

The vacuum extraction system creates a stable vacuum in the cooling system, eliminating the risk of air bubble formation and ensuring even filling. The device offers three vacuum levels (-35 kPa, -40 kPa, -45 kPa), allowing for the adjustment of working parameters depending on the type of vehicle and the technical condition of the system. The integrated leak testing mode uses LED indicators – a green LED indicates no leaks, while a red LED signals a leak, significantly speeding up diagnostics.

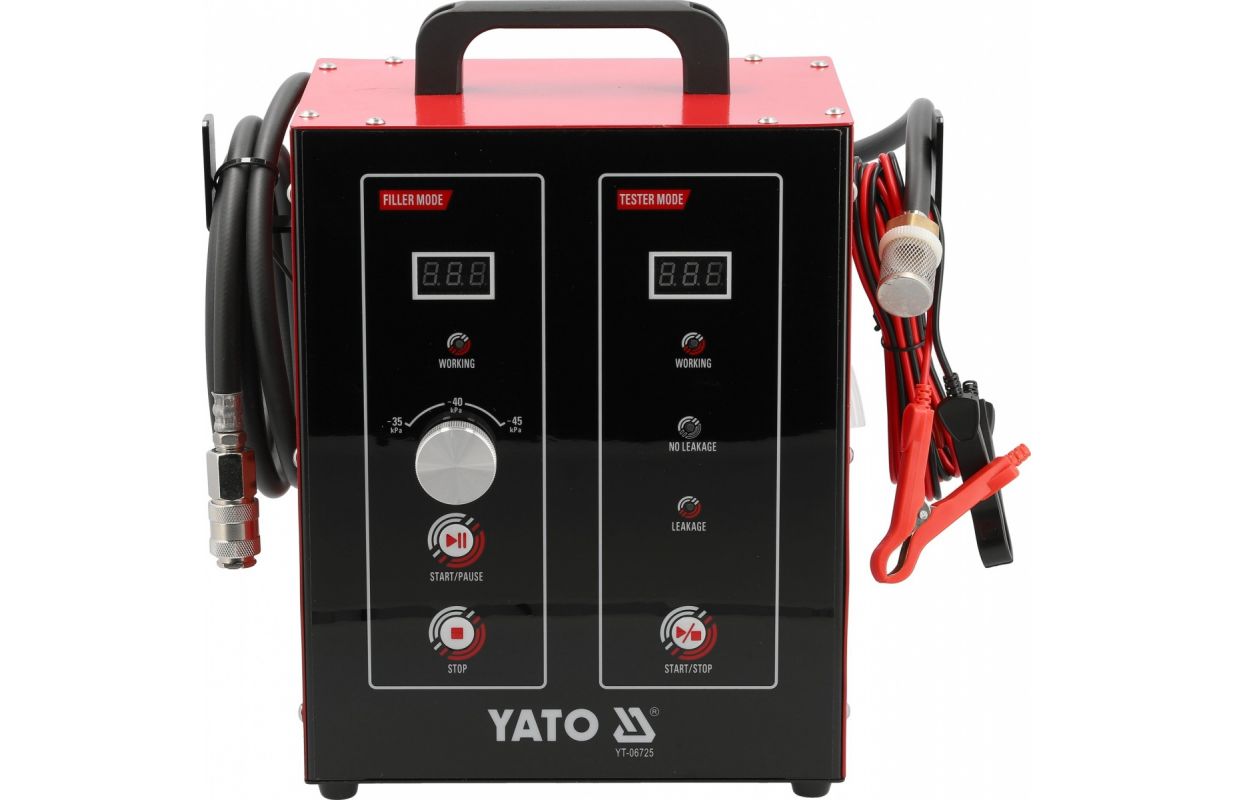

The extensive control system includes a display of working parameters, a vacuum adjustment handle, and buttons for START/PAUSE and STOP modes. The system automatically transitions from the vacuum generation phase to the filling phase, increasing the efficiency and repeatability of the service process. The design is equipped with airflow control valves and specialized connections for liquid and air, ensuring safe and precise operation.

Key Features and Technical Specifications:

• Type: Coolant Replacement and Filling Device
• Application: Leak testing and filling of the cooling system
• Power Supply: 12 V DC (car battery)
• Power: 30 W
• Maximum Working Pressure: 0.2 MPa
• Air Pressure (inlet): 4.5-8 bar (external compressor required)
• Vacuum Pressure Range: -35 kPa / -40 kPa / -45 kPa
• Vacuum extraction function – removes air from the system
• Leak testing mode with LED indicator:
• Green LED – no leaks
• Red LED – leak detected
• Automatic switching from vacuum mode to filling mode

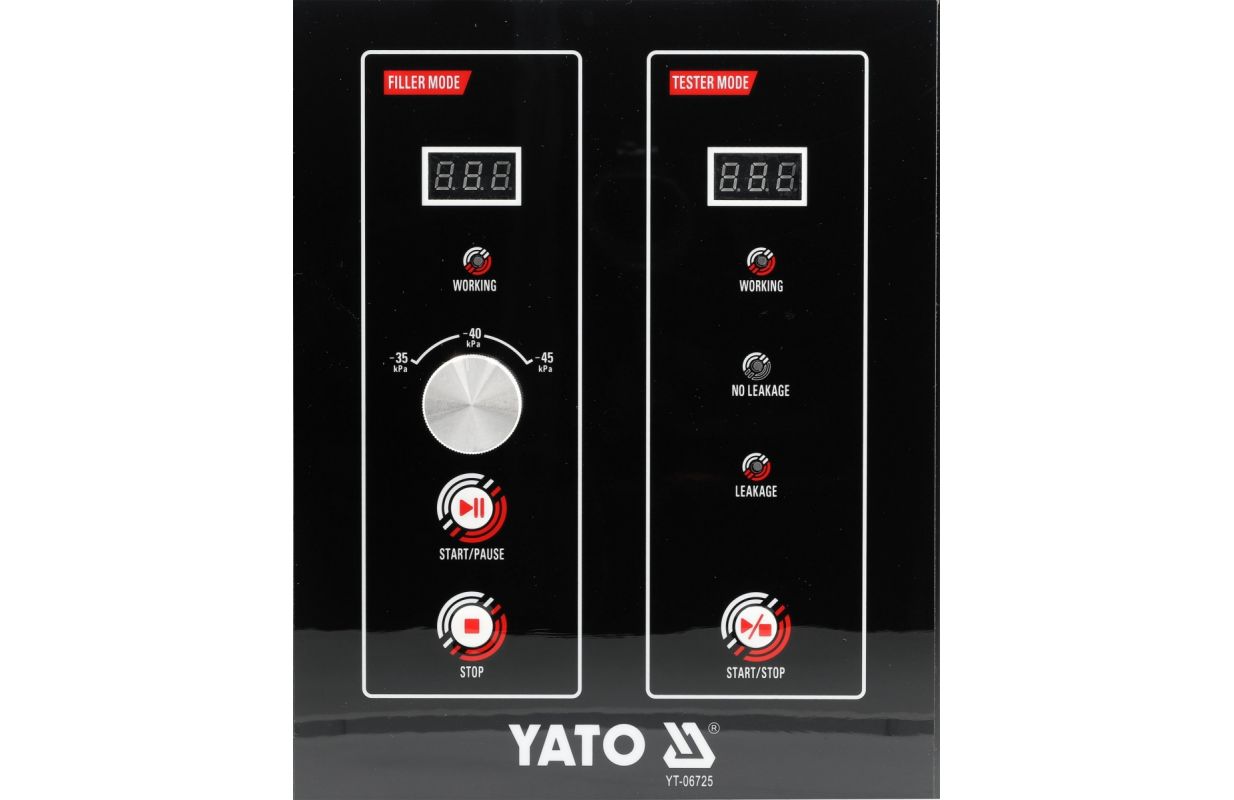

• Control panel: display, adjustment handle, START/PAUSE, STOP buttons
• Airflow control valve and specialized connectors

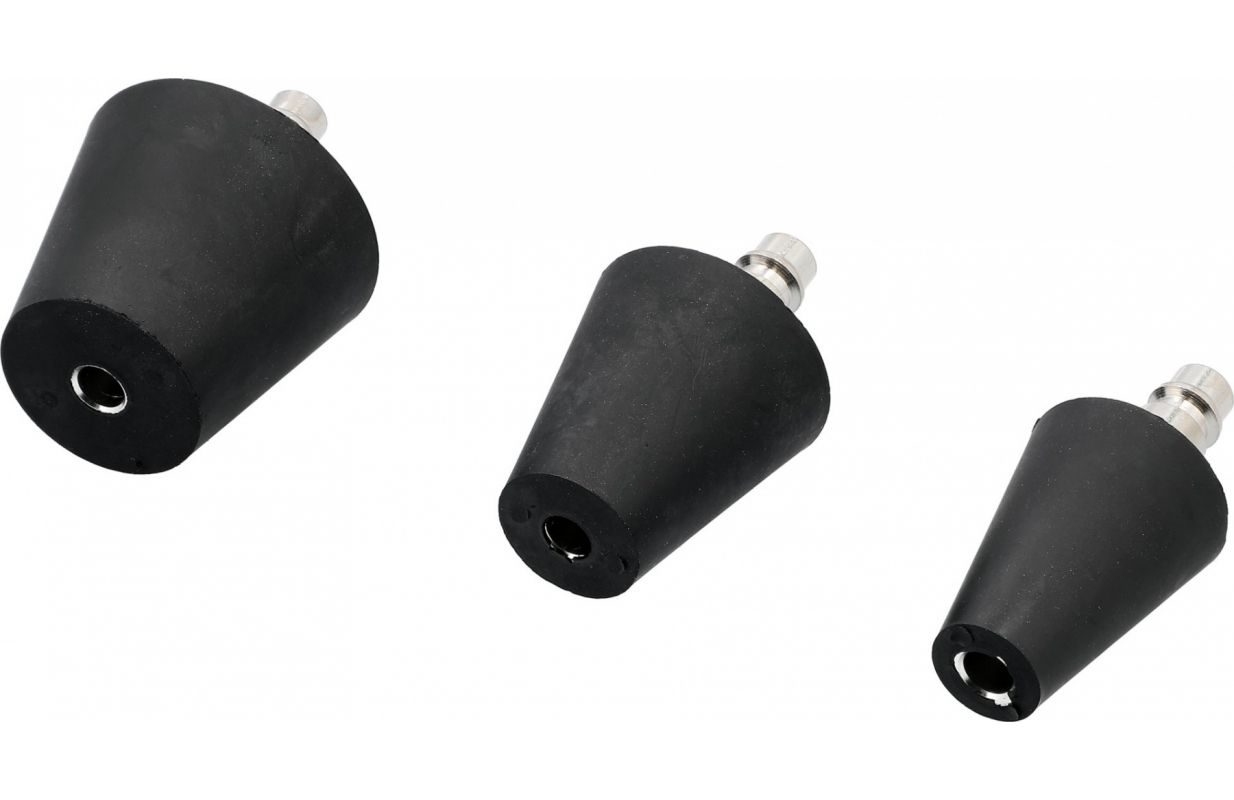

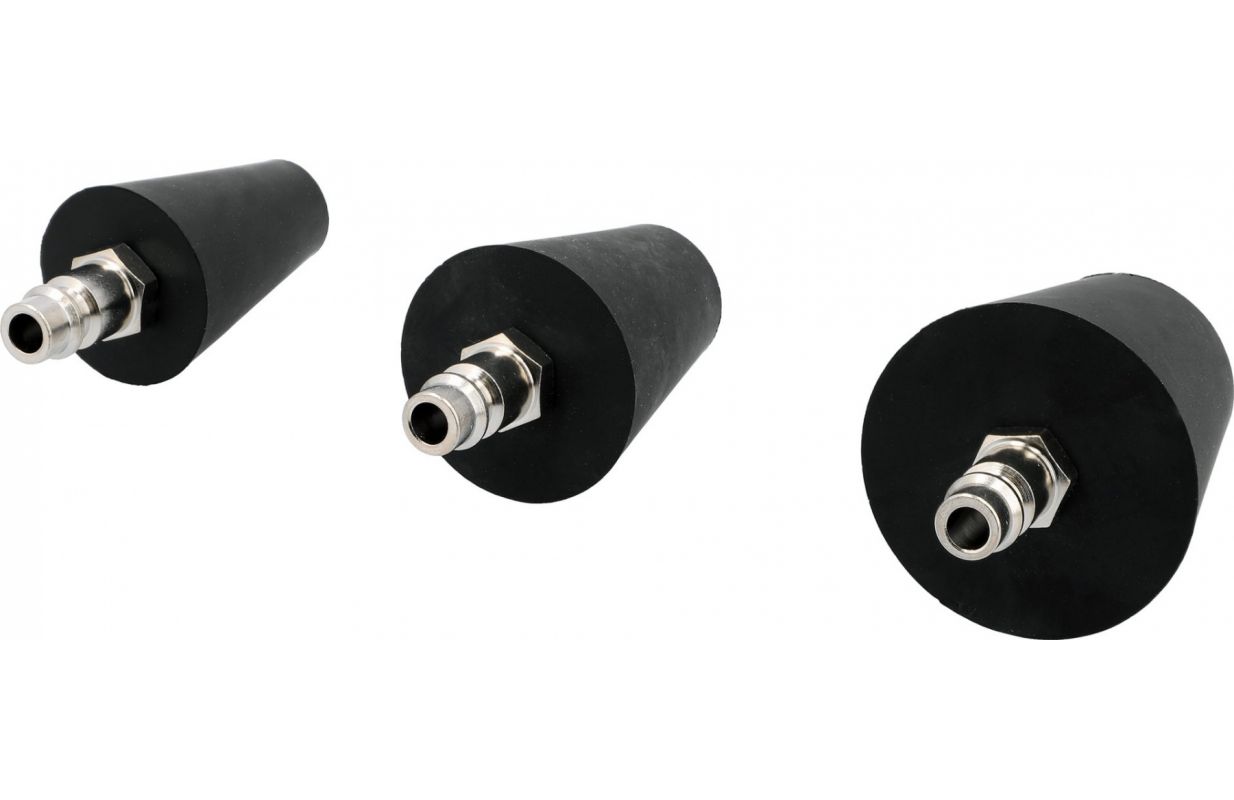

• Adapter set: 16-33 mm, 23-41 mm, 34-52 mm (wide compatibility)
• Included: coolant hoses, air hose, power hoses with clamps, adapters
• Weight: 6 kg

This device significantly simplifies the process of servicing the cooling system, eliminating errors associated with traditional filling and purging. With precise vacuum control, quick leak detection, and wide compatibility with cooling systems, it is a reliable tool for auto service centers and specialized services.

Index YT-06725

Barcode: 5906083124020

Unit of Measurement: PCE

Volume: 24.05

Weight: 6 kg
