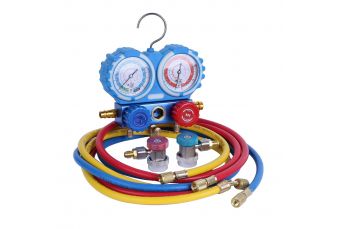

Diagnostic measuring instrument A/C for air conditioning systems (R134A)

R407C, R404A, R134A

0 ~ 500 pounds per square inch, 0 ~ 35 kg / cm²

0 ~ 120 pounds per square inch, 1 ~ 8.5 kg / cm²

0 ~ 30 inches / mercury.

Ideal replacement for defective gauges

on service devices

- can also be used for diagnostics without service devices

- includes high and low pressure hoses and

connecting hose for service devices

- sensors are protected in an aluminum housing

- high and low pressure shut-off valves

- with a hook for hanging

- hose length: 150 cm

- suitable for R12 and R134A

- low pressure gauge scale value:

From 0 to 350 pounds per square inch (vacuum: from 10 to 30 inches of mercury) (From -40 °C to +37 °C)

- high pressure gauge scale value:

From 0 to 500 pounds per square inch (from 0 to 190 °F) (from -10 to +88 °C)
