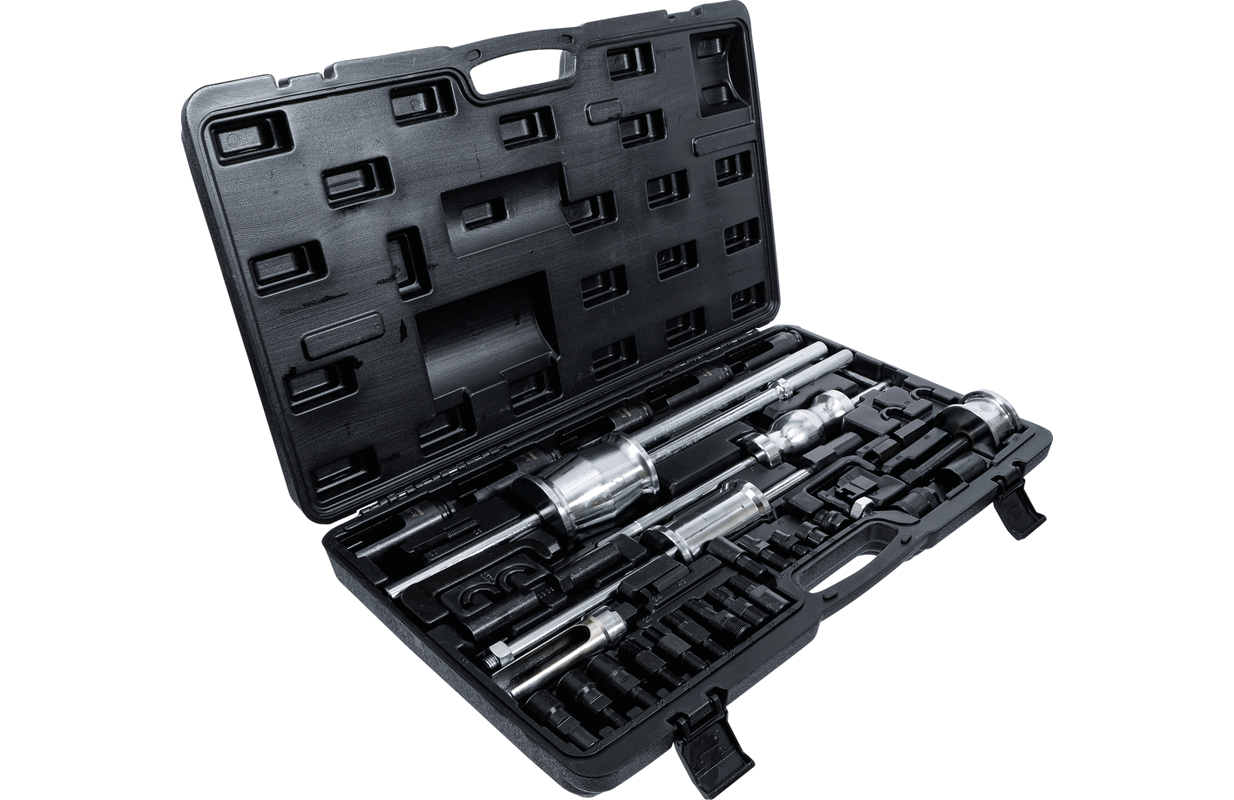

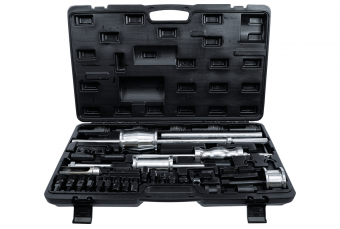

Injector Extractor Tool Kit (8676)

• for assembly and removal of diesel injectors
• various adaptors make the kit suitable for most diesel injectors

includes also the following components:

• 3 different slide hammers
  • 1.6 kg, length: 160 mm
  • 2.7 kg, length: 460 mm
  • 5.1 kg, length: 600 mm
• pulling claws with fork opening:
  • 13.7 x 18 mm, length: 105 mm
  • 12.7 x 19 mm, length: 130 mm
• slotted hexagon sockets, length: 100 mm, 12.5 mm (1/2“) drive: 25 - 27 - 28 - 29 - 30 mm
• injector extractor, sleeve design with shells: external Ø 35 mm, internal Ø 29 mm
• spindle with M17 x 1.0 external screw thread
• pulling adaptor with external screw thread M27 x 1.0 (3 pcs.) and M25 x 1.0
• pulling adaptor with internal thread M27 x 1.0 (3 pcs.)
• sliding hammer adaptor for inner, outer and claw extractor
