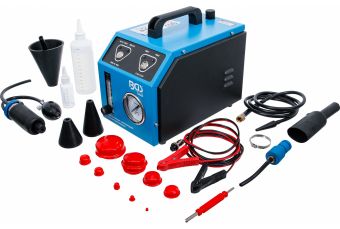

Smoke Leak Detector (74555B)

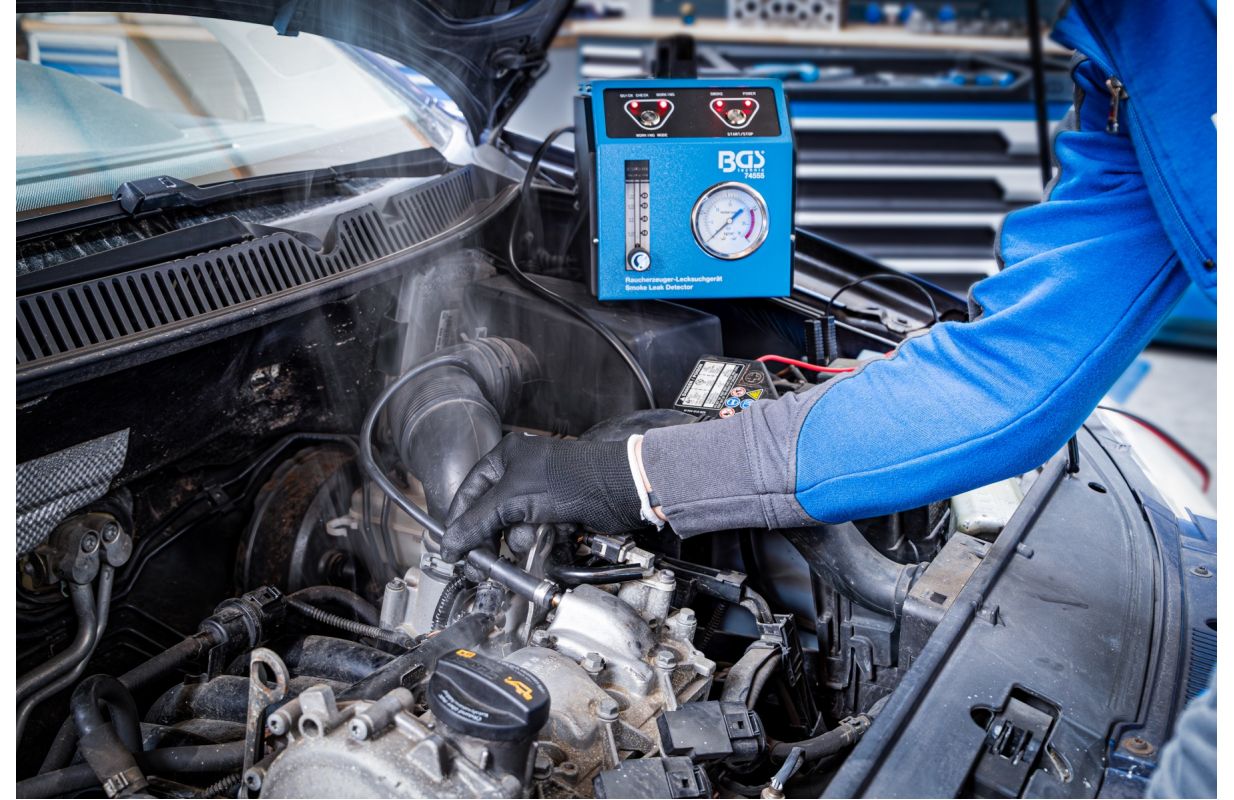

to detect and locate leaks in automotive piping systems
a wide range of applications are as varied as the faults and symptoms caused by leaks
to solve problems efficiently and to shorten the diagnosis time considerably

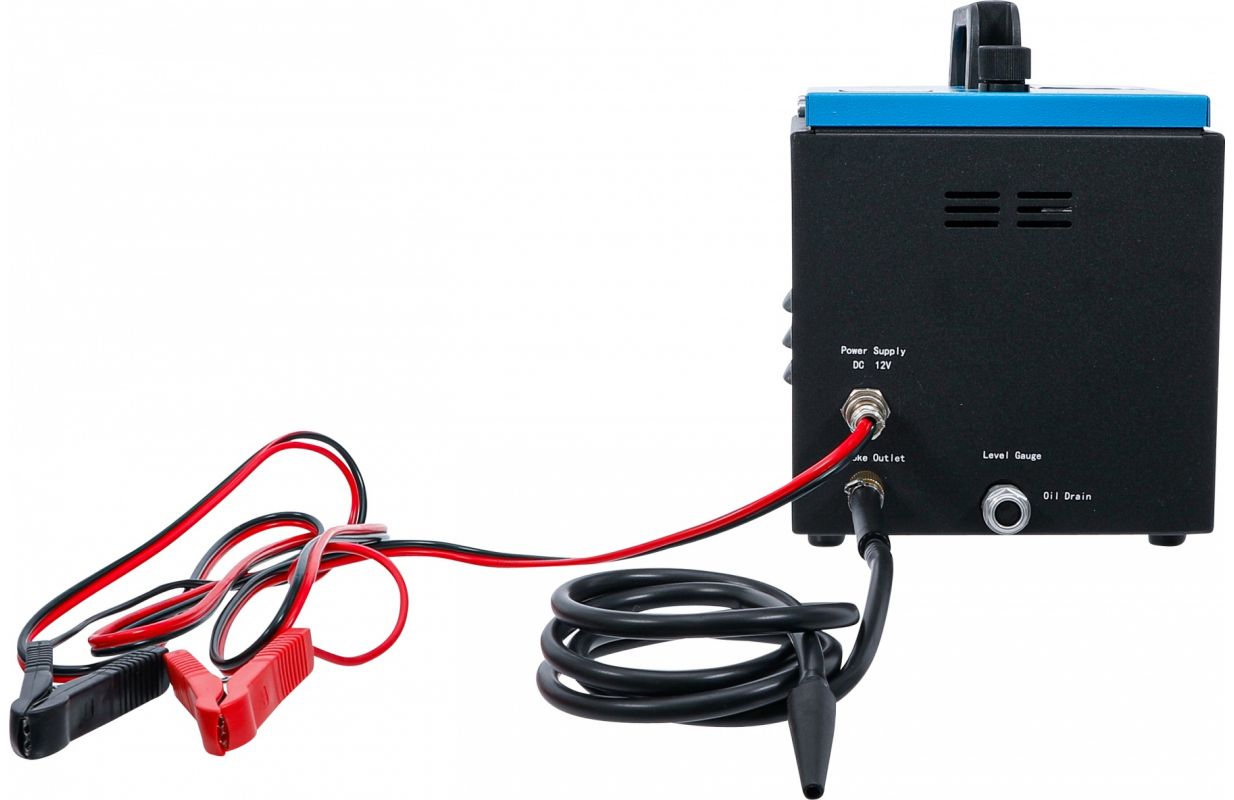

for power supply, the device is simply clamped to the vehicle battery and can thus be used in a mobile and flexible manner
safety switch-off of the heating
powder-coated sheet steel housing
adding baby oil or mineral oil before use (not included in the scope of delivery)
suitable for leak testing of:

intake tract
exhaust gas and exhaust gas recirculation system
crankcase and charge air system
tank, activated carbon and fuel system
urea (AUS 32) and additive system
vacuum controls, as well as its controls and connections
air conditioning system (low pressure, completely drained, flush if necessary)
cooling water system
wiper water system
car body and windshield connections (detection of water ingress points and wind noise)
power supply: 12 V (car battery)
smoke volume: 15 - 20 l/min
scope of delivery:

1 smoke generator
1 fill bottle, 250 ml
1 fill bottle, 15 ml
1 venting adapter
1 conical plug, large
1 conical plug, small
1 conical plug, medium
1 smoke outlet hose
1 power supply cable
1 vacuum hand pump
1 crankcase adapter
1 valve tool
1 connection hose
1 hose clamp
24 sealing plugs
