Clamp converter for yt-73085 (YT-73090)

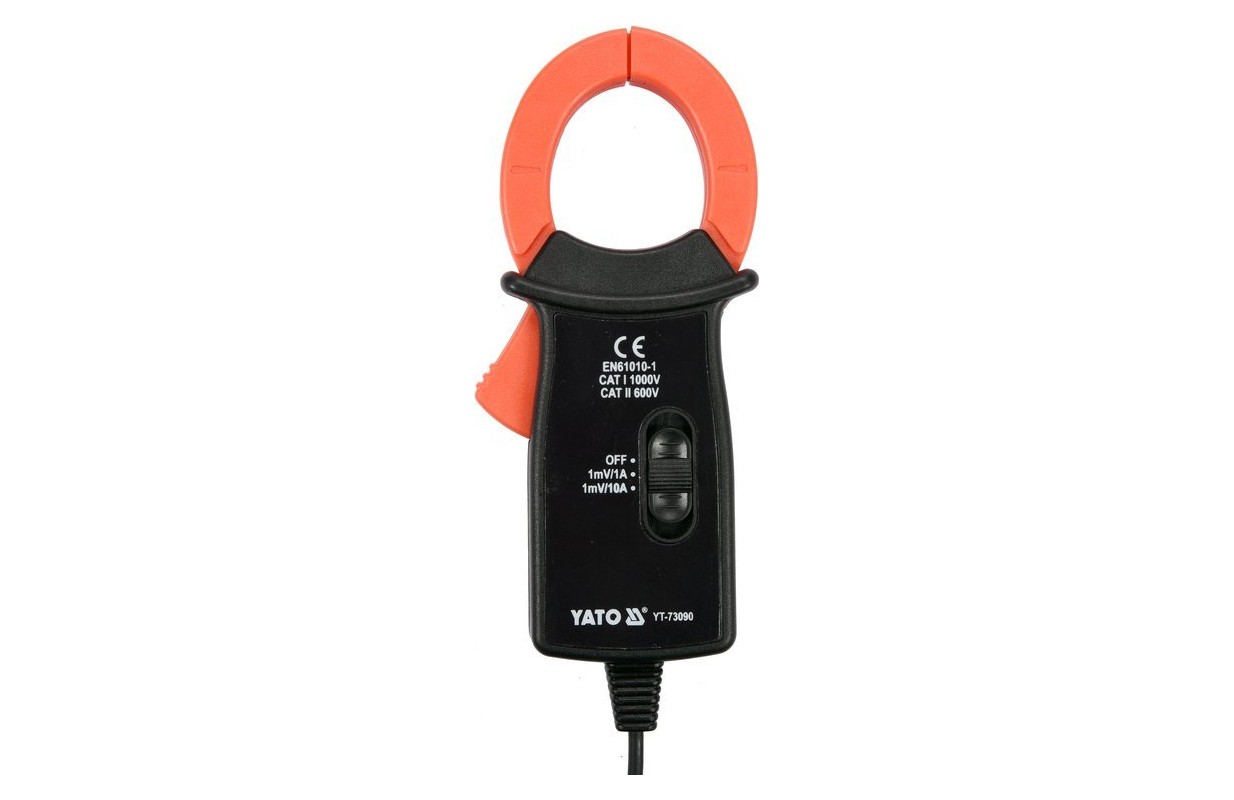

YT-73090 clamp meter equipped with clamps to measure AC current in a single wire by inductive method. This makes it possible to measure much higher current than conventional electric meters. The meter is a complementary accessory to the YT-73085 universal meter, as well as any universal meter that measures in the millivolt range.

Basic measurements:

• AC current measurement: A.C. 0-600 A

Measurement accuracies:

Example of determining accuracy for AC current measurement. Calculation for the measurement result: 30 A

• Measurement accuracy of YT-73090 meter for this range is : ±(2% + 0.5), resolution of 1 A
• calculation of measurement error formula: (measurement result x 2%) + 0.5 x resolution
• calculation: (30 x 2%) + 0.5 x 1 = 0.6 + 0.5 = 1.10 A

The actual result including measurement error for the indication of 30 A = 30 ± 1.25 A.

A table with the resolution and accuracy for the measurement can be found in the user's manual.

Additional information:

• clamps open up to 31 mm and allow measurement of a single wire with a maximum diameter of up to 20 mm
• 2-stage adjustment of the measurement range: up to 200 A and up to 600 A

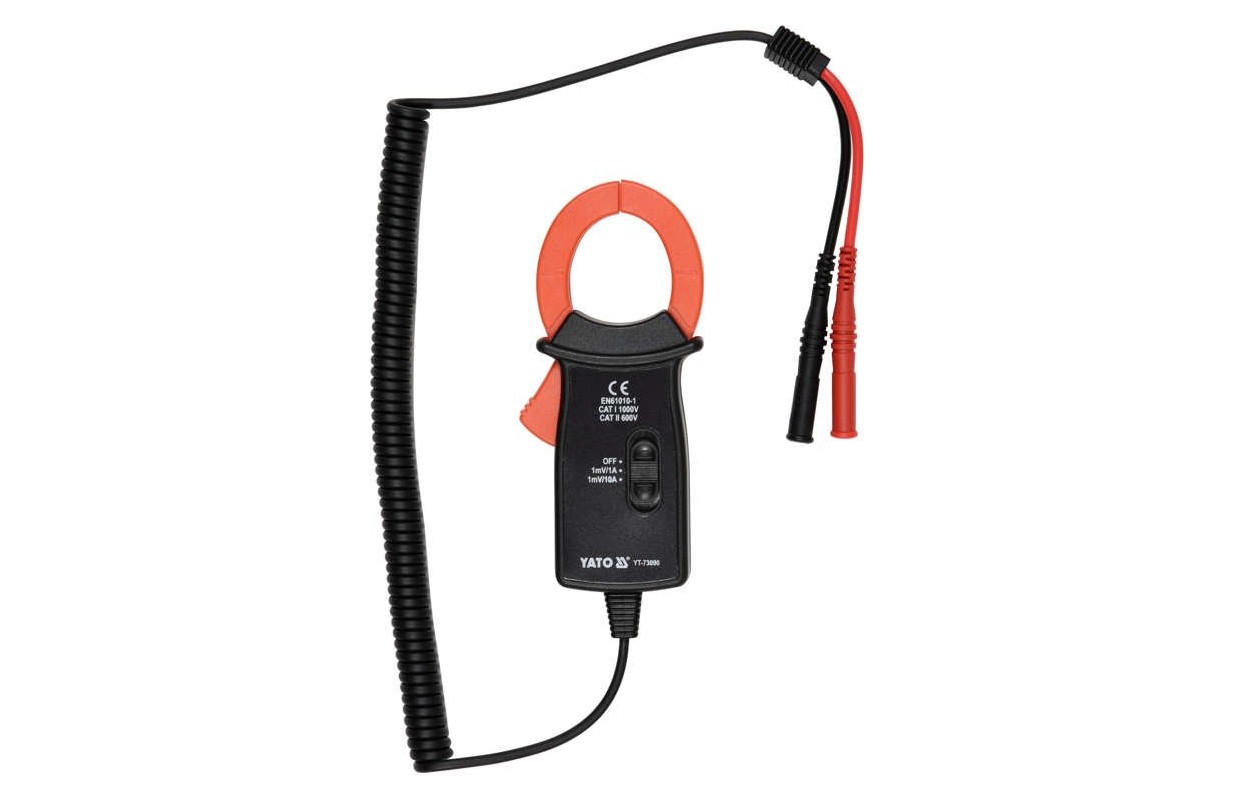

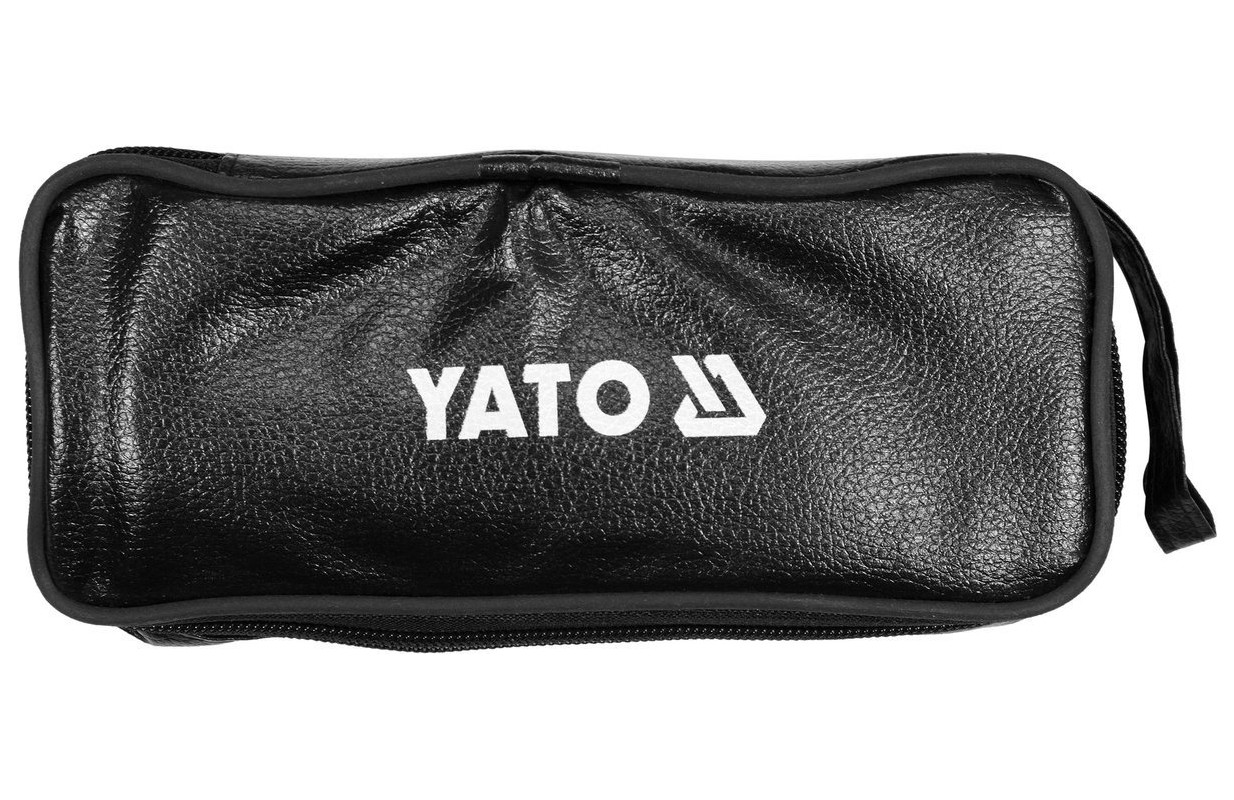

• including carrying case and measuring probes

Attention!

Current measurement with clamp meters is performed only on a single conductor, a single cable. Fastening the clamps on a multiconductor cable without isolating a single conductor will show an incorrect result or zero current flow.
