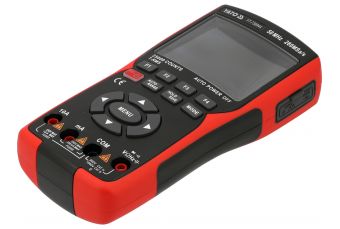

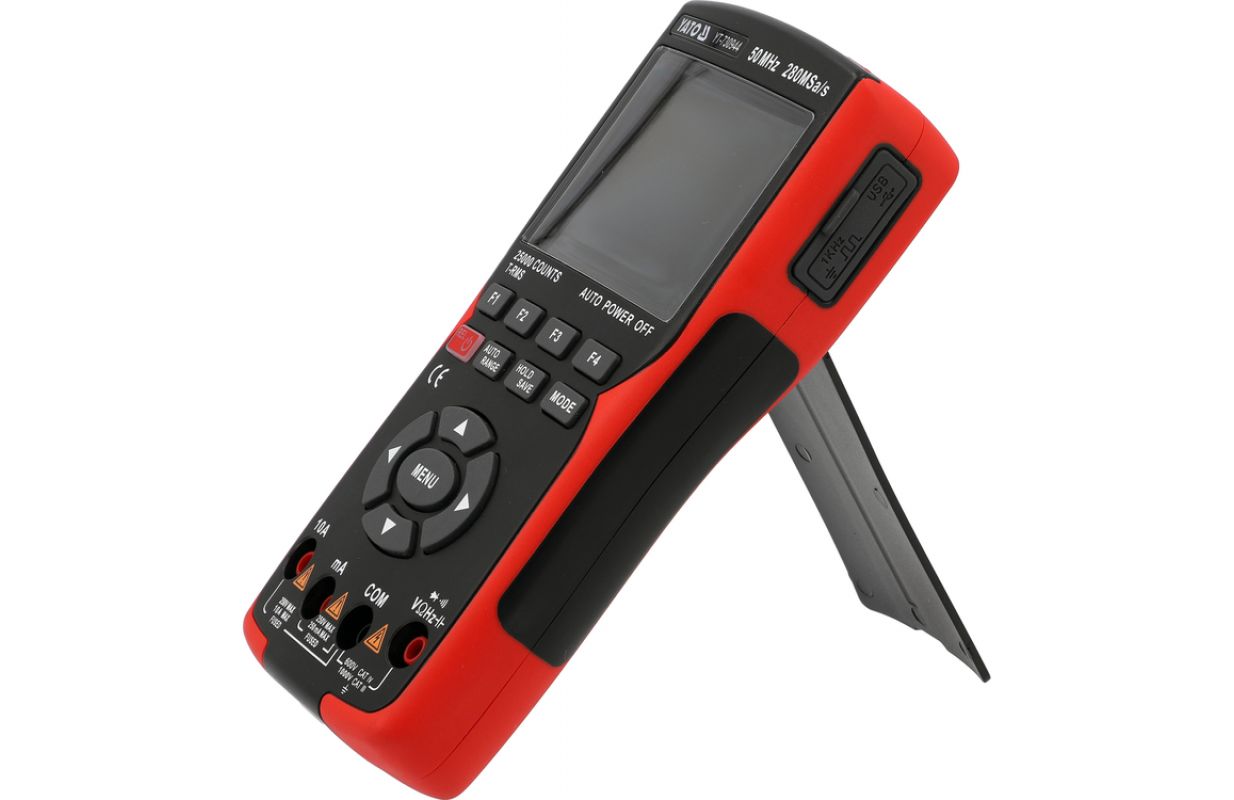

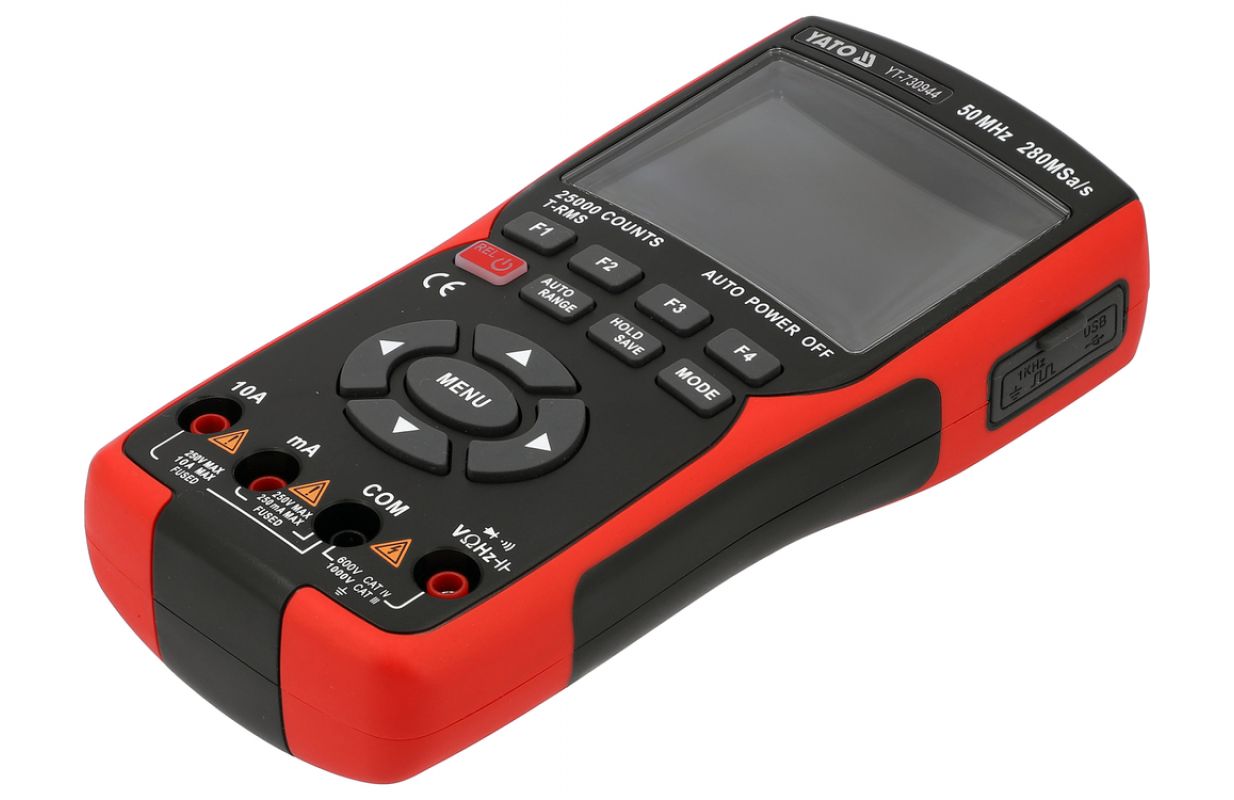

3-in-1 Oscilloscope, multifunctional 280MSA/A50MHz (YT-730944)

Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Series
GRF
Alternating voltage
0-750 V a.c.
Direct voltage
0-1000 V d.c.
Alternating current
0-10 A
Direct current
0-10 A
Resistance
0-250 MΩ
capability
0-99.99 mF
Regularity
0-999.9 kHz
Conduction test
yes
Diode test
yes
Minimum measurement value
yes
Maximum measurement value
yes
Relative value
yes
Average measurement value
yes
Number of functions
3
Functions
universal meter, two-channel oscilloscope, basic waveform generator
TRUE RMS
yes
Data Hold
yes
Bandwidth
50 MHz
Number of channels
2
Dimensions
177x89x40 mm
Material
ABS
Display type
LCD IPS
LED backlight
yes
Display range
25000
Auto measurement range
yes
Auto zero
yes (oscilloscope)
Acquisition memory
128 kpts
Sampling frequency
3 times per second (meter), 280 MSa/s (oscilloscope)
Bell ring
yes
Auto power off
15, 30, 60, 120 min
Oscilloscope probe operation
x1, x10
Front lighting
no
Low battery indicator
yes
Power supply
rechargeable
Battery type
Li-Ion
Battery voltage
3.7 V d.c.
Battery energy
12.58 Wh
Battery capacity
3400 mAh
Working temperature range
0~40 ˚C
Operating relative humidity Rh
<75 %
Storage temperature
-10 ~ +50 ˚C
Weight
0.38 kg
Application
electric
Symbol
YT-730944

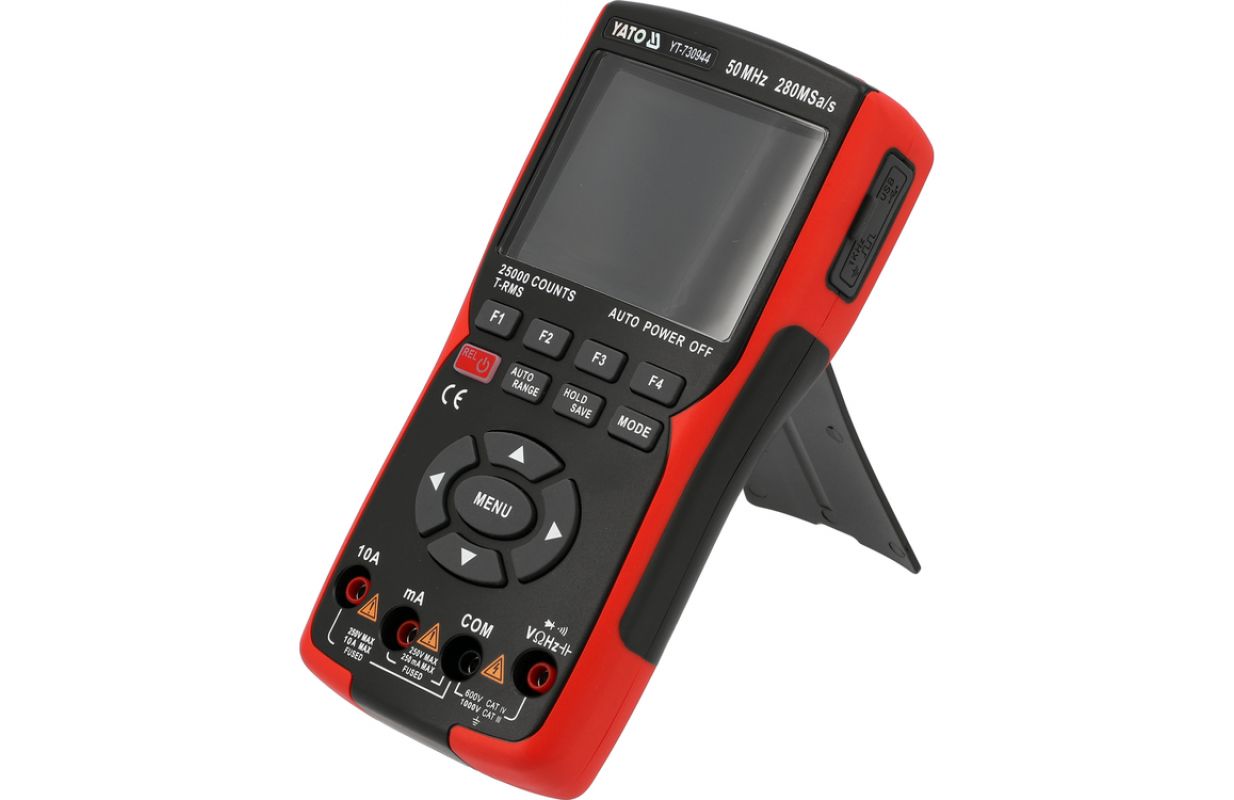

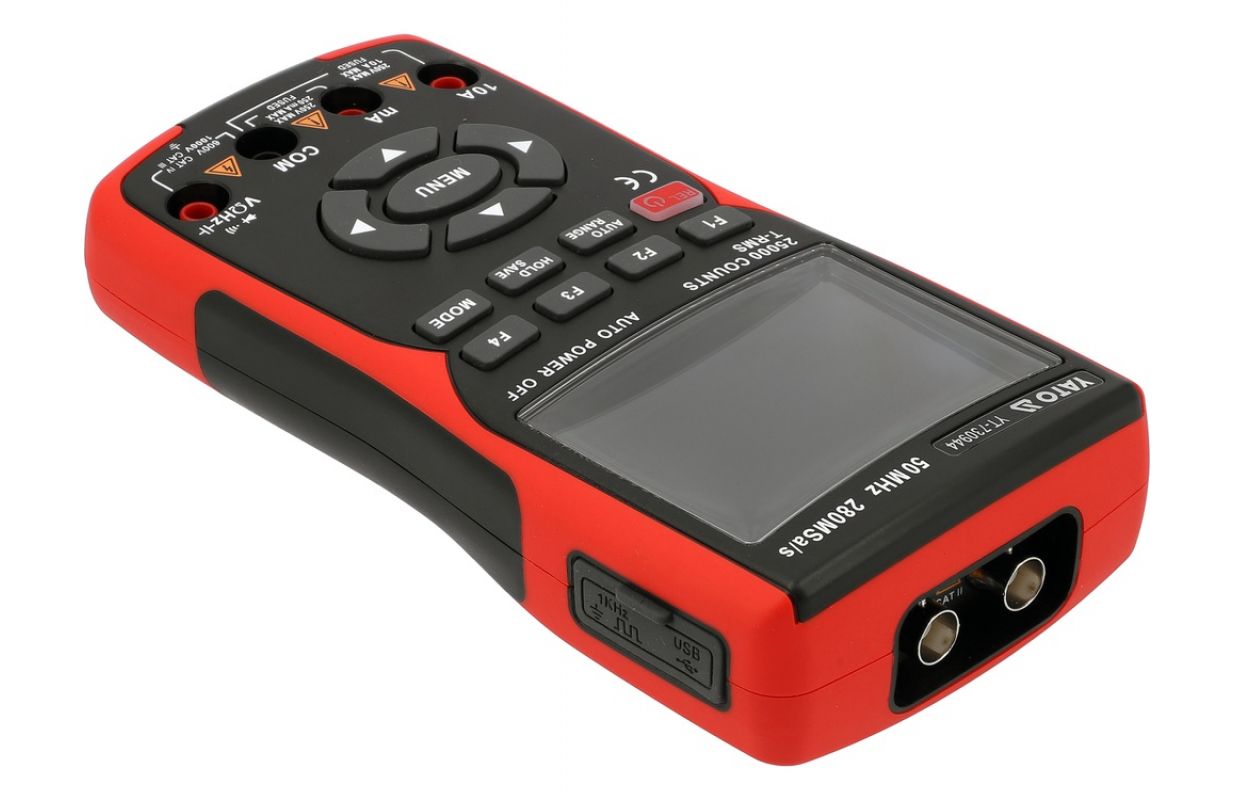

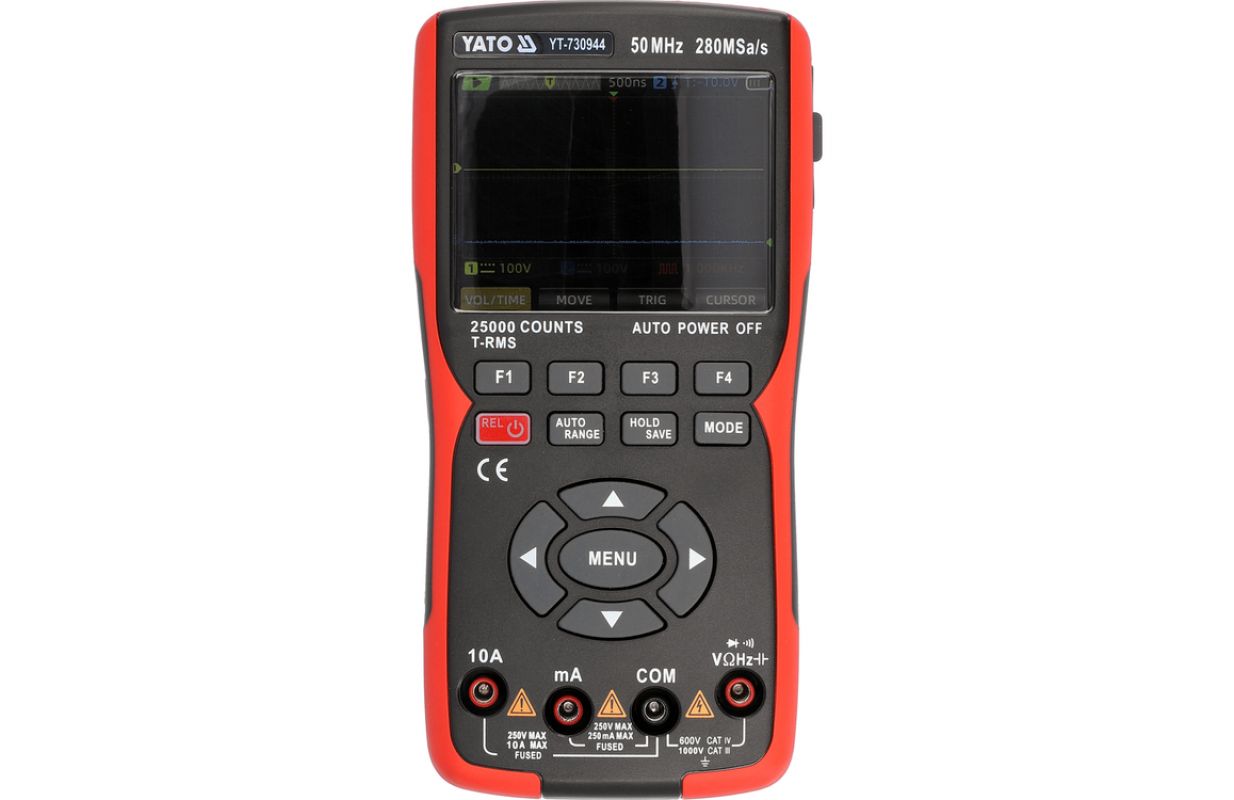

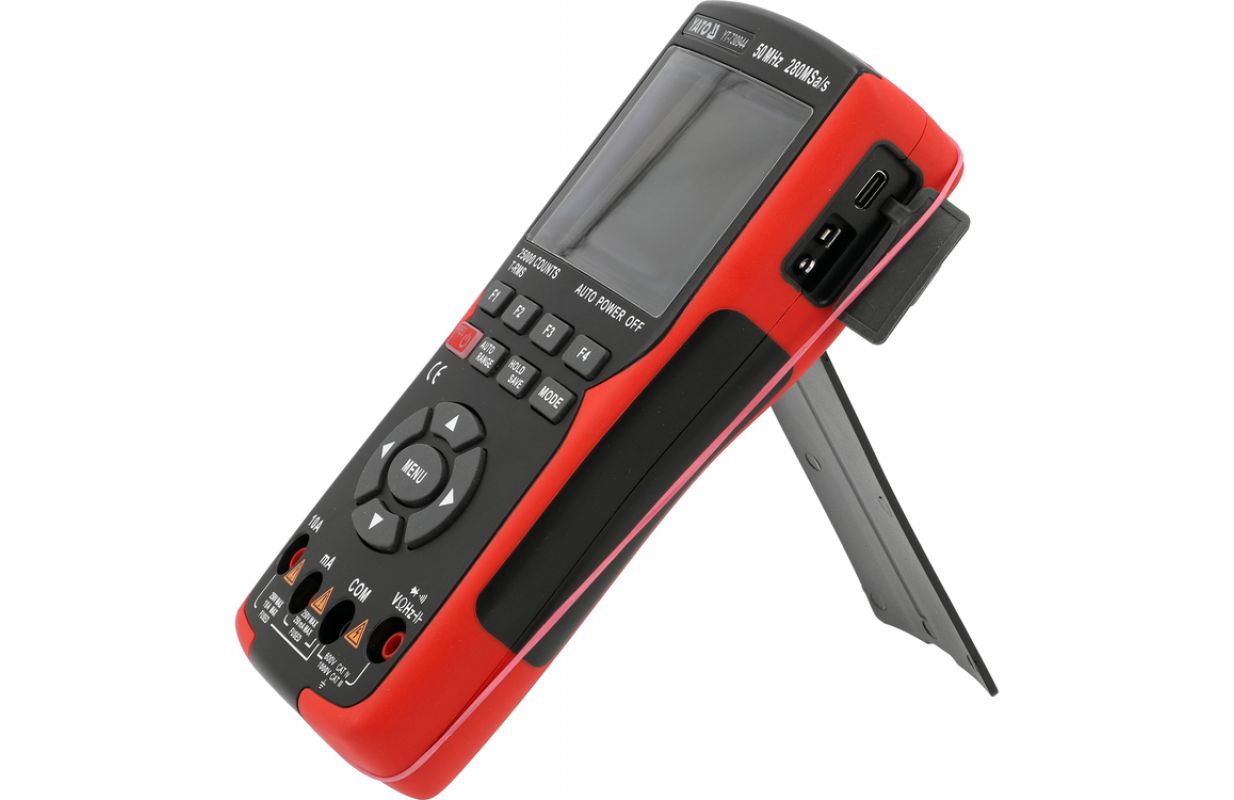

Universal meter, two-channel oscilloscope and basic waveform generator in one. It allows you to perform basic and advanced measurements of electrical quantities and visualize the tested signal in real time. The 3.5" IPS matrix color display guarantees readability from any angle. The replaceable 3400 mAh li-ion battery, rechargeable via the built-in usb-c port, is sufficient for about 6 hours of continuous operation. The multitude of additional functions, wide measurement ranges, speed of operation and high precision will be appreciated by electronic engineers, electricians and home do-it-yourselfers alike.

Basic parameters of the oscilloscope:

bandwidth: 50MHz
sampling frequency: 280MSa/s
acquisition memory: 128kpts

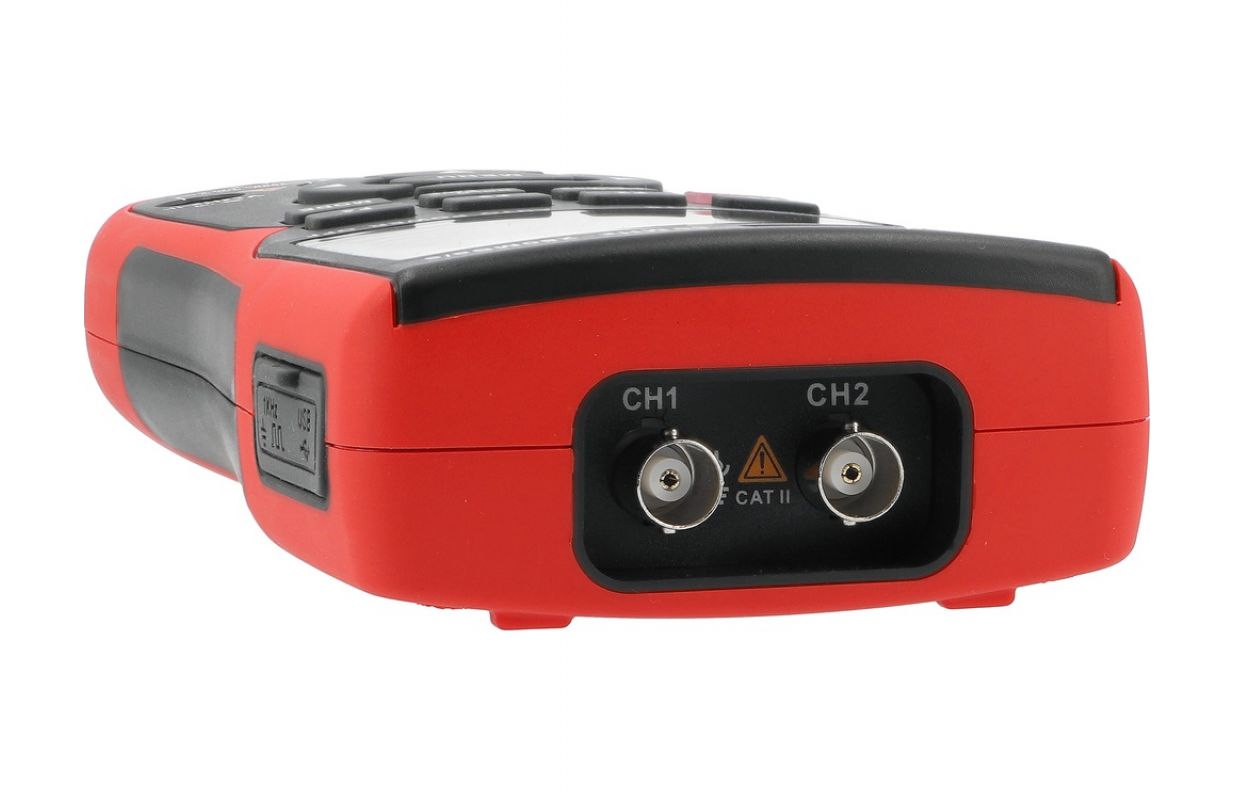

number of channels: 2
measurement probe support: x1 and x10
Selected oscilloscope functions:

AUTO - automatically and quickly obtain a stable waveform on the oscilloscope displayautomatically detect the time base and voltage of the signal under test
SAVE - saves a screenshot to .bmp graphic file format
TRIG - signal trigger modes
CURSOR - measurement lines, enables precise measurement of the value of the visualized waveform
PROBE - set the attenuation of the measuring probe x1 luv x10
MEASURE - display of measurements: frequency, period, voltages: rms, minimum, maximum, peak-to-peak
XY MODE - compares signals from two channels in terms of frequency and phase shifts and presents them in visual form (Lissajous patterns)
CALIBRATE - auto calibration function
STORAGE - device mode for transferring data, e.g. transferring saved screenshots to a computer
Basic measurements of the meter:

AC voltage measurement: A.C. 0-750V, TRUE RMS (40-1000Hz)
DC voltage measurement: D.C. 0-1000V
alternating current measurement: A.C. 0-10A, TRUE RMS (40-1000Hz)
DC current measurement: D.C. 0-10A
resistance measurement: 0-250MΩ
diode test:IF 1.8mA,UR 3.2V
circuit continuity test: 0-50Ω
Additional measurements of the meter:

capacitor measurement: 0-99.99mF
frequency measurement: 0-999.9Khz
Meter measurement accuracy:

Example of accuracy determination for AC voltage measurement. Calculation for the measurement result: 235V

Measurement accuracy of YT-730944 meter for this range is : ±(0.5% + 3), resolution 0.01V
calculation of measurement error formula: (measurement result x 0.5%) + 3 x resolution
calculation: (235 x 0.5%) + 3 x 0.01 = 1.175 + 0.03 = 1.205V
Actual result including measurement error for 235V indication = 235 ± 1.205V

The result including the measurement error for the indication of measuring12*var of DC voltage: 12V = 12 ± 0.009V
result including measurement error for indication of AC current measurement: 8A = 8 ± 0.067A
A table with the resolution and accuracy for the measurement can be found in the instruction manual.

Meter functions:

TRUE RMS - a meter with this function displays the true rms value of AC voltage/voltage. Unlike averaging meters, devices with true rms show the correct value not only for sinusoidal waveforms, but also for sinusoidal waveforms distorted, such as by higher harmonics, or square or triangular waveforms. A must-have function wherever impulse power supplies, motor inverter drives, HVAC systems, etc. appear in a circuit.
AUTO - automatic adjustment of the measurement range. When measuring unknown values with a meter with manual range adjustment using the knob, make measurements sequentially from the largest range up to the range giving the most accurate result - otherwise you risk damaging the device. On the other hand, in the case of a multimeter with the AUTO function, you only need to make one measurement and the meter will automatically find the optimal range. The meter starts by default in AUTO mode
RANGE - manual change of the measurement range. A useful function when checking many of the same components with a known value, such as a series of resistors. Manual setting of the range will shorten the time of such measurements significantly
REL - using the function during a measurement will reset the display to zero and take the value seen before the display as the reference level. The next measurement will show the difference between the measured value and the retained reference value
MAX/MIN/AVG - retaining on the display the maximum, minimum and average value from the current measurement
HOLD/SAVE - retaining on the display the currently measured value, saving it to memory.

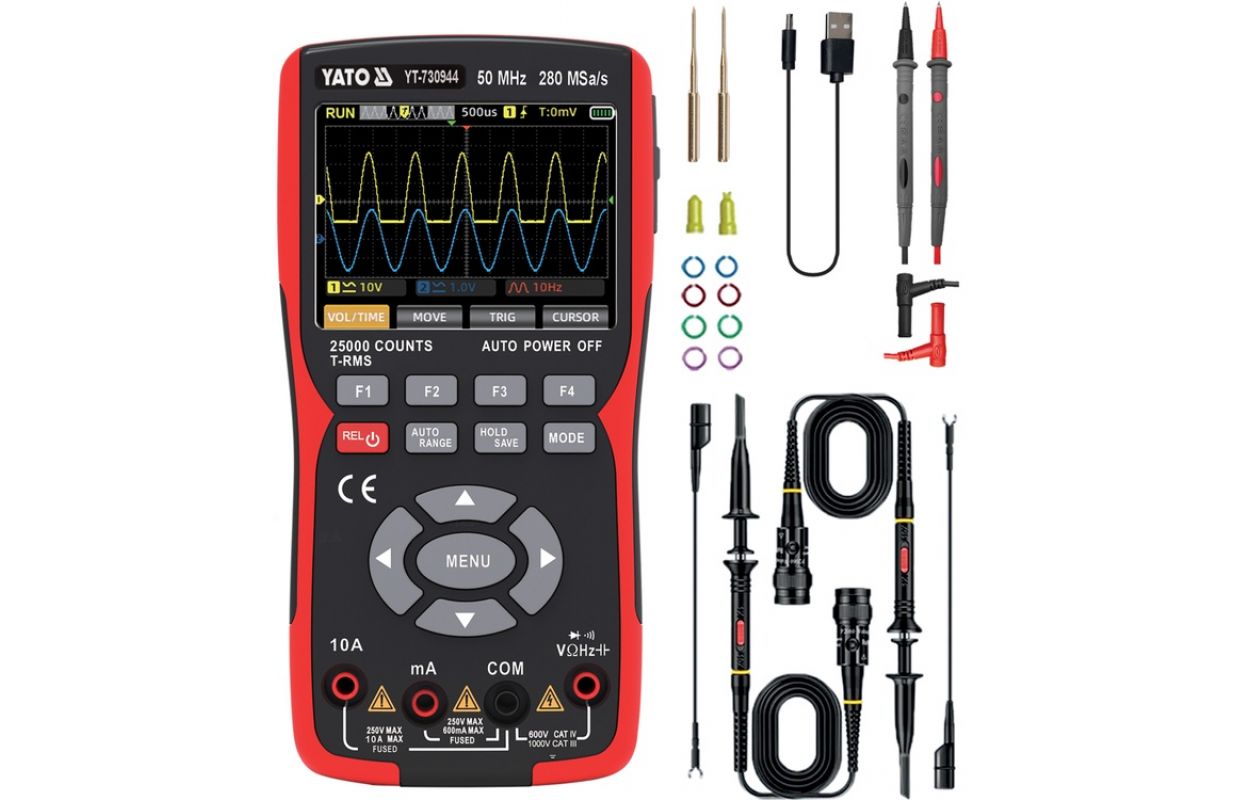

Additional information:

LCD display, maximum displayed result: 25000
adjustable backlighting of the screen
sound and light signal in the test of circuit continuity for resistance below 50Ω
possibility to enable diode and circuit continuity tests separately

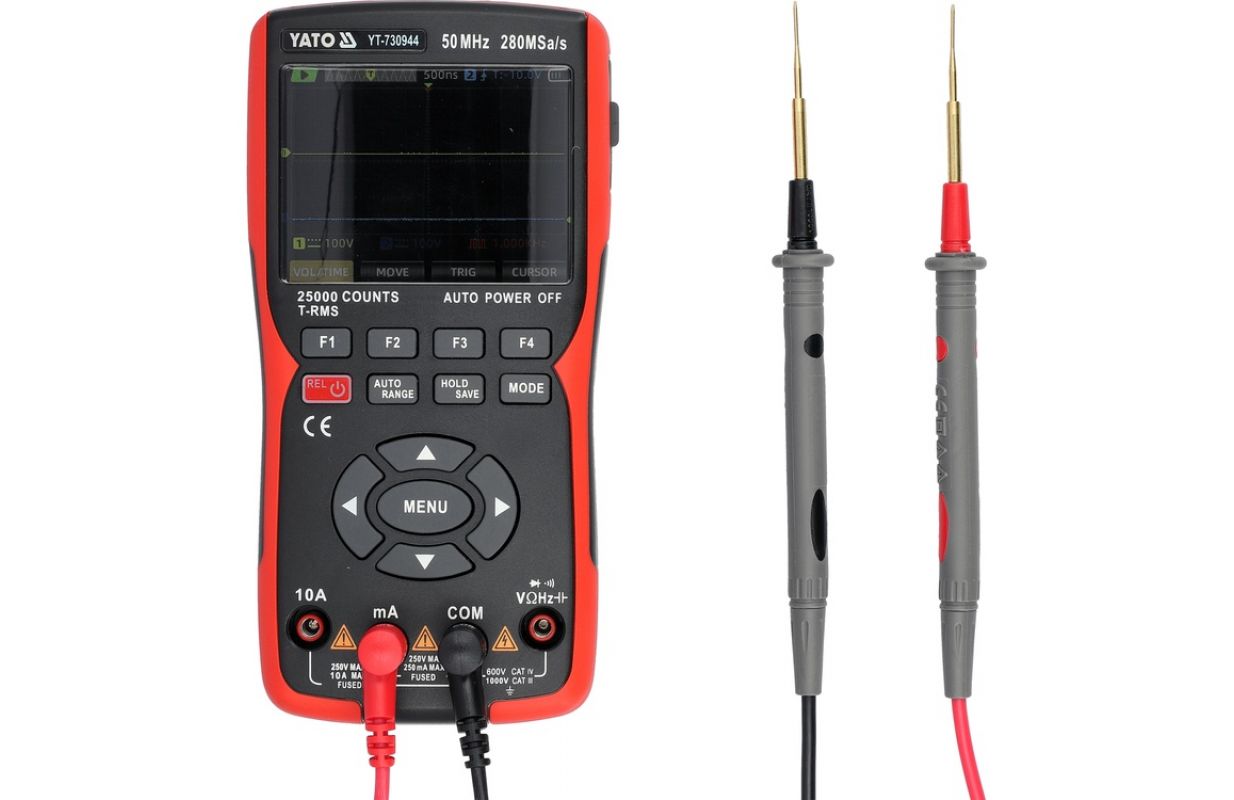

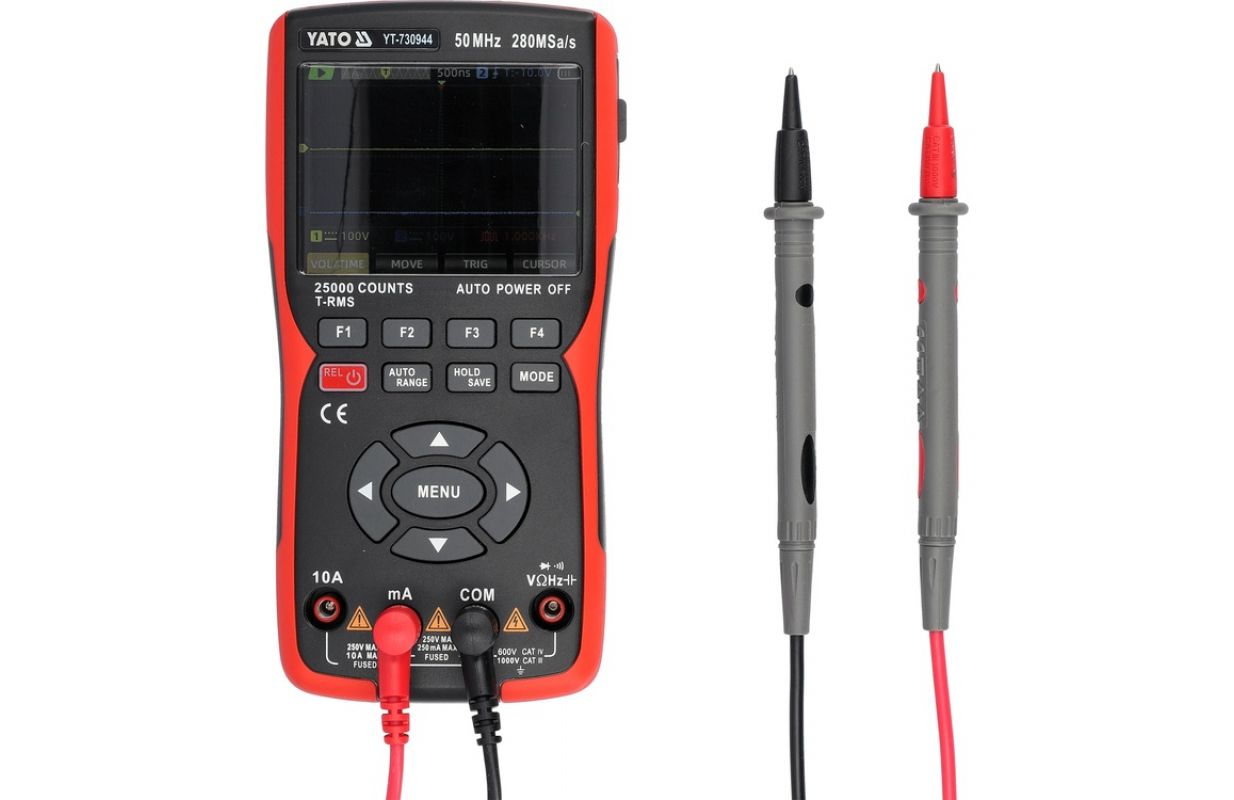

measuring probes with a length of 14.5 cm
cable length including probes: 97 cm
diameter of the cable including insulation: 3.5 mm
needle caps for measurements of small SMD components

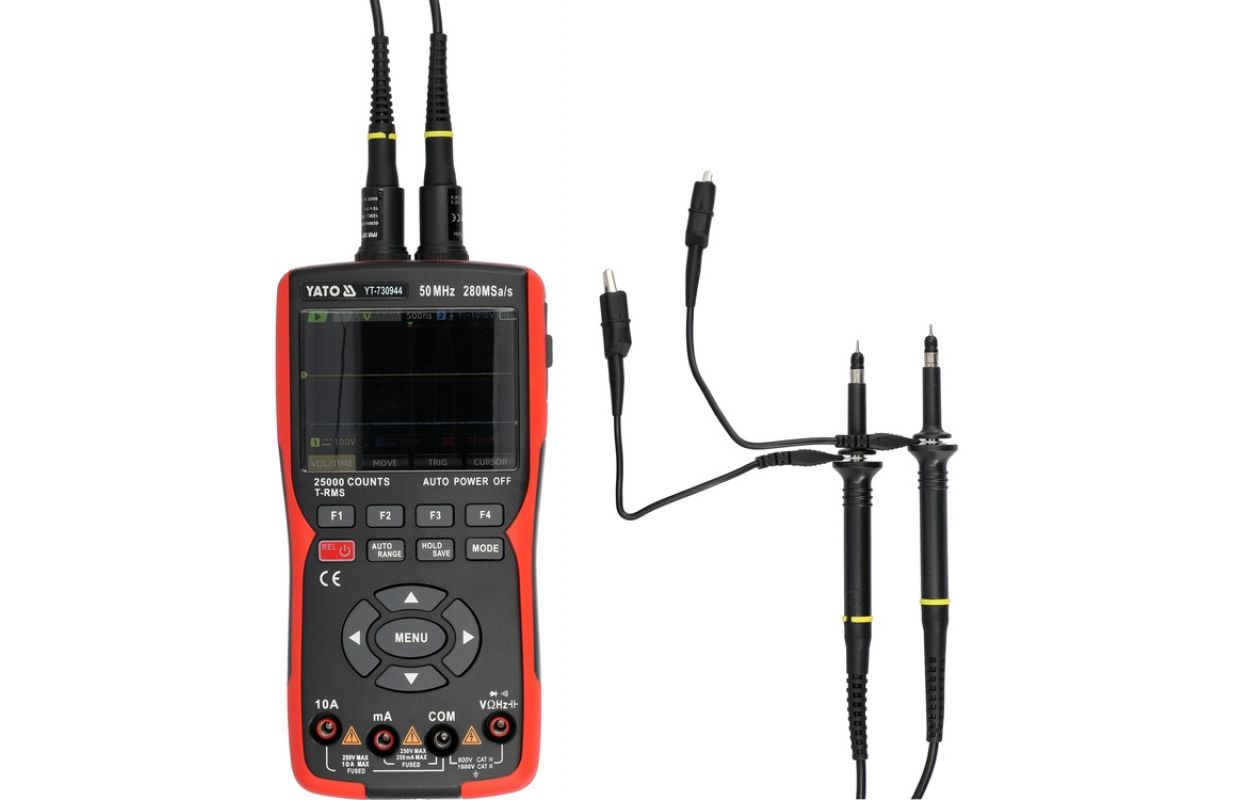

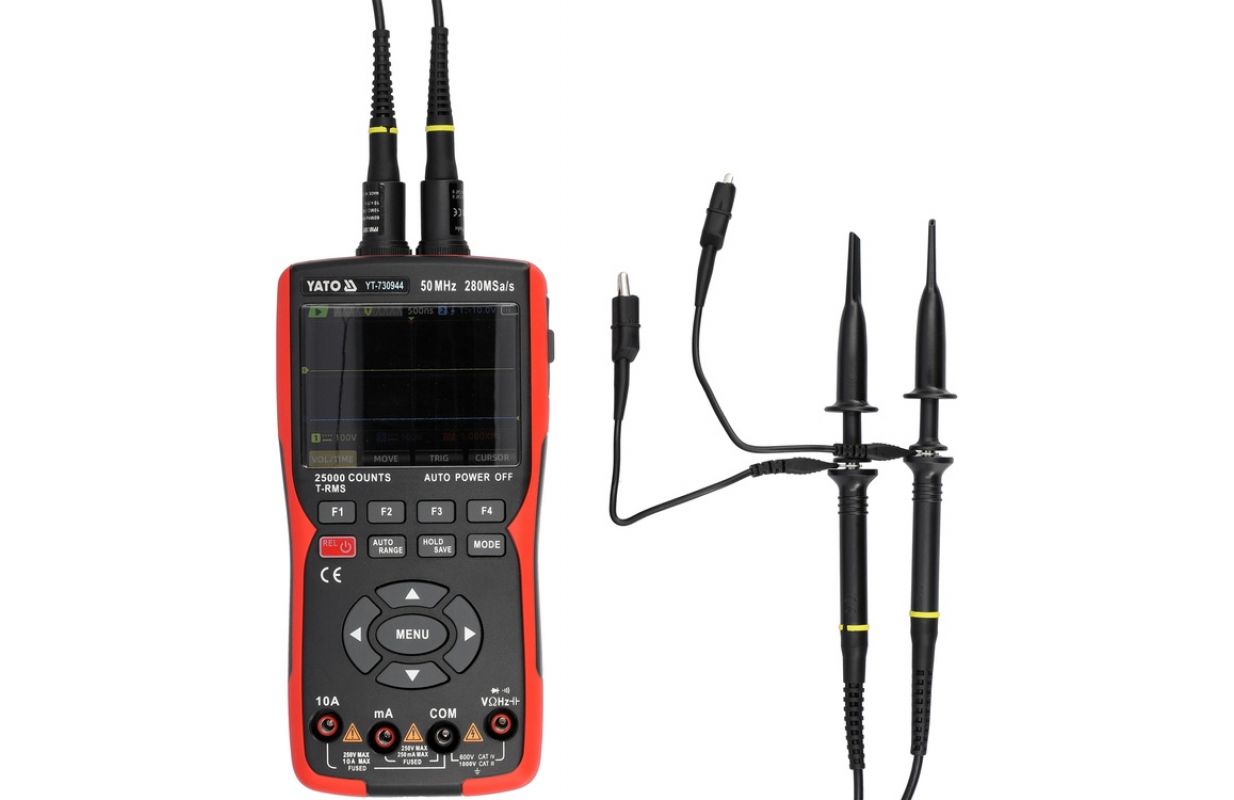

two P2060 oscilloscope probes with accessories
construction with overload protection
ABS plastic housing
automatic shutdown of the meter with adjustable time of 15-120 minutes
possibility to disable the automatic shutdown mode
low battery indicator

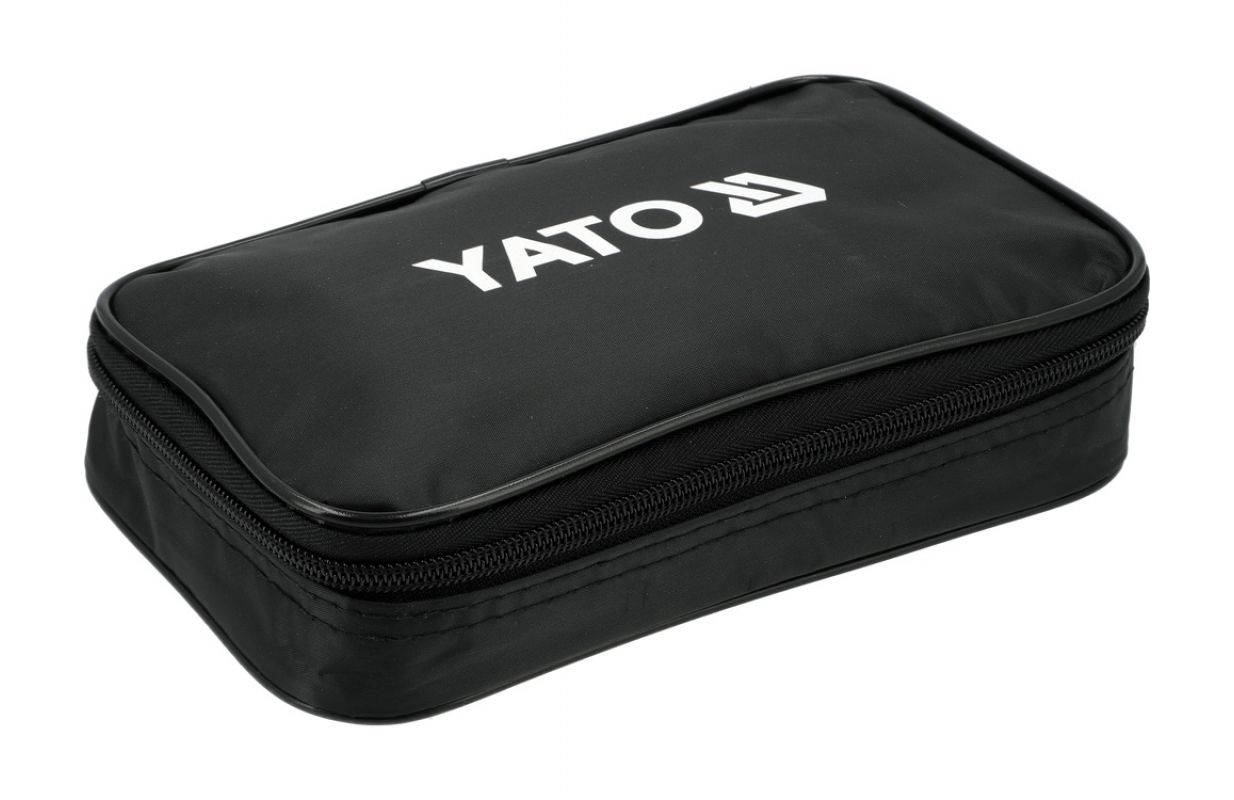

soft case with zipper
power supply: 18650 Li-ion cell
