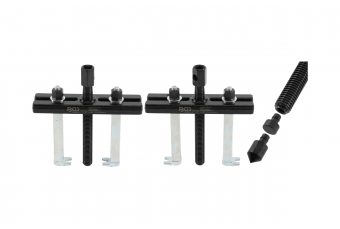

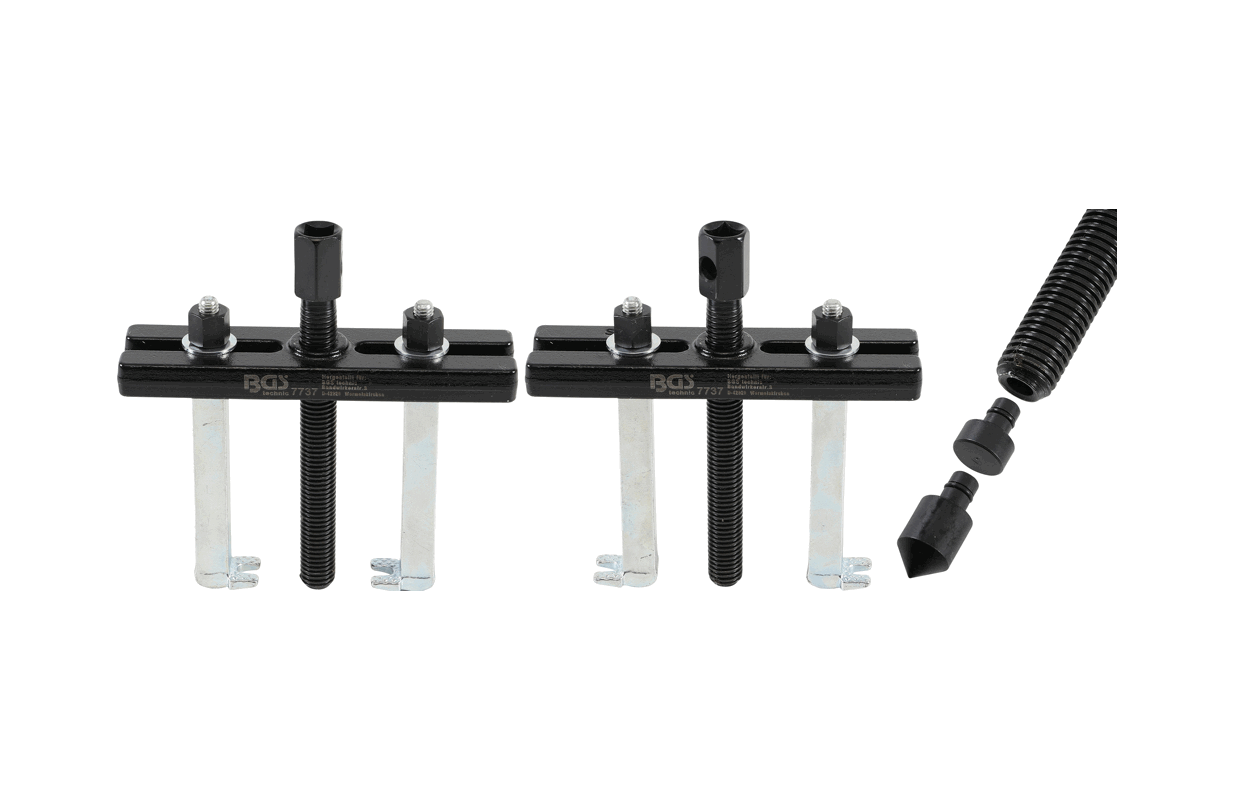

External / Internal 2-arm Puller | 40 - 145 mm / 70 - 170 mm (7737)

Technical data

Drive profile: Slinding Handle
Drive profile 1: Internal square
Drive profile 2: External hexagon
Drive profile 1, inch: 1/2 "
Drive profile size 1, metric: 12,5 mm
Gross weight: 1678 g
Hook foot opening: 8 mm
Hook foot thickness at the top: 6,5 mm
Hooked footh: 14 mm
Hook length: 31,5 mm
Wrench size 1: 12,5 mm (1/2") | Gleitgriff
Hex drive size: 21 mm
Clamping depth: 100 mm
Max. clamping width: 145 mm
Max. clamping width outside puller: 170 mm
Max. clamping width inside puller: 145 mm
Min. clamping width: 40 mm
Min. clamping width outside puller: 70 mm
Min. clamping width inside puller: 40 mm
Spindle length: 155 mm
