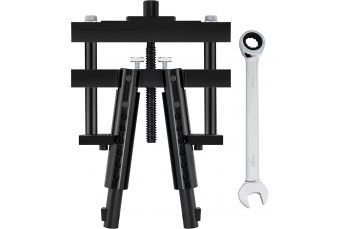

Universal cylinder liner extractor tool 2jaw (MHR10904)

The cylinder liner puller is compatible with Mack, Cummins, Volvo, Detroit, International, and other CAT Engines. With the manual liner puller, you can quickly remove the cylinder liner. Besides, its power is evenly distributed and will not cause damage to your cylinder liner.
With high working efficiency, this universal liner puller can work perfectly on a heavy-duty truck, with wet liners of 94 mm iki 157 mm, and 3.8 mm minimum wall thickness.
Equipped with spring-loaded feet, the puller can automatically be adjusted to fit the liner so that you don't need to operate the swing arms manually. The adjustable spread range is from 94 mm iki 157 mm, suitable for most wet cylinder liners. Plus, there are 7 holes in the lower leg so that you can adjust the length of the rod according to the depth of the cylinder.
The universal cylinder puller is made of durable 45 steel, providing good performance while withstanding abrasion, corrosion, and impact, which can effectively extend the service life of the cylinder liner puller.
The universal cylinder puller's structure is very stable and reasonable. There are gaskets, bearings, bushings in the upper part, and detent brake pins in the middle. Besides, two baffles with 17.7 mm thickness are designed on both sides. Plus, We will provide you with a wrench so that you can use it with heavy-duty tools. All these designs are constructed to stabilize the whole puller significantly and help you quickly finish the removal work.

Specifications
Dismantling Size Range: 94 - 157 mm
Material: 45# Steel
Applicable Models: Wet-type Cylinder Liner
Max. Lead Screws Length: 308 mm
Baffle Thickness: 15 mm
Item Weight: 10.5 kg
Item Size: 157 x 565 x 260 mm
