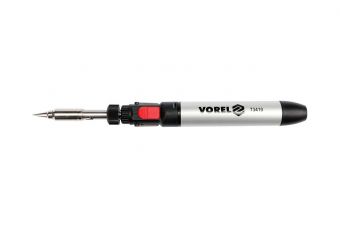

3in1 slodering iron / torch / hot blower set (73410)

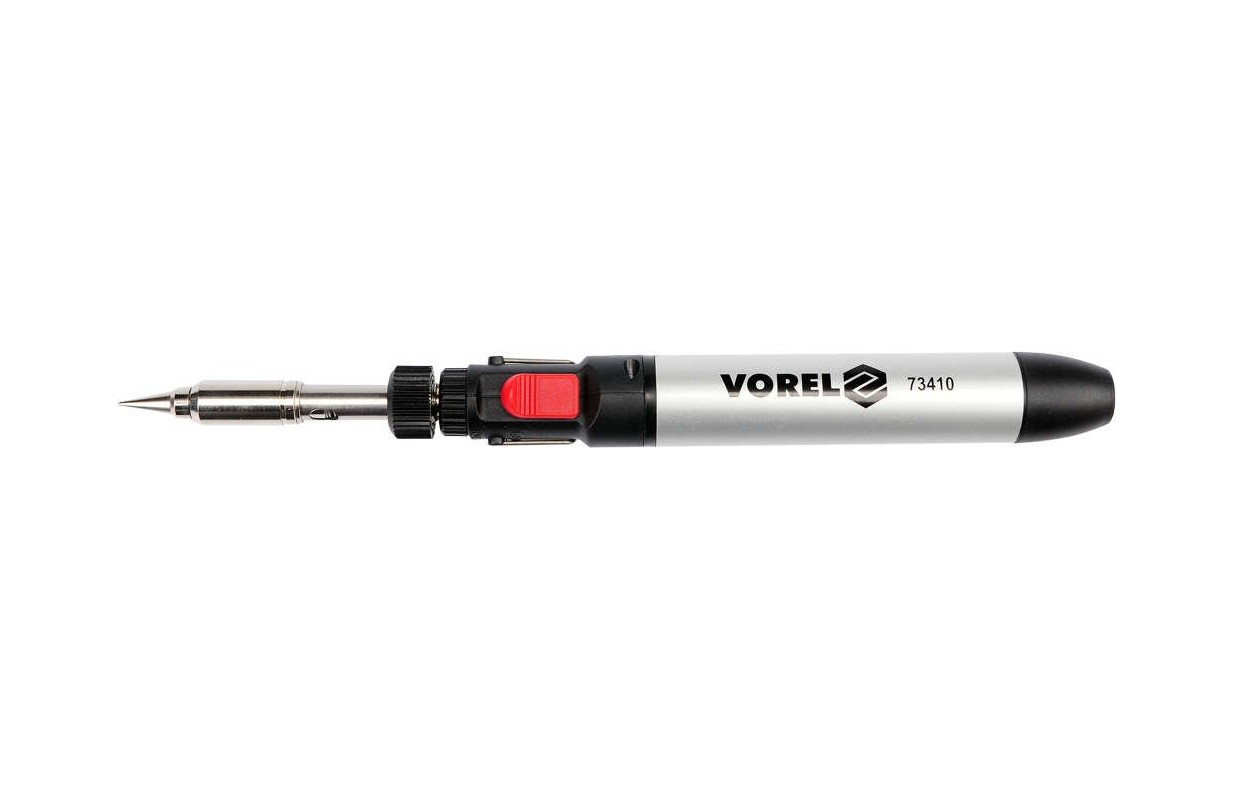

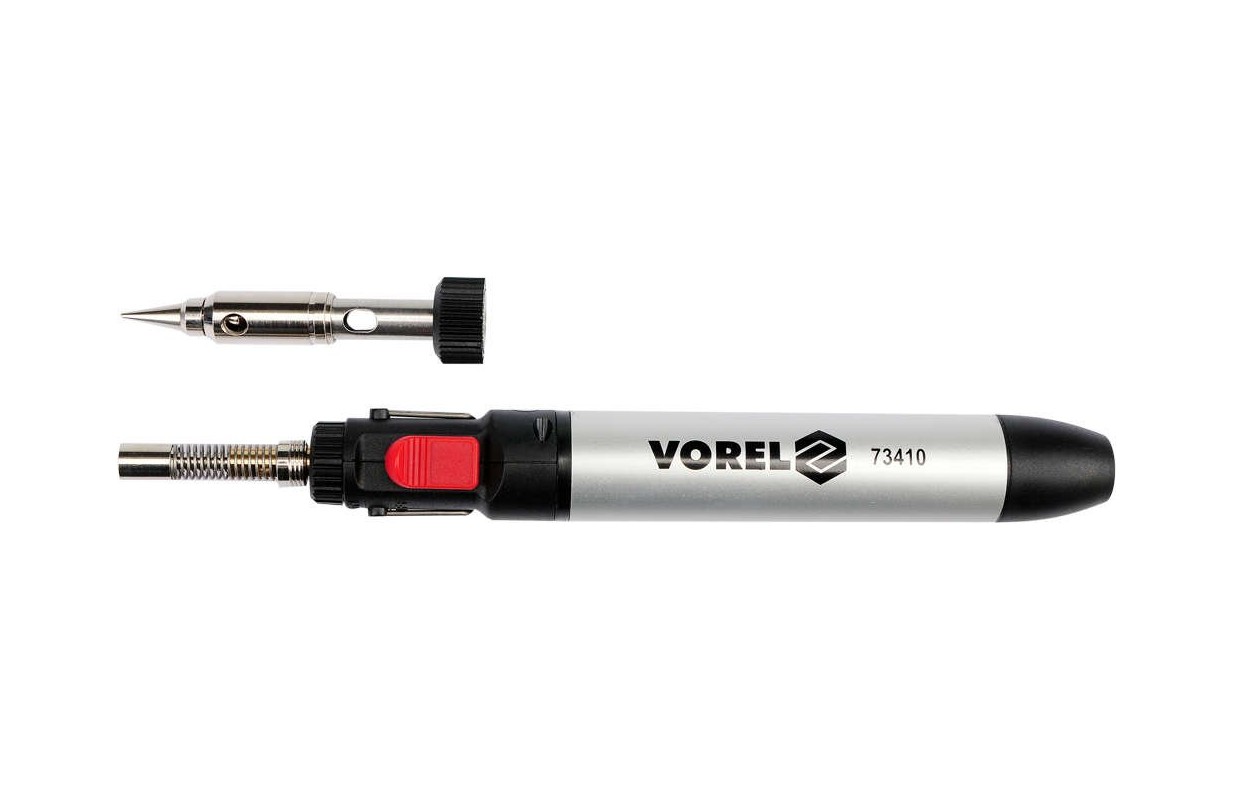

3-in-1 gas soldering iron VOREL 73410 powered by lighter gas (butane).

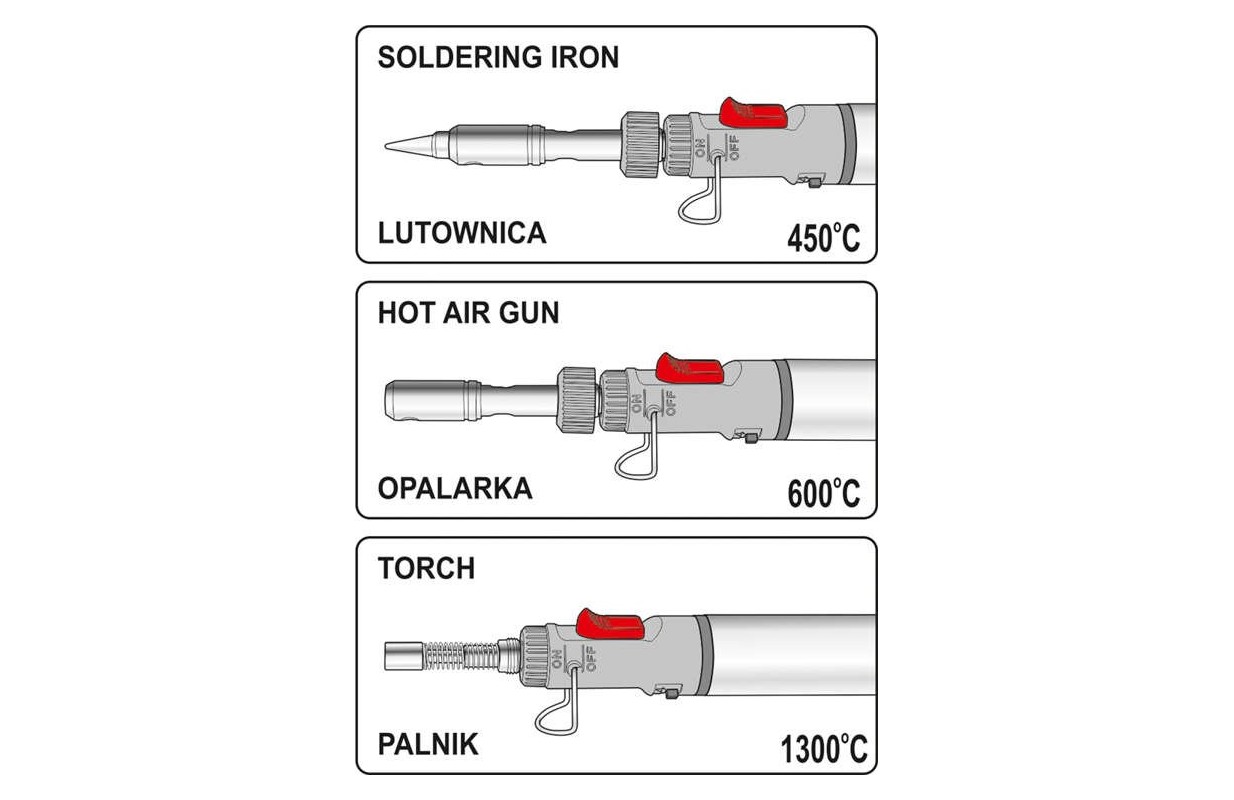

Can be used as:

• soldering iron with a temp of 450°C
• burner with a temp of 1300°C
• burner with a temp of 600°C

It features infinitely adjustable flame size, a gas cut-off button, and a fold-out stand.

Purpose:

• for soldering
• for melting
• for high temperature cutting
.

for welding

for shrinking

for burning in wood

Tank refill:

1. Close the gas valve, to do this, turn the regulator knob all the way in the direction marked with the number "1" and make sure that the switch is in the position marked "OFF".
2. Use good quality gas. The gas container should be equipped with an adapter suitable for the type of valve.
3. Direct the burner with the valve upward. Apply the outlet of the gas container to the valve. Press the cylinder against the valve.
4. Fill until the first signs of overfilling, gas will begin to come out from between the connection of the burner and the gas container.
5. Pause the burner for a few minutes to stabilize the gas pressure in the container.

.

Usage warnings:

Use only in well-ventilated areas.
Read the instructions before using this device.
Use safety glasses when using the kit.
Make connections or changes to containers in a flameless or ignition-free atmosphere, away from bystanders.

Technical data

Brand	Vorel
Entity responsible for this product in the EU
Series	GRD
Power	25~80 W
Gas type	butane lighter gas, propane-butane lighter gas
Flame temperature	1300 ˚C
Blast temperature	600 ˚C
Max. temperature of soldering tip	450 ˚C
Gas usage	6.6 g/h
Working time	60 min
Tank capacity	15 ml
Weight with empty tank	60 g
Application	tin soldering, woodburning, shrinking of heat-shrinkable materials, Cu pipe brazing, unscrewing stuck screws, defrosting, bending and warm forming,
Application cont’d	heat welding and gluing
Symbol	73410
