Turbo hand torch (YT-36715)

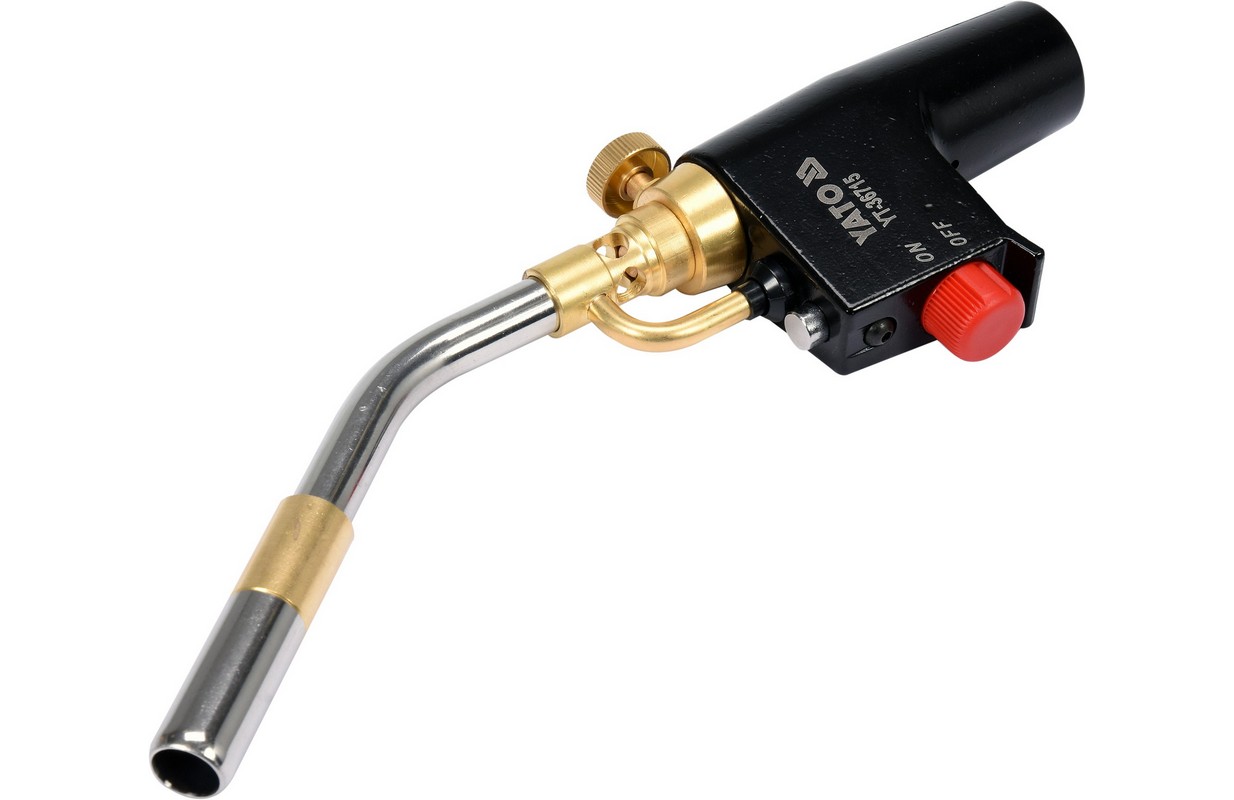

Professional turbo gas burner YT-36715.

YATO burner designed for professional applications. Specificallyólly recommended for plumbing and installation work possible:

• hard soldering - copper pipes of diameter up to 32mm
• .soft soldering - copper pipes with diameterup to 100mm
• welding.

Thanks to the use of the highest quality componentsós, such as brass body., the burner allows it to reach a temperature of 2800⁰C and power of 2.0kW. It is powered by gaspropane or MAPP mixture, which allows to achieve very high performance without connecting additional gas cylinders. The gas consumption is 142g/h and the pressure is 2.59MPa.

The burner is equipped with a TURBO nozzle that produces a vortex flame. This increases the flow of gas, resulting in much higher efficiency and faster heating of the pipes.

The YATO burner has a number of very useful functions:

• PIEZO ignition - makes it easy to ignite the gas without the need for an external igniter
• drain lock./strong> - protects against accidental activation of the burner
• lock for continuous operation - especiallyólly useful during prolonged operation. Allows you to lock the burner in the on position without holding the button with your finger

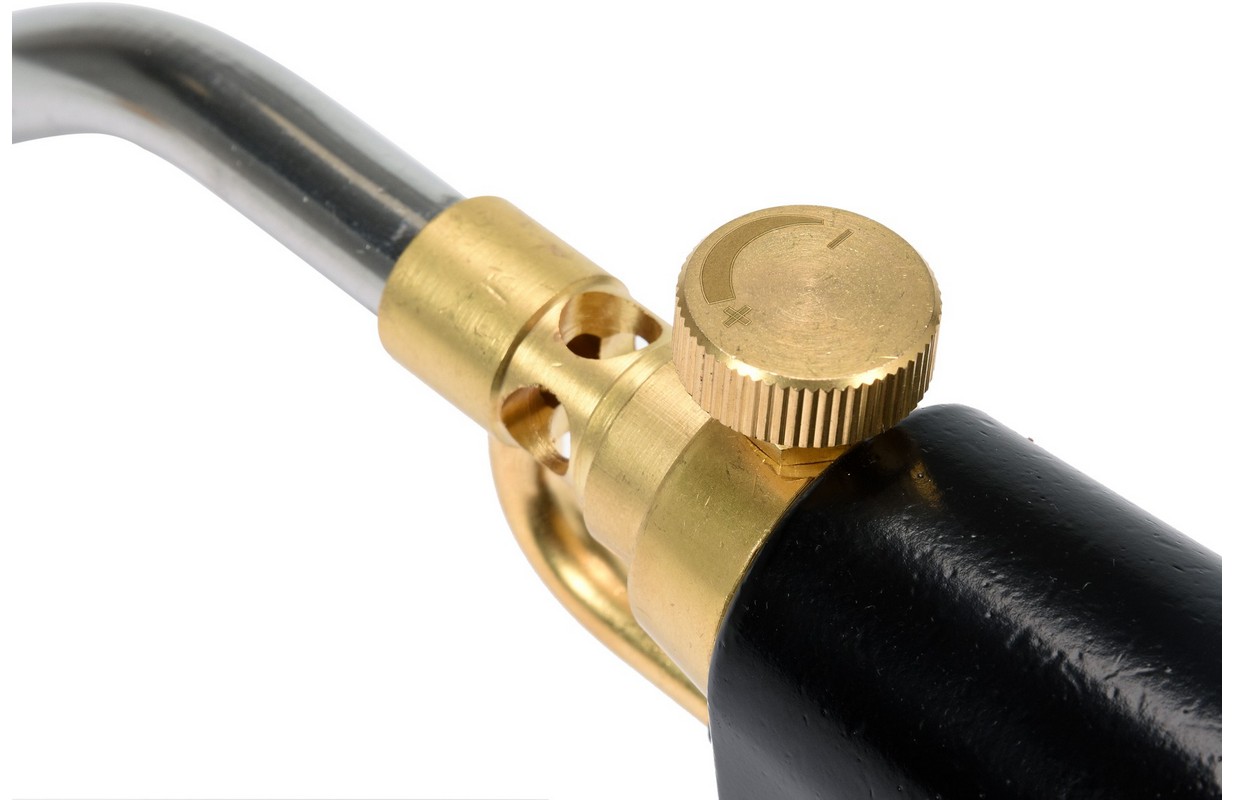

• gas adjustment. - allows you to adjust the power of the flame according to your needs

An important advantage of the YATO burner is the AUTO START/STOP function. Thanks to its special design and built-in valve, operation of the burner is very convenient and allows it to be operated with just one hand. The burner is activated by pressing a single button and works only when it is pressed. On the other hand, when the button is released, the burner will automatically turn off. There is no need to turn off the gas supply every time. This greatly simplifies and speeds up the work. In addition, it reduces gas consumption.

The YATO burner can be worked at a 360⁰ angle, which allows you to safely work in any position, even in the most inaccessible places.

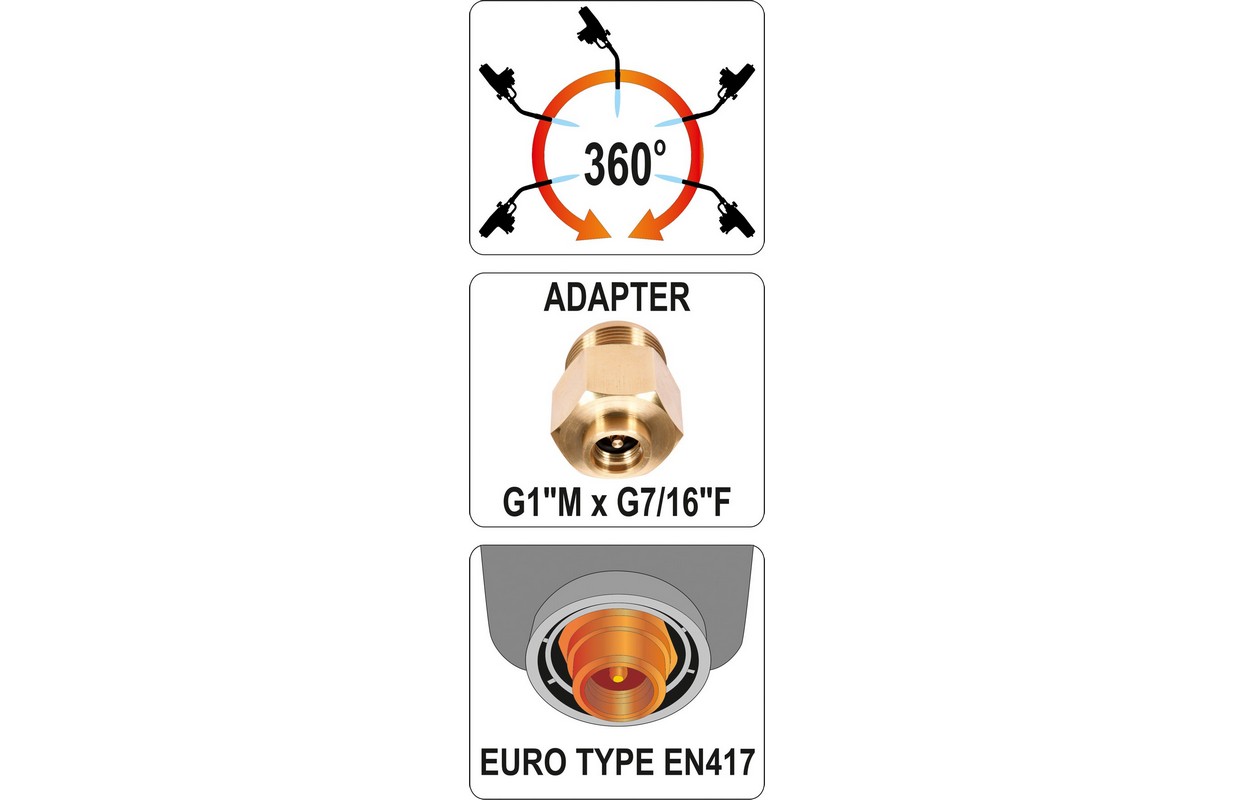

The burner has a connection for gas cylinders with a G1 "F thread. In addition, the kit comes with a adapter that allows you to connect a bottle with a G7/16 "F connection. This makes it possible to connect to the YATO burner both typesóof cylinders used on the market.

Usage warnings:

The device should be used only with reusable containers containing technical propane-butane gas, equipped with a threaded connector.
Gas containers must comply with EN 417.
Use only in well-ventilated areas.
Read the instructions before using this device.
Make connections or changes to containers in a flameless atmosphere, away from bystanders.
Use safety glasses when using the kit.
Turning off the burner: Turn the control knob all the way in the direction marked "OFF". The flame will go out spontaneously.
Be careful, because the metal parts of the burner have been heated during operation. Leave to cool down.

Technical data

Brand	Yato
Entity responsible for this product in the EU
Series	GRD
Power	2 kW
Flame temperature	2800 ˚C
Gas pressure	2.59 MPa
Gas type	propane from an external cylinder
Gas tank type	disposable, self-sealing, under direct pressure, type EN417
Connector thread size	G1 F
Gas usage	142 g/h
Piezo ignition	yes
Turbo nozzle	yes
Operation angle	360 ˚
Head offset	360 ˚
Flame adjustment	yes
Lock	yes
Continuous run lock	yes
Auto power on / off	yes
Weight with empty tank	0.65 kg
Pcs	2

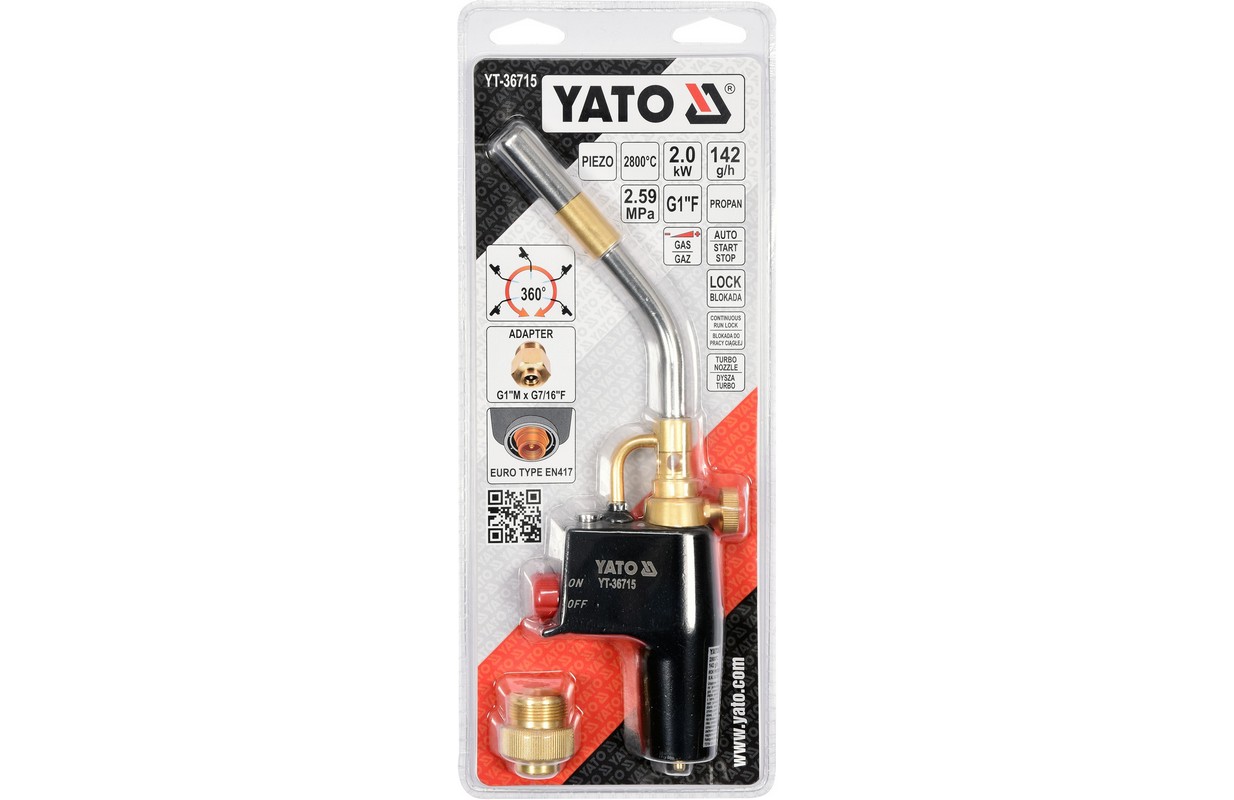

Set includes	gas burner, G1 M x G7/16 F adapter
Application	hard soldering - copper pipes with a diameter of up to 32 mm, soft soldering - copper pipes with a diameter of up to 100 mm, joining
Symbol	YT-36715
