Power
1000 W
Battery Type
lead-acid
Voltage
48 V DC
Battery Capacity
32000 mAh
Charging Time
6-7 h
Operating Time
8-10 h
Maximum Load Capacity
500 kg
Unloading Method
hydraulic power unit (HPU)
Maximum Speed
5.3 km/h
Maximum Reverse Speed
1.5 km/h
Oil Type
AW 46
Oil Tank Capacity
1.5 l
Motor Type
brushless
Body Material
metal
Dimensions
1330x770x860 mm
Wheel Diameter
front: 16" (406 mm) x2, rear: 13" (330 mm) x2
Workplace Lighting
Yes
Display Type
LCD
LED Lamp Power
30 W
Protection Class
IPX4
Sound Pressure Level
64.5 ± 3.0 dB(A)
Acosutic Power
85.2 ± 3.0 dB(A)
Vibration
2.24 ± 1.5 m/s²
Weight
172 kg
Application
construction work (transportation of bulk materials, bricks, concrete blocks), warehouse work (transporting heavy loads indoors).
Application continues.
Gardening and agriculture (transporting soil, fertilizers, tools), use in cities (delivery of goods in low-emission zones).
Model
YT-86120

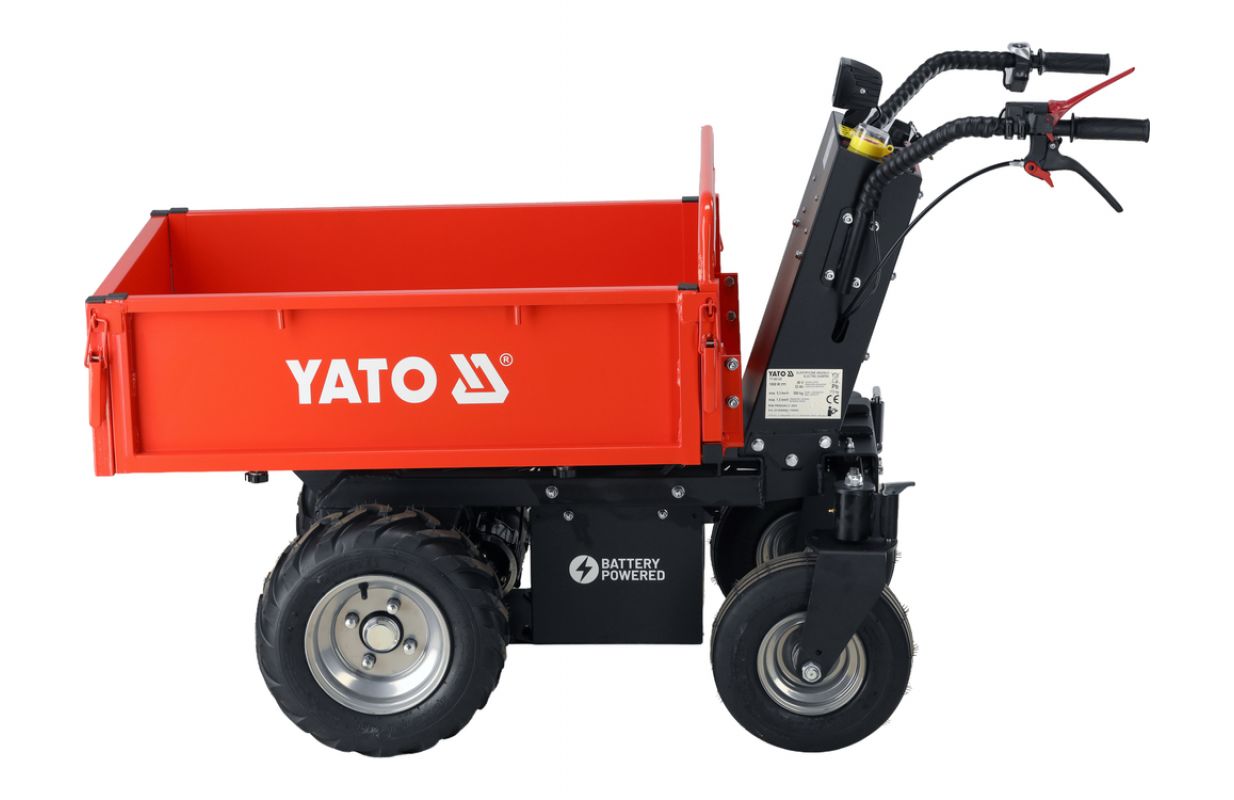

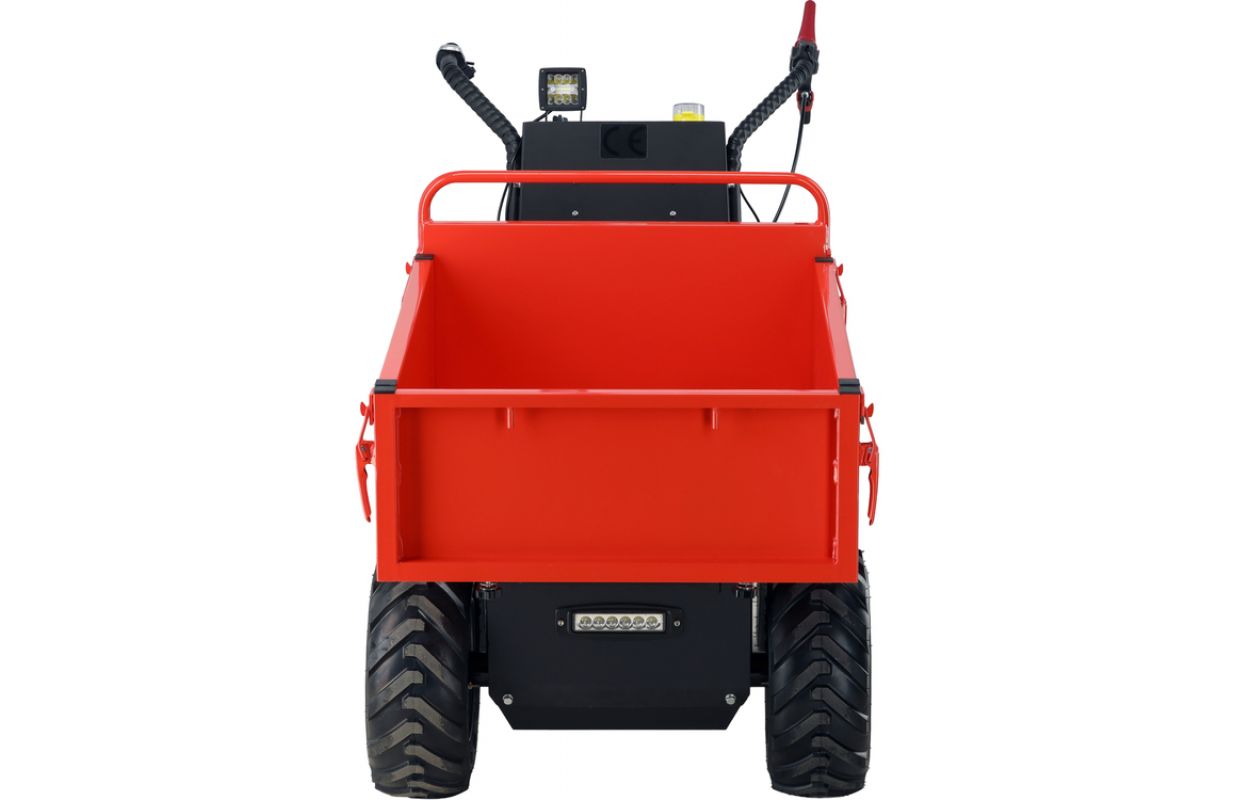

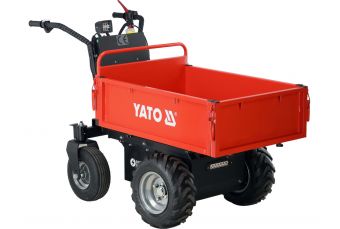

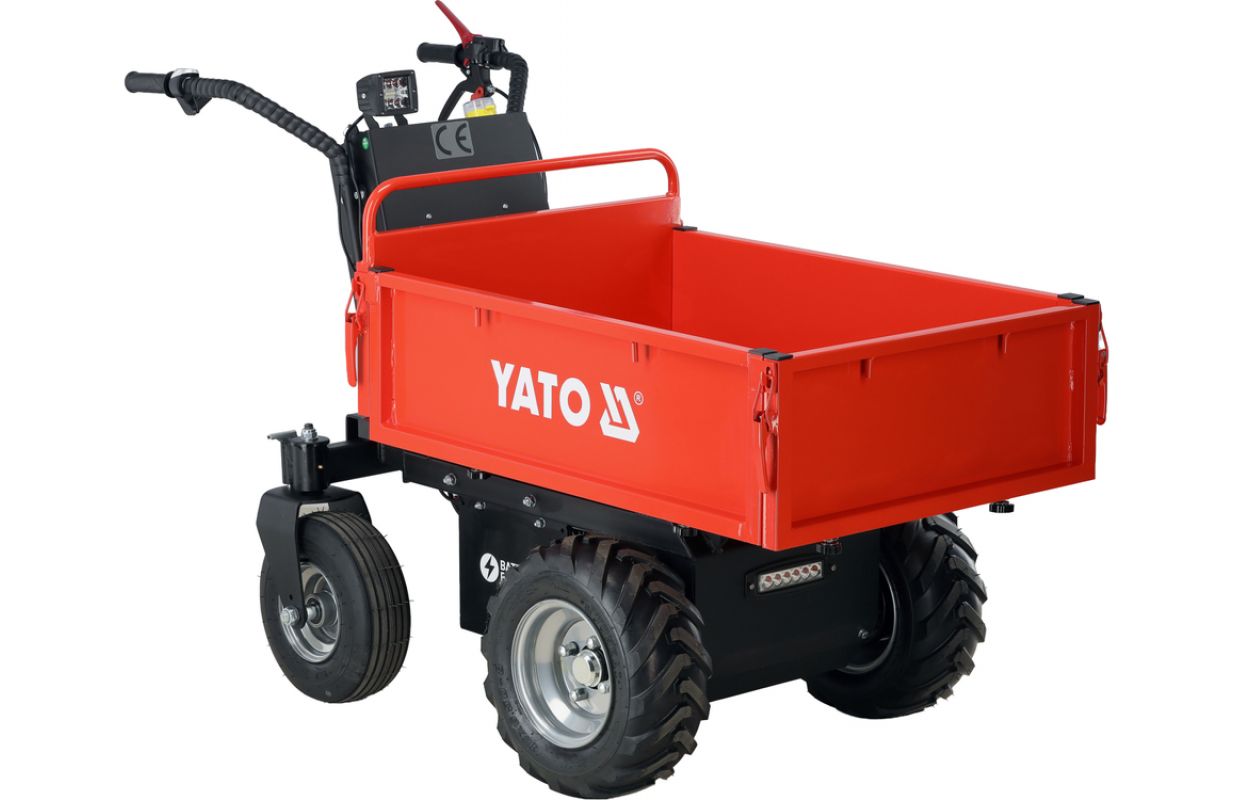

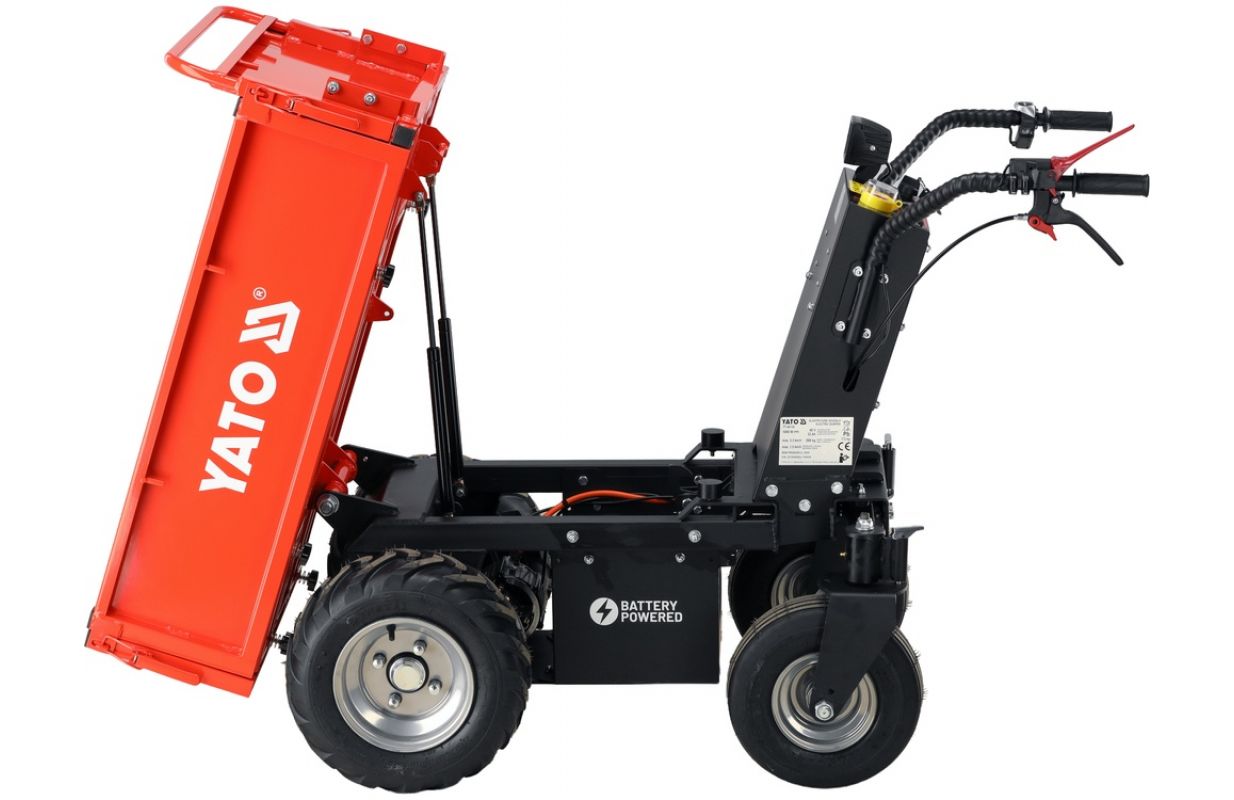

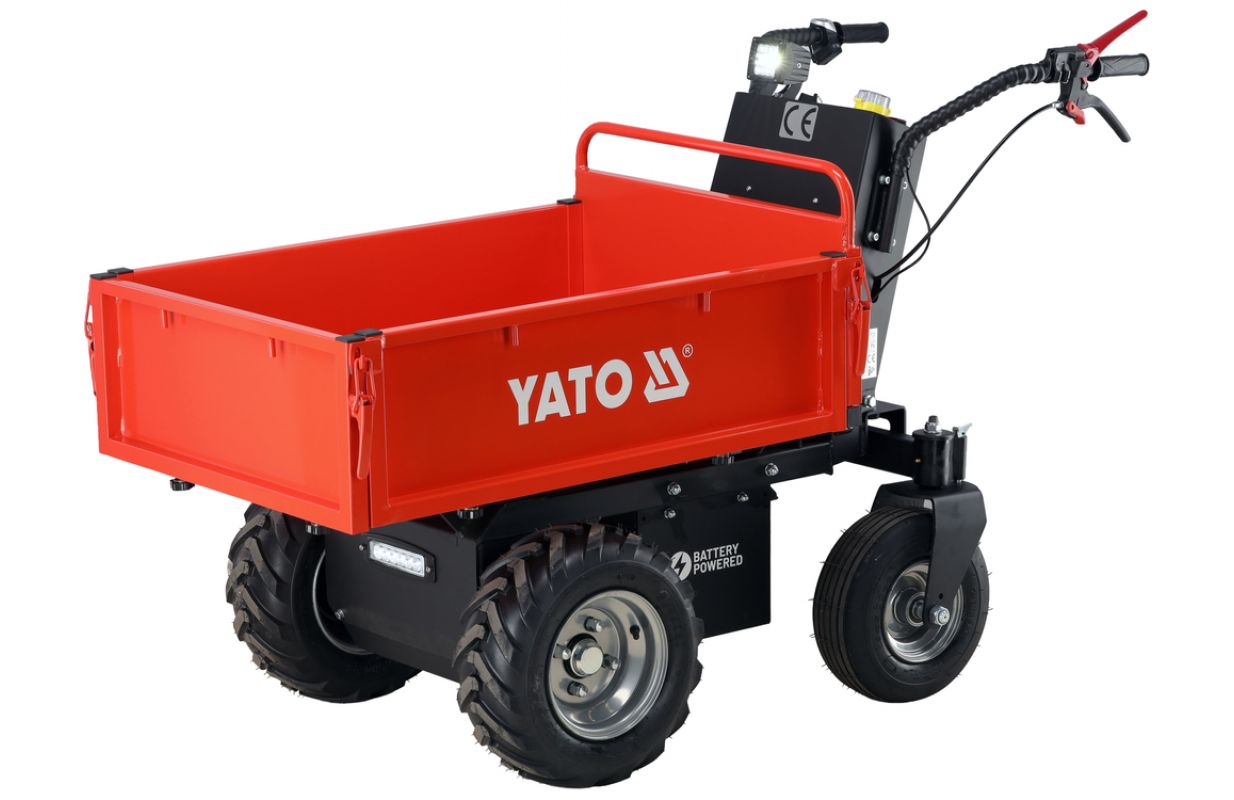

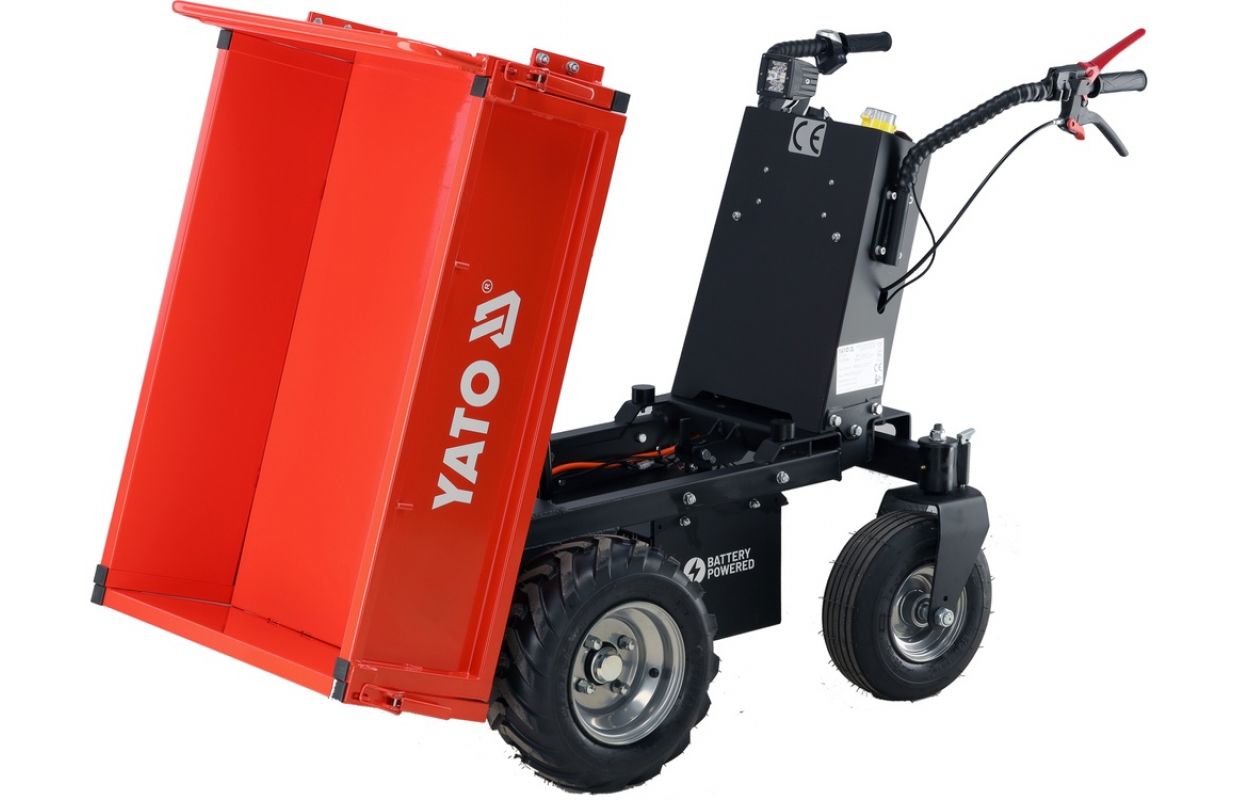

The YATO YT-86120 electric vehicle is an efficient and durable transport device designed for use in gardens, farms, vegetable gardens, construction sites, and indoors. With a powerful 1000 W brushless DC motor and a 48 V 32 Ah battery, it allows for the transport of heavy loads up to 500 kg. It is equipped with a unloading platform with 3 drop-down sides and gas support, making it easier to quickly and safely unload materials.
Specifications and parameters:
brushless DC motor with a power of 1000 W
lead-acid battery 48 V, 32 Ah
operating time on a single charge: 8-10 h

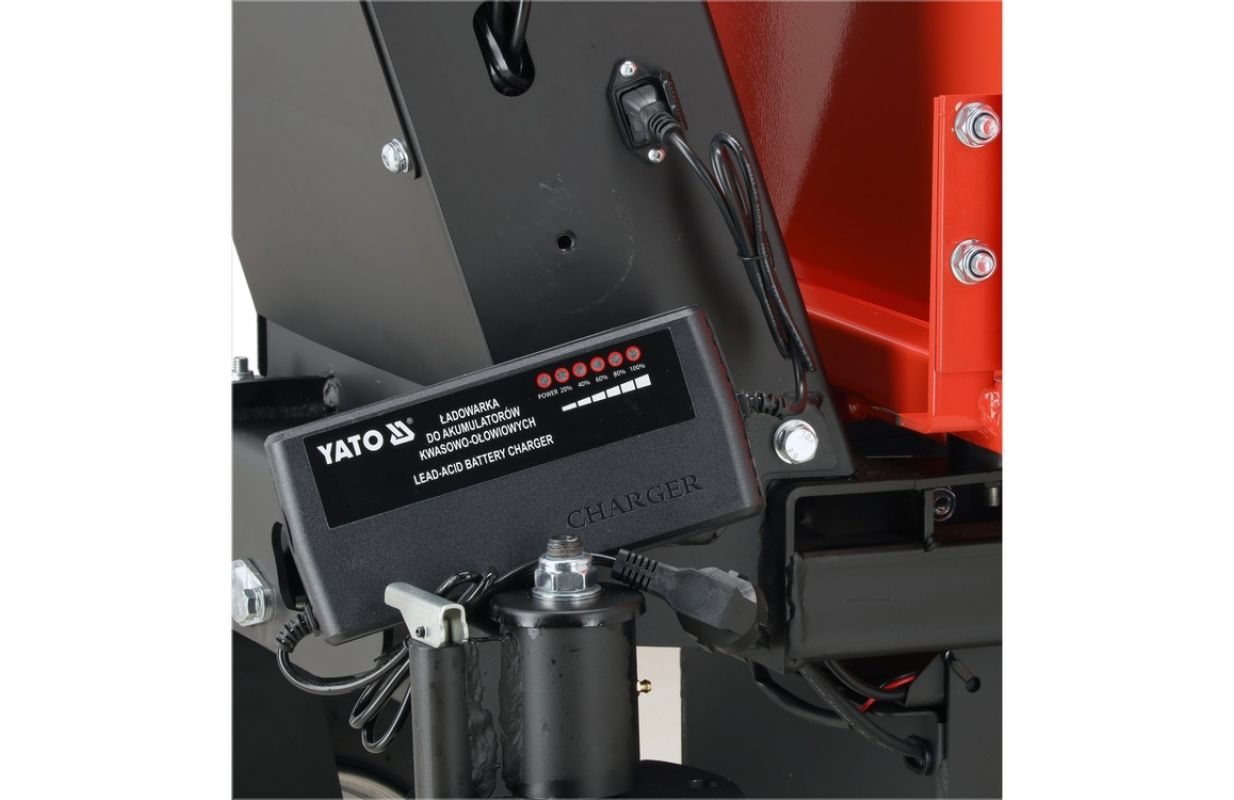

charging time: 6-7 h
maximum speed: 5.3 km/h
maximum reverse speed: 1.5 km/h
maximum load capacity: 500 kg
unloading method: hand + gas cylinder

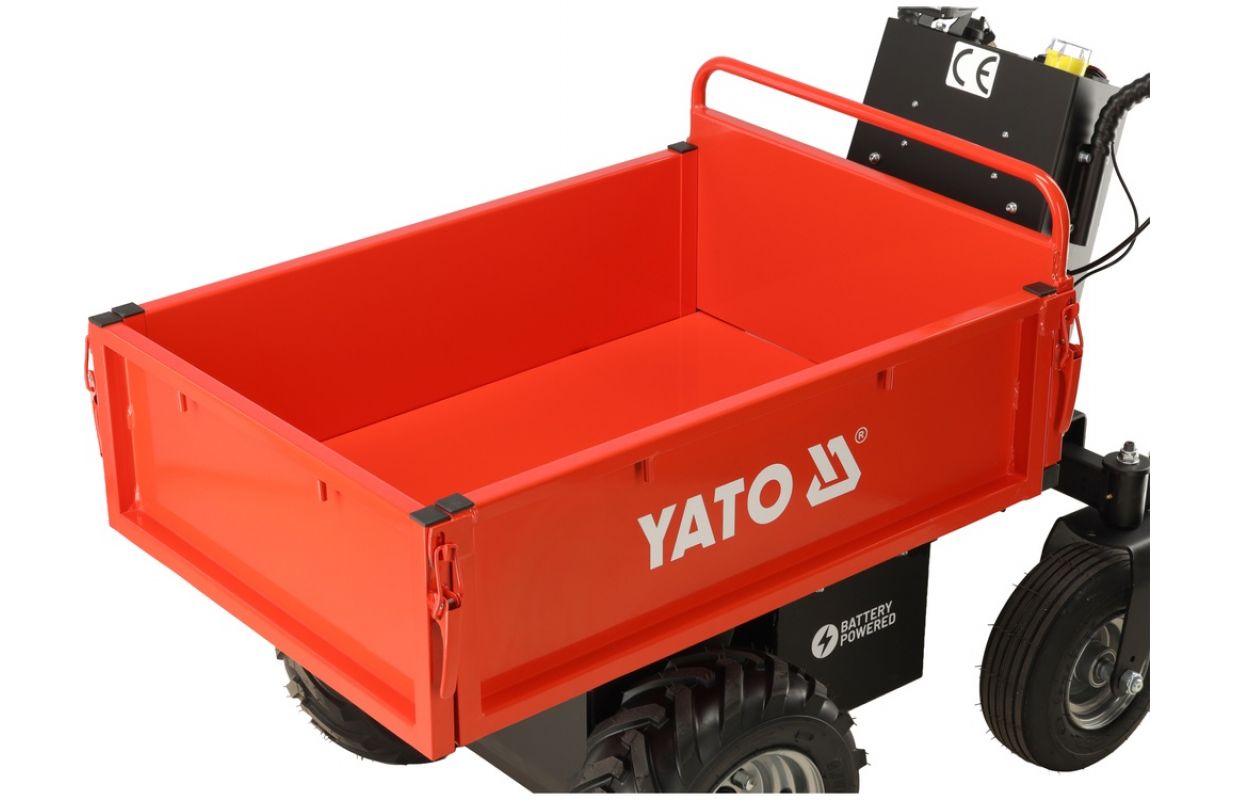

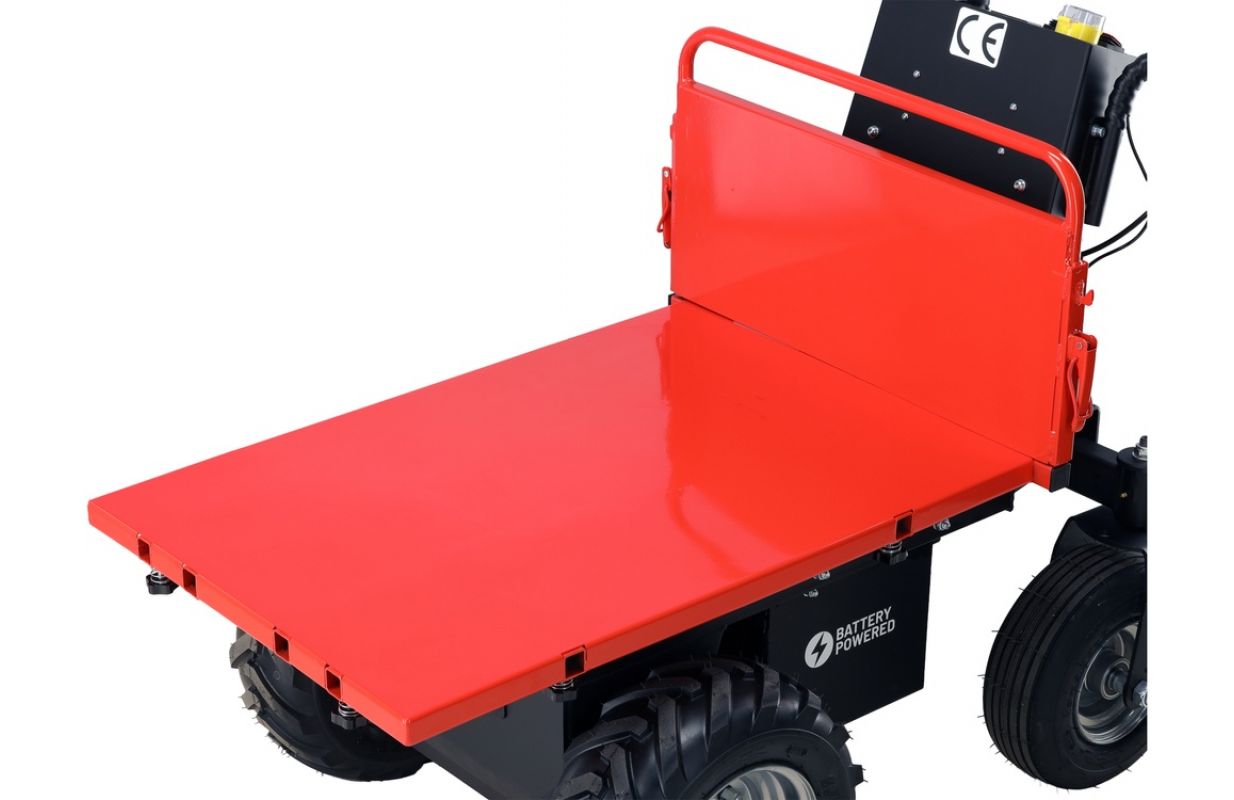

body type: frame with 3 drop-down sides
unloading method: hydraulic unit (HPU)
metal construction
oil type: AW 46
oil tank capacity: 1.5 l

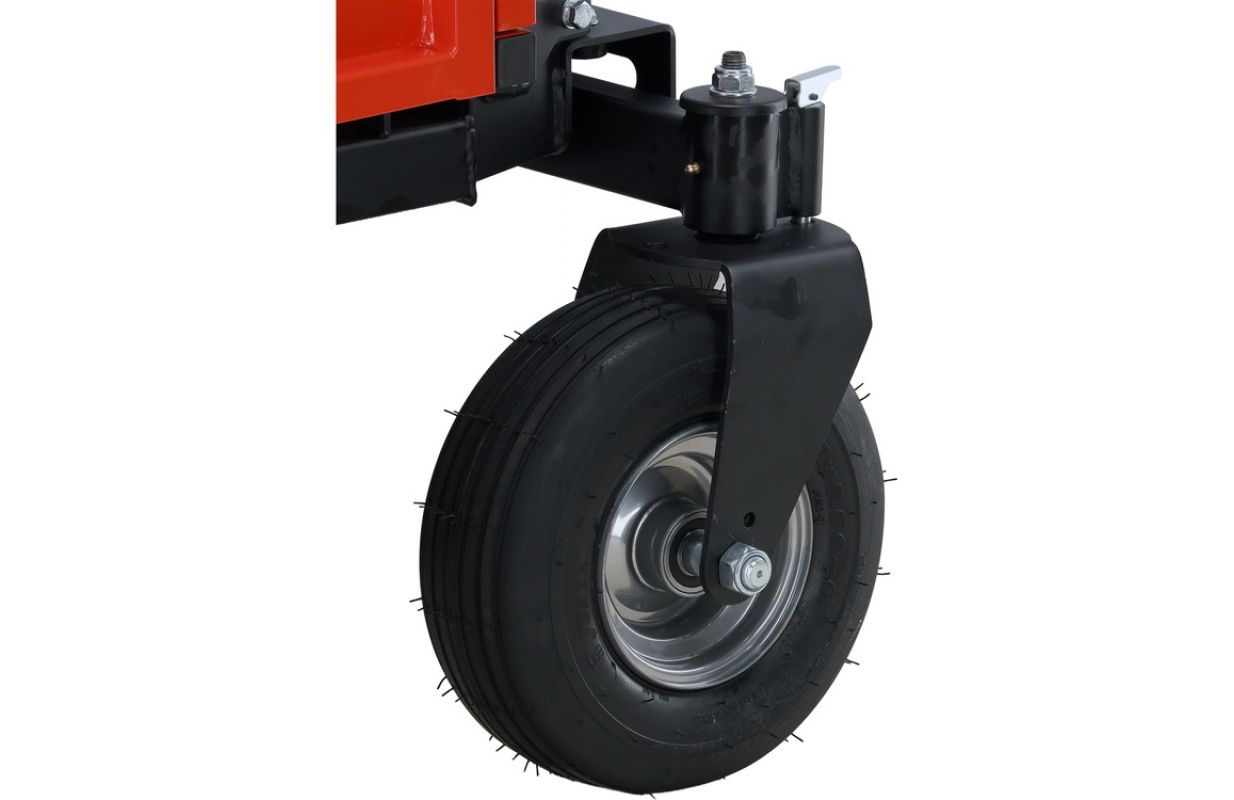

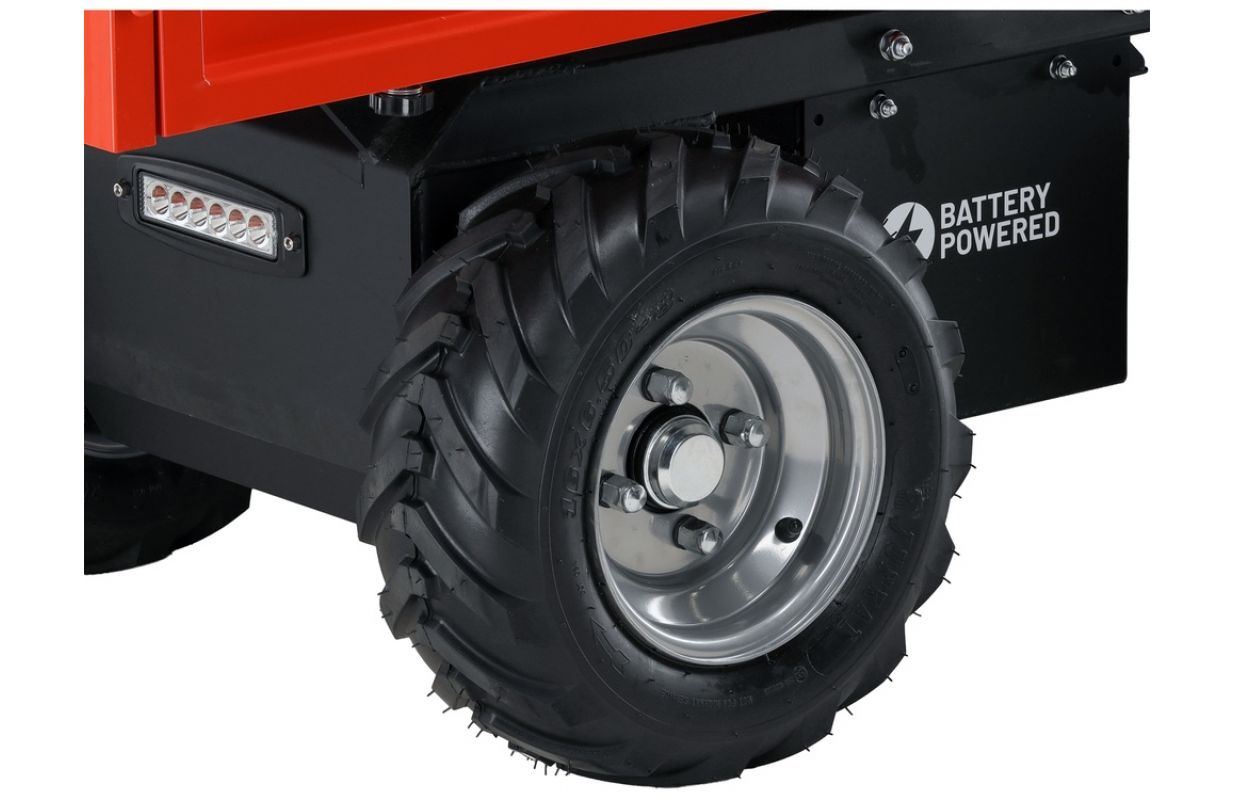

wheel diameter: 16” (front), 13” (rear)
workplace lighting power: 30 W
LCD display
protection class: IPX4
weight: 172 kg
Usage:
transportation of heavy materials (soil, gravel, sand, wood, stones)
transportation of materials in challenging conditions
transporting heavy loads indoors
garden, vegetable, forestry, and agricultural work
construction and repair work
safe transportation of goods over short distances
