Power
500 W
Battery type
lead-acid
Voltage
24 V DC
Battery capacity
12000 mAh
Charging time
4-5 hrs
Operating time
8 hrs
Maximum load capacity
150 kg
Maximum speed
7 km/h
Maximum reverse speed
1.5 km/h
Motor type
brushless
Wheel diameter
16" (410 mm)
Relative humidity Rh
70 (no condensation) %
Operating temperature range
5~40 ˚C
Protection class
IPX4
Weight
32 kg
Application
transportation of construction and garden materials: soil, sand, gravel, wood, etc., moving heavy loads without excessive physical effort,
continuation of application.
ordering and investment works on terrain with various surfaces, an effective alternative to traditional wheelbarrows – greater productivity and energy savings for the operator

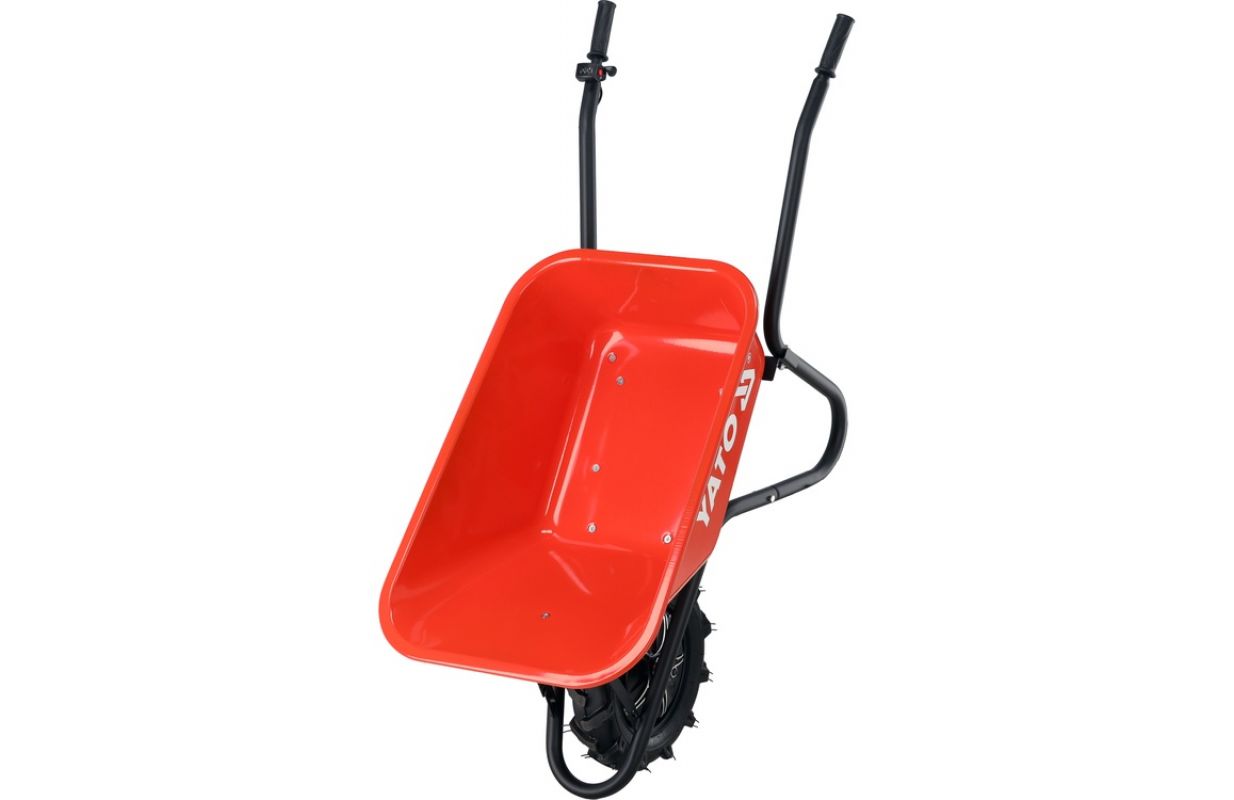

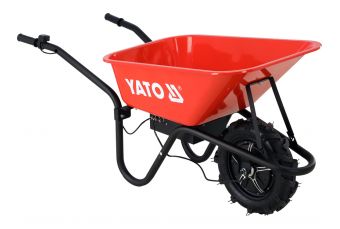

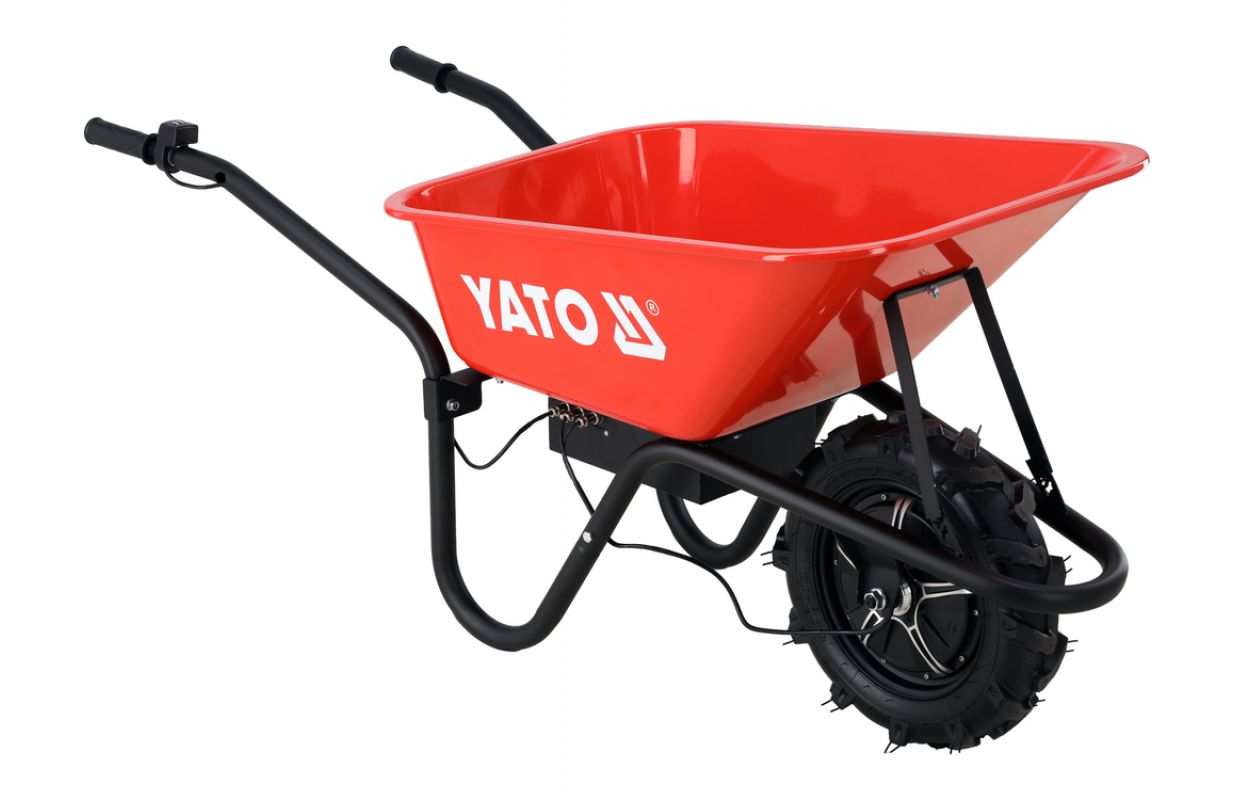

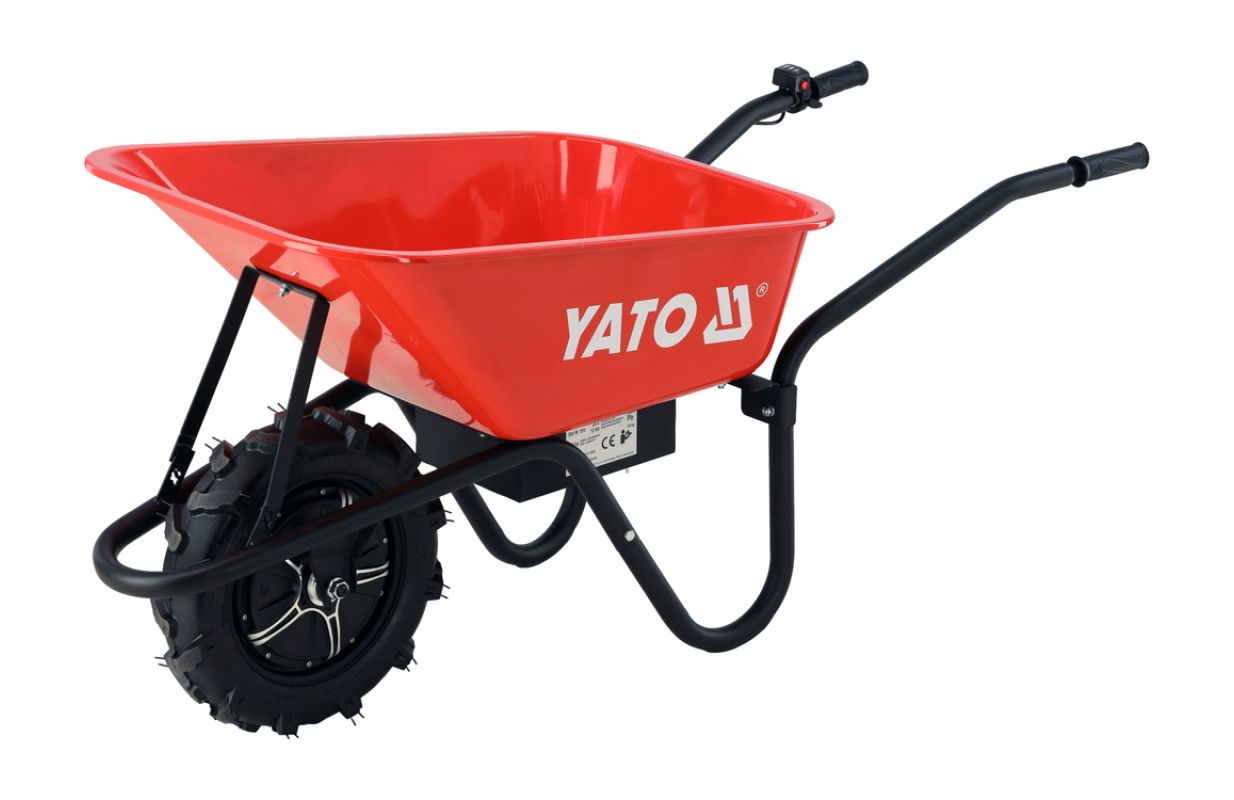

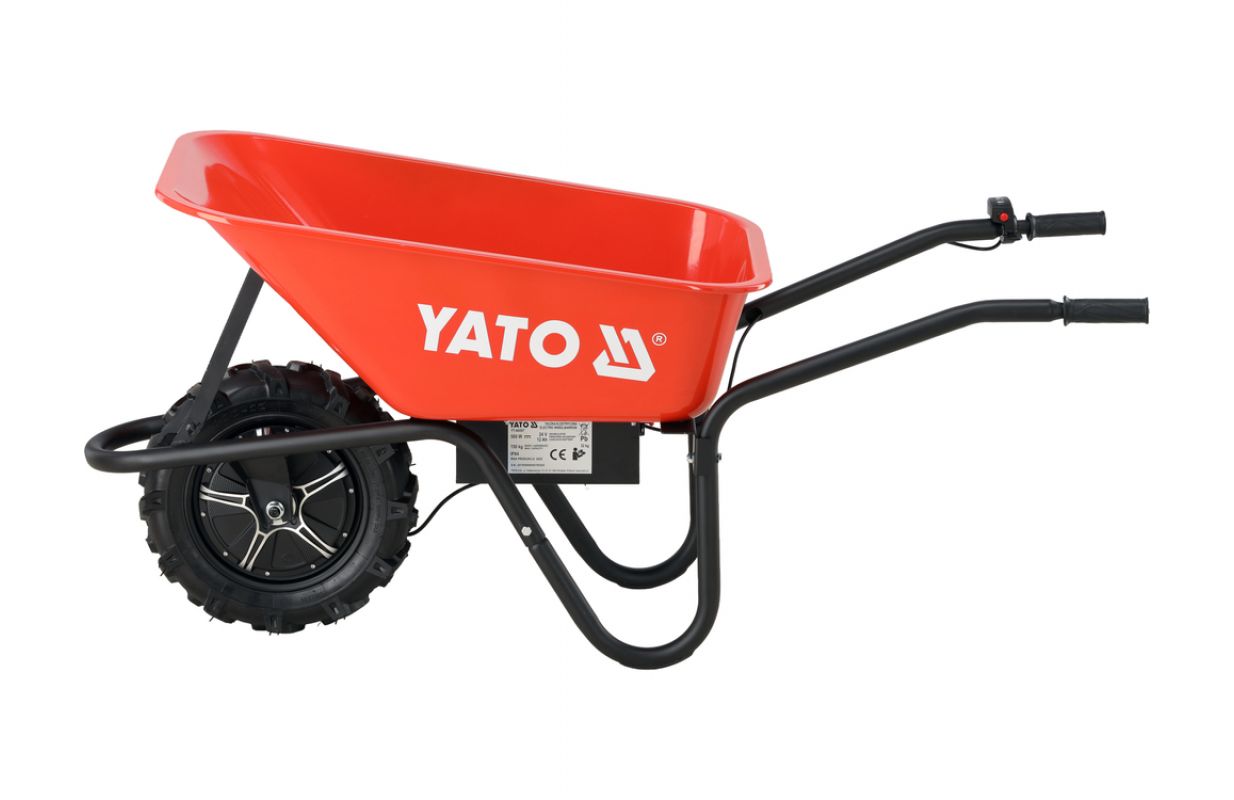

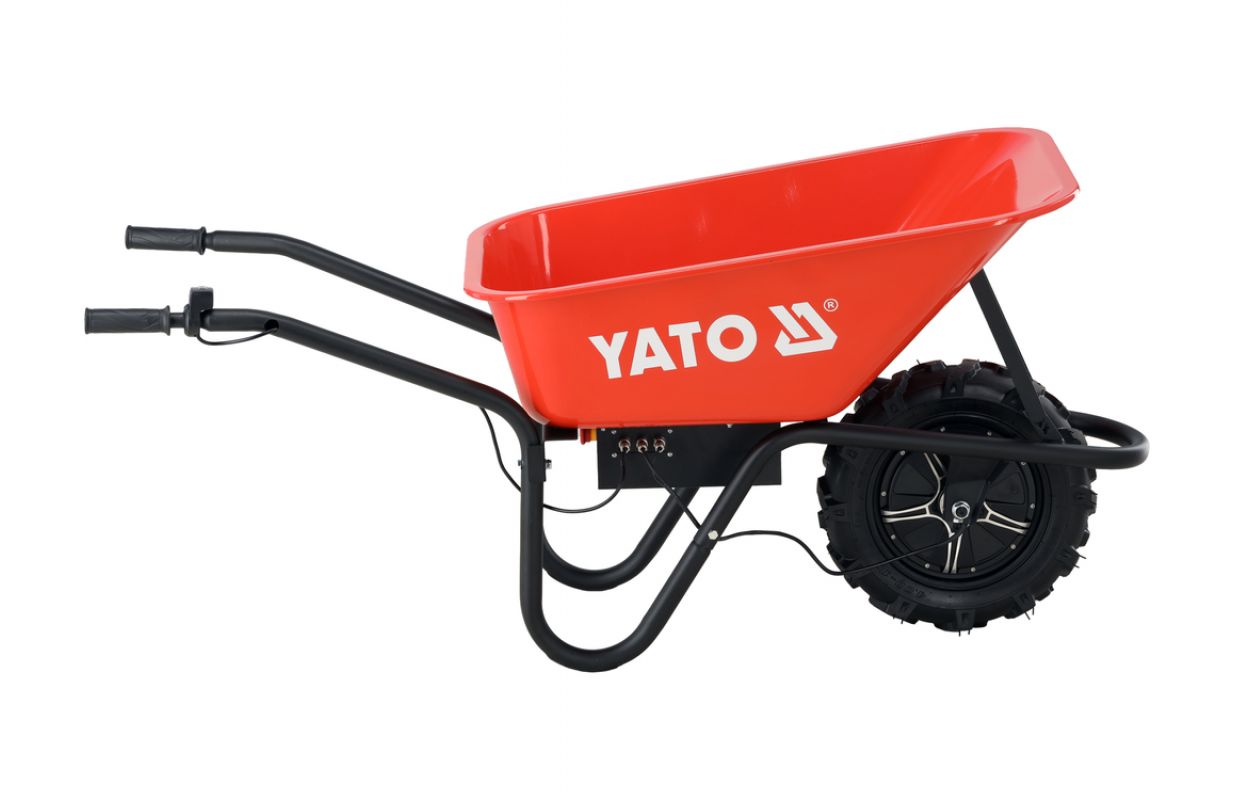

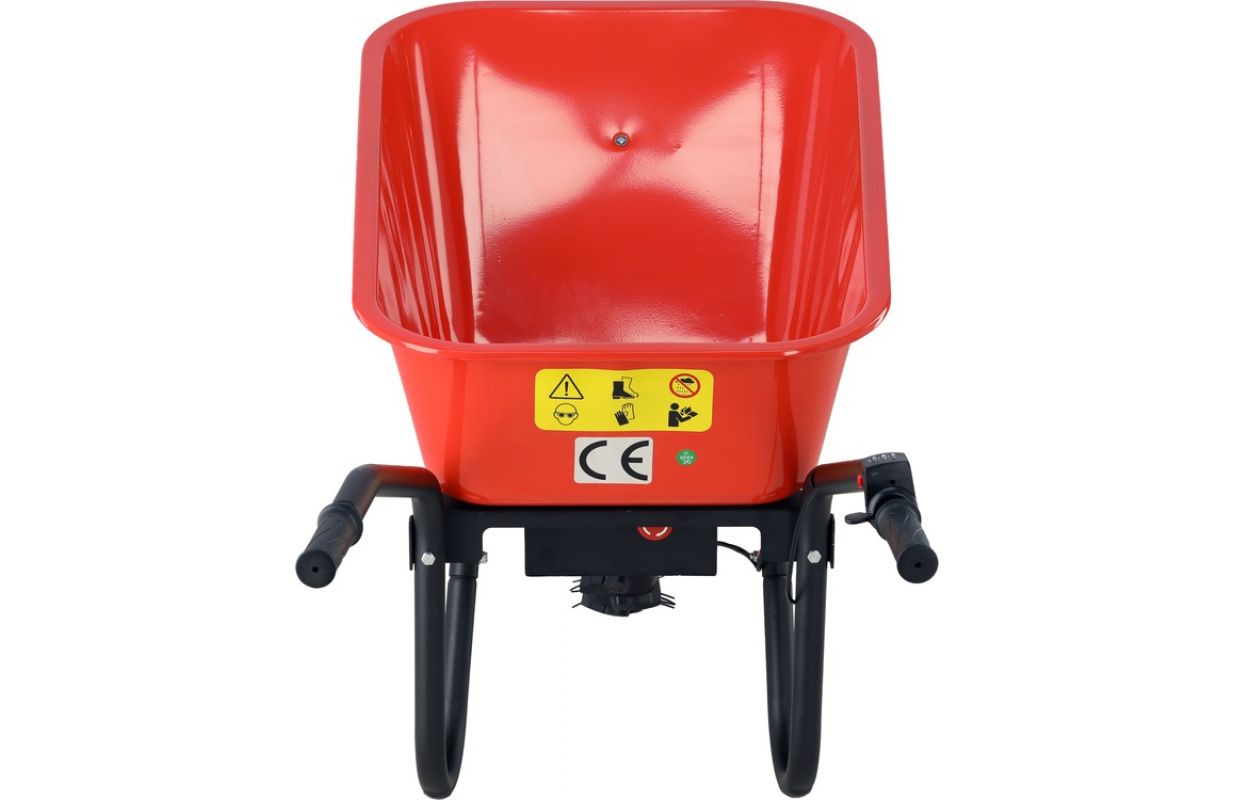

YATO YT-86097 electric wheelbarrows are designed for transportation tasks in the garden, on the farm, and at construction sites. The use of a 500 W brushless motor along with a 24 V DC power supply ensures smooth starting, stable power transmission, and high efficiency under load conditions. The device allows transporting loads up to 150 kg without excessive strain on the operator, making daily tasks easier.
Two lead-acid batteries with a total capacity of 288 Wh allow for up to 8 hours of operation, which practically means the ability to perform tasks throughout the day without frequent recharging. The large wheel with a diameter of 410 mm improves traction and stability on uneven terrain, while the compact, sturdy design ensures balance and maneuverability even under maximum loads.
Specifications and parameters:
brushless motor 500 W – high efficiency, limited energy losses, and lower maintenance requirements
24 V DC power supply – stable power operation and corresponding torque for transporting heavy materials
lead-acid batteries 2 x 12 Ah (288 Wh) – extended operating time of up to 8 hours depending on load and terrain conditions

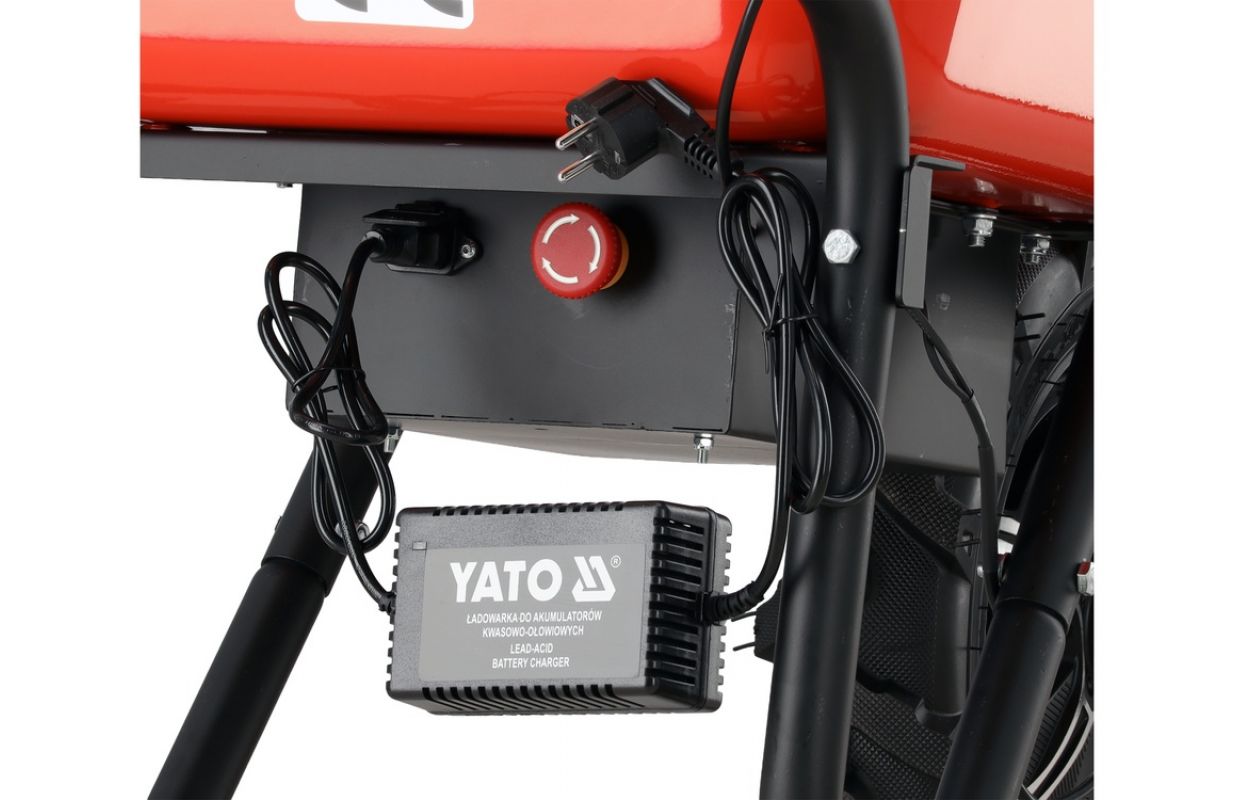

charging time of about 4.5 hrs – efficient preparation of the device for the next work cycle (charger 230 V / 50 Hz AC)
load capacity of up to 150 kg – safe transportation of soil, sand, gravel, wood, and other construction materials

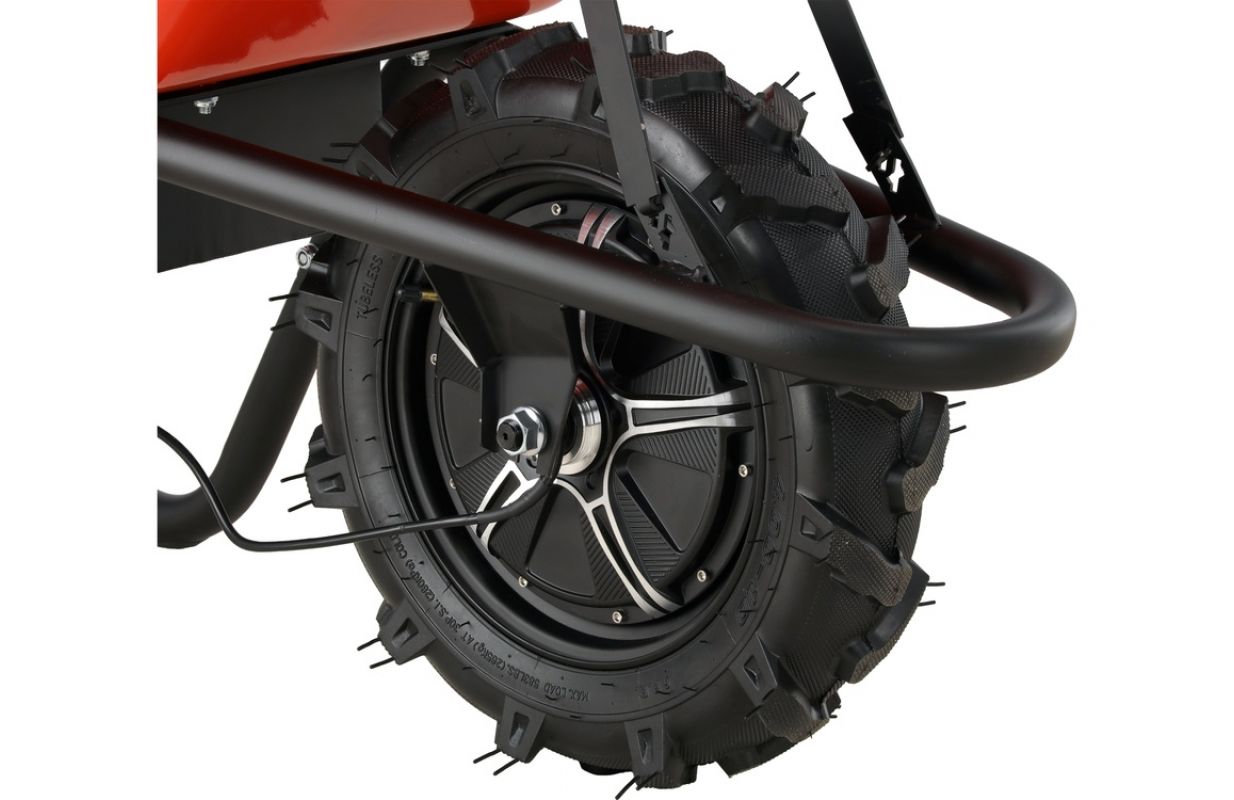

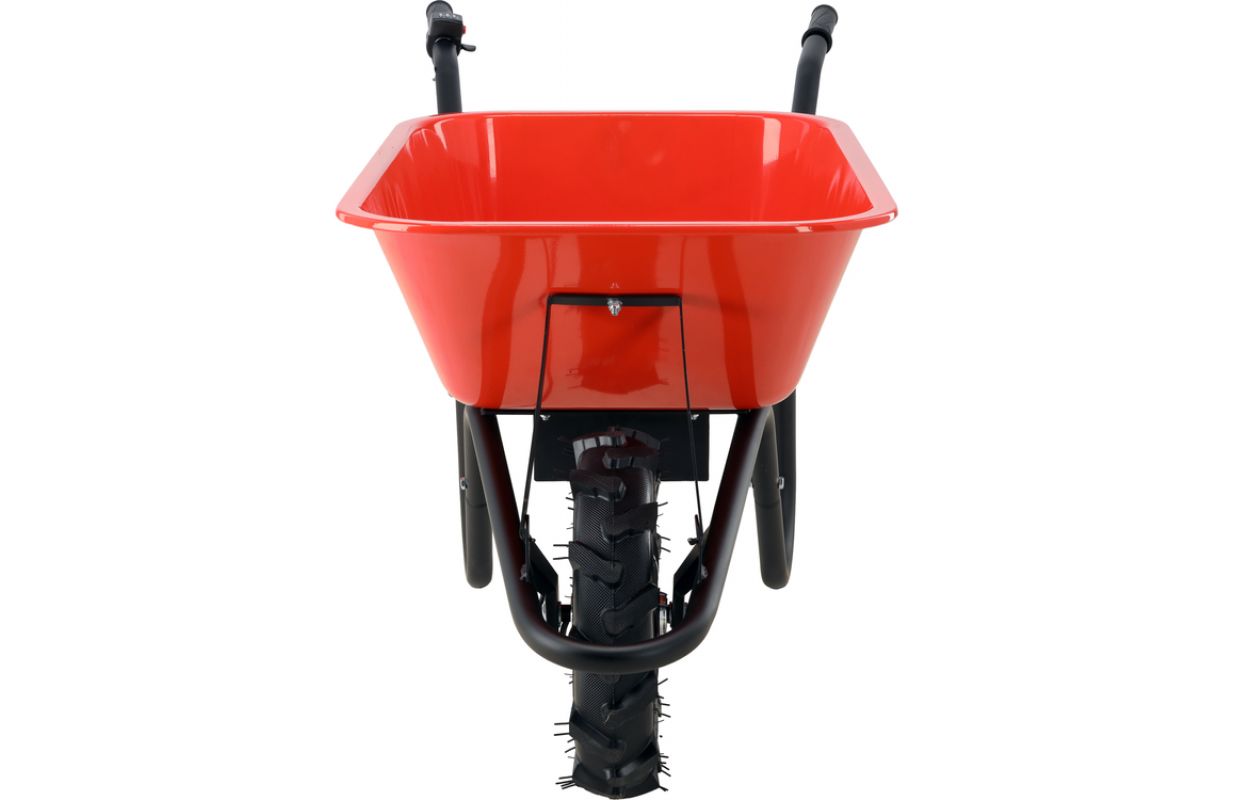

large wheel Ø 410 mm – better overcoming of unevenness, stability, and ease of control on terrain

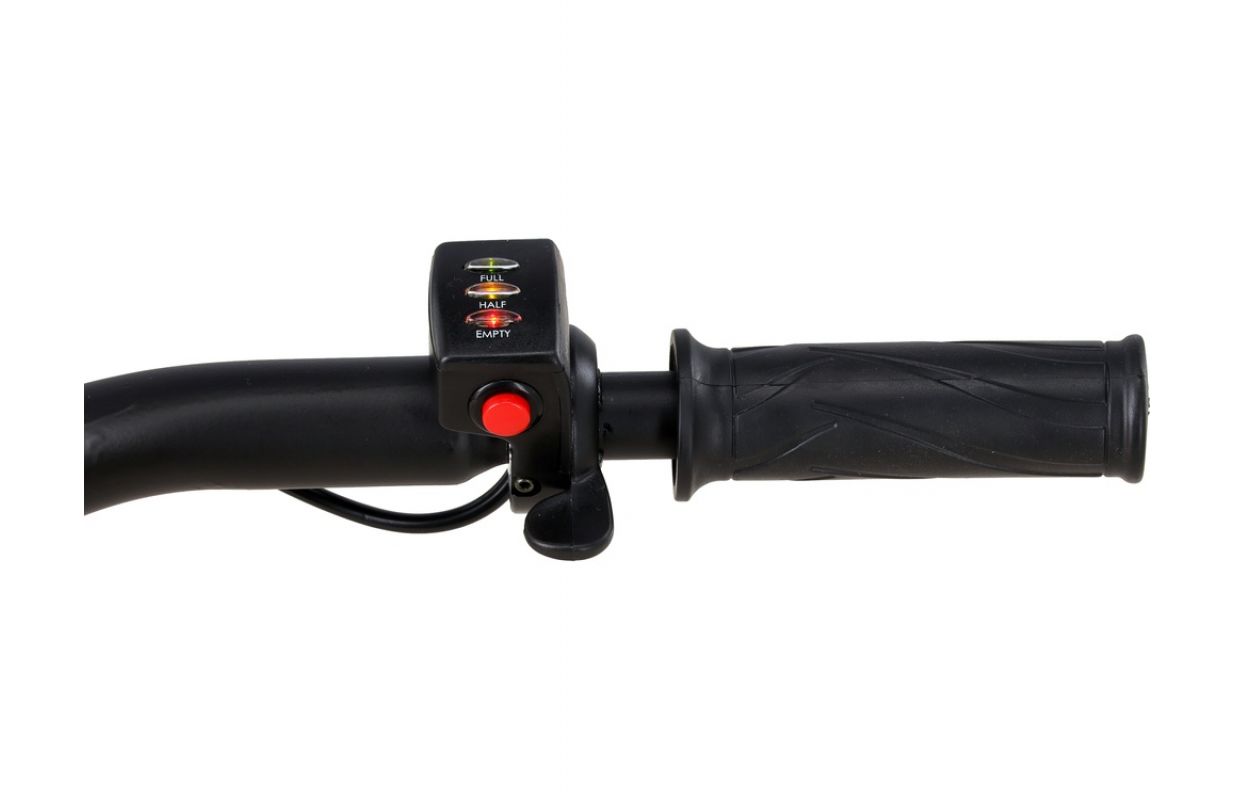

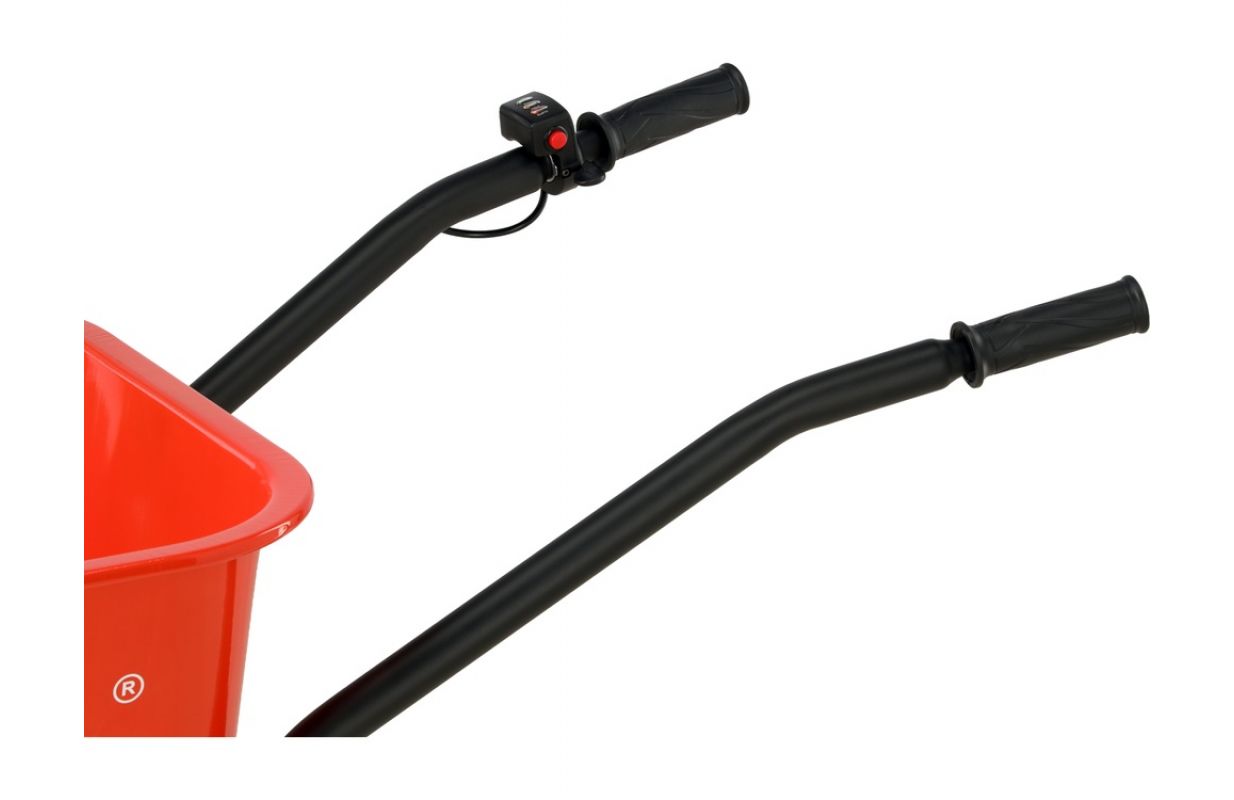

throttle pedal control – one speed forward and one backward, making maneuvering in confined spaces easier
protection class IPX4 – splash resistance, allowing operation in changing weather conditions.
weight 32 kg
Application:
transportation of materials in gardening and construction: soil, sand, gravel, wood, etc.
moving heavy loads without excessive physical strain
ordering and investment works on terrain with various surfaces
an effective alternative to traditional wheelbarrows – greater efficiency and energy savings for the operator
