Description

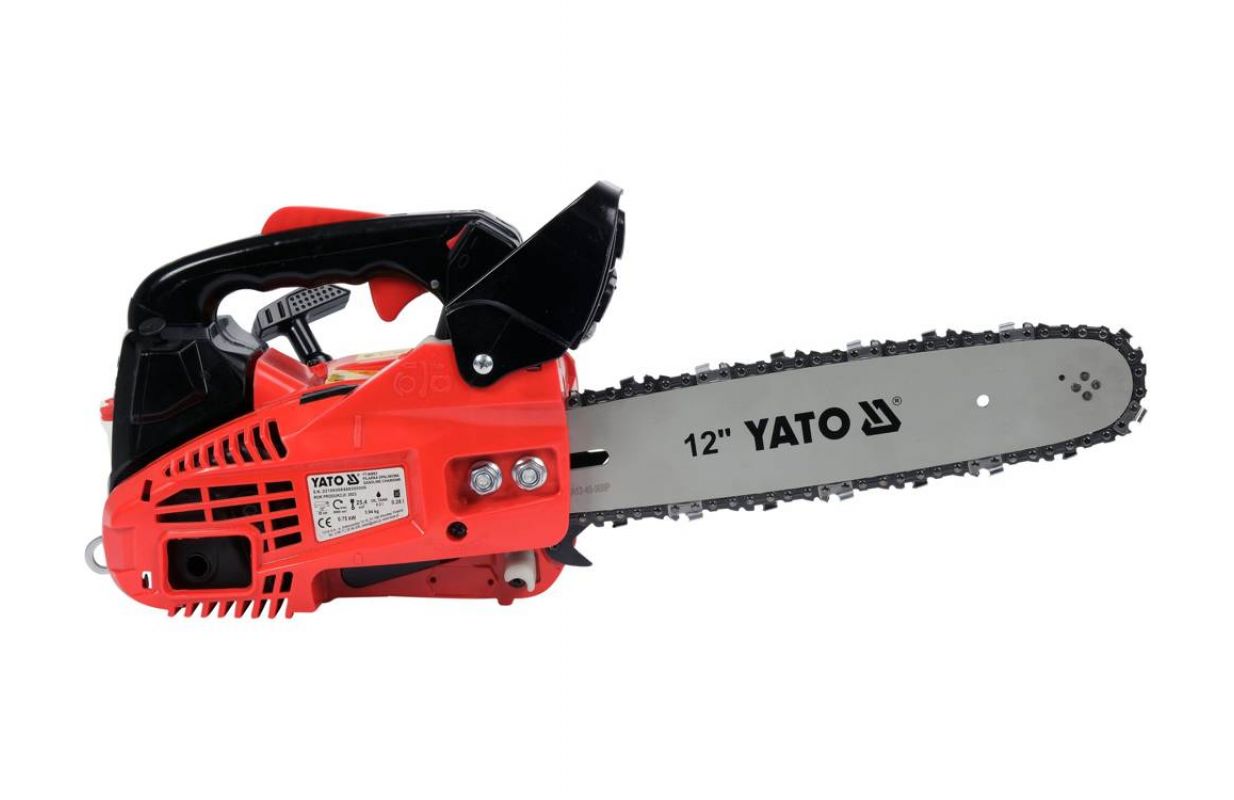

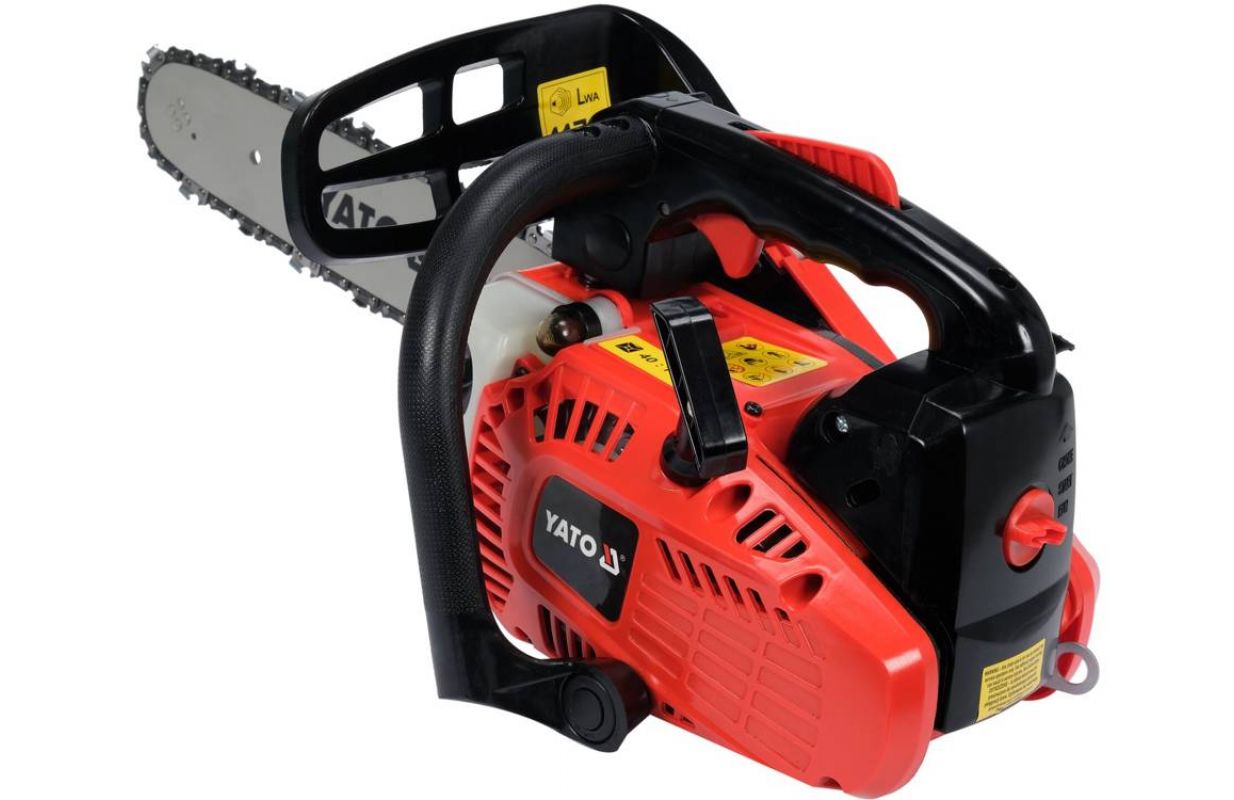

Lightweight and easy to maneuver petrol chainsaw. Thanks to its very high power it cuts both branches and boughs as well as trunks well.
Usage warnings:
Warning - this chain-saw is for use by trained tree service operators only. Use without proper training can result in service injuries. See instructions!Technical data
| Brand | Yato | |
| Entity responsible for this product in the EU | ||
| Series | GRF | |
| Power | 0.75 kW | 1 KM |
| Engine (motor) capacity | 25.4 cm³ | |
| Max. engine (motor) rotations | 8500 min⁻¹ | |
| Idling speed engine (motor) rotations | 3000 min⁻¹ | |
| Guide bar length | 12" (300 mm) | |
| Cutting length | 300 mm | |
| Chain type | HY-JL9D-0.050x45 | |
| Chain pitch | 3/8" (9.525 mm) | |
| Max. chain travel speed | 12.95 m/s | |
| Links quantity | 45 | |
| Chain drive wheel teeth number and scale | 6 teeth x 9.525 mm | |
| Chain guide type | ZLA12-15-509P | |
| Mounting type | U | |
| Fuel type | unleaded petrol | |
| Fuel tank capacity | 280 cm³ | |
| Oil and fuel ratio | 40:1 | |
| Max. fuel consumption | 0.36 kg/h | |
| Oil tank capacity | 200 cm³ | |
| Automatic chain lubrication | yes | |
| Cooling | air | |
| Ignition plug type | L8RTF | |
| Cylinders number in engine (motor) | 1 | |
| Strokes number in engine (motor) | 2 | |
| Acoustic pressure | 95.4 ± 3.0 dB(A) | |
| Acoustic power | 108.4 ± 3.0 dB(A) | |
| Vibrations | 7.199 ± 1.5 / 7.492 ± 1.5 m/s² | |
| Weight | 3.94 kg | |
| Set includes | saw, chain guide, cutting chain, guide cover | |
| For chains | YT-849495 | |
| For guide bars | YT-849381 | |
| Symbol | YT-84893 |
