Description

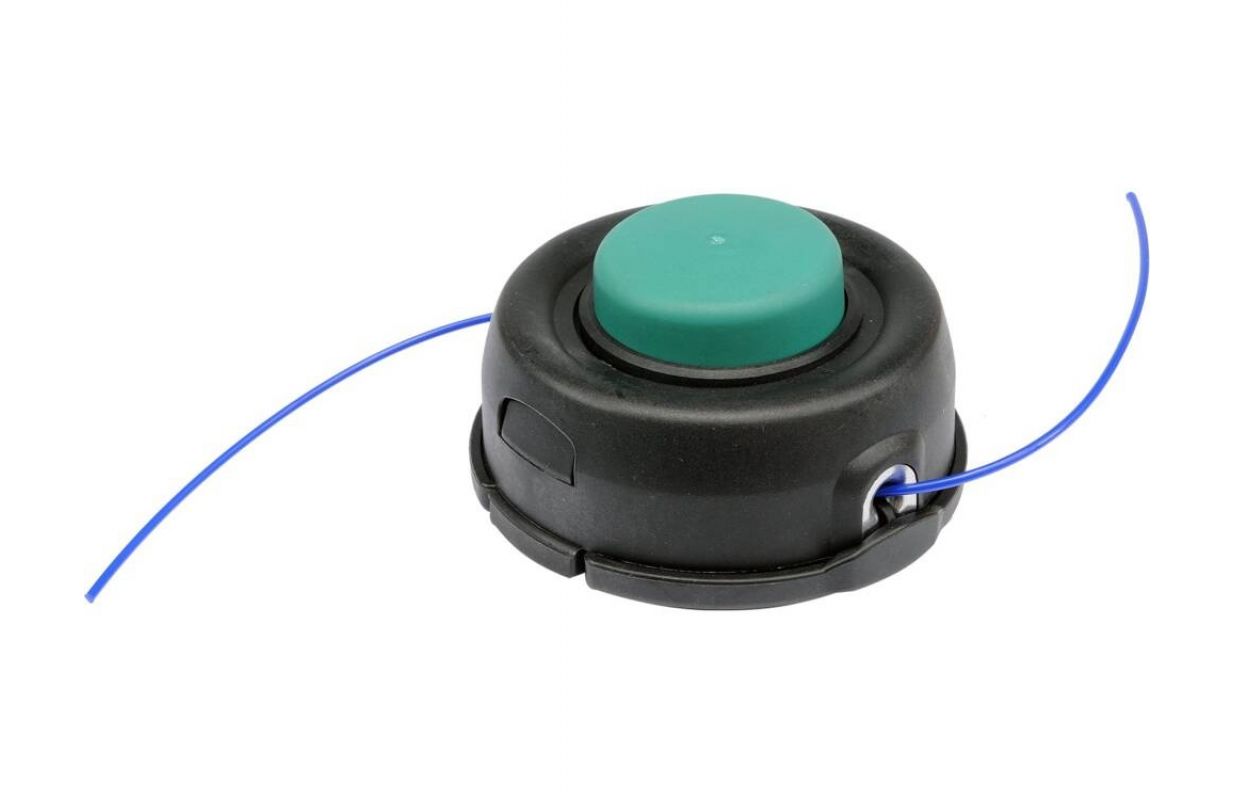

Universal, semi-automatic, line head that fits most petrol lawnmowers and trimmers.
The head allows the installation of a line with a diameter of 2.4 to 2.7 mm. Fits most scythes with an engine capacity of more than 30 cc
Technical data:
- attachment: screw with left-hand thread,
- 5 adapters with sizes: M12 x 1.75L, M10x1.0L, M10x1.25L M10x1.5L, M12x1.5L
- head height 70 mm
- head diameter 123 mm
Semi-automatic two-vein head
Extraction of the line is done by hitting the ground
Snap-fastening of the cover does not allow it to be detached during operation
Reinforced with metal inserts
Purpose/Application
Application: lawns, tall grasses, weeds, small thickets
Recommended engine capacity: 30 to 42cc
Fits FLO brand trimmers and scythes with indesk numbers: 79733, 79740, 79747 and 79755
Table with types and sizes of thread and perishable machines. Before selecting a line head, check the type and dimensions of the mounting thread in the machine's manual.
Please refer to the machine's manual
M12 x 1.75L- Husqvarna 143RII, 143 R, 153R, 241R, 236R, 243R, 253R, 235R, 240R, 245R, 333R, 335R, 335FR, 345RX, 343R
M10 x 1L - Makita BCX 2500, 2510, 3400, 3410, BBC5700 Dolmar MS5700, 352.4; Stihl FS 55, 75, 85, 100, 120, 200
M10 x 1.25L - Alko BC 301 Dolmar MS 25, 30, 290, 340 Efco 8460, 8530 Echo SRM 2305, 250, 330, 350
Honda UMK 425, 431, 435 Husqvarna 123L, 123 LD, 128 LDx, 133R, 223, 224 L, 226R, 323L, 323 R325LD, 232R, 322R, 326R, 326 LDx, 327 LDx, 523 L, 525 L, 525 LDx, 525 LS, 525 Rx, 533 Rx Kawasaki KBH 27, 34, 43, 48 McCulloch CABRIO: 251, 261 320, 321, 340, 341, 380, 390, 290, 291, 262, 340, 341 SUPREME: 300L, 300B,250 L, 300E, , ELITE: 1.610 BT, 1.810 BT,2.010 BT, 2.010 L, 2.210 BP, 2.210 L, 2.510 BP, 2.710 B-PRO, 2.710 L ; Makita DBC 250, 290, 300, 340 NAC CG 260, 330 B, CG 430B, CG 260N, CG 330N, CG430, WLBC 260, WLBC 430, WLBC 520; Partner B261, B290, B291, B300, B340, B341, B347, B407, BA407, BA437, BA467, BA477, BA497, BC435 Texas CG 250, 260 Victus BC 26, 32, 42
M10 x 1.5 - McCulloch CABRIO 341, 390 ELITE 4300, 4700, SUPERMAC 26 , MAC 30A
M12 x 1.5 LW - Stihl FS300, 350, 400, 450 Solo 130, 134, 140 Makita DBC 400, 4010, 4510 Dolmar MS 400, 3310, 4510
Package contents
Head complete with 2.4 mm diameter and 2.5 m long line
5 adapters with sizes: M12 x 1.75L, M10x1.0L, M10x1.25L M10x1.5L, M12x1.5L
.
Usage warnings:
Warning! Always use personal safety equipment at work.Technical data
| Brand | Flo |
| Entity responsible for this product in the EU | |
| Series | GRD |
| Type of | two-strand, automatic |
| Engine (motor) capacity | 30-42 cm³ |
| Cutting line material | nylon |
| Adapter material | steel |
| Height | 70 mm |
| Diameter | 123 mm |
| Cutting line profile | circular |
| Cutting line diameter | 2.4-2.7 mm |
| Mounting | left-hand thread screw |
| Bearing | no |
| Application | lawn, tall grass, weeds, small bushes |
| Set includes | trimmer head, adapter x5 (M10x1.0L, M10x1.25L, M10x1.5L, M12x1.5L, M12 x 1.75L) |
| Symbol | 79551 |
