Tank capacity
24 l
Power
1 HP
750 W
Maximum pressure
0.8 / 0.8 / 116 MPa/bar/PSI
Efficiency
140 l/min
Revolutions
1450 min⁻¹
Voltage
230 V AC
Frequency
50 Hz
Short circuit current
18 A
Load current
3 A
Type
oil-free
Wheels
Yes
Number of wheels
2
Pressure gauge
Yes
Electrical insulation class
I
Protection degree
IPX0
Sound pressure level
59.3 ± 2.07 dB(A)
Active power
79.0 ± 2.07 dB(A)
Weight
31 kg
Equipment
compressor, quick-release connection

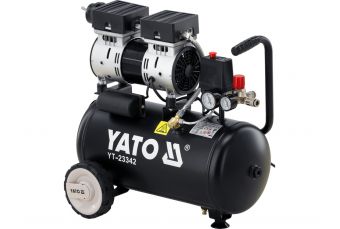

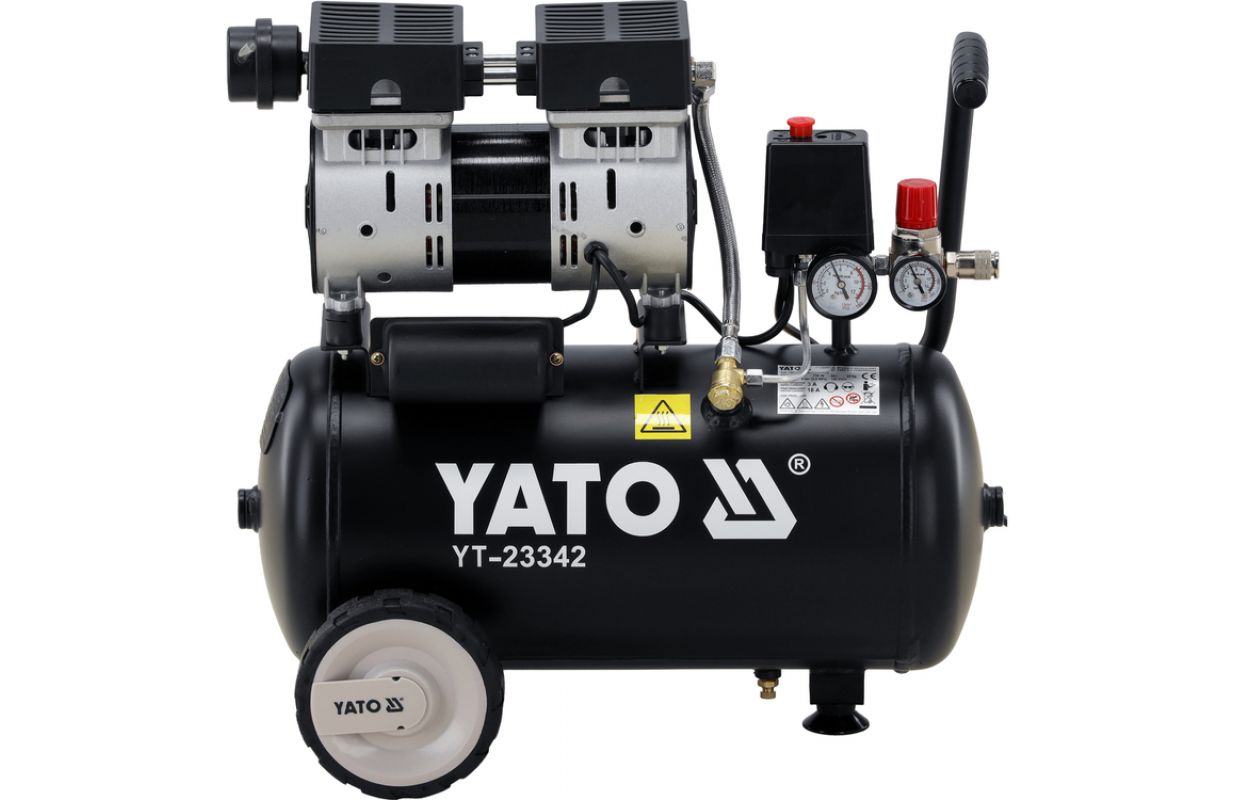

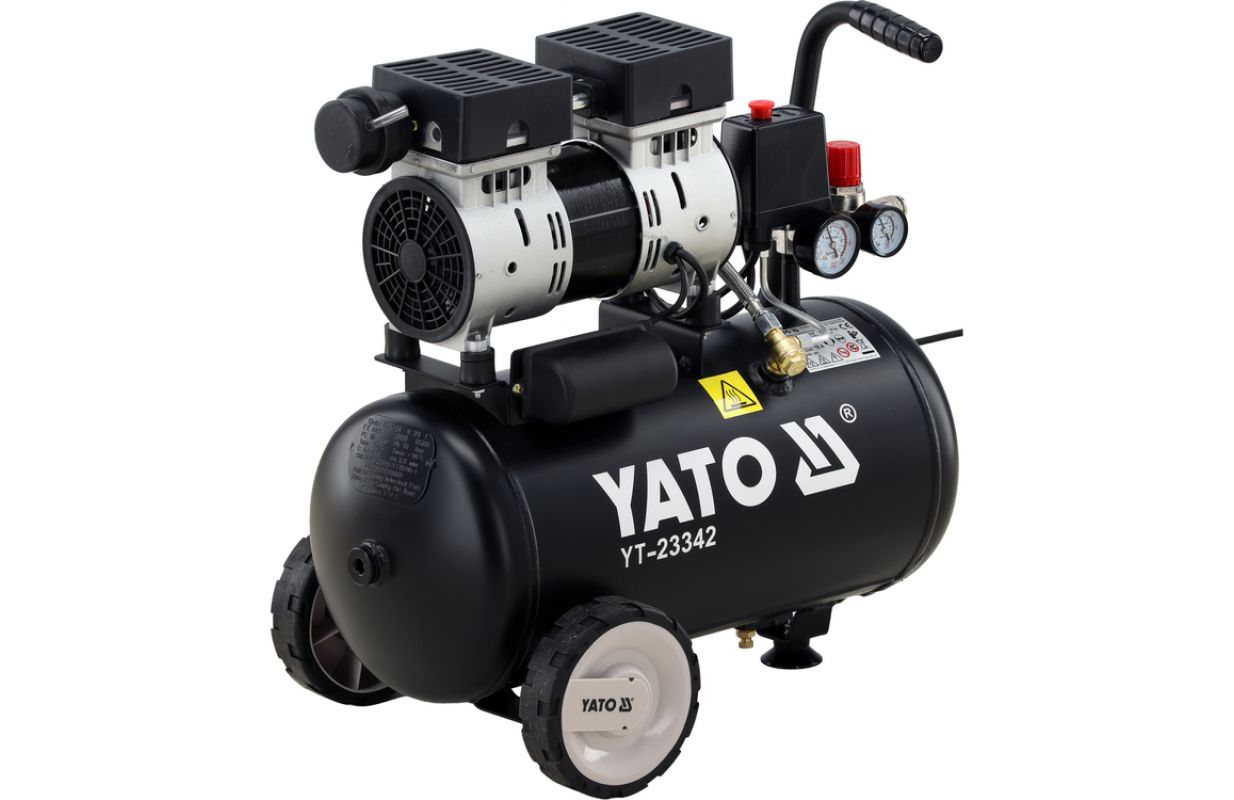

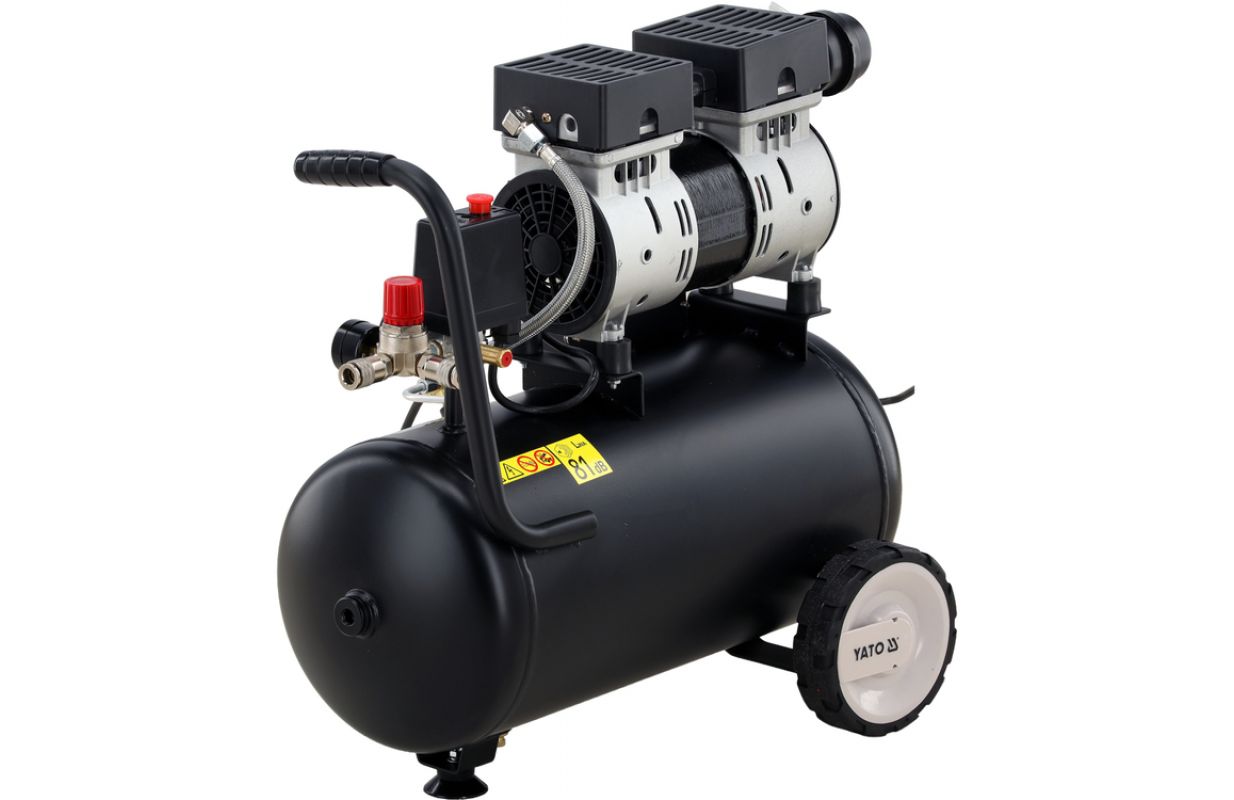

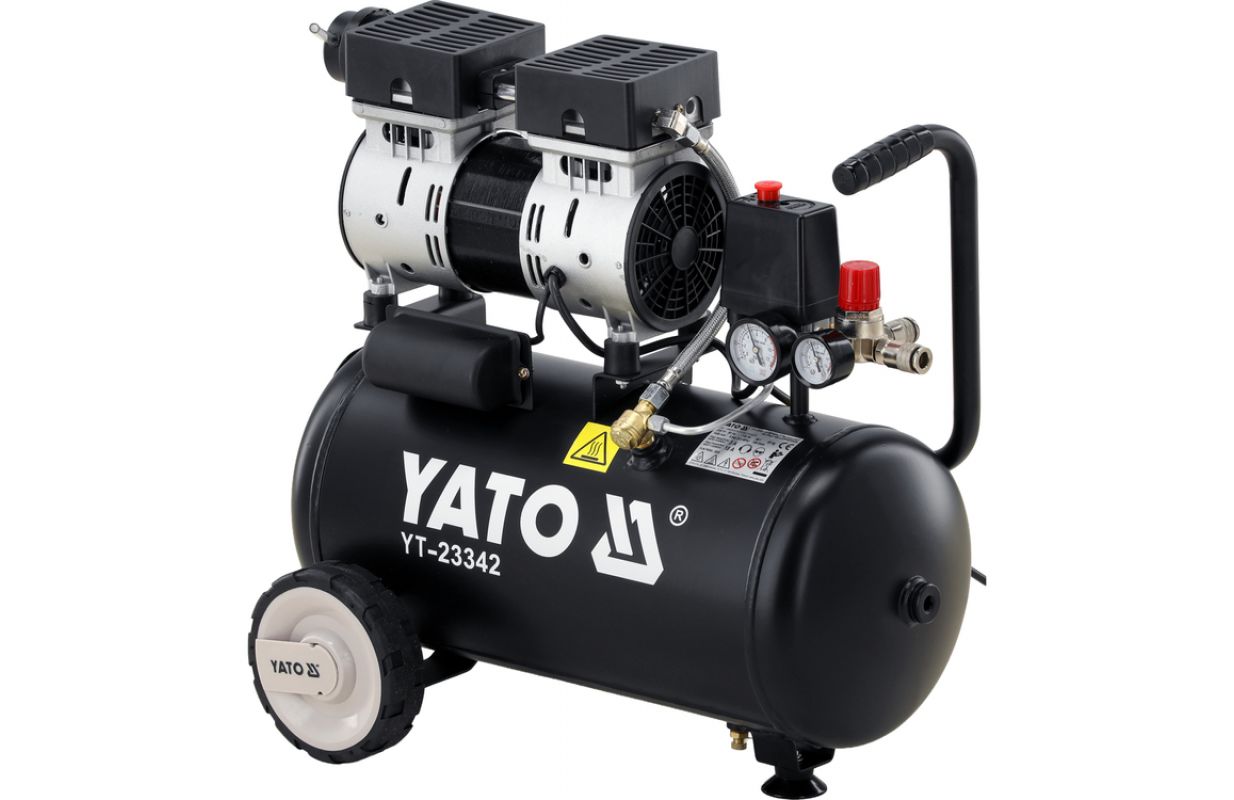

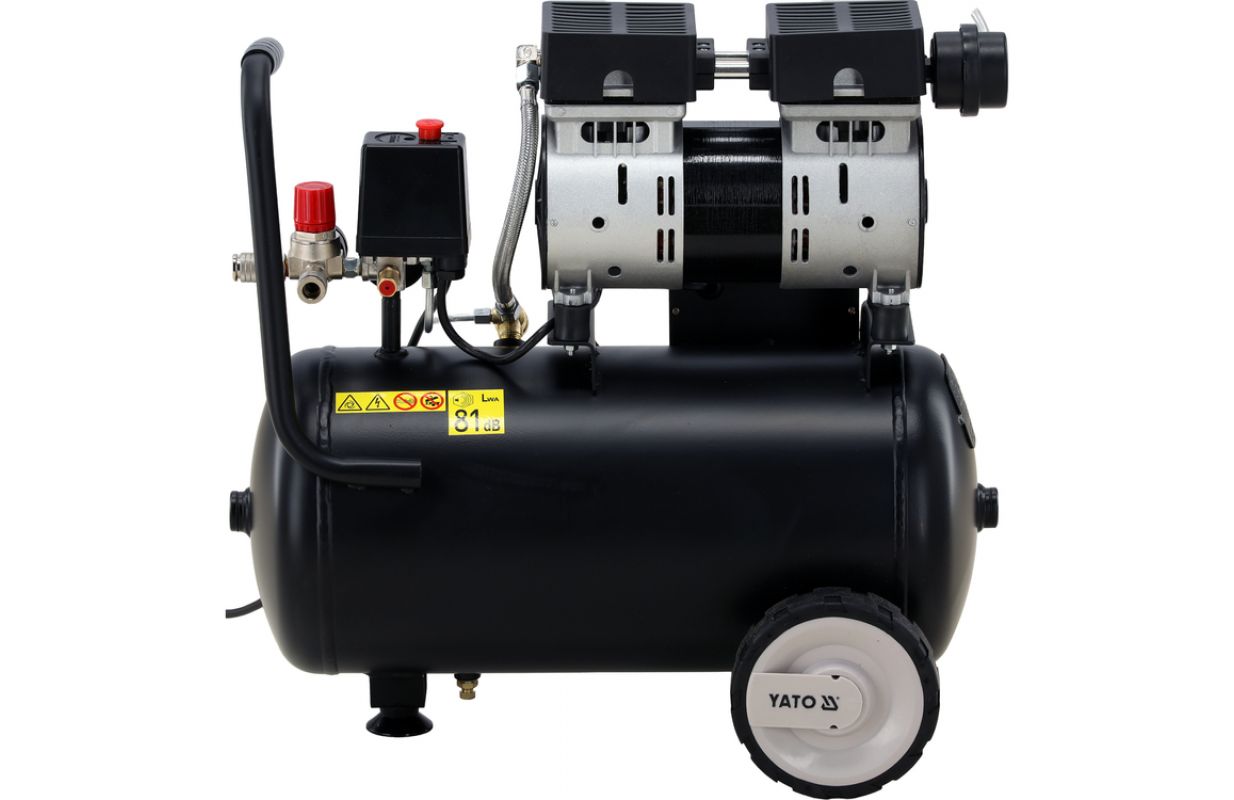

Oil-free compressor designed for workshop use with longer continuous operation time than compact models. The piston unit operates without oil lubrication, so there is no oil mist in the air emissions, and it can power tools that require a clean environment – fine spray paint guns, airbrushes, blowers, or servicing mechanical and electronic components.
Power supply of 230 V allows the device to be used in standard electrical wiring. The 750 W (1 HP) motor reaches 1450 min⁻¹ and works with a 24 L tank, significantly reducing the compressor's on-off frequency. Filling the tank takes about 140 seconds, and the stable working pressure ensures comfort when using pneumatic tools with medium air consumption.
Maximum pressure of 8 bar (115 PSI) and a capacity of 140 l/min allow for broader use in garages and mobile services – from inflating and cleaning to nail guns, servicing, and light workshop tools. The tank's design with increased wall thickness improves strength under cyclic loads.
Design features:

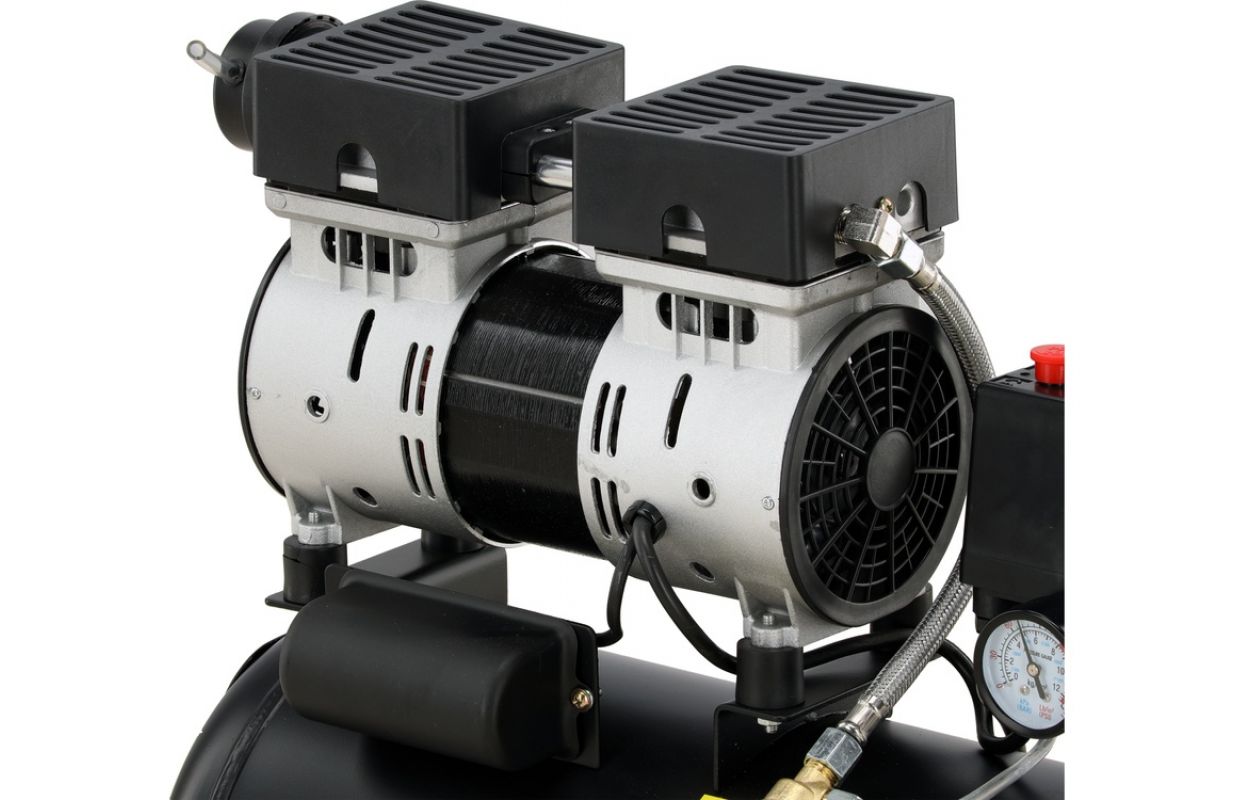

oil-free compressor – absence of oil-related maintenance operations
air without oil contamination
steel tank Ø240 × 535 mm, thickness 2.5 mm
transport wheels and stabilizing leg facilitate movement
air filter protecting the cylinder and valves from dust

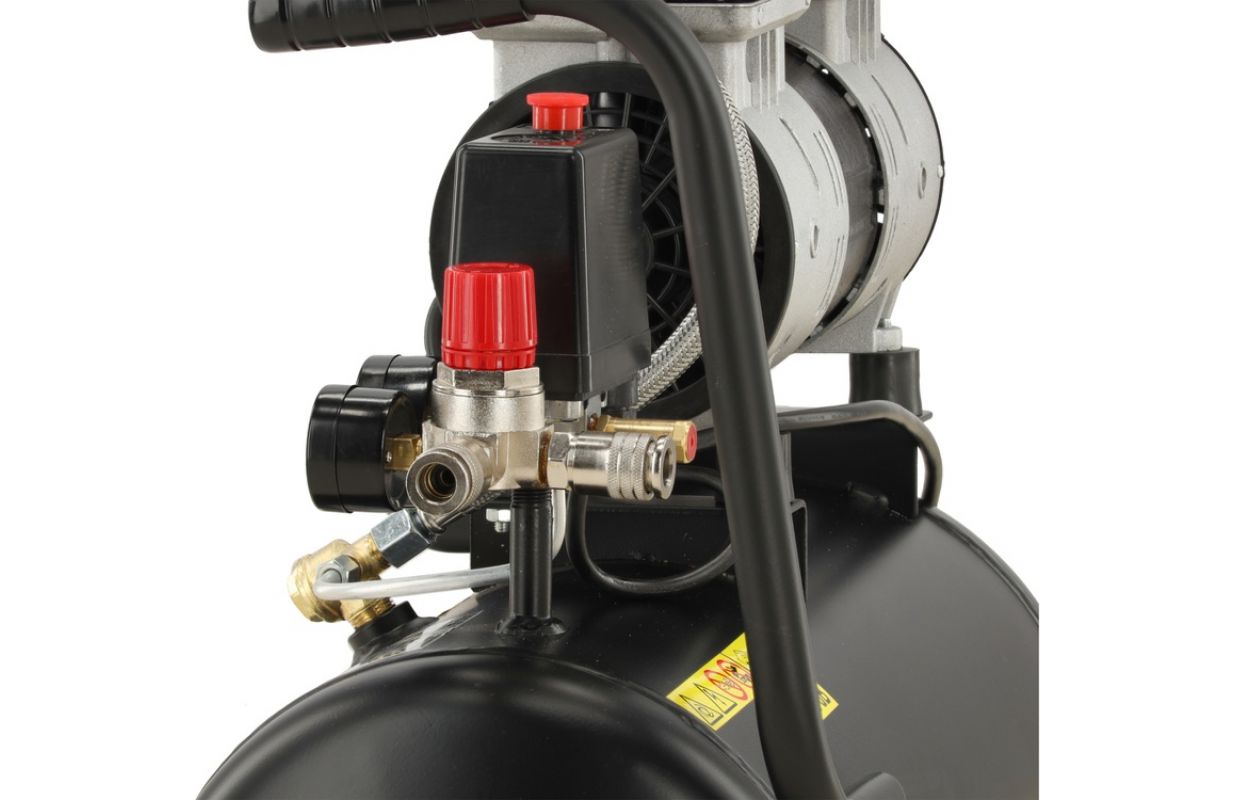

Functionality and maintenance:

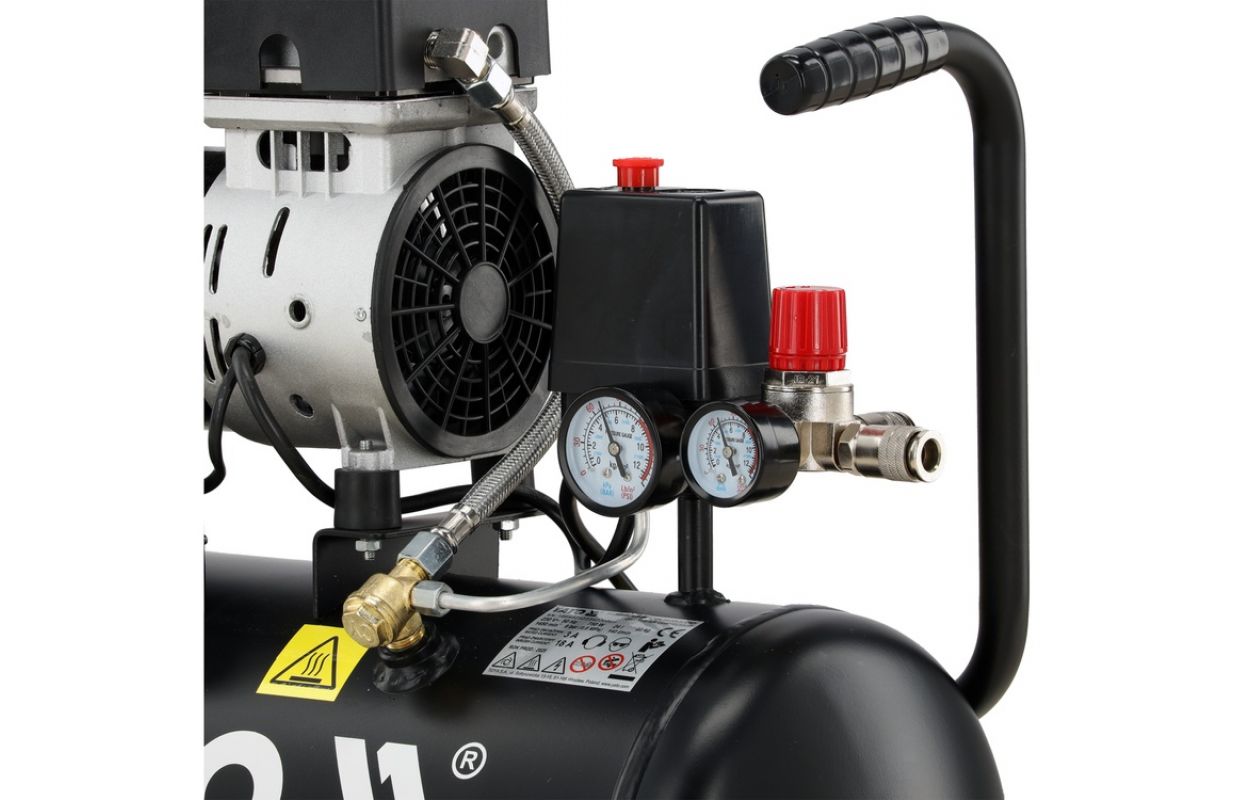

pressure regulator for precise parameter adjustment
quick-release pneumatic connection system for fast tube replacement
two pressure gauges: tank pressure and working pressure
pressure switch automatically controls motor operation
check valve stabilizes the compression process
safety valve protecting the system from overpressure
Technical parameters:
power supply: 230 V ~ 50 Hz
motor power: 750 W / 1 HP
number of revolutions: 1450 min⁻¹
maximum pressure: 8 bar / 115 PSI
air power: 140 l/min
tank filling time: about 140 seconds
tank capacity: 24 L
Equipment:
pressure regulator
quick-release connection system
pressure gauges - 2 pcs.
safety valve
check valve
pressure switch
air filter
transport wheels
stabilizing leg
