Description

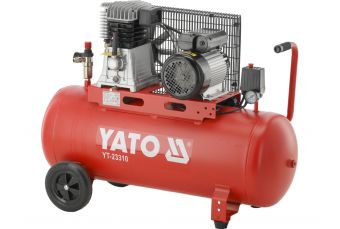

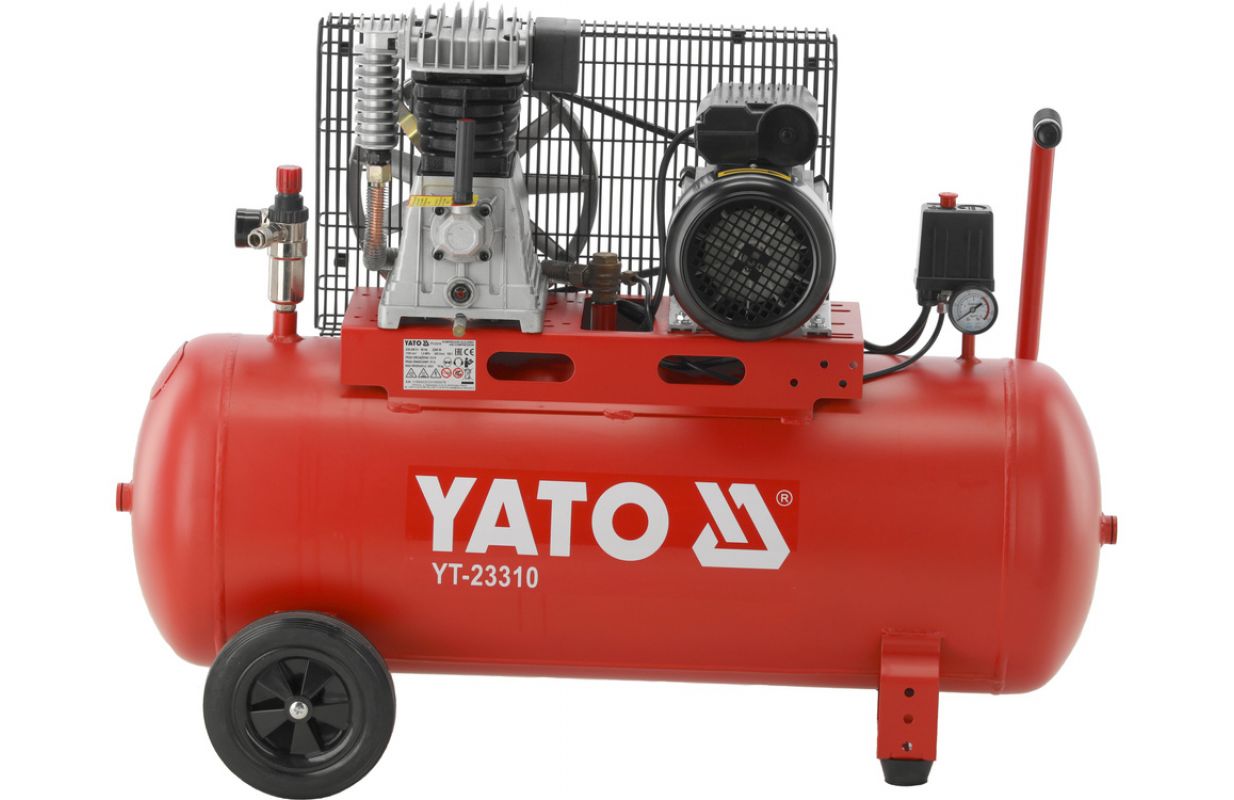

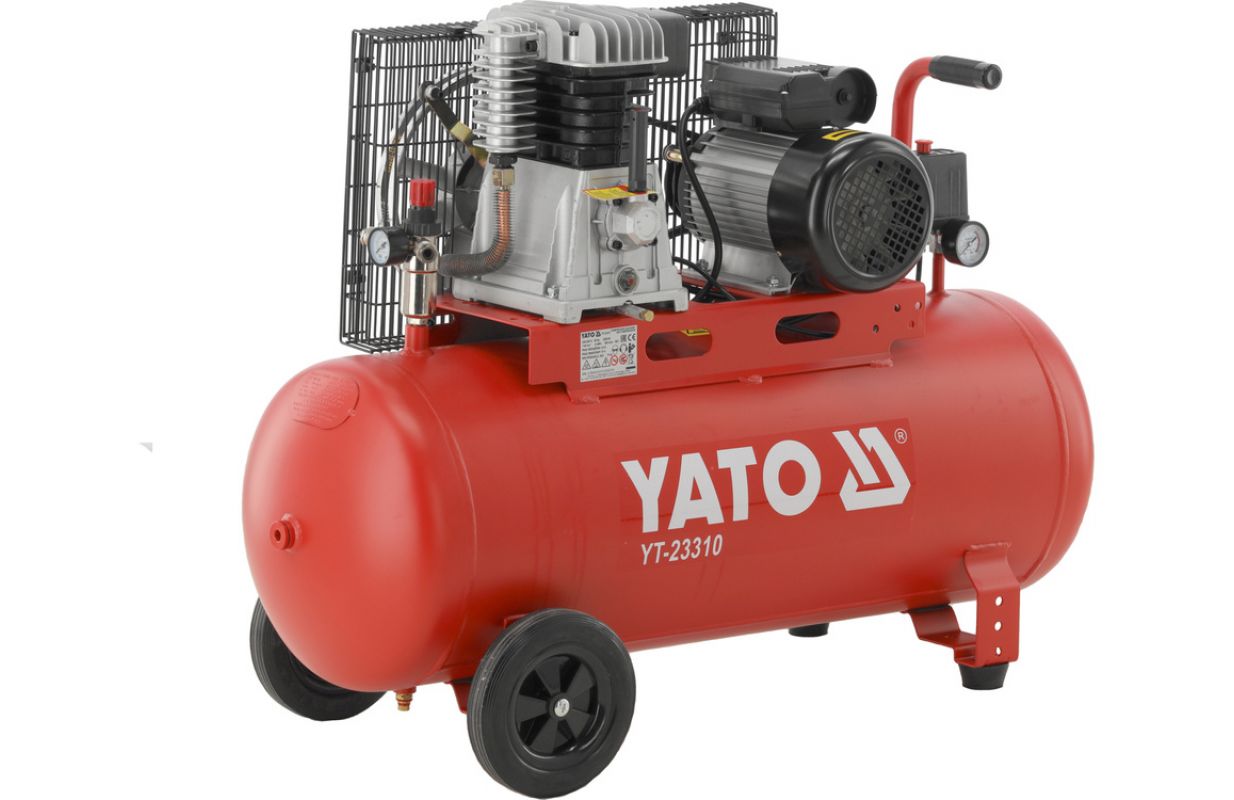

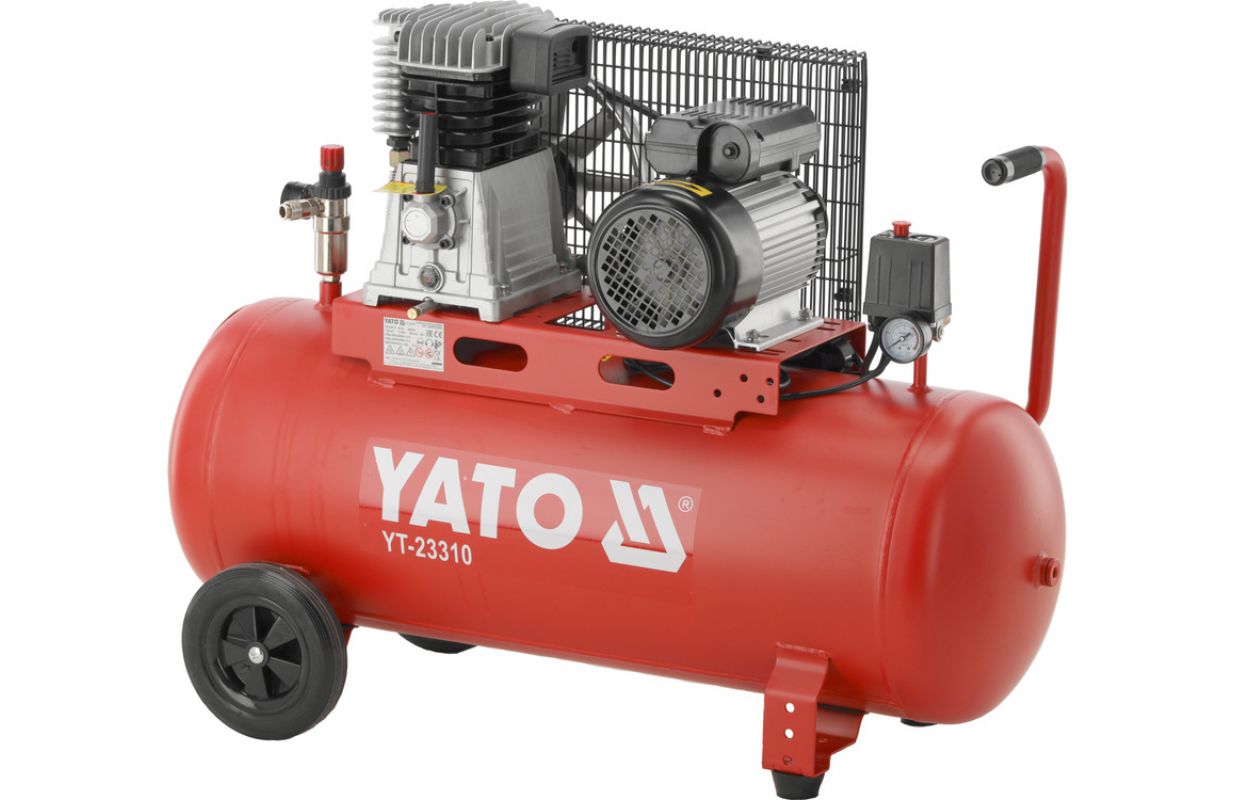

Oil compressor with two connections and pressure control. It is used for driving compressed air equipment, blowing boreholes and cleaning surfaces. It is an invaluable support in industry, construction, workshop and agriculture.
Usage warnings:
Before first use, fill in oil and replace the transport plug by supplied oil plug.Technical data
| Brand | Yato | |
| Entity responsible for this product in the EU | ||
| Series | GRF | |
| Tank capacity | 100 l | |
| Power | 3 KM | 2200 W |
| Max. pressure | 1 / 10 / 145 MPa/bar/PSI | |
| volume | 360 l/min | |
| Rotations | 1100 min⁻¹ | |
| Voltage | 230 V a.c. | |
| Frequency | 50 Hz | |
| Short-circuit current | 57 A | |
| Load current | 9.5 A | |
| Cylinders number in engine (motor) | 2 | |
| Wheels | yes | |
| Wheel quantity | 2 | |

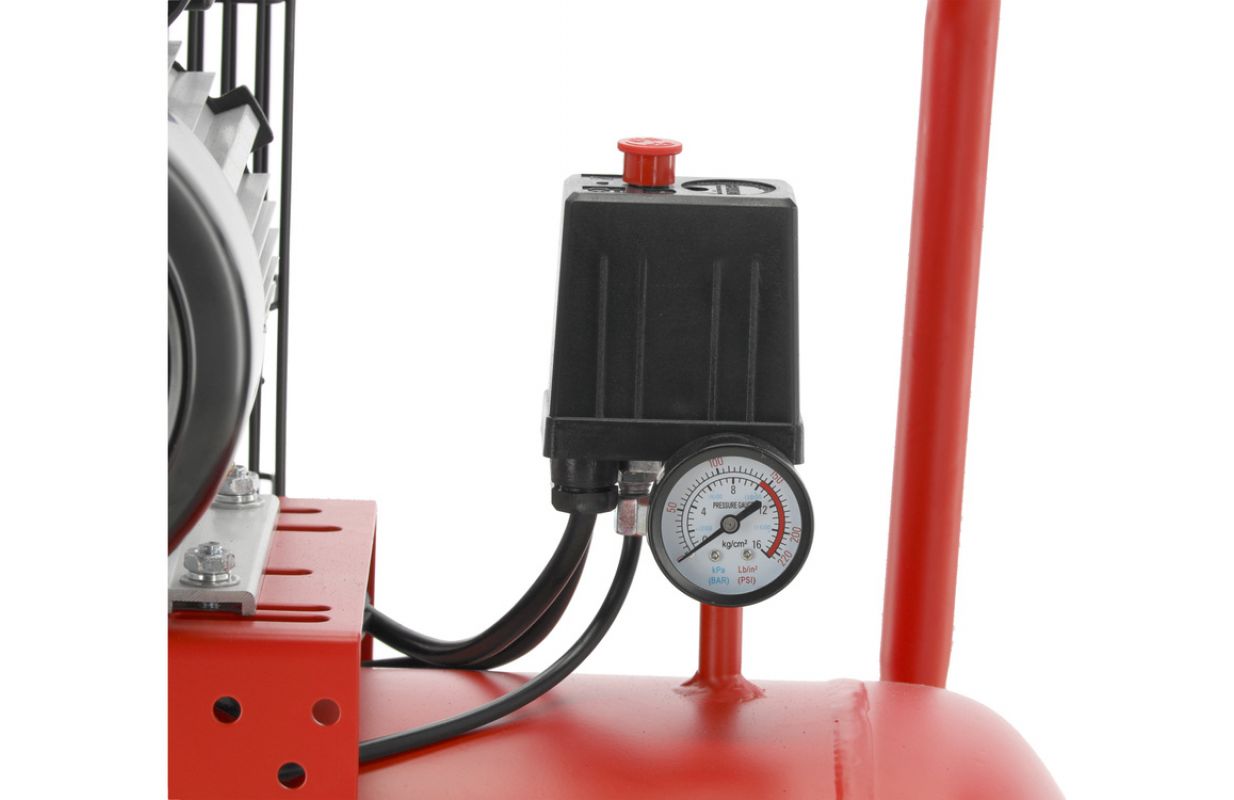

| Manometer | yes | |
| Electric insulation class | I | |
| Protection grade | IP20 | |
| Acoustic pressure | 74.7 ± 3.0 dB(A) | |
| Acoustic power | 93.8 ± 2.28 dB(A) | |
| Weight | 70 kg | |
| Set includes | compressor, quick connector x2 | |
| Symbol | YT-23310 |
