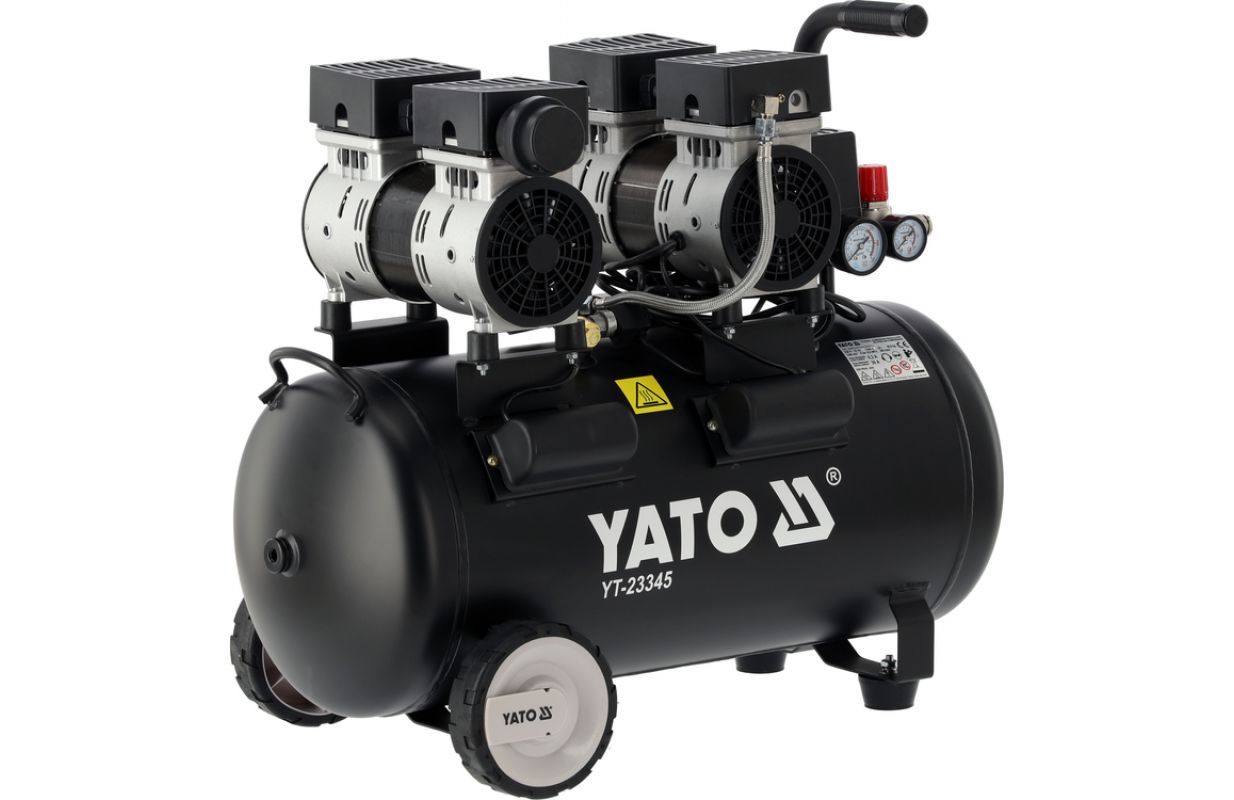

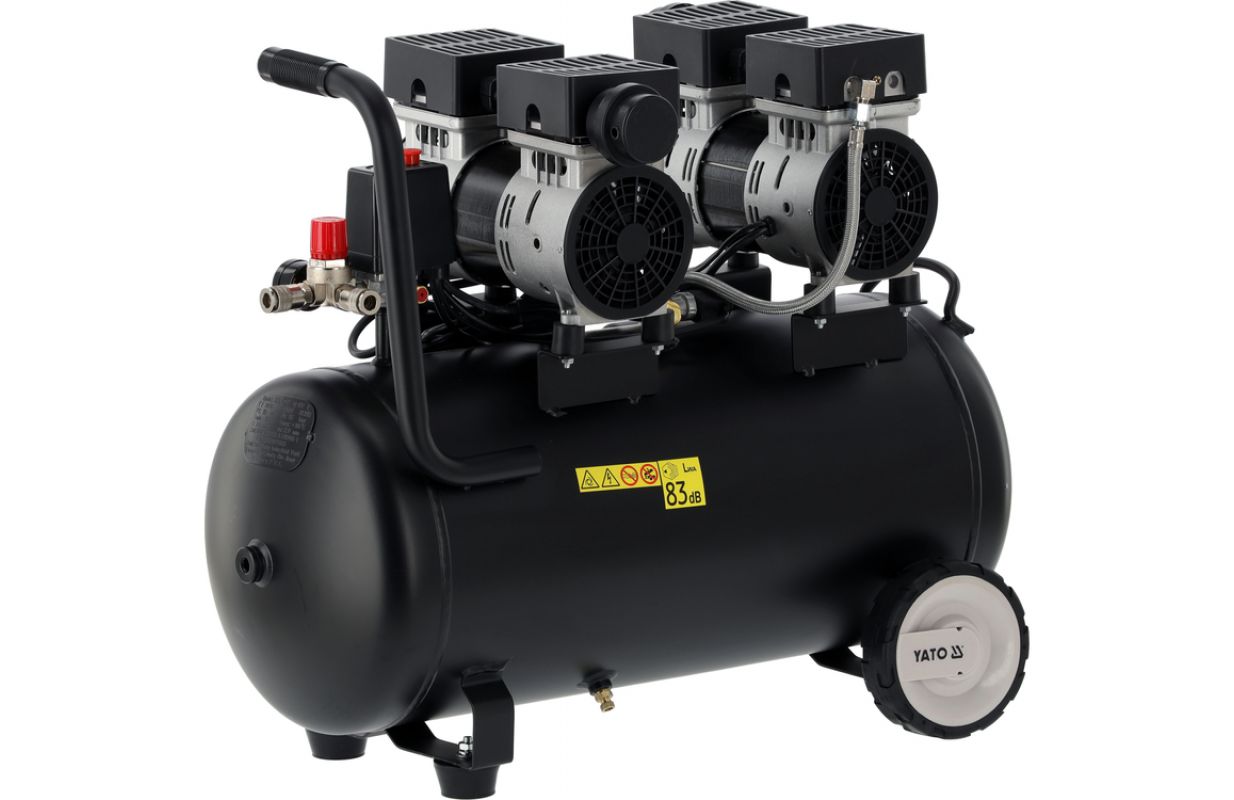

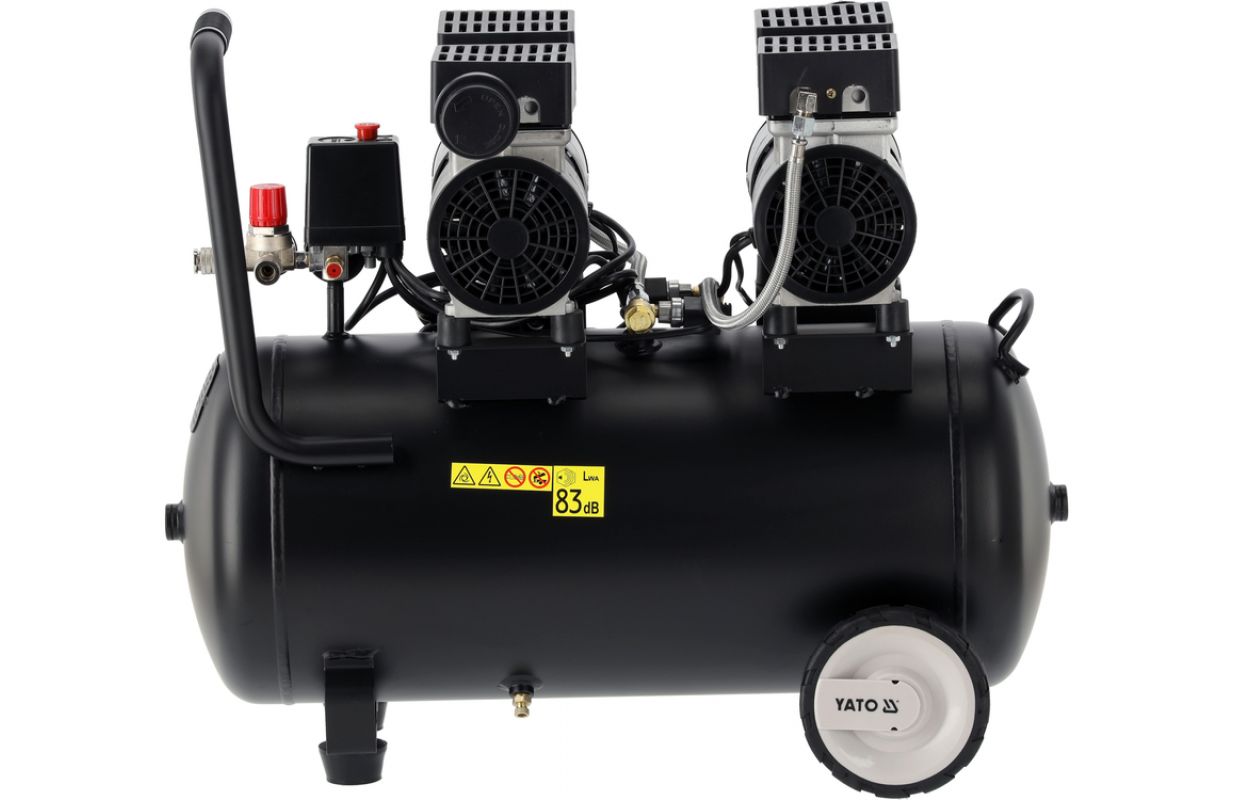

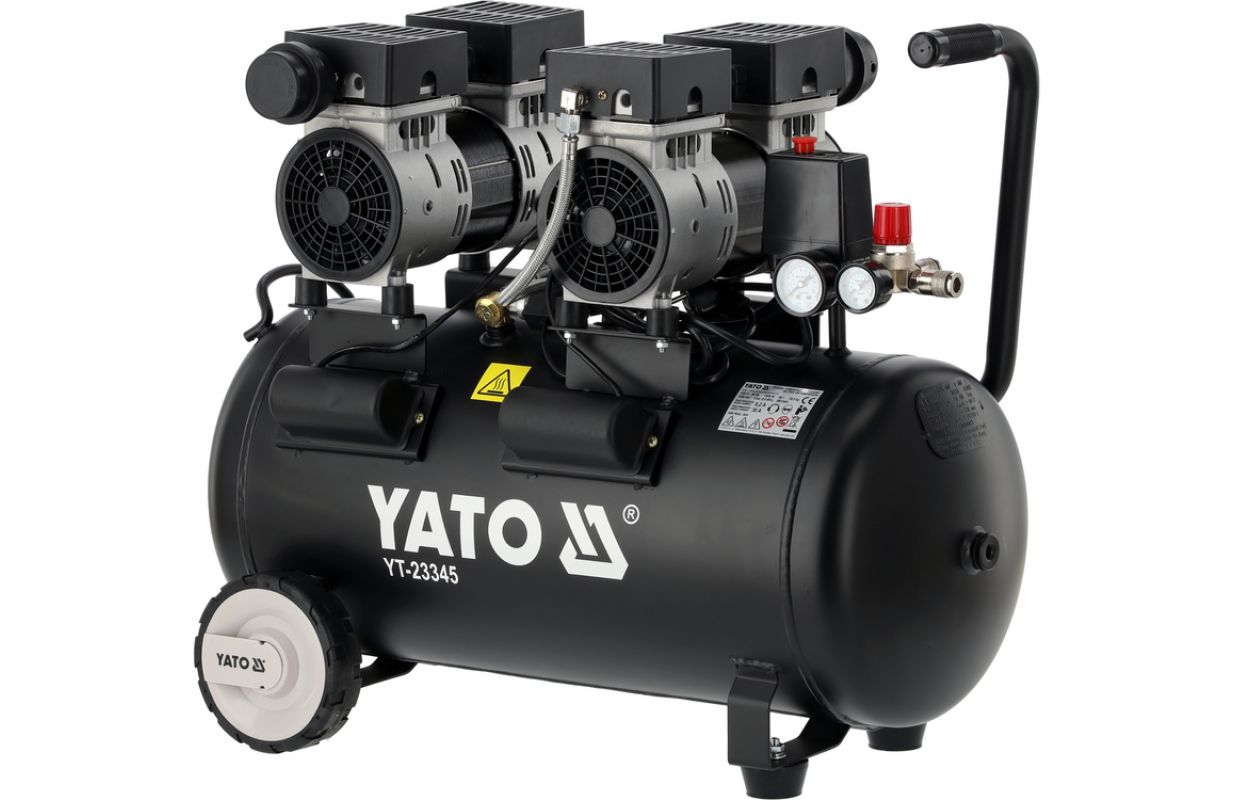

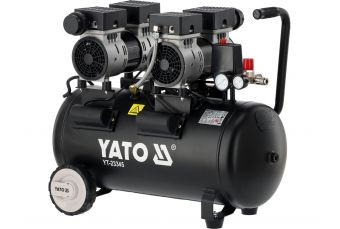

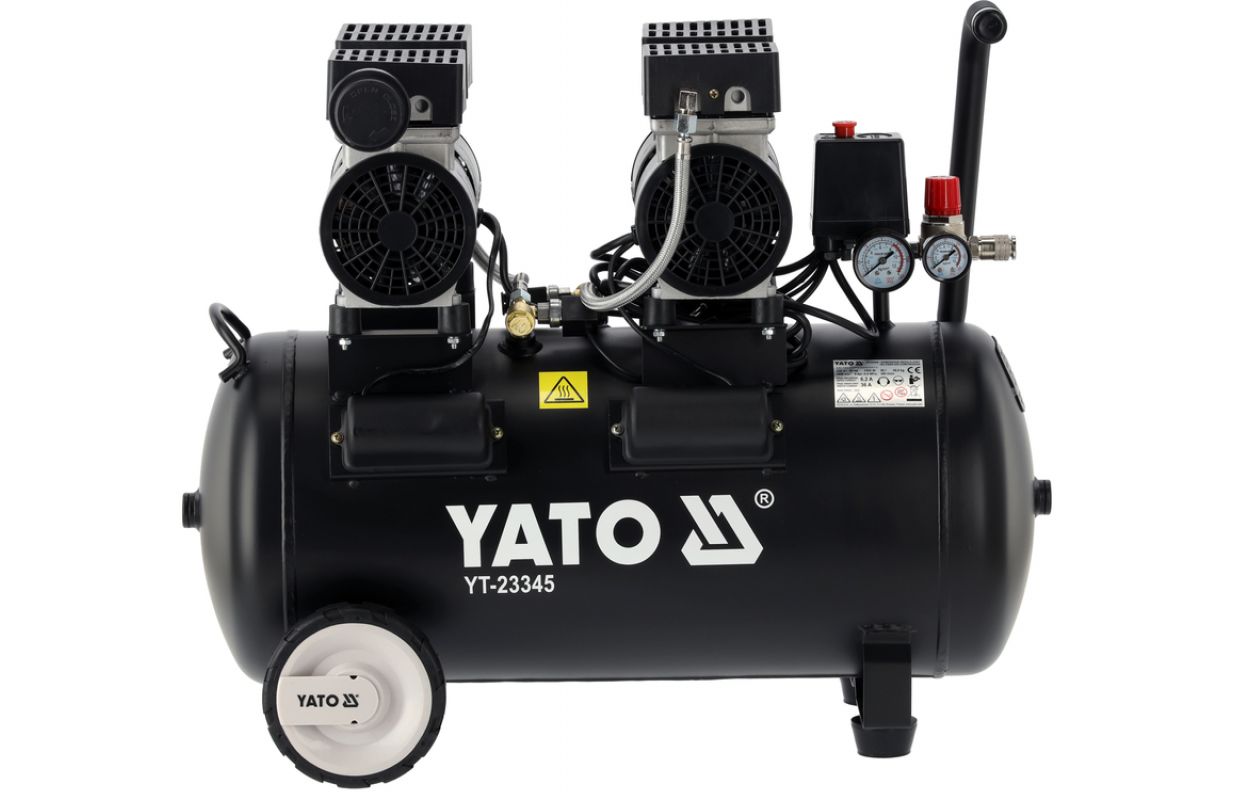

Silent Air Compressor | Oil-Free | 50 l/0.8 MPa/8 bar/115 PSI/280 l/min | 1500 W (YT-23345)

Compressor YT-23345 Oil-Free is designed to power pneumatic tools and perform workshop, assembly, and service tasks. The oil-free compressor system eliminates the need for lubricants, reduces maintenance requirements, and allows for the use of clean, oil-free compressed air. With a tank capacity of 50 liters and a performance of 280 l/min, the device is ideal for typical workshops and semi-professional applications.

Design and Ease of Use
The low-speed motor contributes to the longevity of the system, while integrated control and safety features enhance safety and comfort during everyday use.

Key Features and Technical Specifications:

• Oil-free compressor – no lubrication required for the compression system and simplified maintenance
• Clean compressed air suitable for work requiring reduced oil contamination
• Power supply: 230 V ~ 50 Hz
• Motor power: 1500 W (1.5 kW / 2 HP)
• Rotational speed: 1450 RPM
• Maximum working pressure: 8 bar / 115 PSI
• Performance: 280 l/min
• Tank volume: 50 l
• Tank filling time: 140 s
• Pressure vessel dimensions: Ø 300 x 700 x 2.5 mm

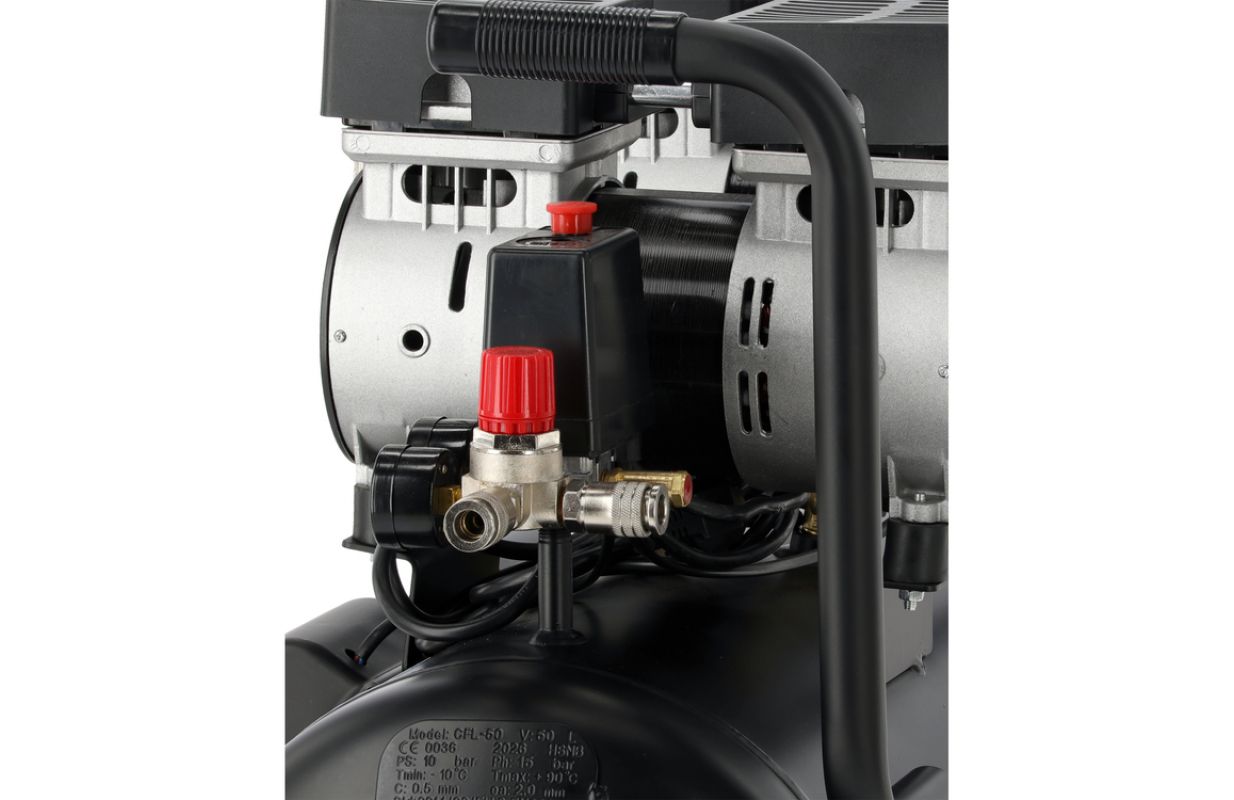

• Pressure regulator for adjusting working parameters to the powered device

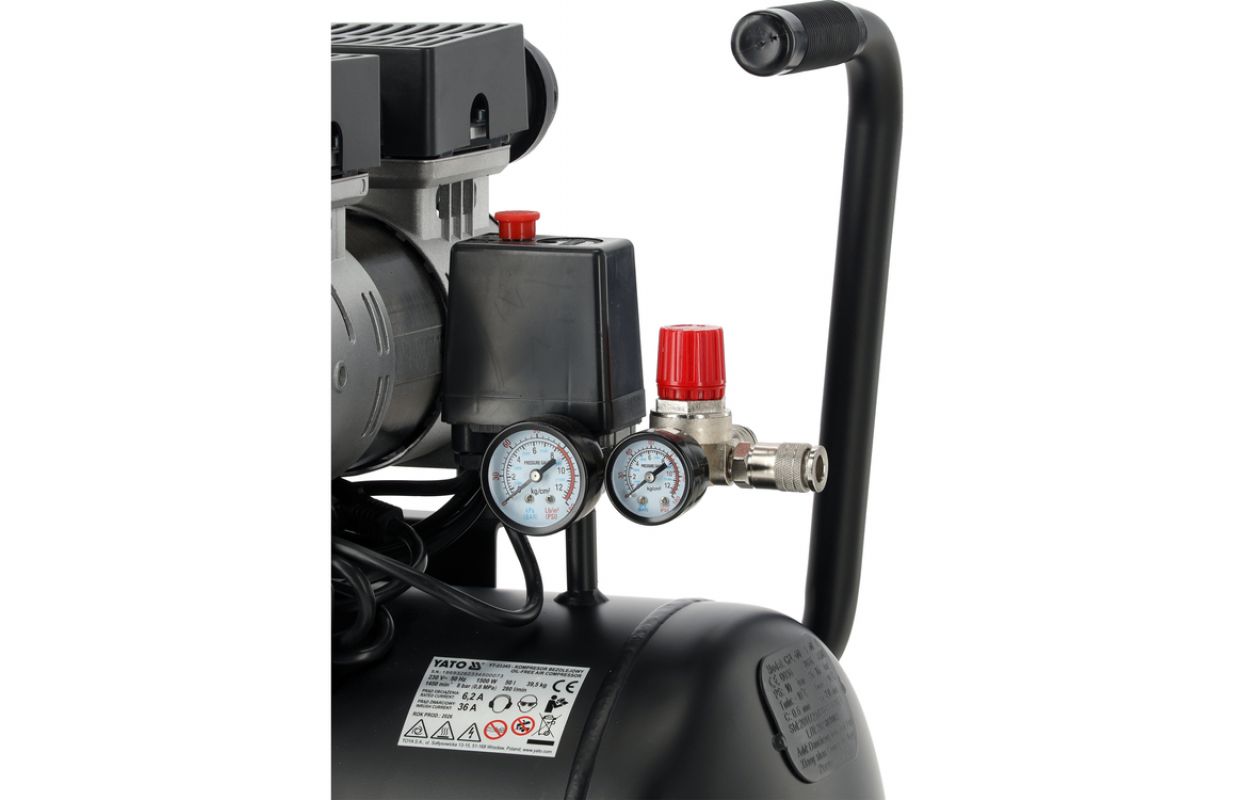

• 2 pressure gauges for continuous pressure monitoring
• Pressure relay automatically controls the operation of the compressor
• Safety valve and check valve protect the system from overload
• Quick-release connection for easy attachment of pneumatic tools
• Air filter protects the compressor system from contaminants
• Transport wheels and stabilizing foot facilitate the movement of the device and improve stability during operation
• Practical use in workshops and service centers

Application
This compressor is suitable for powering basic pneumatic tools, inflation, blowing, as well as assembly and service work. The increased tank capacity reduces the frequency of device starts, leading to more comfortable and stable operation.

Oil-Free Compression System
The oil-free technology reduces maintenance needs and eliminates the risk of oil particles entering the compressed air. This solution is particularly effective where the cleanliness of the working substance and ease of use are of paramount importance.

Mobile Design
The compressor is equipped with transport wheels and a stable support, making it easier to move the device around the workshop or workplace. Its compact design allows for convenient use even in small workspaces.

Index: YT-23345
Barcode: 5906083124648
Unit of measurement: PC
Volume: 166.075
Weight: 41.5 kg
