Description

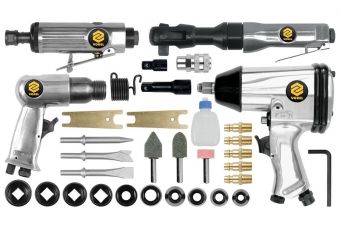

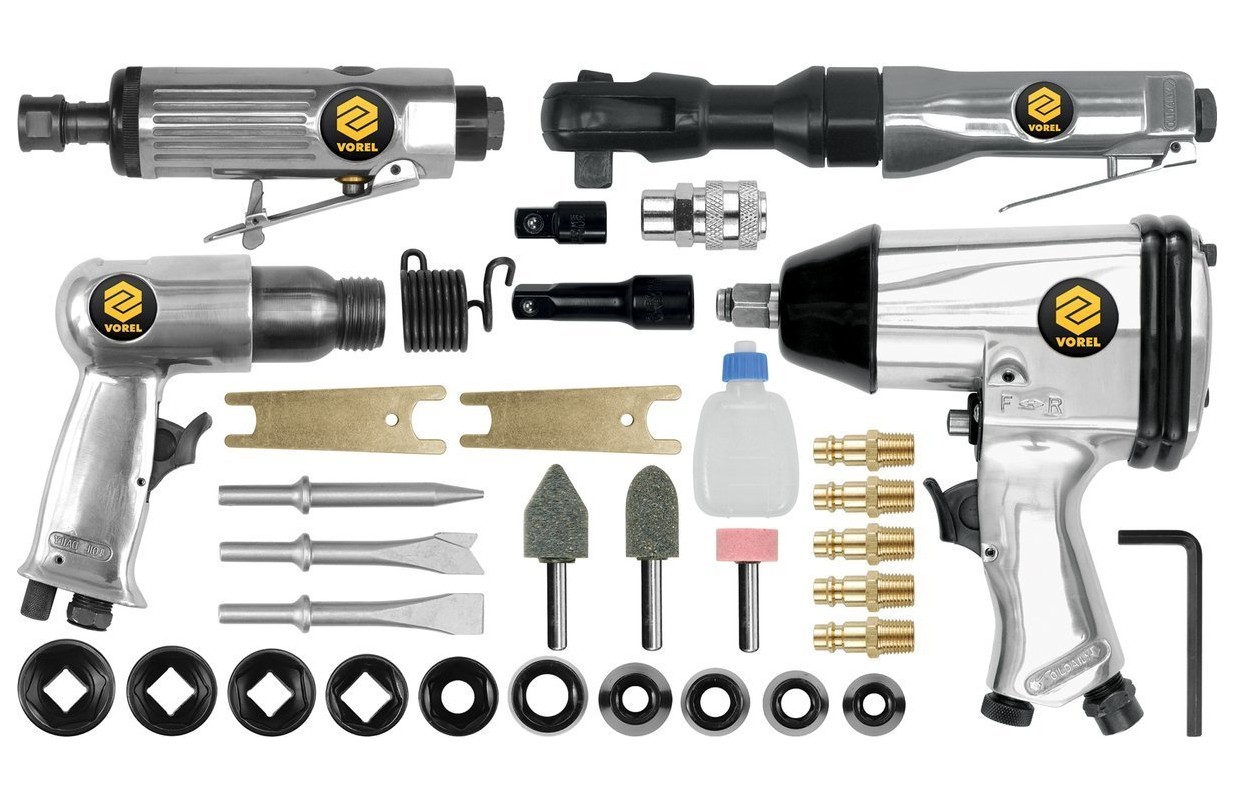

Set of pneumatic wrenches with sockets by Vorel.
Pneumatic impact wrenches are efficient and professional tools, designed to carry out work in vulcanization and automotive plants. They are very well suited for unscrewing and screwing of kó³³ in motor vehicles. Thanks to their versatility, they are an excellent addition to the equipment of workshopsów.
Technical data
| Brand | Vorel | |
| Entity responsible for this product in the EU | ||
| Series | GRF | |
| Max. working pressure | 0.63 MPa | |
| Required air flow | 226, 141, 113, 100 l/min | |
| Impact frequency | 4500 min⁻¹ | |
| Rotations | 0-7000, 0-160, 0-25000 min⁻¹ | |
| Max. torque | 340, 69 Nm | |
| Holder size | 1/4" (6.3 mm) | 1/2" (12.7 mm) |
| Toolholder type | Operator | |
| Air connection diameter (PT) | standard | |
| Air supply hose inside diameter | 3/8" (9.5 mm) | |
| Thread size | G1/4 | |
| Length | 205, 254, 155, 133 mm | |
| Acoustic pressure | 95.0 ± 3.0, 94.0 ± 3.0, 88.0 ± 3.0, 98.0 ± 3.0 dB(A) | |
| Acoustic power | 106.0 ± 3.0, 105.0 ± 3.0, 99.0 ± 3.0, 111.0 ± 3.0 dB(A) | |
| Vibrations | 9.1 ± 1.5, 9.0 ± 1.5, 2.9 ± 1.5, 10.6 ± 1.5 m/s² | |
| Weight | 2.2, 1.2, 0.38, 1.12 kg | |
| Pcs | 33 | |
| Set includes | pneumatic impact wrench 81100, pneumatic ratchet 81111, pneumatic hammer 81135, pneumatic grinder 81113, quick connector, hose connector x5, spring, | |
| Set includes cont’d | tool holder key x2, grinding stones x3, mini-vacuum cleaner, chisel x3, hexagon socket x10 (9, 10, 11, 13, 14, 17, 19, 22, 24, 27), extension 1/2" (12.7 mm), | |
| Set includes cont’d 2 | adapter 3/8"(F)x1/2"(M), 4 mm hex key | |
| Symbol | 81142 |
