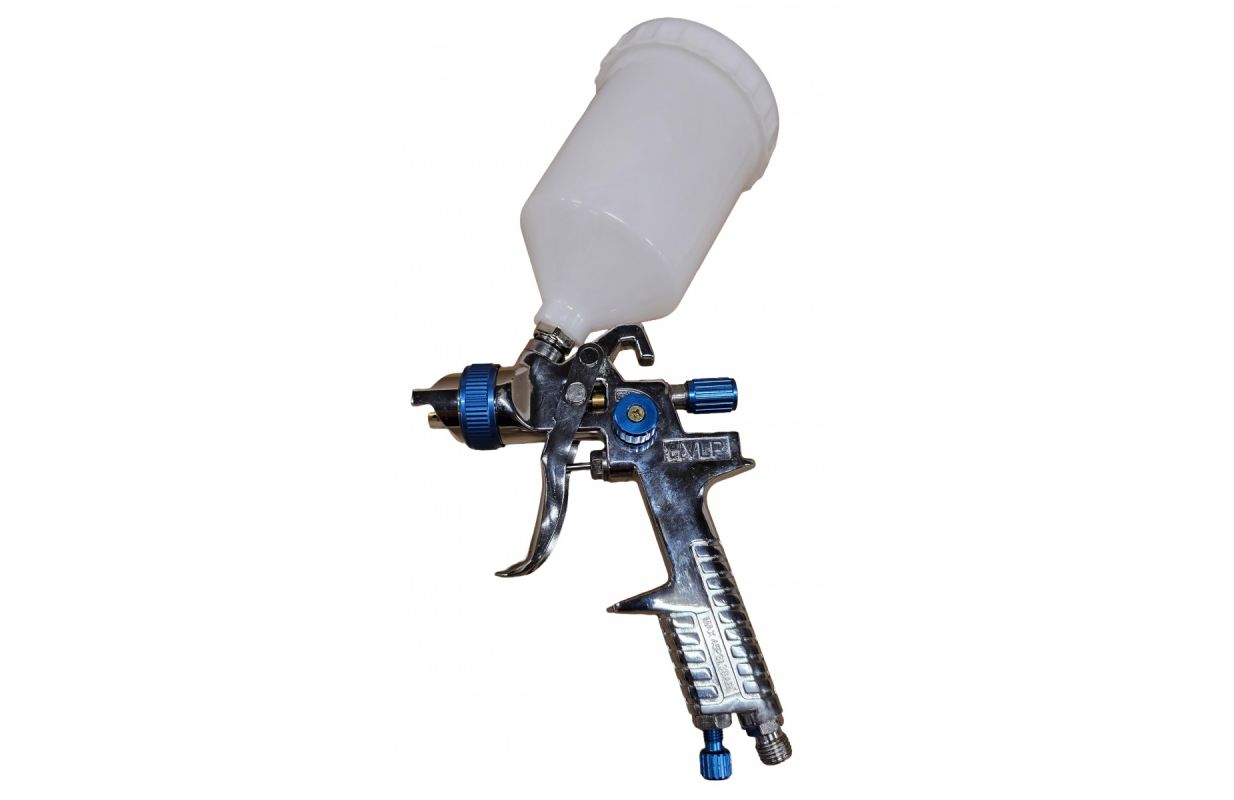

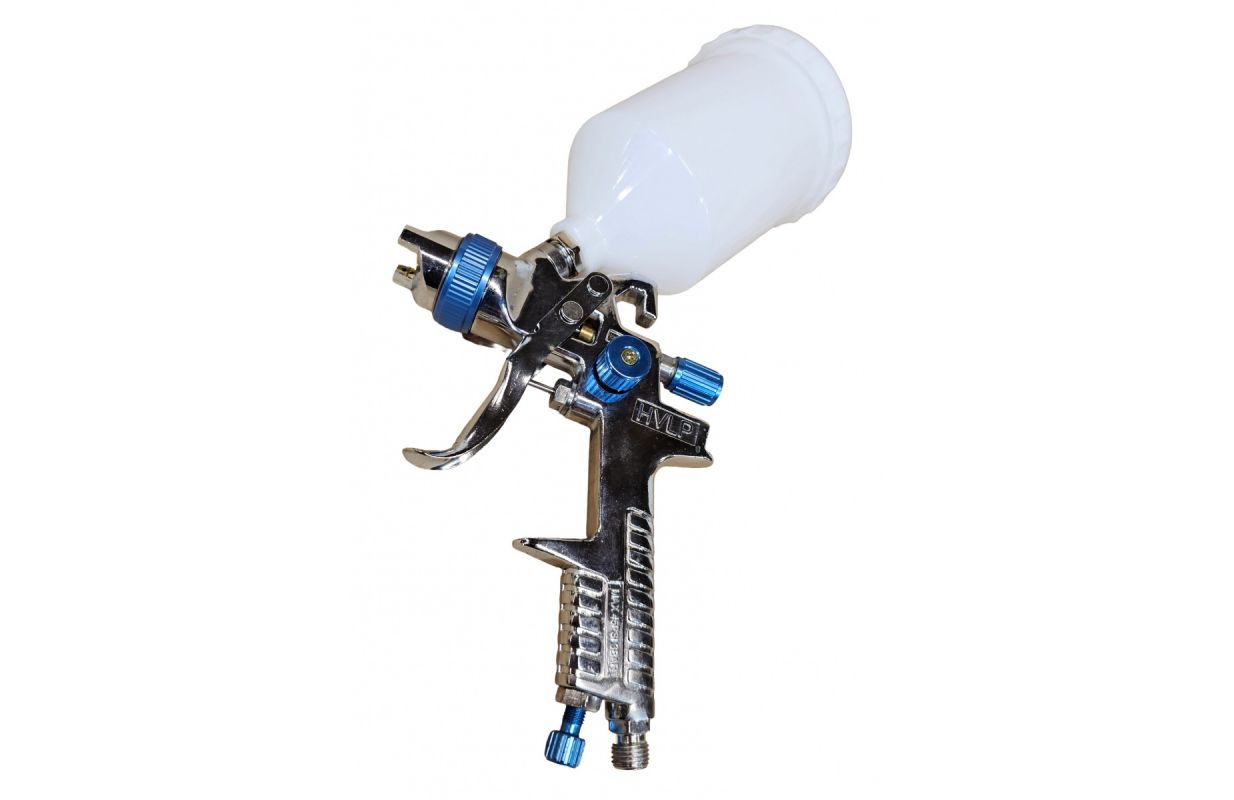

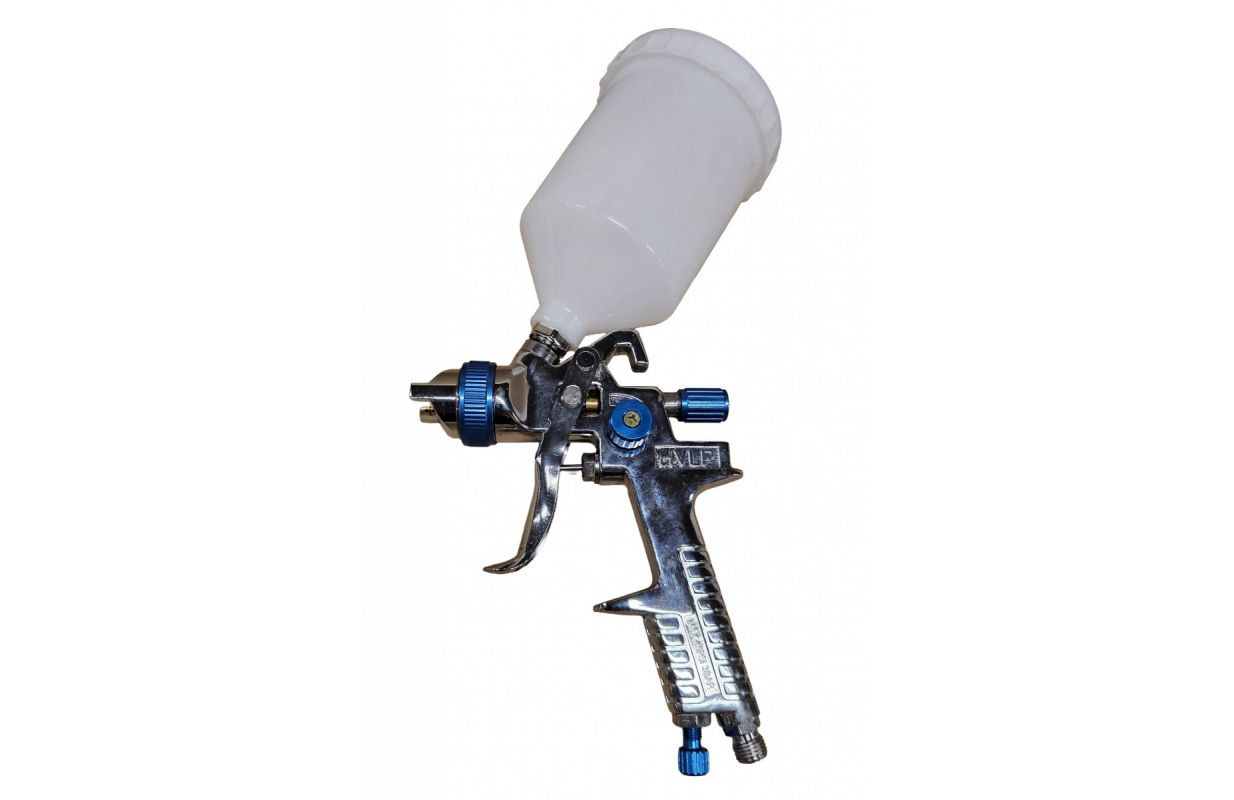

Air Paint Spray Gun | 600 cm³ | Ø 1,5 mm (ES-H217)

This spray gun is designed for maximum productivity and quality while minimizing operator fatigue. It contains high-quality components, ensuring long-term reliability.

The spray gun operates at low pressure (from 1 atm) and requires about 270-420 liters of air per minute. The device is equipped with adjustments for air pressure, paint quantity, and spray pattern, making it user-friendly.

The HVLP spray gun is created with the user's needs in mind: it is set to lower pressure, allowing for up to 30% savings on lacquer. A suitable compressed air system with adjustable pressure up to 0.3 MPa is required for operation. The working principle is based on drawing compressed air with the necessary amount of paint from the emulsion paint tank and forming a spray (paint and gas particles) at the nozzle exit of the spray gun. The mist evenly covers the painted surface with a dense layer of lacquer.

• nozzle diameter 1.4 mm (brass needle)
• adjustment of paint quantity and flow
• air pressure adjustment
• aluminum body, 600 ml tank
• recommended working pressure from 1 to 3 bar (15-45 PSI)
• air consumption 270-420 l/min (CFM 9.5-14.8)
• quick-release connection 1/4 inch

• HVLP spray gun H-217 with 1.4 mm nozzle
• lacquer cup with a capacity of 600 ml
• wrench for opening the spray gun
• brush for cleaning the gun
