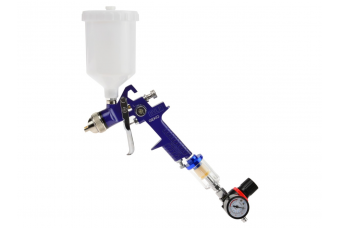

HVLP 1.4mm Spray Gun with Air Regulator & Air Filter (G03151)

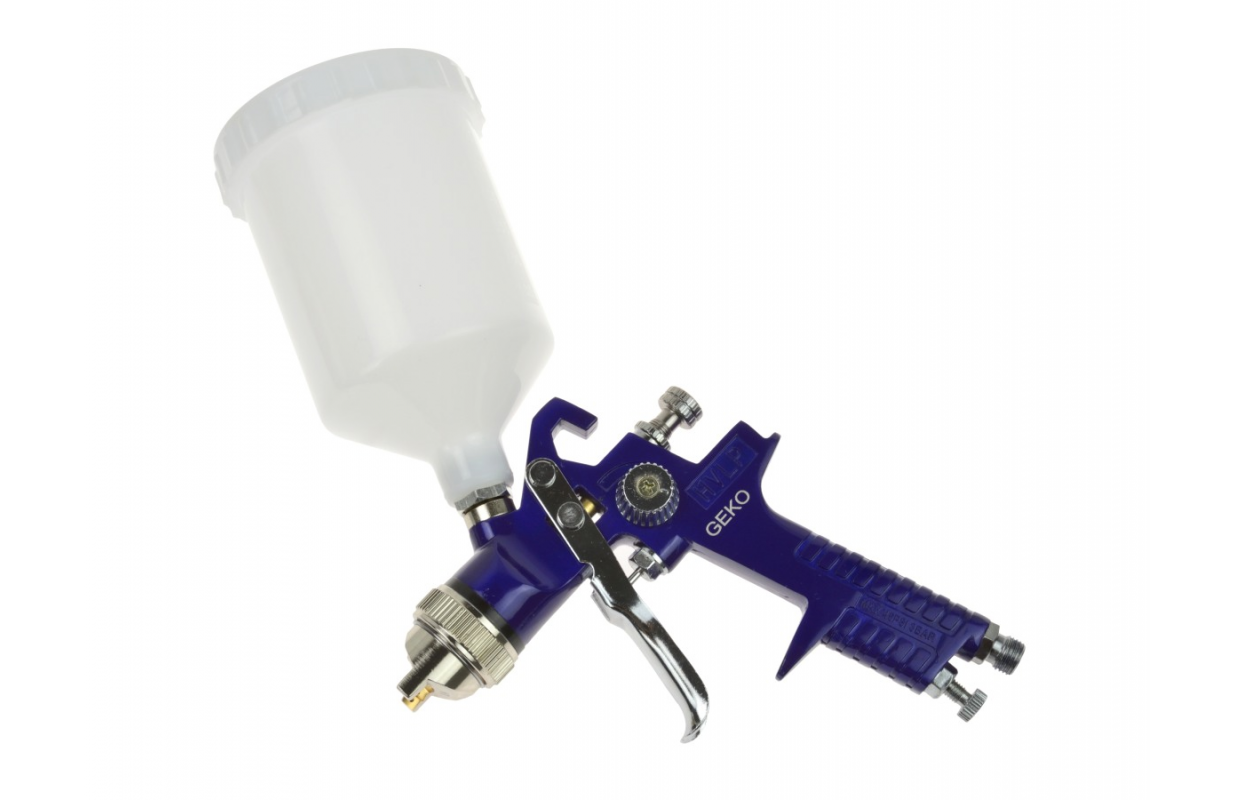

Professional HVLP spray gun. Made of the best quality materials. The gun is powered by compressed air. The air from the compressor reaches the paint tank and the gun nozzle. The resulting pressure "pushes" the liquid from the tank, and the sprayed paint particles are ejected through the nozzle onto the painted surface. HVLP stands for High-Volume-Low-Pressure. In other words, it utilizes low pressure to atomize the material while outputting high volume. This type of material transfer give you high-quality finish with minimal material waste.

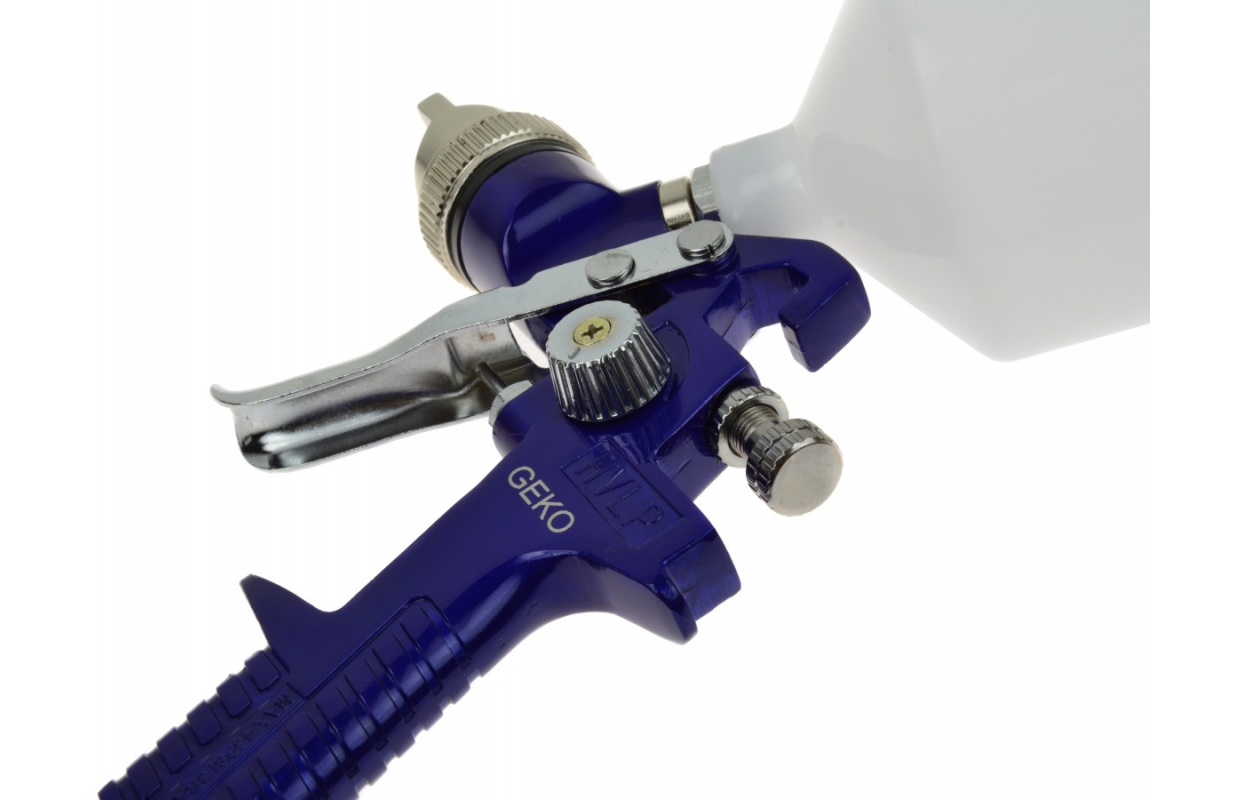

Gun functions

• Adjusting the paint flow with the nozzle butterfly


• The fan control adjusts the amount of air distributed to the different drillings or air passages in the air cap; help to squeeze and shape the fluid into elliptical or flat spray pattern


• The fluid control knob allows you to adjust the amount of paint coming from the tank to the nozzle


• Air adjustment valve is used to adjust the air volume and pressure that is delivered to the air cap of the spray gun

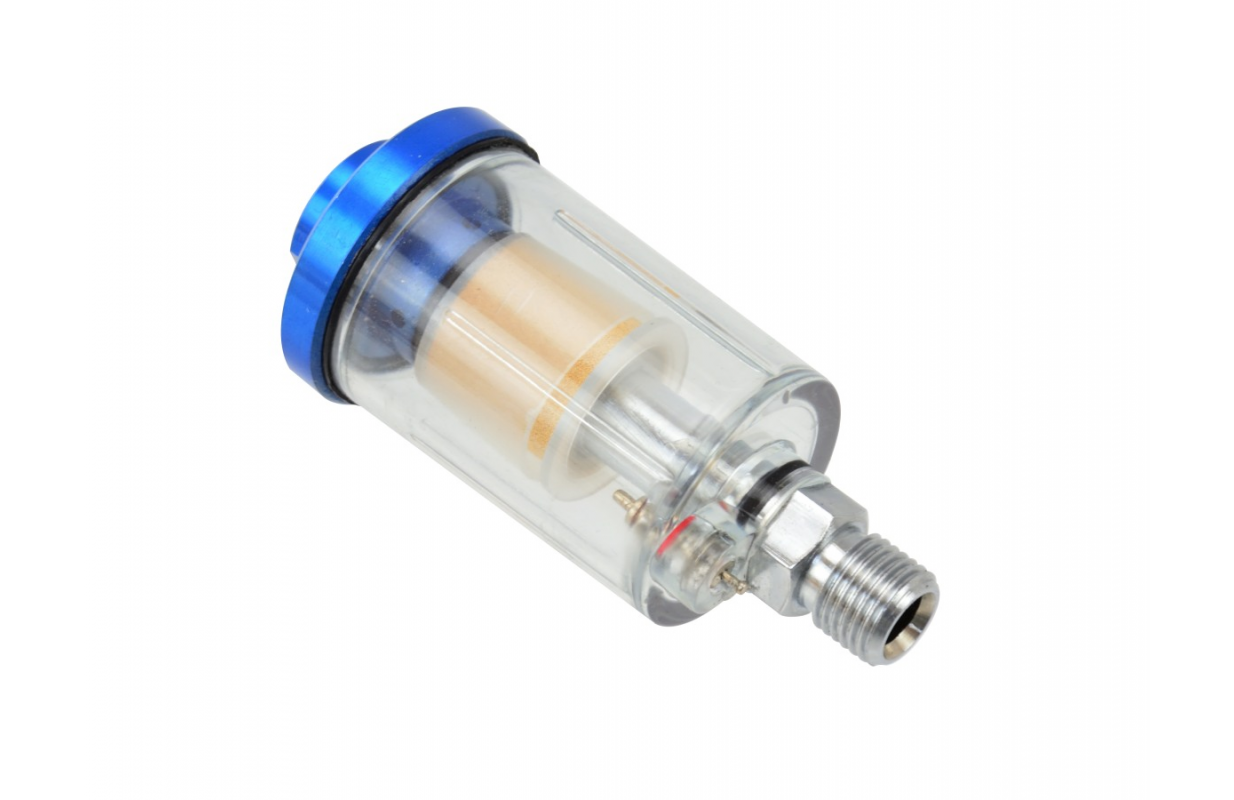

Air Filter with a water separator is used to dry the air. Cleans compressed air from moisture, oil and solid particles.

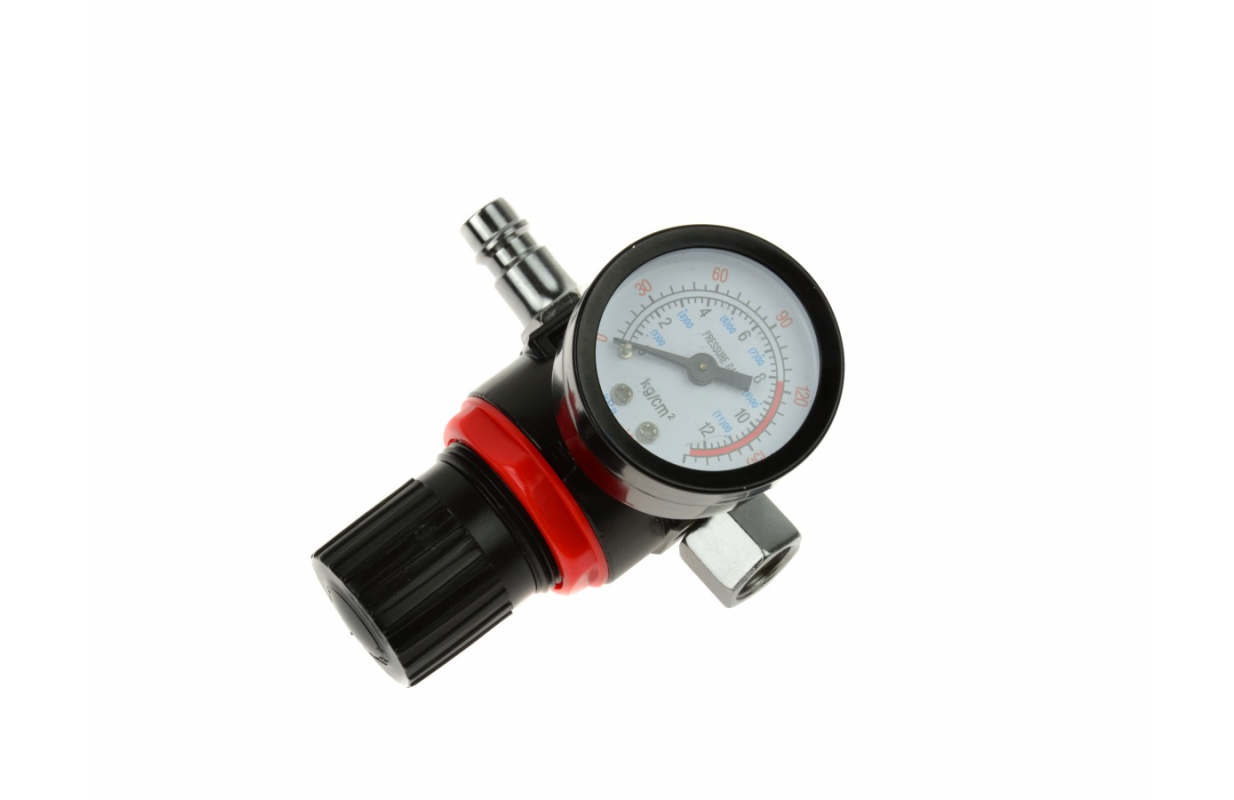

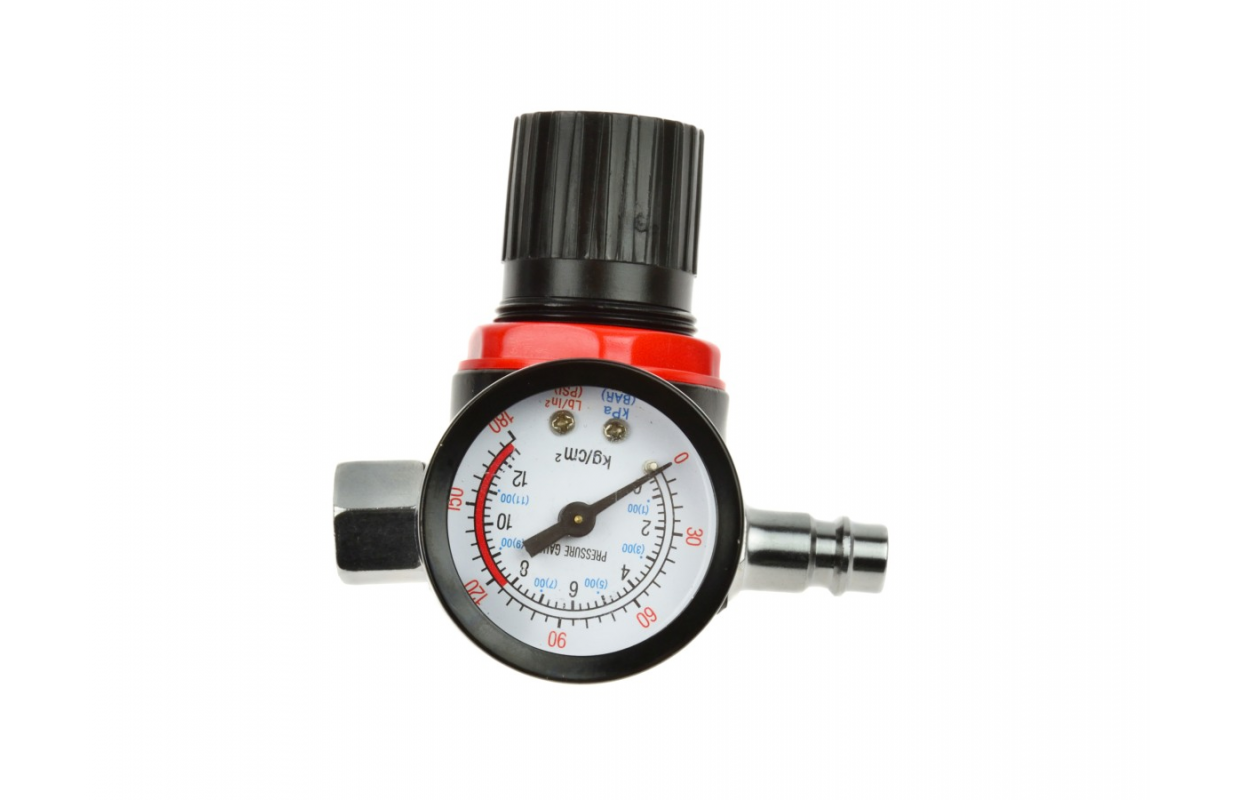

The pressure regulator is used to adjust the gun's air pressure.

Product Features

• Lower paint consumption thanks to HVLP technology


• 1.4m Tip Size


• 600ml Paint Cup made of plastic


• Solid and airtight construction


• Adjustable Spray Width


• Fluid Control Valve


• Air Flow Valve

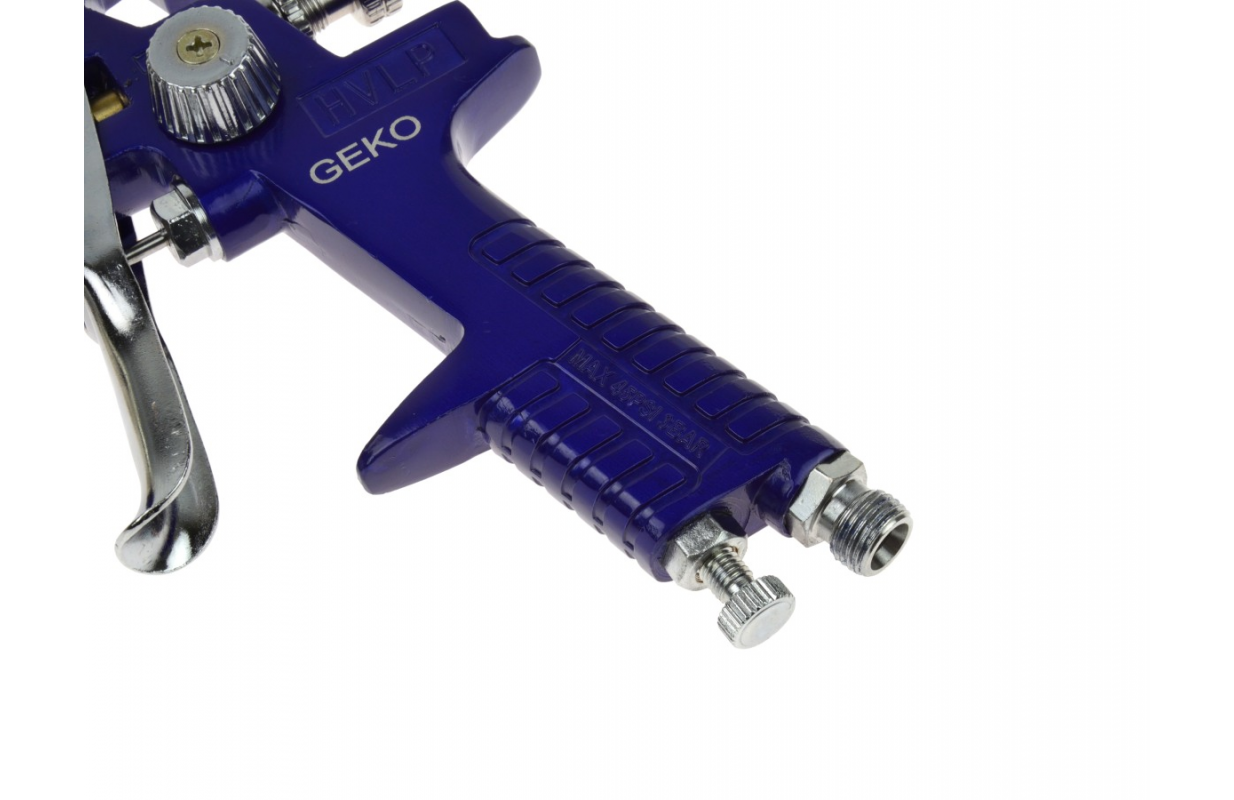

• Ergonomic handle


• Lightweight aluminum body

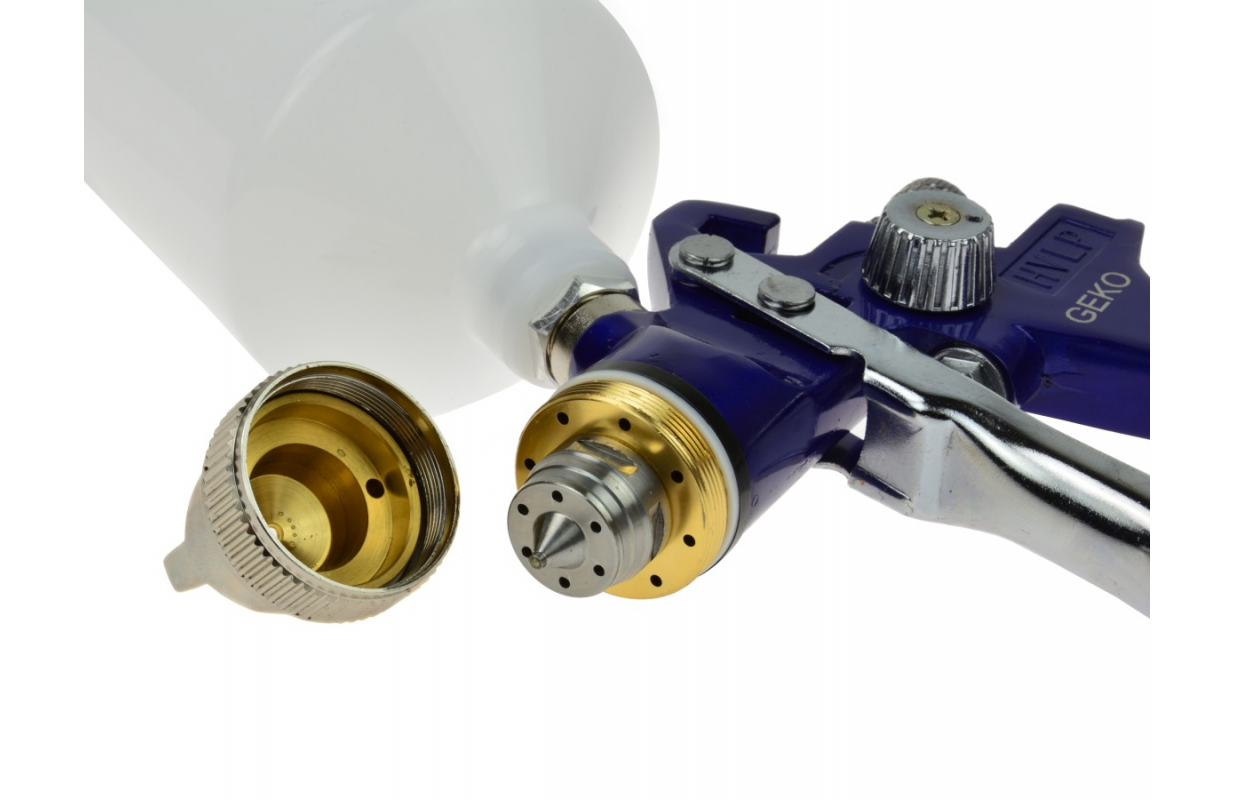

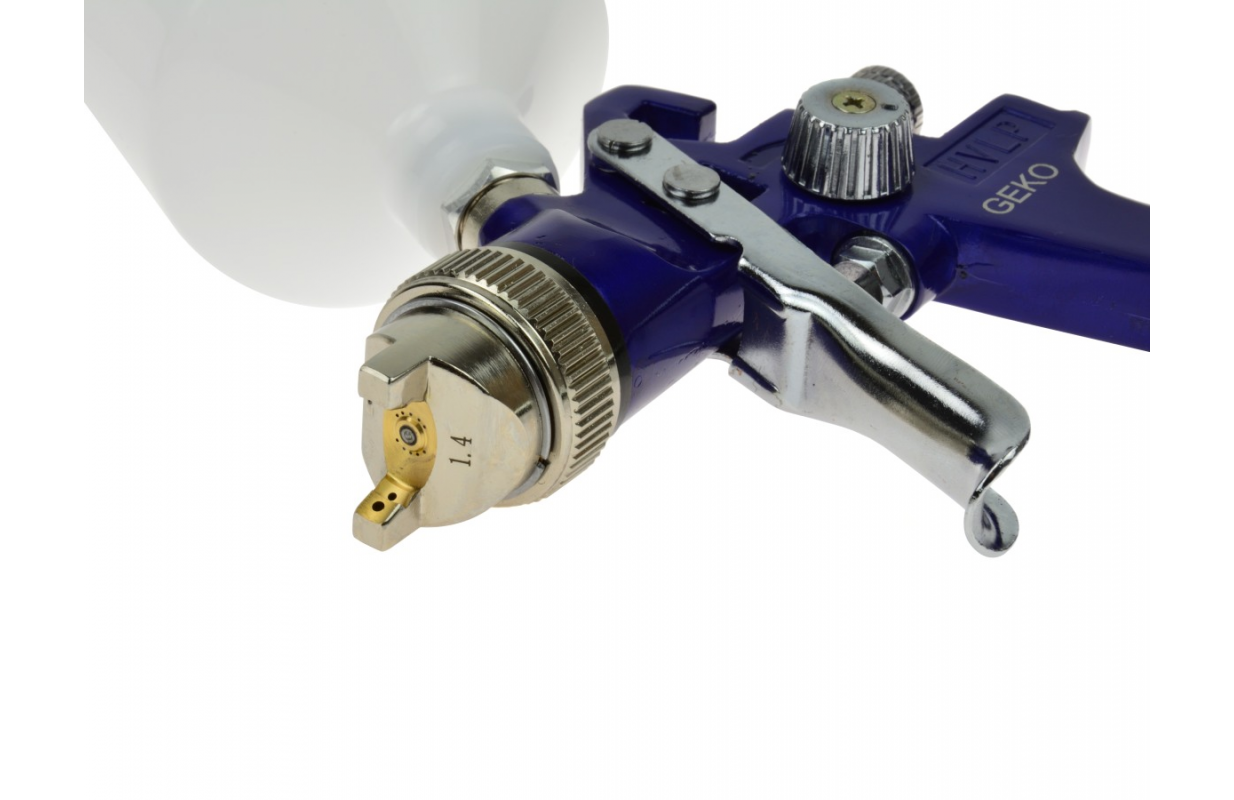

• Brass atomization part, Stainless Steel nozzle & needle


• Air Inlet 1/4"

Technical Data

• Type: HVLP


• Feed type: Gravity


• Max. Air Pressure: 3.0 bar (45 psi)


• Tip Size: 1,4 mm


• Fan Size: 160 - 220 mm


• Paint Cup Size: 600 ml


• Paint Cup Thread: M16 x 1,5mm


• Air Inlet Size: 1/4"


• Material: Stainless steel needle & nozzle; Brass atomization part

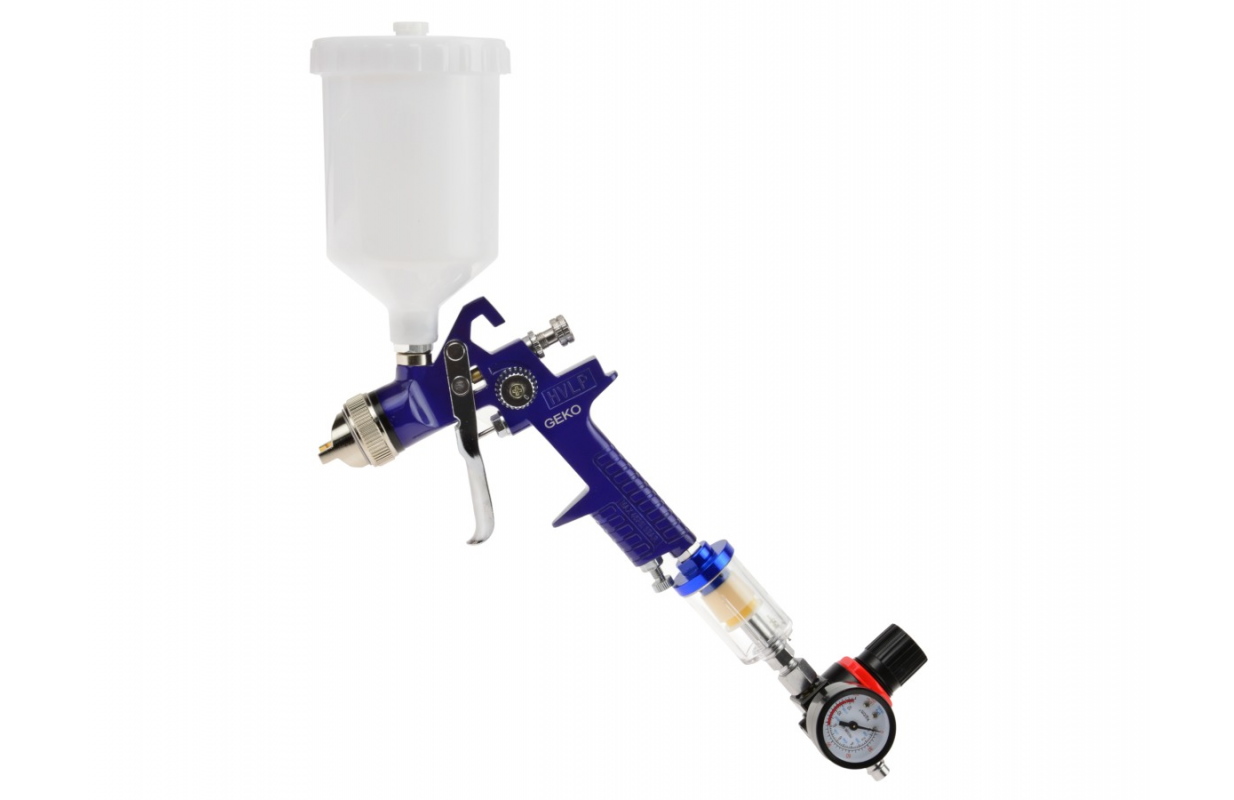

Package Contents

• Spray Gun HVLP


• Paint Cup 600 ml


• Wrench


• Cleaning Brush

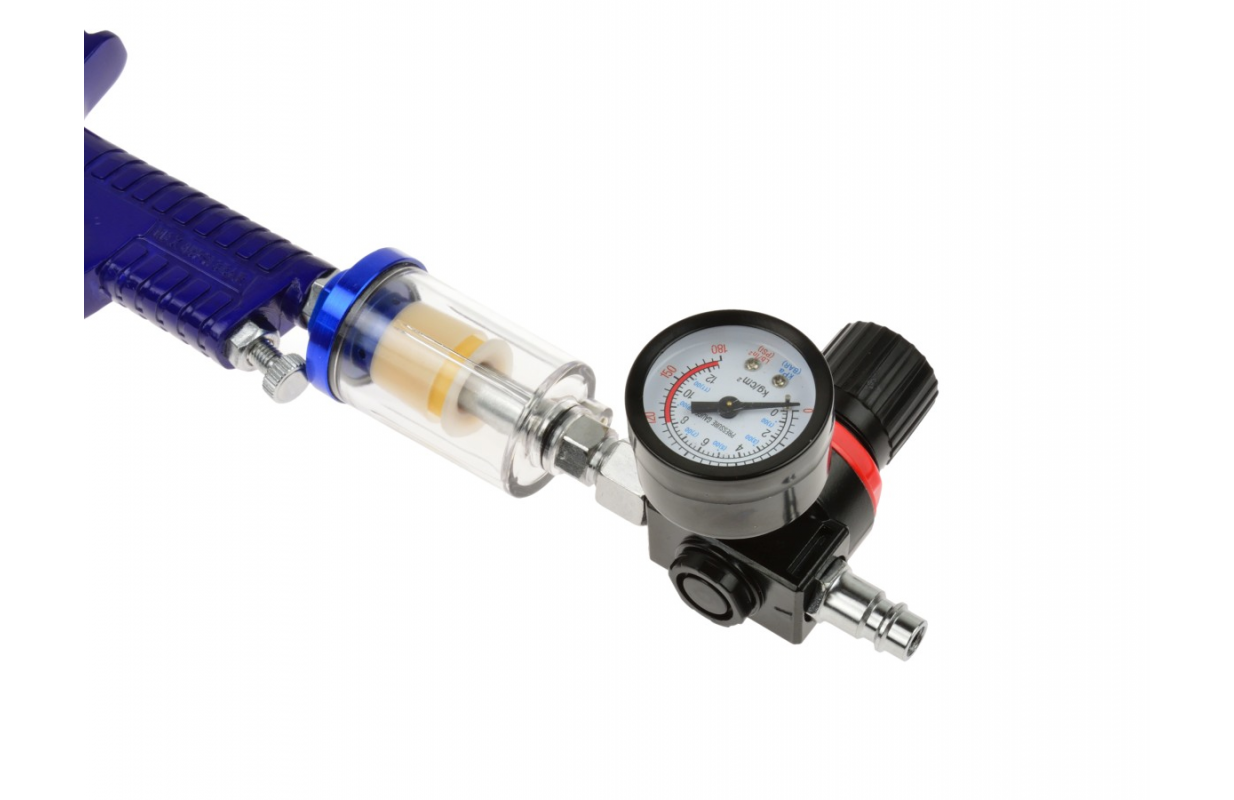

• Air Regulator with Gauge and 1/4" quick-coupler


• Air Filter
