AC Isolator Switch - 4P, 63A, 230VAC, IP65 (NV822638)

Enclosed (IP65) rotary AC isolator switch, up to 63 A, 4-pole, 230V-440V AC
Features:AC switch rated 63A, 230V-440V for outdoor AC applications, with handle, with lock, for safe use and maintenance.The AC isolator can be installed at solar inverter AC side and match any AC applications in the voltage range 230-440V.Weatherproof, robust, reliable, suitable for any external application. The base-mounted mechanism provides for easier wiring and more wiring room.Lockable handler.Complete with a set of mounting screws.

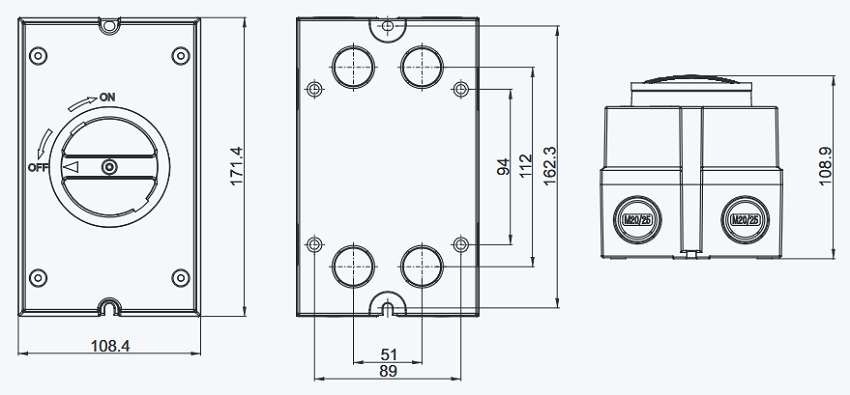

Technical specifications:Number of poles: 4.Rated voltage (Ue): AC 230-440V.Rated current (In): 32A.Insulation voltage (Ui): 1000V.Rated impulse withstand voltage (Uimp): 2.5kV.Mechanical service life: 10000 cycles.Electrical service life: 1500 cycles.Protection class: IP65.Suitable cable cross-section: 4.0 - 16.0 mm².Color: white.Dimensions: 171.4 x 108.4 x 108.9 mm.Switch rating: AC-21A.Conform to: IEC 60947-3, EESS approved.
Warranty: 24 months.
