Description
Set of cylindrical shank drill bits made from HSS 4241. Thanks to their titanium nitride coating, they dissipate heat very efficiently and do not dull when working in hard steels. The blade's 135° angle of attack, the so-called split point, allows drilling even without first using a Center punch. Manufactured to DIN 338 for professional use in industry. Cylindrical shank drill bit designed for standard self-clamping and keyed drill chucks. The drills enable work in stainless steel, acid-resistant steel, cold-rolled steel.

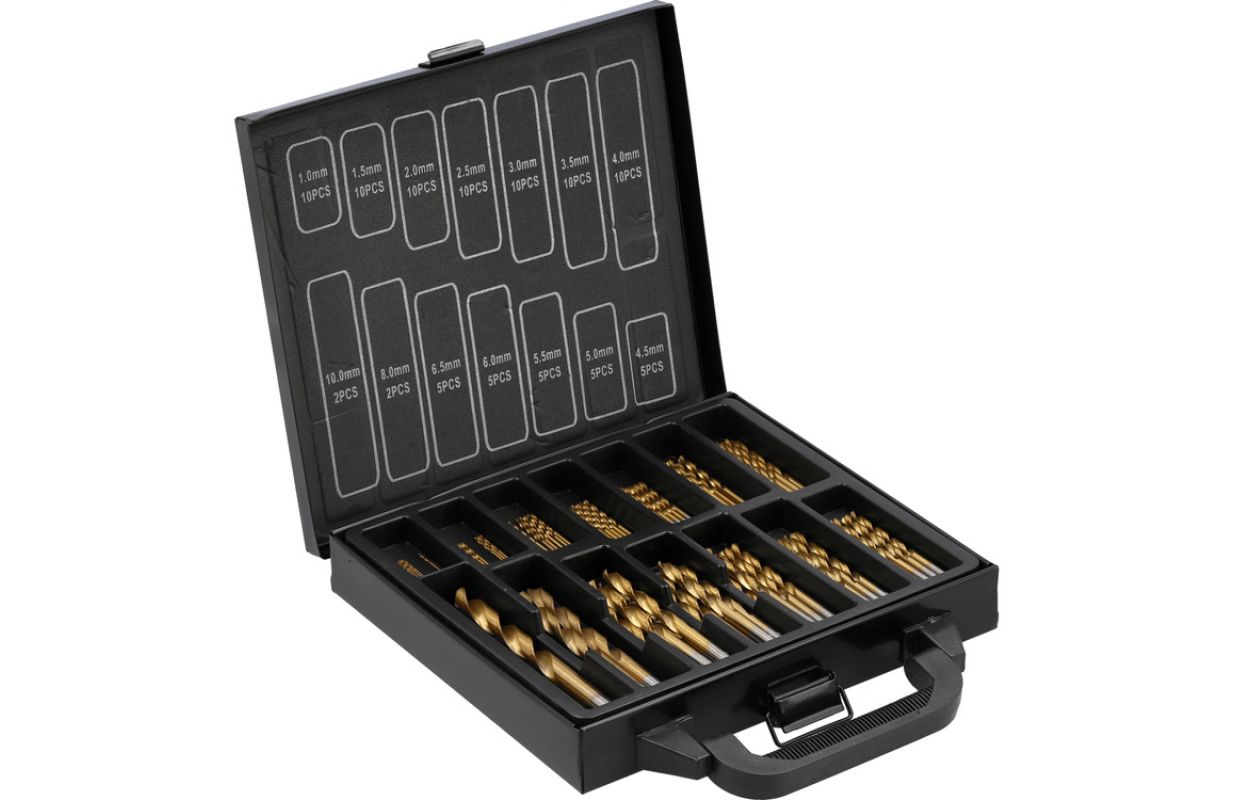

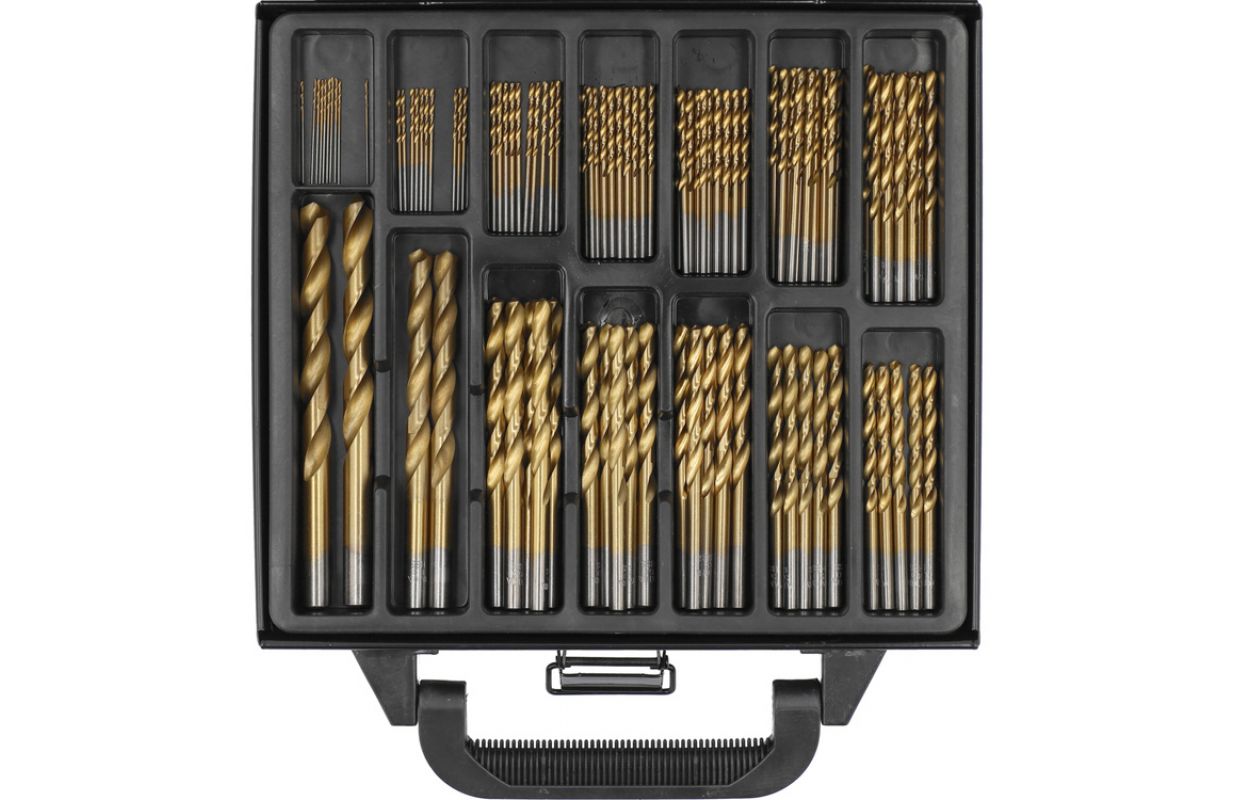

The set includes 99 drill bits in 14 sizes.
Usage warnings:
Warning! Always use personal safety equipment at work.Technical data
| Brand | Yato |
| Entity responsible for this product in the EU | |
| Series | GRD |
| Diameter | 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 8, 10 mm |
| Overall length | 34, 40, 49, 57, 61, 70, 75, 80, 86, 93, 93, 101, 117, 133 mm |
| Working part length | 12, 18, 24, 30, 33, 39, 43, 47, 52, 57, 57, 63, 75, 87 mm |
| Toolholder type | tube-shaped |
| Rotations | 3800, 3800, 4000, 3200, 2600, 2300, 2000, 1800, 1600, 1500, 1300, 1200, 1000, 800 min⁻¹ |
| Material | HSS 4241 |
| Surface finish | coated with titanium nitride, refined |
| DIN | 338 |
| Drill bit point angle | 135 ˚ |
| Split point | yes |
| Pcs | 99 |
| Application | stainless steel, acid-resistant steel, cold rolled steel |
| Symbol | YT-44591 |
