Portable air conditioner 2.5Kw (YT-99450)

Brand
Yato
Entity responsible for this product in the EU

Power
950 W
Maximum power
1200 W
Cooling performance
8500/2500 BTU/W
Airflow
330 m³/h
Maximum suction pressure
1 MPa
Maximum discharge pressure
2.5 MPa
Voltage
220-240 V AC
Frequency
50 Hz
Maximum current
5.5 A
Rated current
4.2 A
Dimensions
330x363x840 mm
Functions
cooling, continuous cooling, drainage, ventilation
Temperature control
yes
Time setting (timer)
yes, every 0.5h (1-10h), every 1h (11-24h)
Display type
LED
Digital control panel
yes
Wheels
yes
Number of wheels
4
Number of wheels with brake
4
Ambient temperature
18-45 ˚C
Operating temperature range
16-32 ˚C
Overheat protection
yes
Power cord length
1.5 m
Refrigerant type
R290
Refrigerant weight
180 g
Energy efficiency class
A
Electrical insulation class
I
Acoustic pressure
<70 dB(A)
Acoustic power
<80 dB(A)
Weight
27.8 kg
Application
for cooling, dehumidifying, and ventilating rooms
Symbol
YT-99450

General parameters

The portable air conditioner YT-99450 is a practical solution for maintaining comfortable thermal conditions in small and medium-sized rooms. The integrated design, which includes all key components of the cooling system – compressor, evaporator, condenser, and fan – is housed in one unit. This means that the device does not require permanent installation or intervention in the building structure, and its startup is limited to basic setup tasks.

The model offers cooling, dehumidifying, and ventilation functions, providing flexible adjustment of the operating mode depending on current conditions. Operation is managed through an intuitive control panel with an LED display, allowing precise parameter settings. Built-in compressor protections safeguard the system against overload and overheating, ensuring stable operation. The mobile design with rolling wheels facilitates movement, while the ability to adjust the airflow direction and use two air ducts allows for effective distribution of cooled air according to current needs.

Key features and specifications:

• Operating functions:
  • operating modes: cooling, dehumidifying, ventilation
  • continuous cooling mode
  • temperature adjustment and unit change
  • timer programming 1-24 h (every 0.5 h in the range of 1-10 h, every 1 h in the range of 11-24 h)
• Performance and power:
  • cooling power: 2500 W
  • rated power: 950 W (max. 1200 W)
  • power supply: 220-240 V / 50 Hz
  • rated current: 4.2 A (max. 5.5 A)
  • airflow: 330 m³/h
  • recommended area: 8-18 m²
• Temperature ranges:
  • ambient temperature: 18-45°C
  • air conditioner temperature setting range: 16-32°C
• Cooling system:
  • refrigerants: R290 (180 g)
  • max. suction pressure: 1.0 MPa
  • max. discharge pressure: 2.5 MPa
  • compressor protection against overheating and overload
• Control and operation:

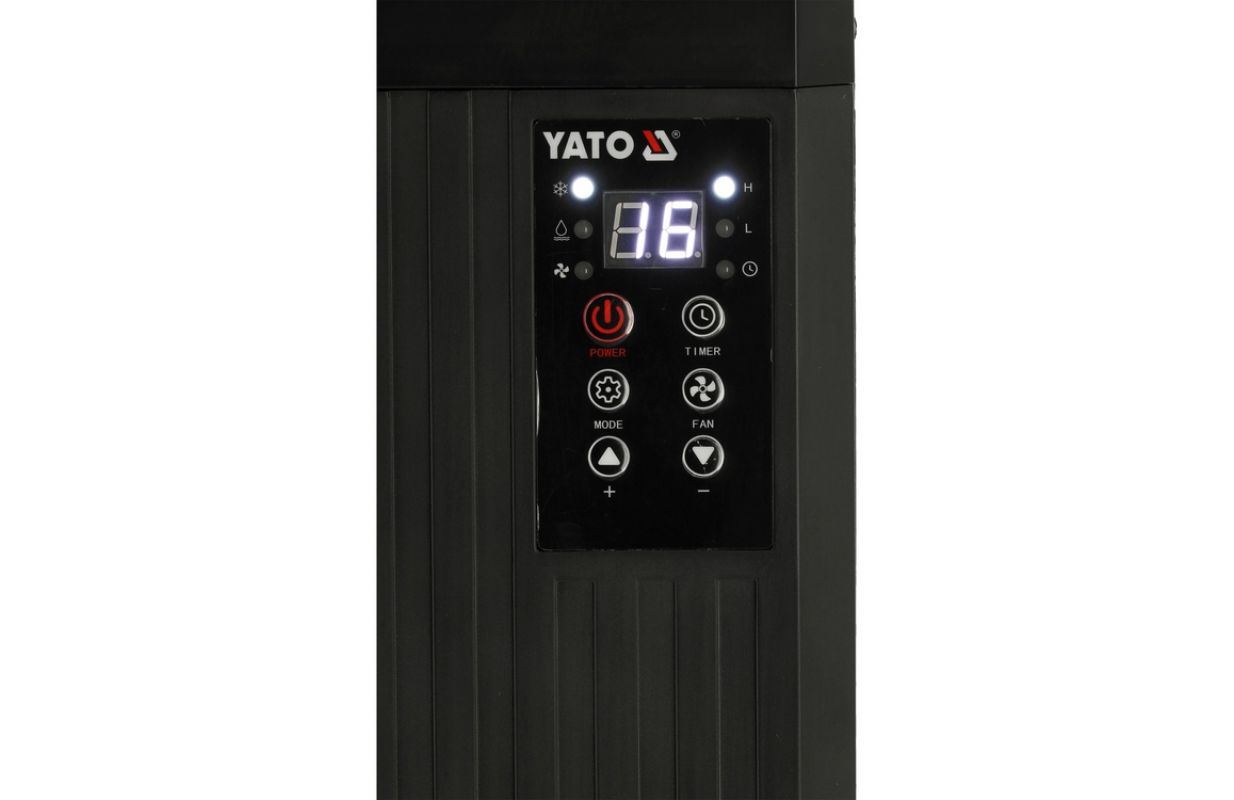

  • control panel with LED display
  • selection of operating modes and device parameters (MODE)
  • temperature and time adjustment (+ / -)
  • two-speed airflow (L / H)
  • indication of current settings and modes
• Design and mobility:
  • compact monoblock casing
  • 360° wheels with brakes
  • power cord: 1.5 m
  • dimensions: 330 x 363 x 840 mm
  • net weight: 27.8 kg
• Air intake system:
  • cold air duct: Ø 90 mm x 350 mm (length up to 3 m)
  • hot air duct: Ø 150 mm x 350 mm (length up to 3 m)
  • drain hose: Ø 11 mm x 1 m
  • airflow direction adjustment
• Condensate drainage:
  • non-channel system, reducing the need for emptying
  • no traditional water tank
  • condensate drainage through Ø11 mm hose
  • drainage frequency depends on humidity: every 3-4 hours at 80% relative humidity, every 7-8 hours at 60% relative humidity
• Additional information:
  • energy class: A
  • air filter made of PP material
  • application: residential and office spaces
  • not suitable for operation in dusty, chemical, or explosive environments
