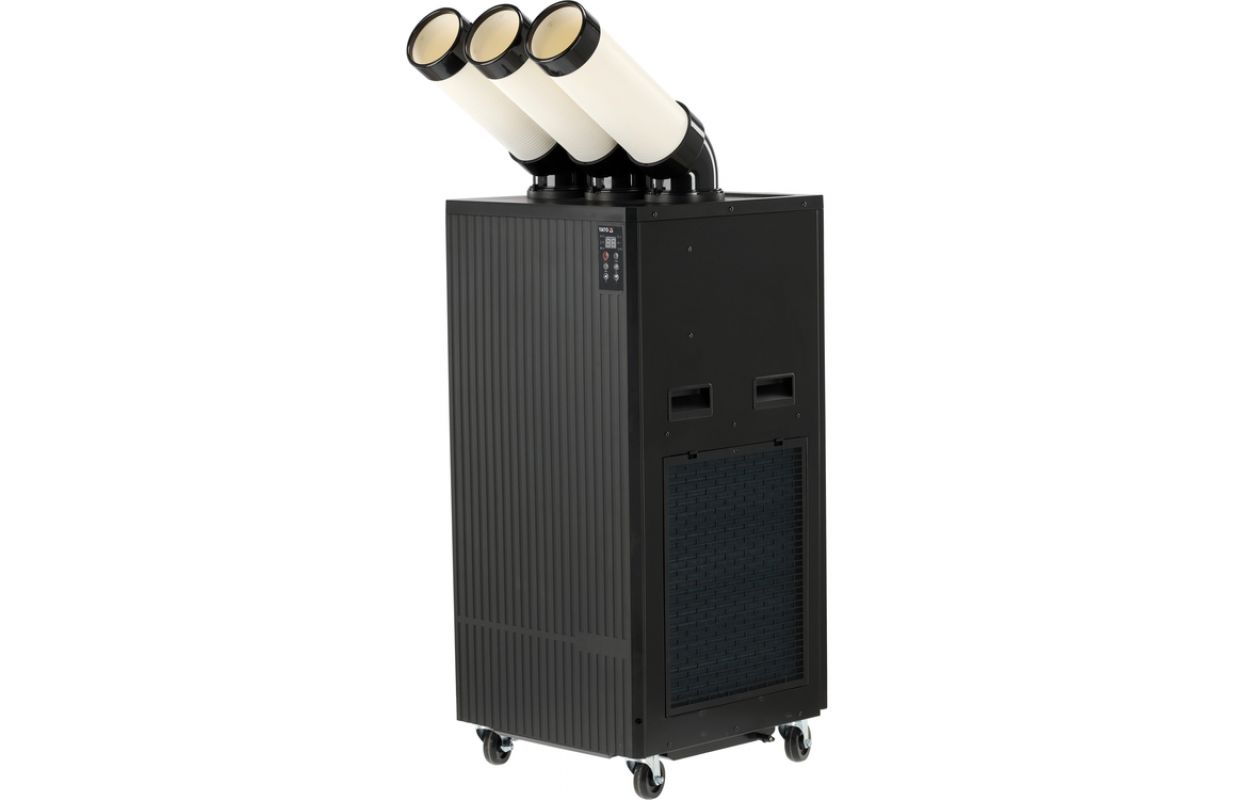

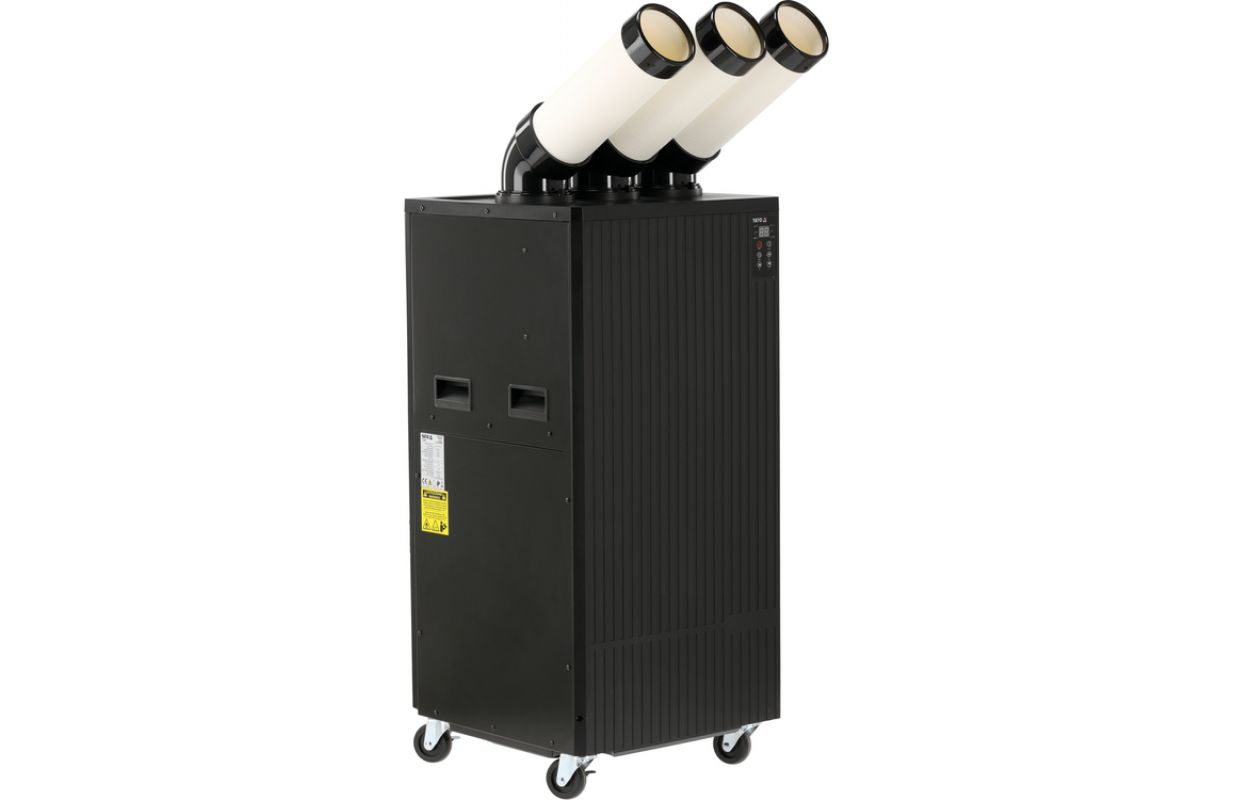

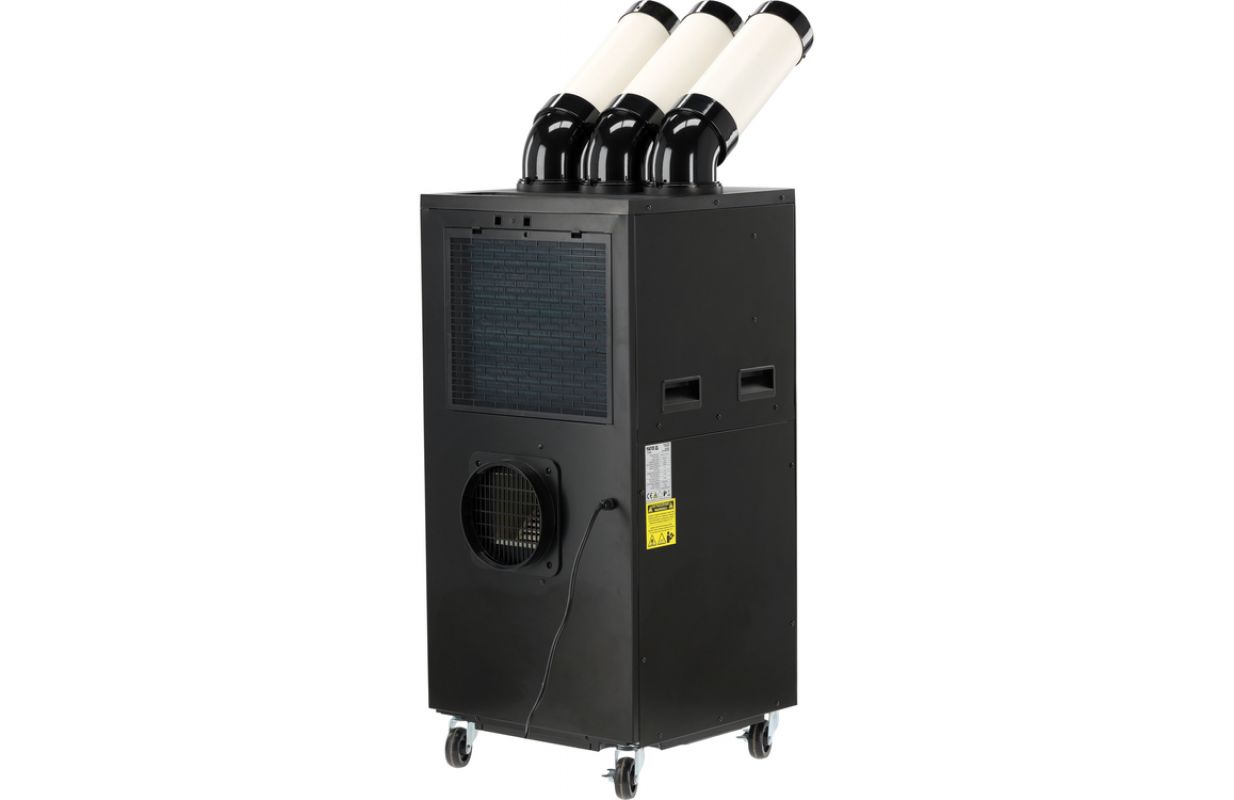

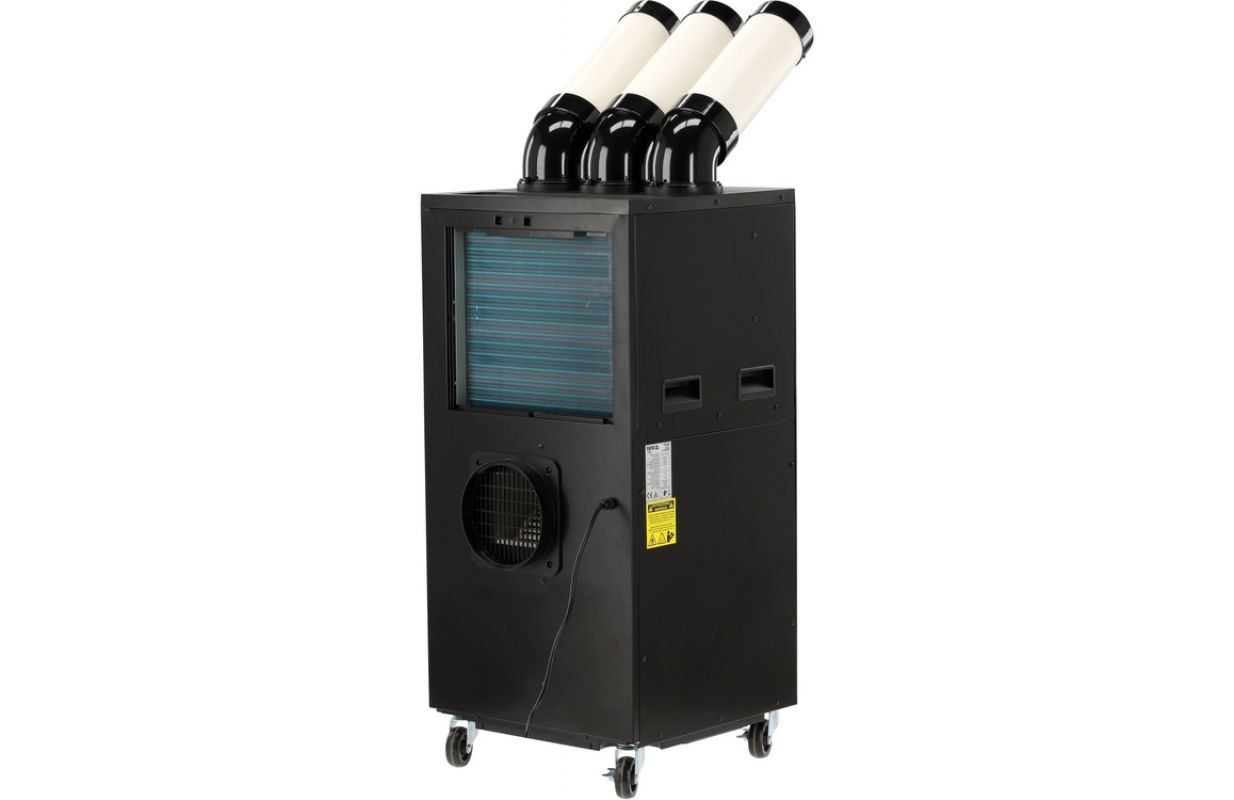

Portable air conditioner 5.5Kw (YT-99452)

Brand
Yato
Entity responsible for this product in the EU

Power
2000 W
Maximum power
2500 W
Cooling performance
18000/5500 BTU/W
Airflow
900 m³/h
Maximum suction pressure
1 MPa
Maximum discharge pressure
2.5 MPa
Voltage
220-240 V AC
Frequency
50 Hz
Maximum current
11 A
Rated current
9 A
Dimensions
490x490x1062 mm
Functions
cooling, continuous cooling, drainage, ventilation
Temperature control
yes
Time setting (timer)
yes, every 0.5 h (1-10 h), every 1 h (11-24 h)
Display type
LED
Digital control panel
yes
Wheels
yes
Number of wheels
4
Number of wheels with brake
4
Ambient temperature
18-45 ˚C
Operating temperature range
16-32 ˚C
Overheat protection
yes
Cord length
1.5 m
Refrigerant type
R290
Refrigerant weight
350 g
Energy efficiency class
A
Electrical insulation class
I
Sound pressure
<70 dB(A)
Sound power
<80 dB(A)
Weight
55 kg
Application
for cooling, dehumidifying, and ventilating rooms
Symbol
YT-99452

Summary of parameters

The portable air conditioner YT-99452 is designed for effective cooling of large spaces where significantly higher performance is required. The compact monoblock design integrates all components of the cooling system into one housing, simplifying device setup and eliminating the need for permanent installation. This solution allows for quick deployment of the device in any space and easy relocation based on current needs.

This model stands out with high cooling power and increased airflow, ensuring effective air exchange and temperature reduction even under intense sunlight. The device operates in cooling, dehumidifying, and ventilation modes, while the intuitive control panel with an LED display allows for precise parameter adjustments. Compressor protection ensures stable operation, while the advanced air discharge system and adjustable airflow direction maintain even distribution of cold air throughout the room.

Key features and specifications:

• Operating functions:
• operating modes: cooling, dehumidifying, ventilation
• continuous cooling mode
• temperature adjustment and device switching
• timer programming 1-24 h (every 0.5 h in the range of 1-10 h, every 1 h in the range of 11-24 h)
• Performance and power supply:
• cooling power: 5500 W
• rated power: 2000 W (max. 2500 W)
• power supply: 220-240 V / 50 Hz
• rated current: 9 A (max. 11 A)
• airflow: 900 m³/h
• recommended area: 18-33 m²
• Temperature ranges:
• ambient temperature: 18-45°C
• air conditioner temperature setting range: 16-32°C
• Cooling system:

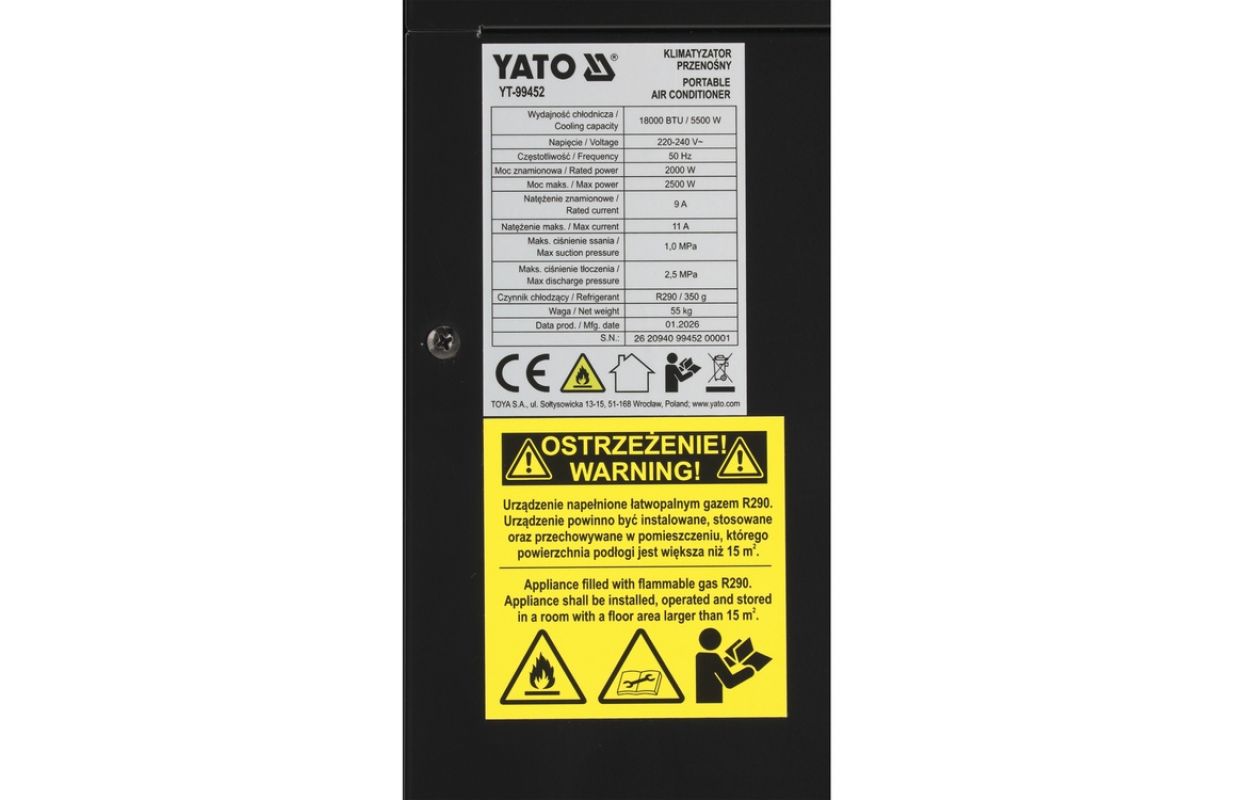

• refrigerant: R290 (350 g)
• max. suction pressure: 1.0 MPa
• max. discharge pressure: 2.5 MPa
• compressor protection from overheating and overload
• Control and operation:

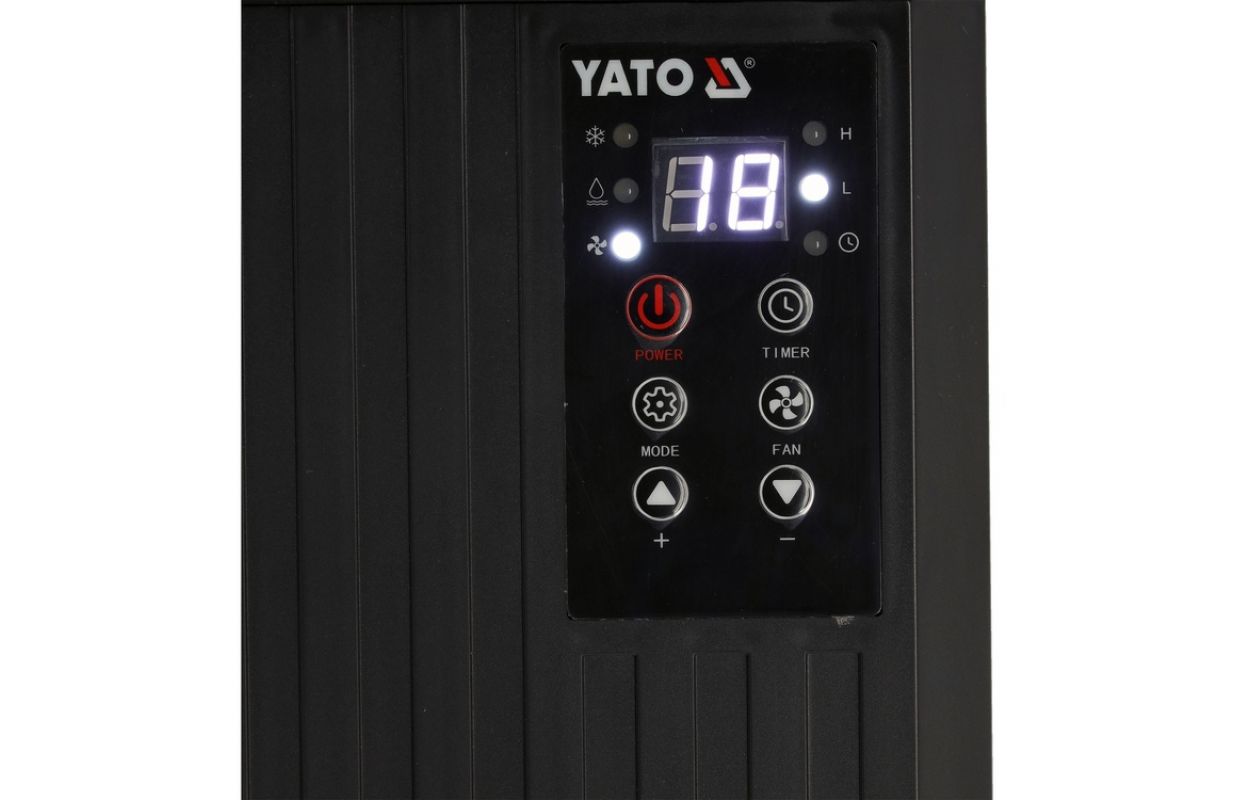

• control panel with LED display
• selection of operating modes and device parameters (MODE)
• temperature and time adjustment (+ / -)
• two-speed airflow (L / H)
• indication of current settings and modes
• Design and mobility:
• compact monoblock housing

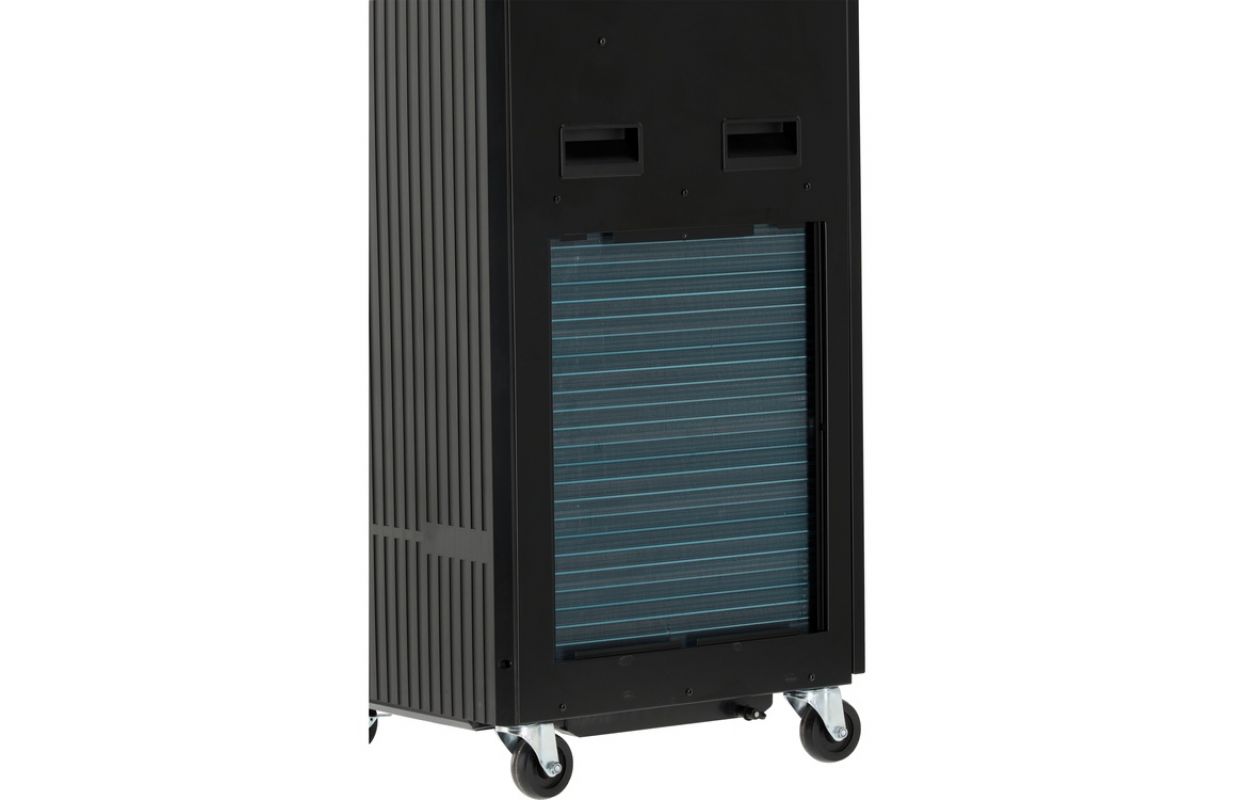

• 360° wheels with brake
• power cord: 1.5 m
• dimensions: 490 x 490 x 1062 mm
• net weight: 55 kg
• Air discharge system:

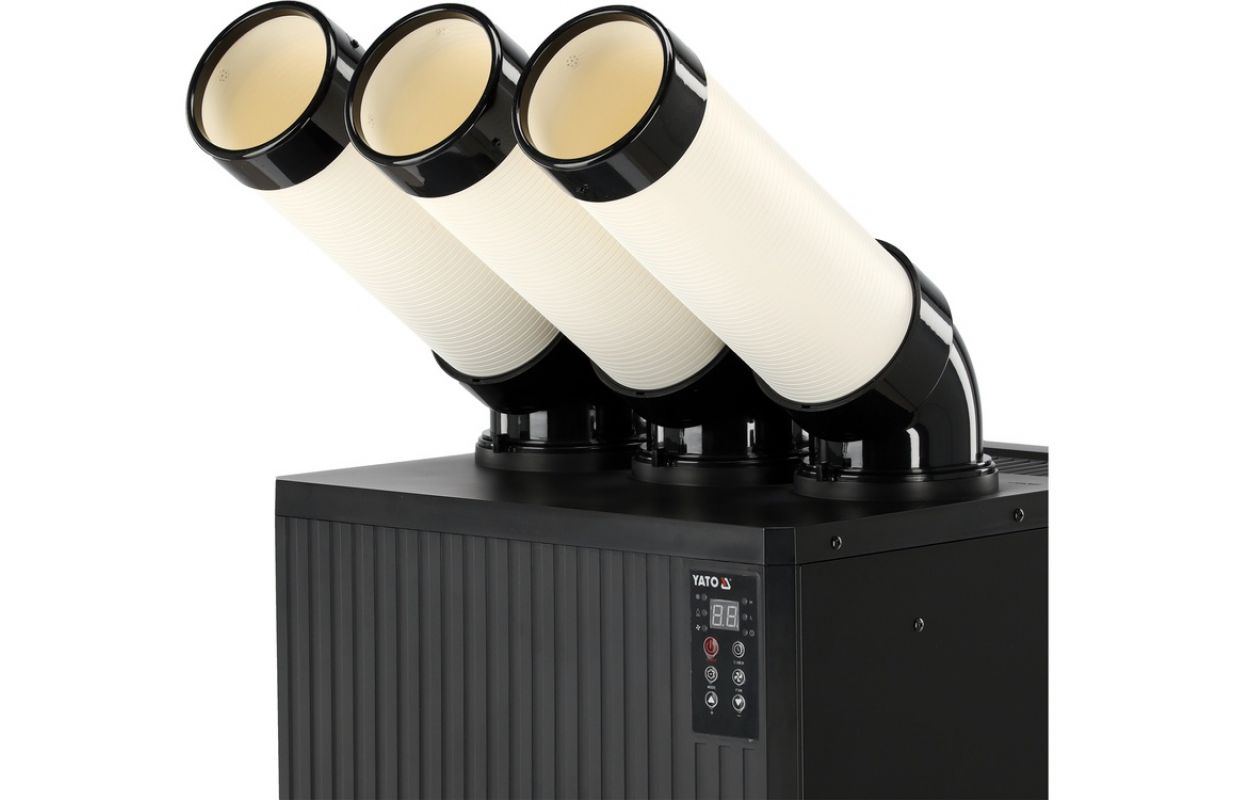

• cold air duct: Ø 120 mm x 350 mm (length up to 3 m)
• hot air duct: Ø 190 mm x 450 mm (length up to 3 m)
• drain pipe: Ø 11 mm x 1 m
• adjustable airflow direction
• Condensate drainage:
• drainless system, reducing the need for emptying
• no conventional water tank
• condensate drainage through Ø11 mm pipe
• emptying frequency depends on humidity: every 3-4 hours at 80% relative humidity, every 7-8 hours at 60% relative humidity
• Additional information:
• energy class: A
• air filter made of PP plastic
• application: residential and office spaces
• not suitable for operation in dusty, chemical, or explosive environments
