TIGO Access Point- TAP (158-00000-02)

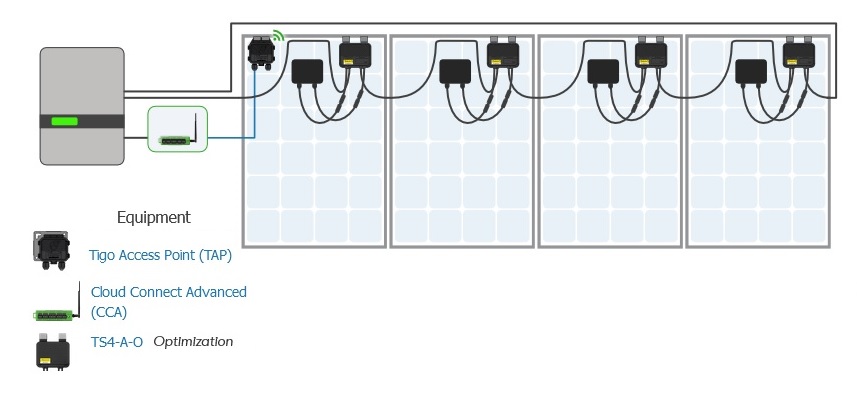

The Tigo Access Point (TAP) improves the data management of your solar system through seamless communication with Tigo Smart modules and retrofit devices. TAP significantly improves the level of security at module level deactivation. Combined with a Cloud Connect Advanced (CCA), the TAP offers unsurpassed insights into your PV system.Note: Required components: Cloud Connect Advanced (CCA) and Tigo TS4 devices (TS4-A-O, TS4-A-S or TS4-A-M).Features: Wirelessly communicates directly with TS4 units TS4-A-O, TS4-A-S or TS4-A-M (optimization, safety and monitoring devices).Easy installation on the module frame without tools.Use the Tigo SMART app on your mobile device for quick startup.When paired with the Cloud Connect Advanced (CCA), enables wireless module level monitoring.Collects data from up to 300 TS4 units.

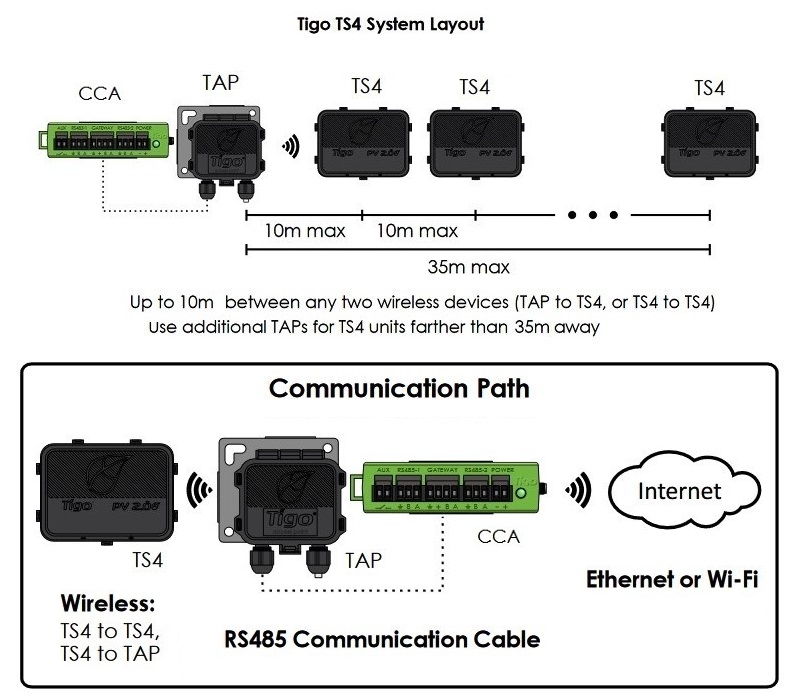

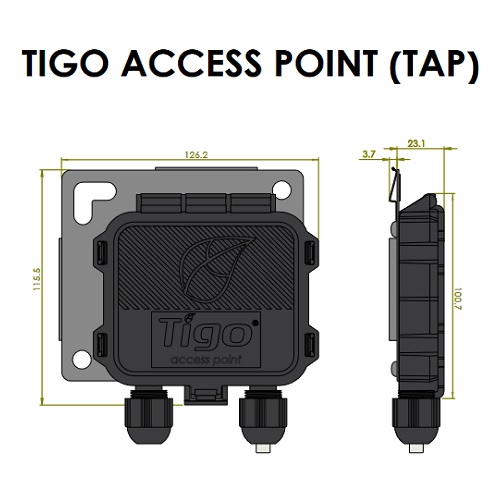

Specifications:Input voltage range: 5V-25V DC.Power consumption: 0.5W, max. 1W.Connection: wireless with TS4 devices, RS485 cable with CCA.Recommended cable type: RS485, 18-22AWG.Max distance from TAP to TS4 unit: 10m to the closest, 35m to the farthest.Max TS4 units supported: 300.Application: Tigo SMART, Android, iOS.Working temperature: -30°C ~ +70°C. Safety class: IP68, NEMA 4R.Weight: 227 g.Dimensions: 126.2x130x26.8mm.
Warranty: 24 months.
