Characteristics:

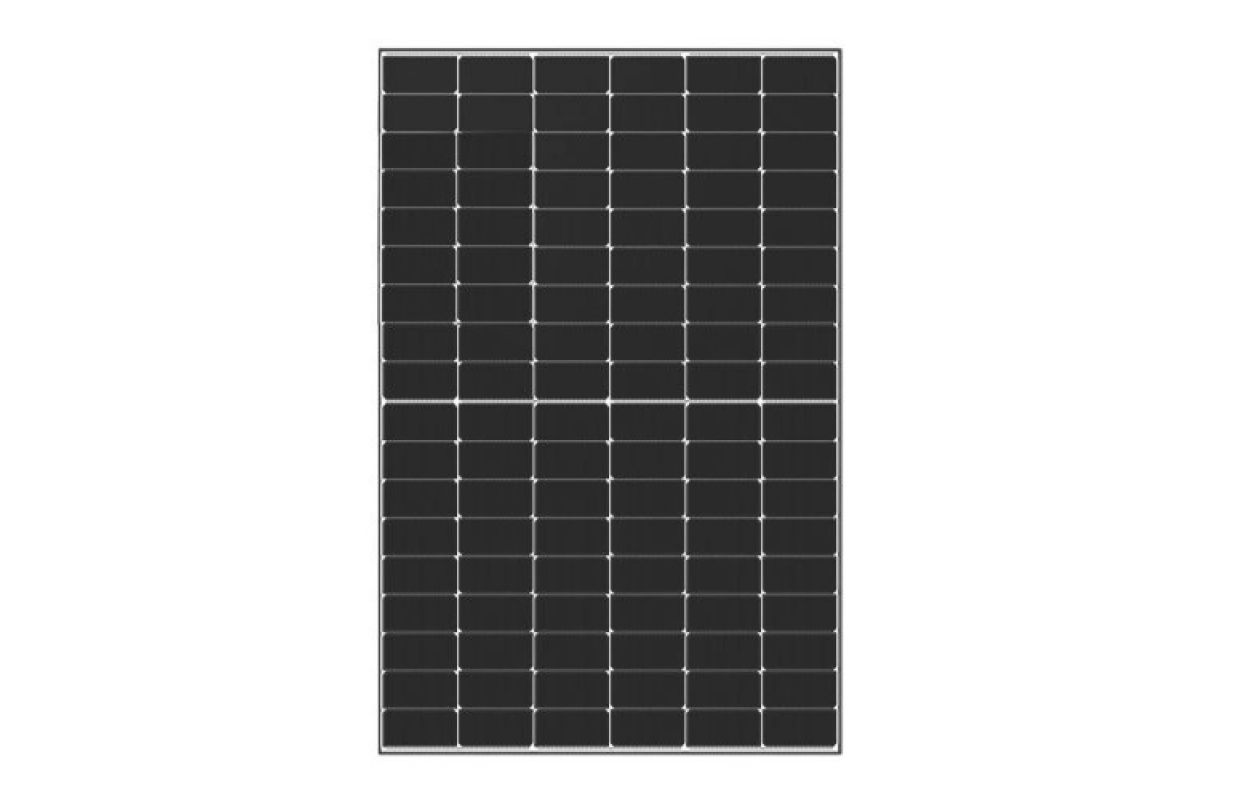

Double-sided solar panel in a black aluminum frame, consisting of 108 double-sided monocrystalline cells. It allows for the conversion of sunlight into electricity from both sides and provides reverse energy generation of 5-25%.
TOPCon cells, lower attenuation, improved temperature coefficient, and performance in low light conditions.
LECO laser sintering technology reduces contact resistance. Increased mechanical strength, resistance to acids, alkalis, salt mist, water vapor, UV rays, low PID coefficient (degradation level).
The panel consists of monocrystalline elements with an efficiency of 22.53%.
Glass thickness of 2.0 mm, highly permeable, with an anti-reflective coating.
This panel can be connected using standard MC4 connectors.
Full certification: TUV / CE / INMETRO / ISO 45001, ISO 14001, ISO9001 / IEC 61215, IEC 61730.
Technical specifications:
Maximum power (Pmax): 440 W.
Maximum output voltage (Vmp): 32.9 V.
Maximum output current (Imp): 13.37 A.
Solar module efficiency: 22.53%.
Connector type: MC4.
Weight: 23.5 kg.
Dimensions of the solar panel: 1722 mm (length) x 1134 mm (width) x 30 mm (thickness).
Packaging: 36 pcs. per pallet.
Type of solar cells: N-type (silicon and phosphorus), 182 x 91 mm.
Number of cells: 108 (6 x 18).
Open circuit voltage (Voc): 38.4 V.
Short circuit current (Isc): 13.96 A.
Operating temperature: from -40°C to 85°C.
Glass thickness: 2.0 mm.
Warranty: 12 years on materials and technology, 25 years on efficiency (no less than 84% after 25 years).
