Description
2 in 1 soldering station power 75W tip type 900M hot air power 750W dual

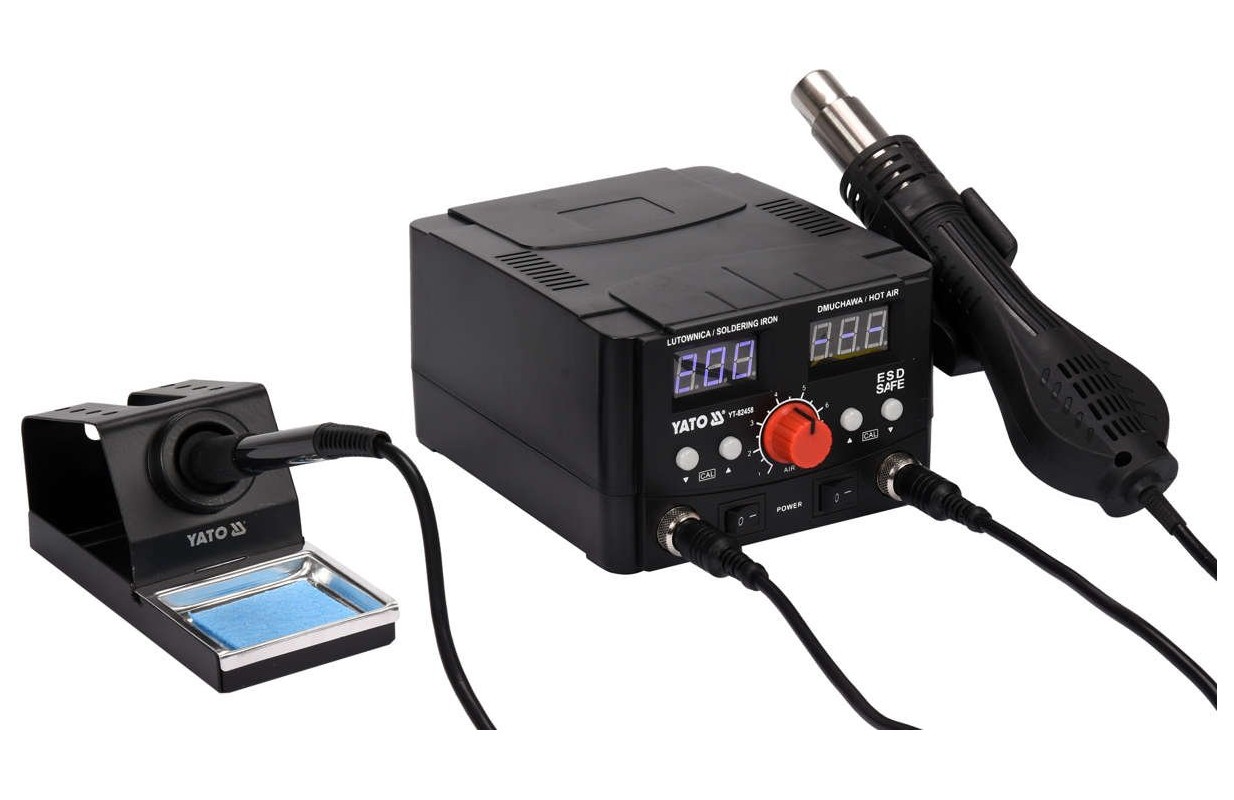

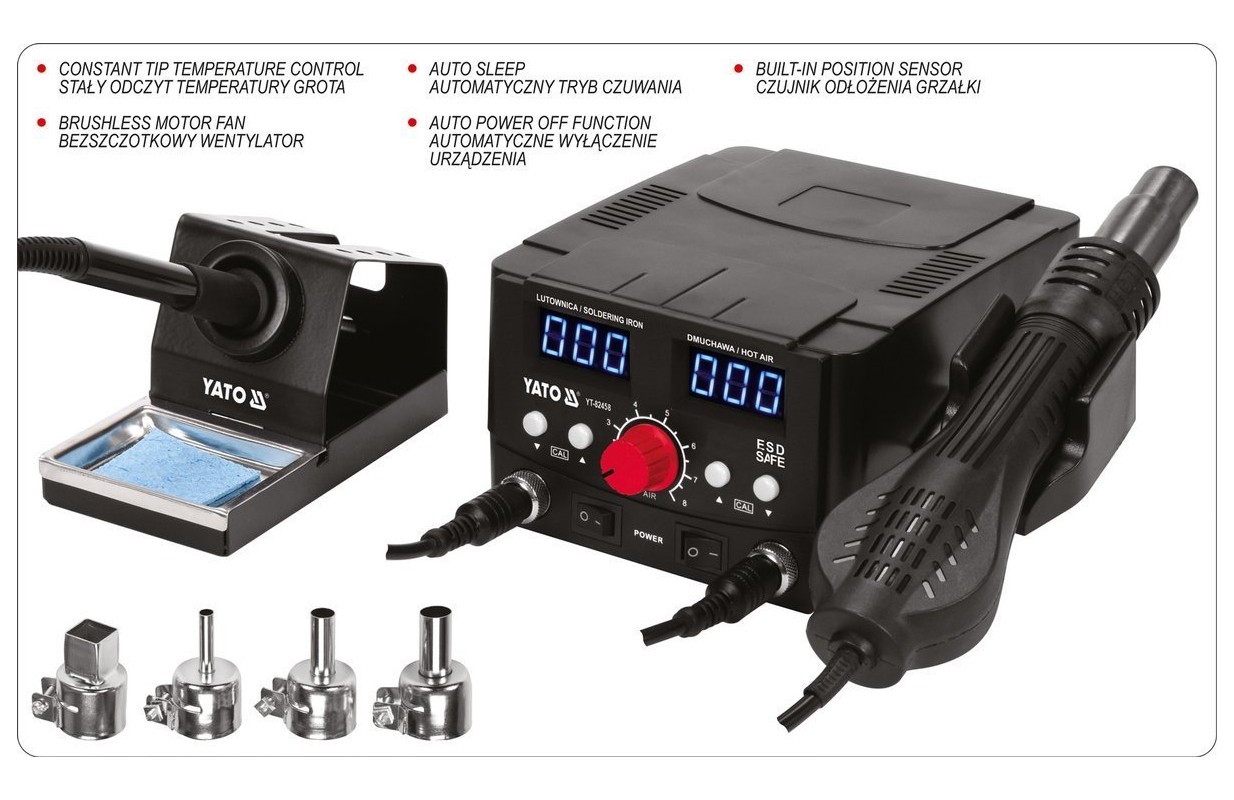

2-in hot air soldering station 1 with symbol YT-82458 with dual digital LED display, temperature control and numerous features to help you make proper soldering connections.
The station supports a 908D soldering flask suitable for the very popular 900M series interchangeable soldering irons and a hot-air handle with a brushless fan-driven blower.
Digital dual display with blue LED backlighting informs us of:

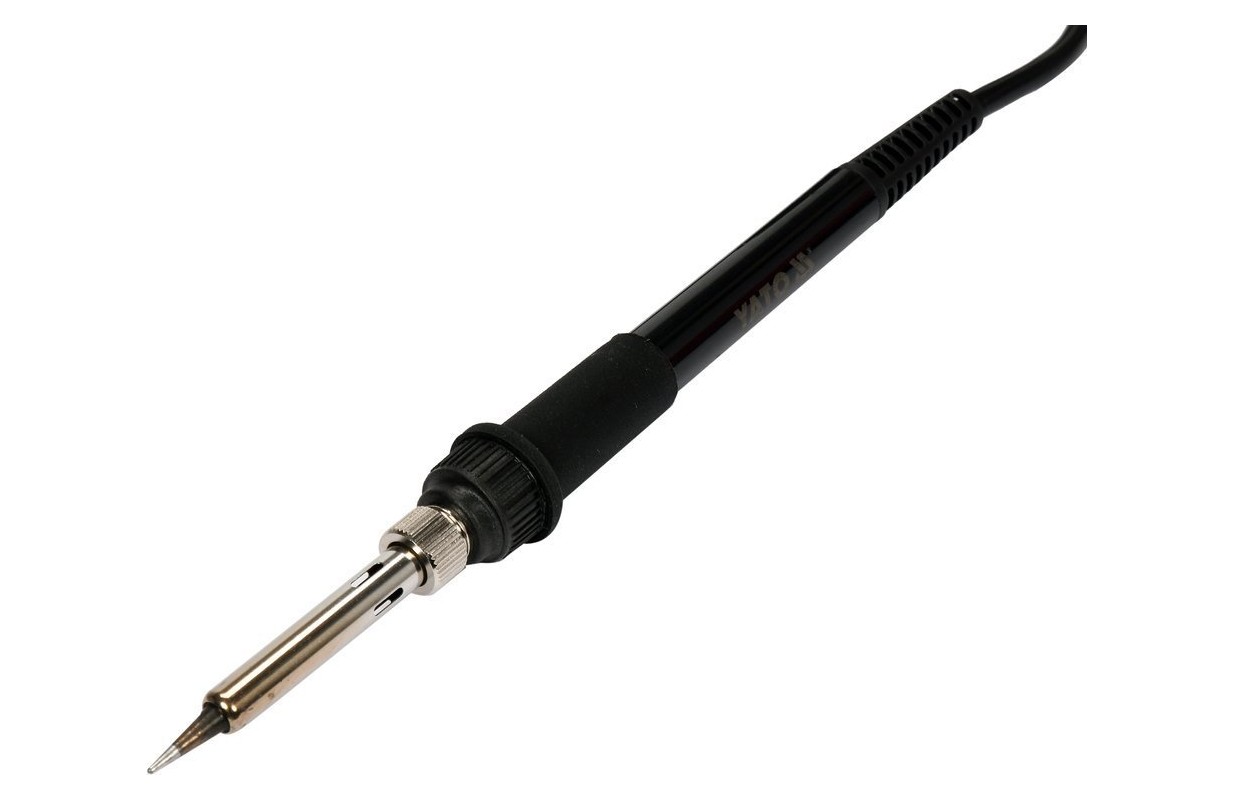

Soldering flask 908D put on a solid metal stand:

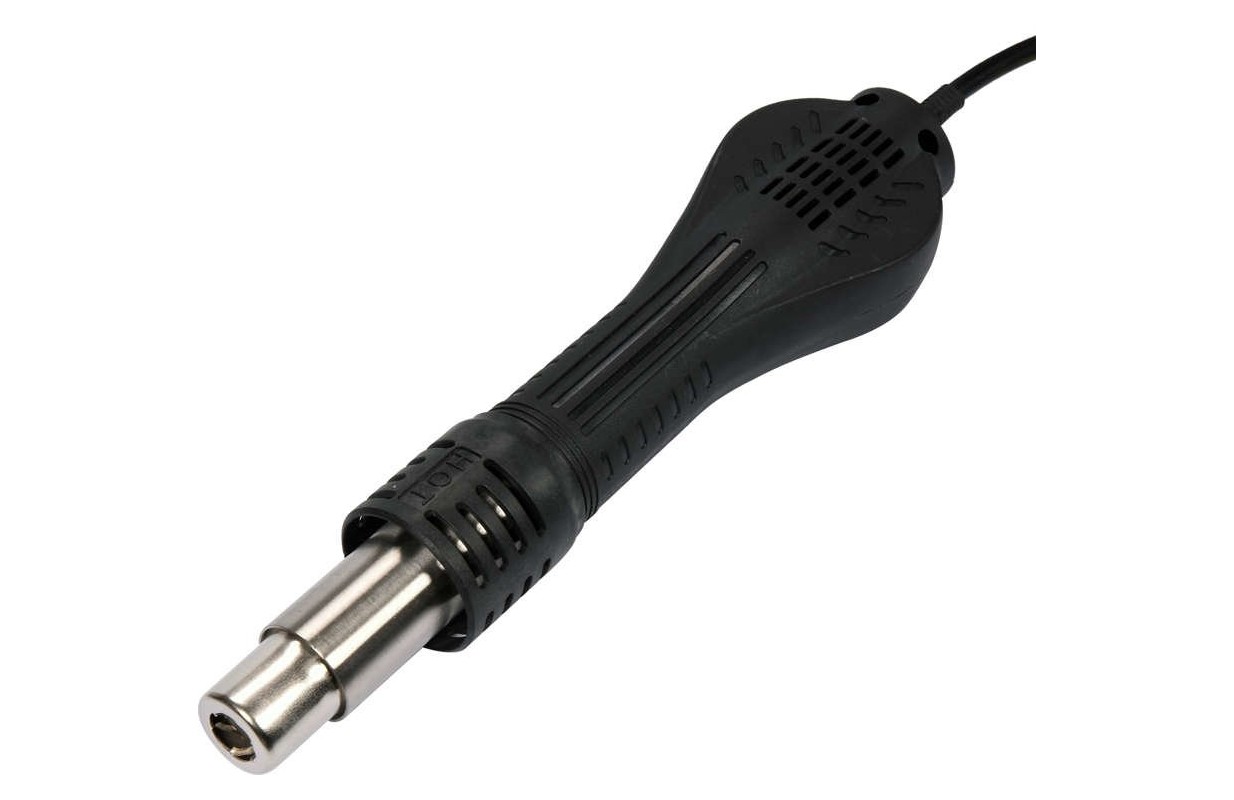

Hot-Air handle with brushless fan driven blower:
The 2-in-1 hot air soldering station with the symbol YT-82458 is made with the technology ESD-safe, which guarantees no accumulation of excess electrostatic charge on the housing. This reduces the risk of damage to sensitive SMD circuits, for example. To an operating temperature of 350°C, the soldering station heats up in about 15 seconds, hot blowing in about 10 seconds.
Soldering station:
Hot-air station:
Common functions:
Temperature stabilization function
Allows the user to maintain the preset temperature of the soldering tip under various conditions of heat demand to make a proper soldering joint. The soldering tip, depending on the size of the soldered component and the soldering field, gives off more or less heat, and the device, with the help of a built-in tip temperature sensor, continuously reads its real value and compares it to the set temperature, then, depending on the needs, increases or decreases the power consumption to maintain the set temperature.
Function of temperature stabilization The device's hibernation function Allows the soldering station to enter standby mode, which automatically lowers the operating temperature to 200°C. This avoids unnecessary heating of the soldering iron, which significantly extends its service life. Model YT-82458, or more precisely the soldering station module, will go into sleep mode after 10 minutes of operator inactivity. Automatic cooling function combined with hibernation function Allows the hot-air module to cool the nozzle to 100°C and then enter sleep mode. The operator, after the work is done, should put the handle in a plastic holder with a built-in sensor activation element, then the nozzle is cooled down and automatically hibernates. Picking up the handle from the holder automatically activates the hot-air module to the preset parameters. Sensor failure detection function Allows auto-diagnosis of electronic systems necessary for proper operation of the device. The station, when the power button is turned on, undergoes self-diagnosis and displays an error message in case of problems. Usage warnings: Technical dataBrand Yato Entity responsible for this product in the EU Series GRF Type ESD-safe Power 75 (soldering iron), 750 (hot air blower) W Voltage 220-240 V a.c. Frequency 50 Hz Working temperature 200-480 (soldering iron), 100-480 (hot air blower) ˚C Temperature stability ±1 (soldering iron), ±2 (hot air blower) ˚C Max. temperature of soldering tip 480 (soldering iron), 480 (hot air blower) ˚C Point style 900M Airflow 120 l/min Functions temperature stabilization, automatic cooling and hibernation, device hibernation, detecting sensor failures, automatic shutdown Temperature control yes Fuse yes Switch yes Display type LED Electric insulation class II Weight 1.88 kg Set includes soldering station, nozzle x4 (Ø4.4 mm, Ø8 mm, Ø10 mm, 12 mm) Symbol YT-82458
59.45€
