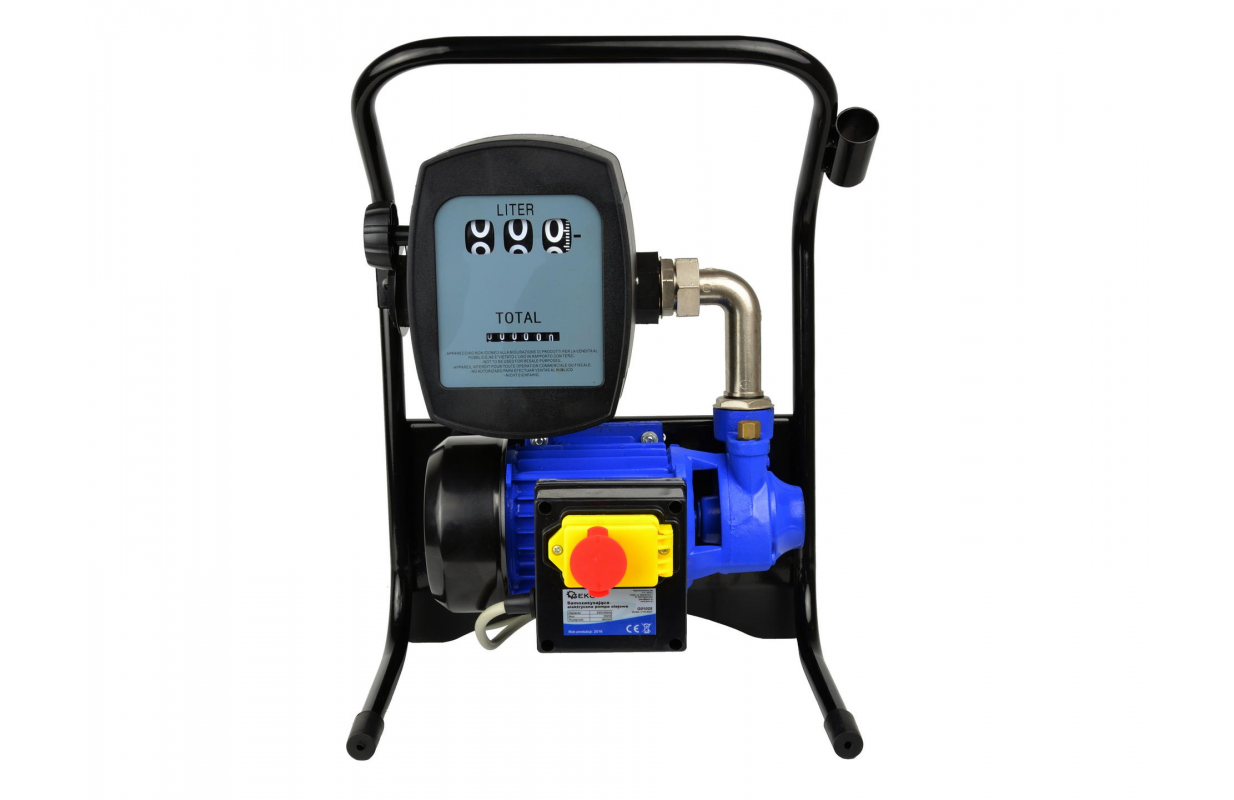

Electric 600W Diesel Pump Oil Pump Transfer (G01025)

230V Electric Diesel Transfer Pump 600W with direct transmission and inner recirculation to extend pump life. Ideal for transferring diesel, light oils and kerosene. Cast-iron pump casing, treated against corrosion and paint-finished.

NOT to be used with petrol, alcohol, bio diesel, diesel substitute or any other flammable liquid/fuel.

Product Features

• Voltage 230V AC


• Powerful engine with 600W

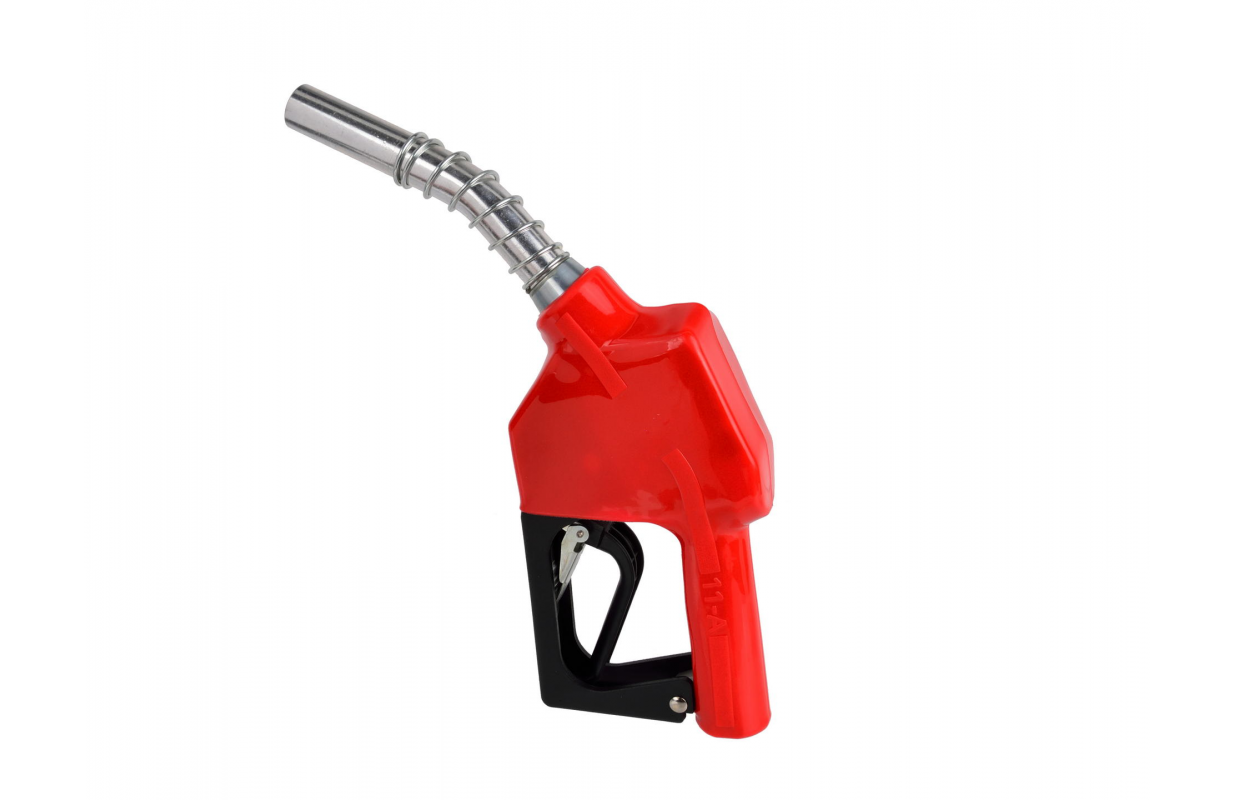

• Robust auto shut-off fuel nozzle


• Handy nozzle holder


• Flexible, long life hoses

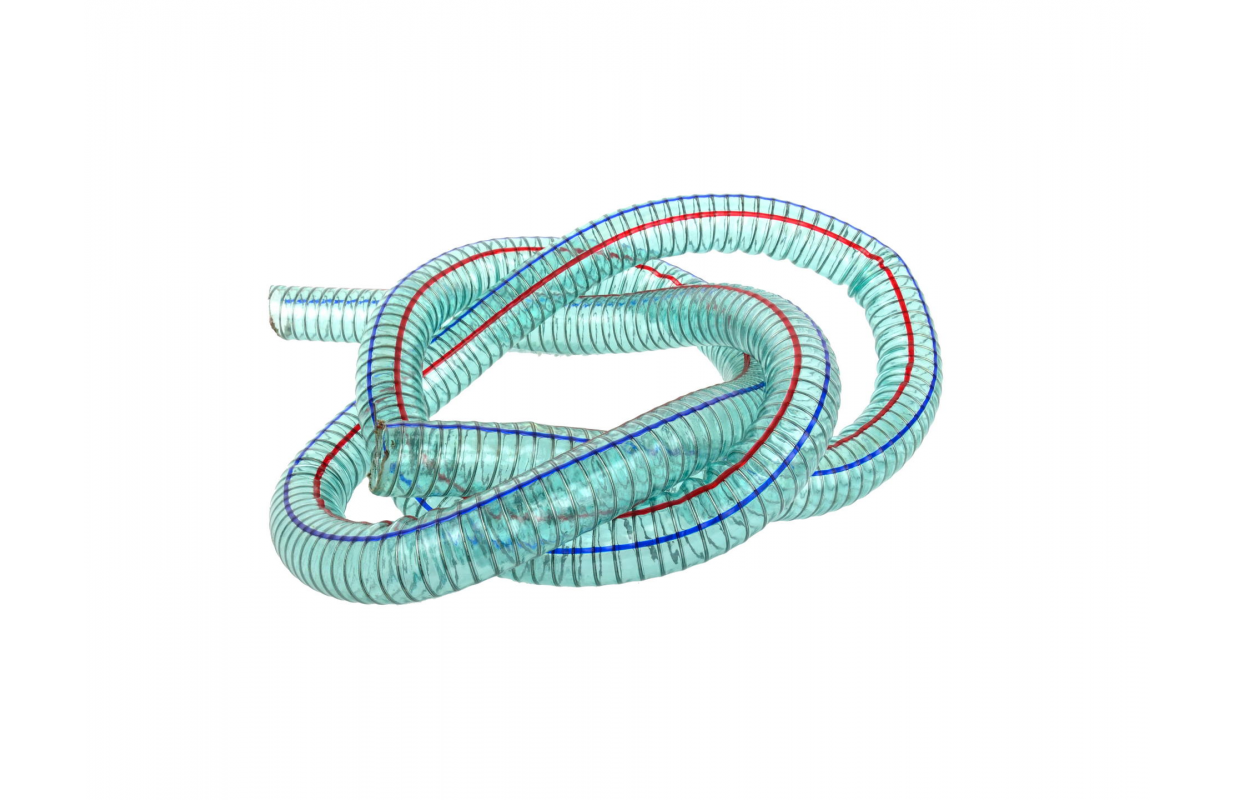

• 2m clear suction hose strengthened with wire winding

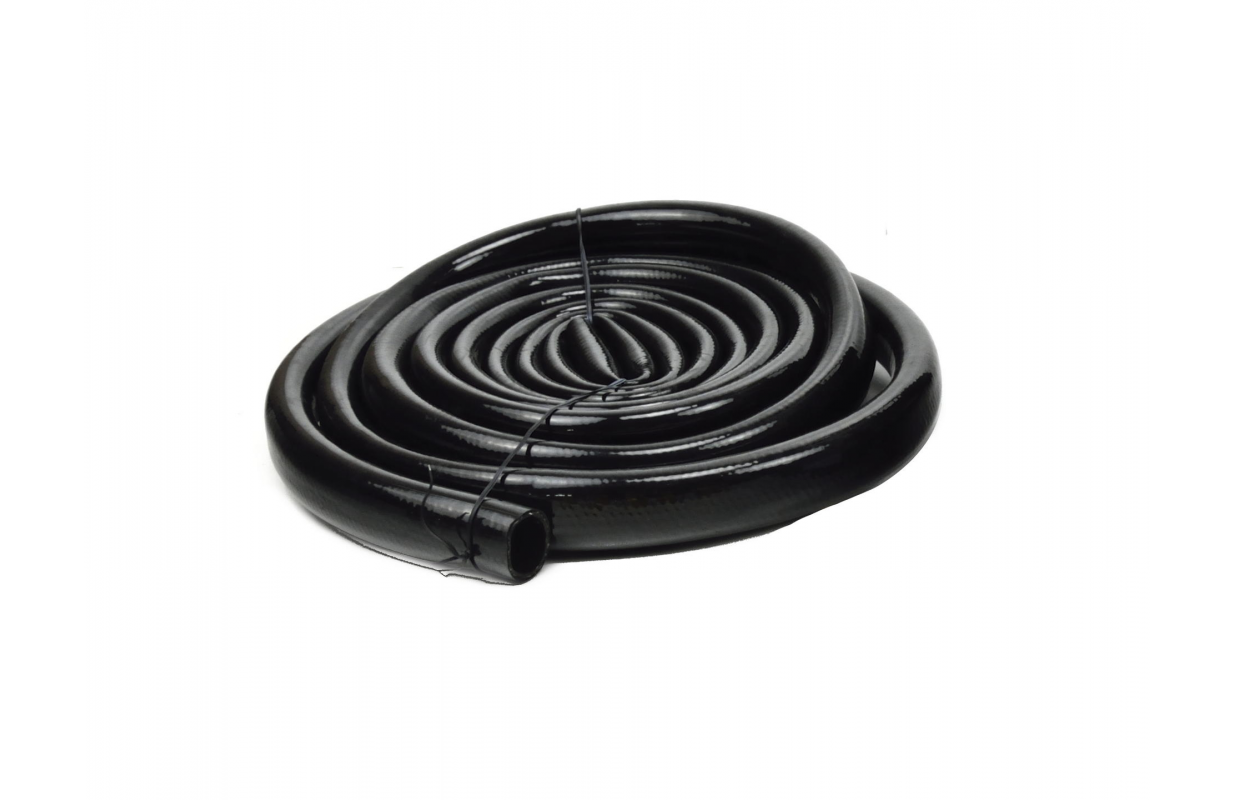

• 4m non-clear delivery hose


• Inlet and outlet diameter: 1"


• Inclusive of non-return valve


• Versatile usage for Oil, Diesel Petrol and Kerosene


• High output rate up to 2400 l/h

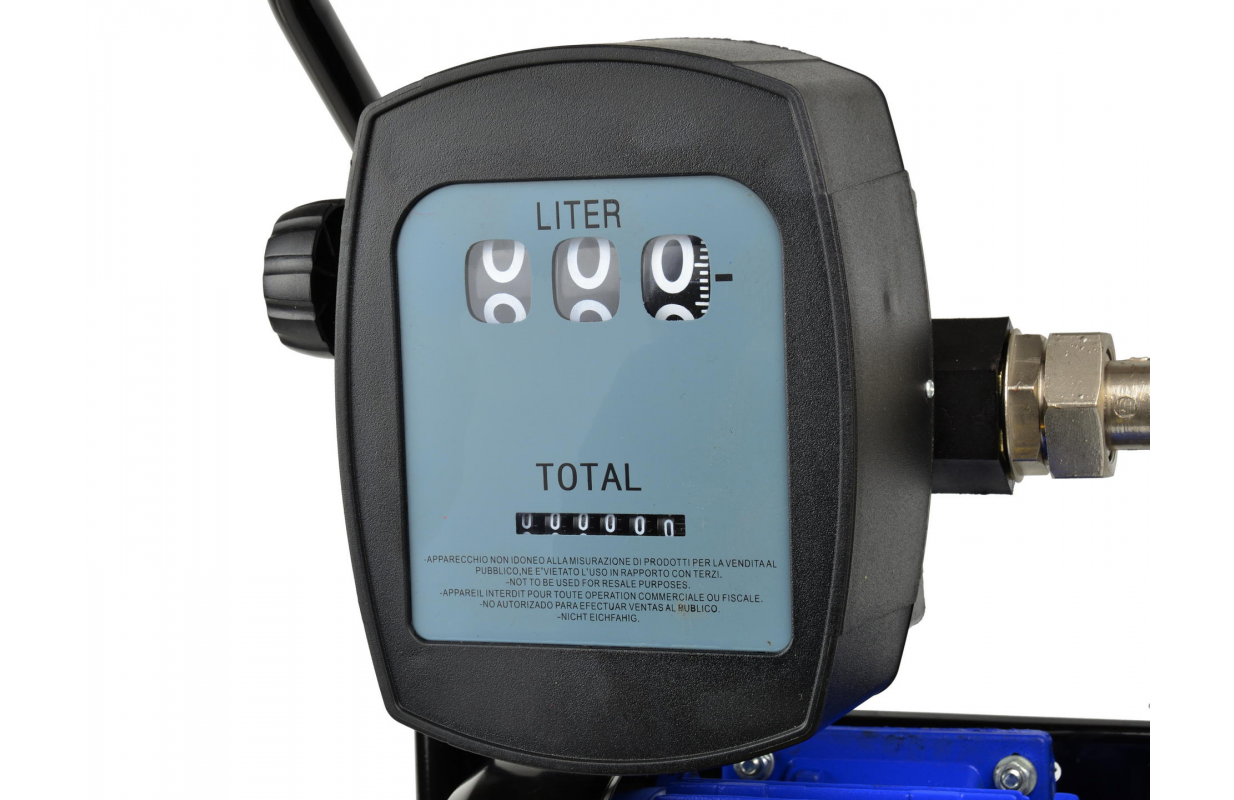

• The 3 digit mechanical flow meter indicates the current flow up to 999.9 litre and the 6 digits totaliser (not resettable)


• With 2 brass connections

Technical Data

• Power: 600W


• Input Voltage: 230V


• Self-priming: No


• Overflow Valve: Yes


• Filter: Yes


• No-load Speed: 2,800 rpm


• Maximum Suction: 8 m


• Maximum Lift: 28 m


• Flow Rate: up to 40 L/min


• Inlet and Outlet Diameter: 1"

Package Contents:

• 1x 230V DC Self-priming Electric Pump


• 1x suction hose 2 m


• 1x high quality delivery hose 4 m

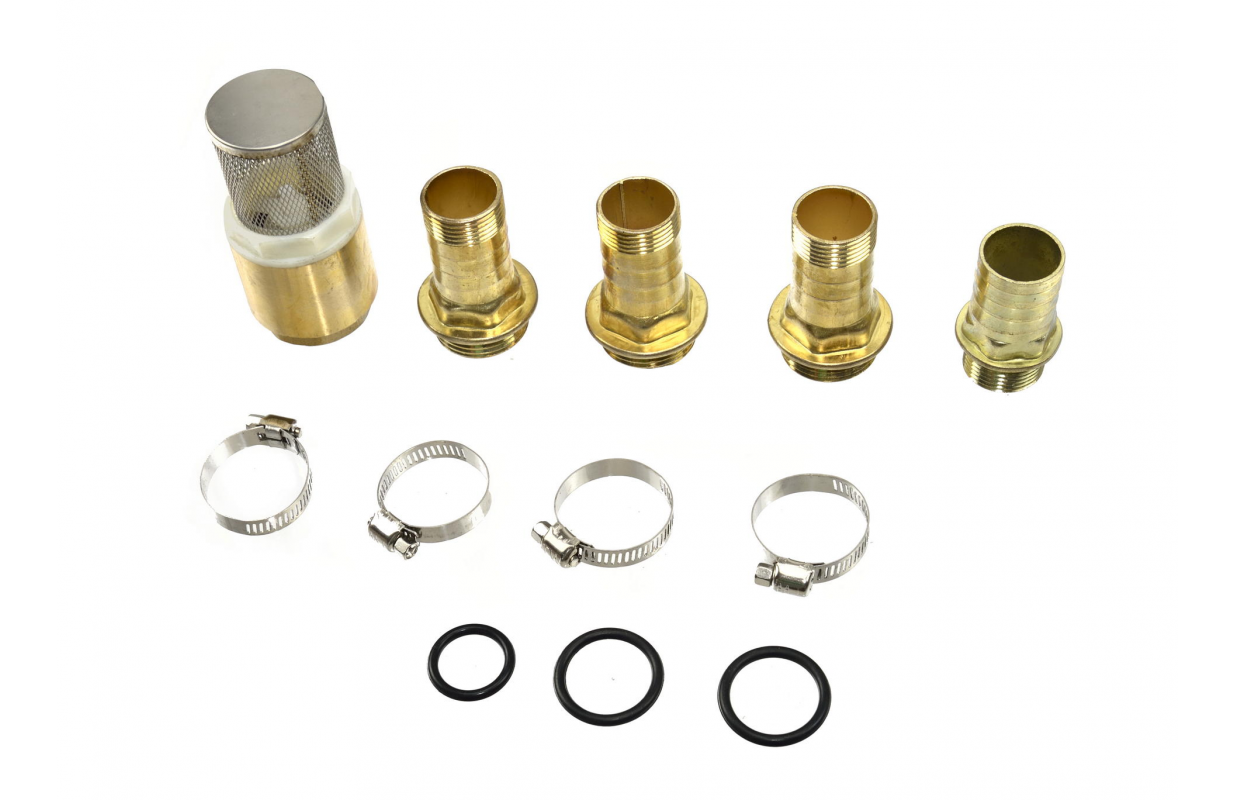

• 4x connectors with seals


• 1x micro mesh filter
