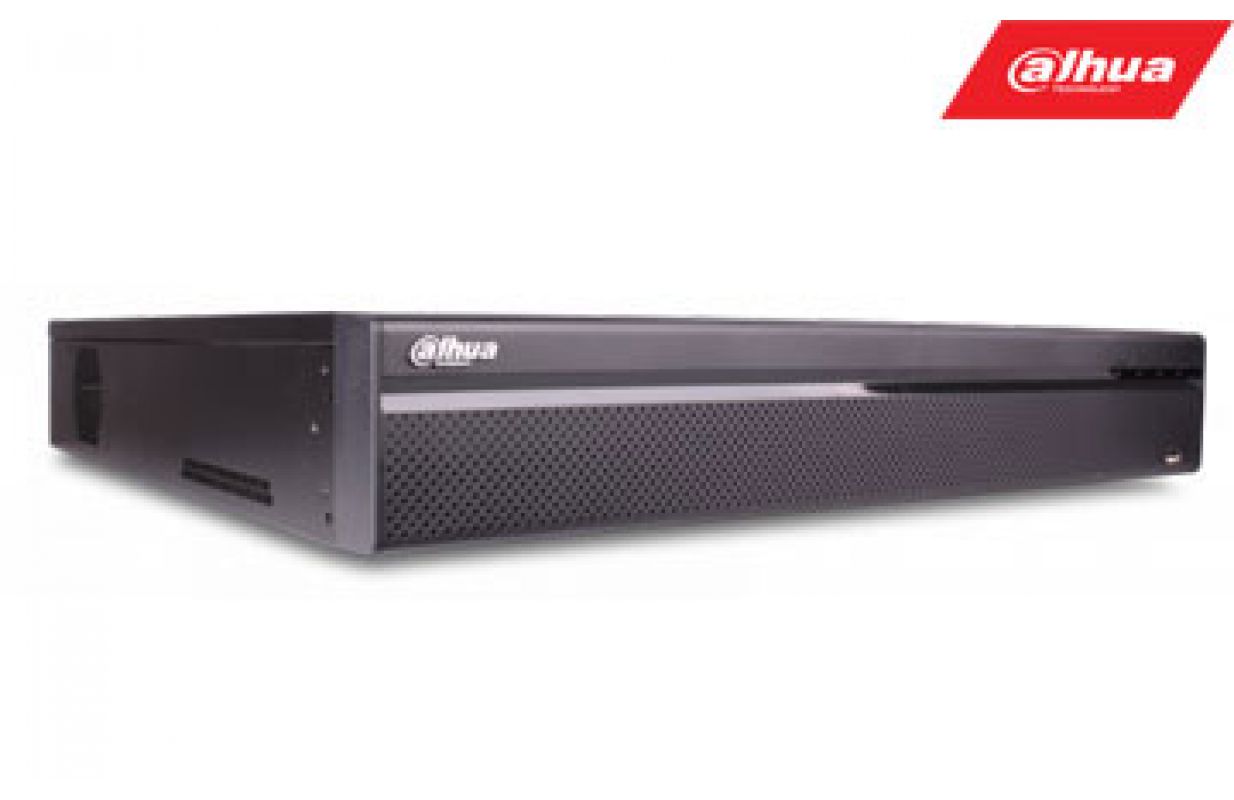

IP Network recorder 16 ch NVR4816-16P-4KS2 (NVR481616P4K)

Features:• H.265/H.264 codec decoding• Max 200Mbps Incoming Bandwidth• Up to 8MP Resolution for Preview and Playback• HDMI/VGA simultaneous video output • Support IPC UPnP, 16PoE ports• Support ANR technology to enhance the storage reliability when the network break downTechnical Specifications:System• Main Processor Quad-core embedded processor• Operating System Embedded LINUXDisplay• Interface 1 HDMI, 1 VGA• Resolution 3840×2160, 1920×1080, 1280×1024, 1280×720,1024×768• Multi-screen Display 1/4/8/9/16• OSD Camera title, Time, Video loss, Camera lock,Motion detection, RecordingVideo Detection and Alarm• Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips• Video Detection Motion Detection, MD Zones: 396(22×18), VideoLoss & Tampering• Alarm input 16 Channel, Low Level Effective,• Green Terminal Interface• Relay Output 4 Channel, NO/NC Programmable,Playback and Backup• Playback 1/4/8/16• Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart searchPlayback Function• Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom• Backup Mode USB Device/NetworkStorage• Internal HDD 8 SATA III Port, Up to 6 TB capacity for each HDD• HDD Mode Single• eSATA N/AAuxiliary Interface• USB 3 USB Ports (2 USB2.0, 1 USB3.0)• RS232 1 Port, for PC Communication and Keyboard• RS485 1 Port, for PTZ ControlThird-party Support• Dahua, Arecont Vision, AXIS, Bosch, Brickcom,Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and moreAudio and Video• IP Camera Input 16/32 Channel• Two-way Talk 1 Channel Input, 1 Channel Output, RCARecording• Compression H.265/H.264• Resolution 8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc.• Record Rate 200Mbps• Bit Rate 16Kbps ~ 20Mbps Per ChannelRecord Mode• Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering,Video Loss), Stop Record Interval 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 secNetwork• Interface 1 RJ-45 Port(10/100/1000Mbps)• Ethernet Port 1 Independent 1000Mbps Ethernet Port• PoE 16 ports (IEEE802.3af/at)Network Function• HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, IP Search (Support Dahua IP camera, DVR, NVS, etc.), Easy4ip• Max. User Access 128 users• Smart Phone iPhone, iPad, Android• Interoperability ONVIF 2.4, CGI ConformantElectrical• Power Supply AC100V ~ 240V, 50 ~ 60 Hz• Power Consumption• NVR: <14.1W (Without HDD)• PoE: Max 25.5w for single port, 150w in totalEnvironmental• Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa• Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RHConstruction• Dimensions 2U, 440mm×450.1mm×95mm (17.3" x 17.7" x3.7")• Net Weight 5.4kg (11.9 lb) (without HDD)• Gross Weight 9.5kg(20.9 lb)(without HDD)Certifications• CE EN55032, EN55024, EN50130-4, EN60950-1• FCC Part 15 Subpart B, ANSI C63.4-2014• UL UL60950-1+CAN/CSA C22.2 No.60950-1Features:• H.265/H.264 codec decoding• Max 200Mbps Incoming Bandwidth• Up to 8MP Resolution for Preview and Playback• HDMI/VGA simultaneous video output • Support IPC UPnP, 16PoE ports• Support ANR technology to enhance the storage reliability when the network break downTechnical Specifications:System• Main Processor Quad-core embedded processor• Operating System Embedded LINUXDisplay• Interface 1 HDMI, 1 VGA• Resolution 3840×2160, 1920×1080, 1280×1024, 1280×720,1024×768• Multi-screen Display 1/4/8/9/16• OSD Camera title, Time, Video loss, Camera lock,Motion detection, RecordingVideo Detection and Alarm• Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips• Video Detection Motion Detection, MD Zones: 396(22×18), VideoLoss & Tampering• Alarm input 16 Channel, Low Level Effective,• Green Terminal Interface• Relay Output 4 Channel, NO/NC Programmable,Playback and Backup• Playback 1/4/8/16• Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart searchPlayback Function• Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom• Backup Mode USB Device/NetworkStorage• Internal HDD 8 SATA III Port, Up to 6 TB capacity for each HDD• HDD Mode Single• eSATA N/AAuxiliary Interface• USB 3 USB Ports (2 USB2.0, 1 USB3.0)• RS232 1 Port, for PC Communication and Keyboard• RS485 1 Port, for PTZ ControlThird-party Support• Dahua, Arecont Vision, AXIS, Bosch, Brickcom,Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and moreAudio and Video• IP Camera Input 16/32 Channel• Two-way Talk 1 Channel Input, 1 Channel Output, RCARecording• Compression H.265/H.264• Resolution 8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc.• Record Rate 200Mbps• Bit Rate 16Kbps ~ 20Mbps Per ChannelRecord Mode• Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering,Video Loss), Stop Record Interval 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 secNetwork• Interface 1 RJ-45 Port(10/100/1000Mbps)• Ethernet Port 1 Independent 1000Mbps Ethernet Port• PoE 16 ports (IEEE802.3af/at)Network Function• HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, IP Search (Support Dahua IP camera, DVR, NVS, etc.), Easy4ip• Max. User Access 128 users• Smart Phone iPhone, iPad, Android• Interoperability ONVIF 2.4, CGI ConformantElectrical• Power Supply AC100V ~ 240V, 50 ~ 60 Hz• Power Consumption• NVR: <14.1W (Without HDD)• PoE: Max 25.5w for single port, 150w in totalEnvironmental• Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa• Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RHConstruction• Dimensions 2U, 440mm×450.1mm×95mm (17.3" x 17.7" x3.7")• Net Weight 5.4kg (11.9 lb) (without HDD)• Gross Weight 9.5kg(20.9 lb)(without HDD)Certifications• CE EN55032, EN55024, EN50130-4, EN60950-1• FCC Part 15 Subpart B, ANSI C63.4-2014• UL UL60950-1+CAN/CSA C22.2 No.60950-1
