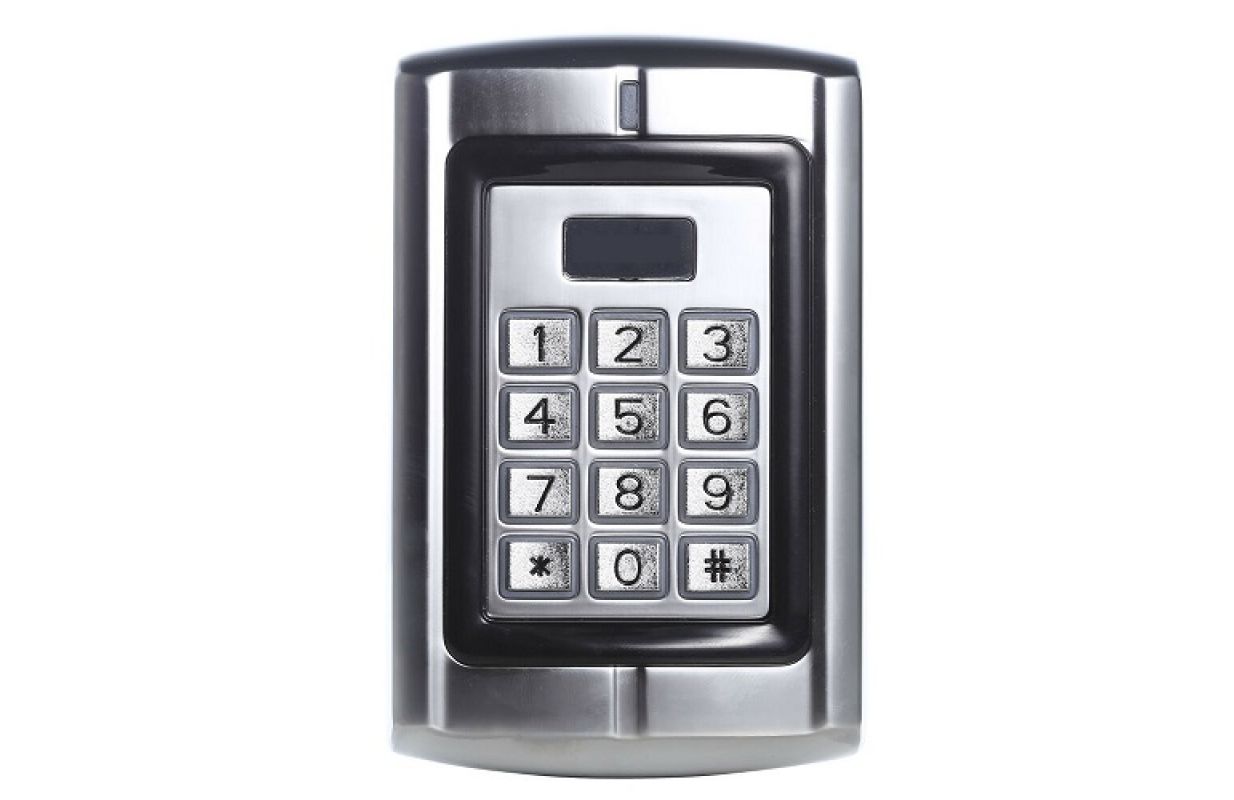

Standalone Access Control with Keypad and Card Reader, 125KHz EM (TV990405)
Standalone Access Control with Keypad and Card Reader, 125KHz EM (TV990405)
Price: -- Incl. Tax
Product Code: TV990405
Availability: Out of Stock
Description
Standalone access control with integrated keypad and 125KHz EM card.
Features:
It is a compact single entry standalone access control with keypad and remote card reader.
The RFID access control is designed for extreme weather conditions (-40°C~+60°C), suitable for outdoor as well as indoor use.
Supports 125KHz EM cards.
Non volatile EPROM memory.
Backlit keypad for use in the dark.
Tri-colour LED status display.
Built-in anti tamper.
Technical specification:
Number of users (cards/PINs): 1000.
PIN length: 4-6 digits.
Operating frequency: 125KHz.
Card reader: EM.
Operating voltage: DC 12V.
Idle current: <20mA.
Card reading distance: 3~6 cm.
Card read sensor time: <0.1s.
Number of doors supported: 1.

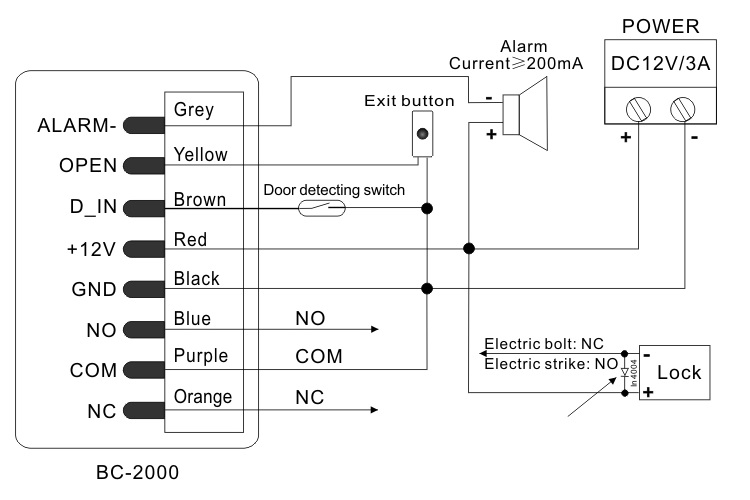

Wiring connections: relay, exit button, door sensor, alarm.
Relay: 1 (for lock, No, Nc, Com contacts).
Adjustable relay output time: 0-99 seconds.
Lock output load: 1A.
Alarm output load: 3A.
Installation: wall mount.
Material: zinc alloy.
Operating temperature: -40°C~+60°C.
Relative humidity: 0%~95%RH.
Dimensions: 128 x 82 x 28 mm.
Weight: 550g.
.
Warranty: 24 months.
