Dual-Entry Standalone Access Control with Keypad and Card Reader, EM/Mifare, IP66 (TV990320)

Dual-entry standalone access control with integrated keypad and card reader SK1, EM/Mifare, IP66.
 Features: It is a compact dual-entry standalone access control with integrated keypad and card reader. The access control is designed for extreme weather conditions (-40°C~+60°C), with IP66 water and dust resistance, suitable for outdoor or indoor use. Supports 125KHz EM or 13.56MHz Mifare cards (optional). Metal case. Supports 1100 visitor users. Latch mode to hold door or gate open. 3 access modes: card, PIN or card+PIN. Cards included: Master Add Card and Master Delete Card.

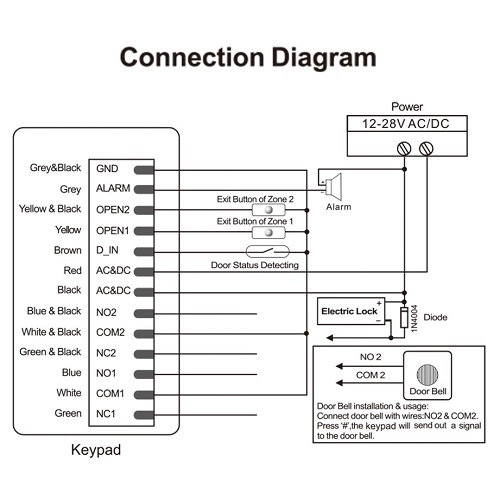

 Technical specification: Number of users (cards/PINs) zone 1: 1.000. Number of users (cards/PINs) zone 2: 100. PIN length: 4-6 digits. Operating frequency: 125KHz (EM card) / 13.56MHz (Mifare card). Card reader: EM / Mifare. Operating voltage: AC/DC 12~28V. Power consumption - idle current/active current: <55mA / <80mA.. Card reading distance: 3~6 cm. Number of doors supported: 2. Wiring connections: relay, exit button, door bell, alarm. Relay: 2 (for locks, No, Nc, Com contacts). Adjustable relay output time: 0-99 seconds (5 seconds default). Safety class: IP66. Installation: wall mount. Material: zinc alloy. Operating temperature: -40°C~+60°C. Relative humidity: 10%~90%RH. Dimensions: 117 x 76 x 25 mm. Weight: 600g.
. Warranty: 24 months.
