Standalone Access Control with Keypad and Card Reader,K1-MF, EM/Mifare, IP66 (TV990290)

Standalone access control with integrated keypad and card reader K1-MF, EM/Mifare, IP66.
Features:It is a compact single entry standalone access control with keypad and remote card reader.The RFID access control is designed for extreme weather conditions (-40°C~+60°C), with IP66 water and dust resistance, suitable for outdoor or indoor use.Supports 125KHz EM or 13.56MHz Mifare cards (optional).Metal case anti-vandal. Anti-tamper alarm.Backlit keypad for use in the dark.Supports 10 visitor users with 1 to 10 entries.3 access modes: card, PIN or card+PIN.

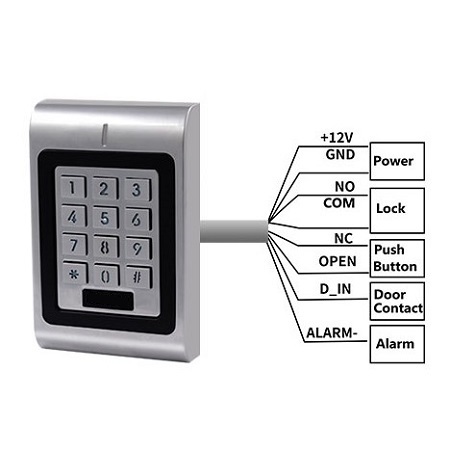

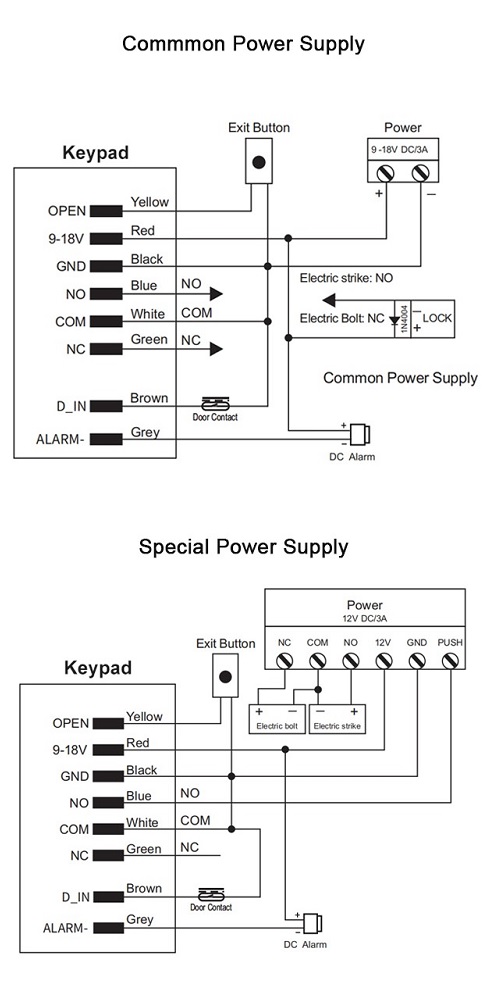

Technical specification:Number of users (cards/PINs): 1.000 (990 normal users + 10 visitors).PIN length: 4-6 digits.Operating frequency: 125KHz (EM card) / 13.56MHz (Mifare card).Card reader: EM / Mifare.Operating voltage: DC 9~18V.Power consumption - idle current/active current: <50mA / <80mA..Card reading distance: 3~6 cm.Number of doors supported: 1.Wiring connections: relay, exit button, door sensor, alarm.Relay: 1 (for lock, No, Nc, Com contacts).Adjustable relay output time: 0-99 seconds (5 seconds default).Safety class: IP66.Installation: wall mount.Material: zinc alloy.Operating temperature: -40°C~+60°C.Relative humidity: 10%~90%RH.Dimensions: 117 x 76 x 25 mm.Weight: 470g.
.Warranty: 24 months.
