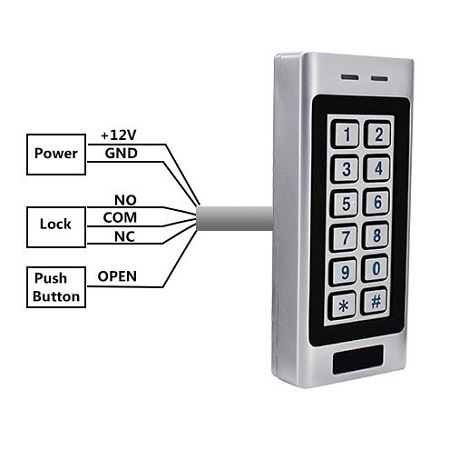

Standalone Access Control with Keypad and Card Reader, K4-MF, Mifare, IP66 (TV990313)

Standalone access control with integrated keypad and card reader K4-MF, Mifare, IP66.
Features:It is a compact single entry standalone access control with keypad and remote card reader.The RFID access control is designed for extreme weather conditions (-40°C~+60°C), with IP66 water and dust resistance, suitable for outdoor or indoor use.Tri-colour LED status display.Built in light dependent resistor (LDR) for anti tamper.Metal case anti-vandal. Backlit keypad for use in the dark.3 access modes: card, PIN or card+PIN.

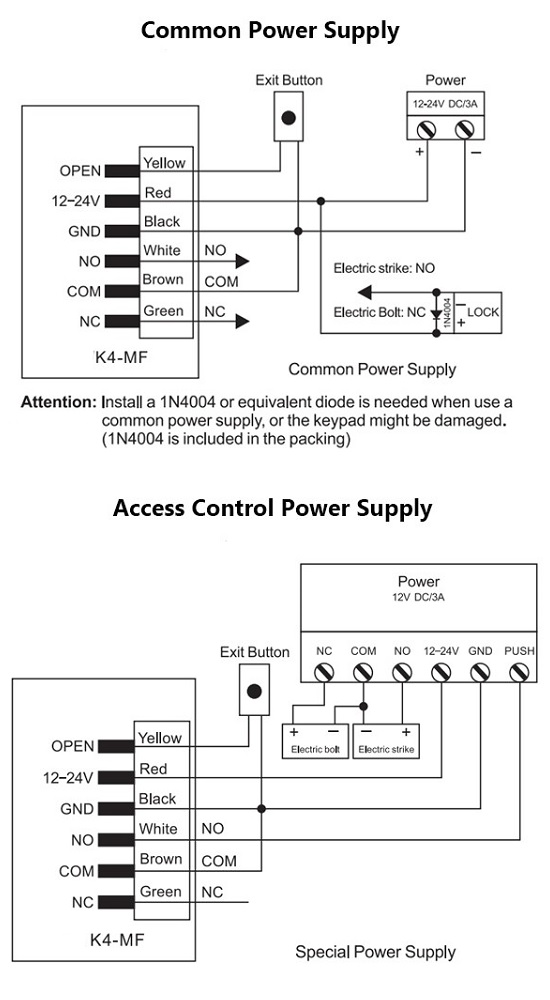

Technical specification:Number of users (cards/PINs): 1.000.PIN length: 4-6 digits.Operating frequency: 13.56MHz.Card reader: Mifare (ISO14443 Type A).Operating voltage: DC 9~18V.Idle current/active current: <50mA / <80mA..Number of doors supported: 1.Wiring connections: relay, exit button.Relay: 1 (for lock, No, Nc, Com contacts).Adjustable relay output time: 0-99 seconds (5 seconds default).Safety class: IP66.Installation: wall mount.Material: zinc alloy.Operating temperature: -40°C~+60°C.Relative humidity: 20%~98%RH.Dimensions: 130 x 56 x 23 mm.Weight: 5000g.
.Warranty: 24 months.
