SONOFF NSPanel Pro smart control panel, Zigbee 3.0, BT, Wi-Fi, with two-way talk, consumption metering
SONOFF smart home system allows you to control your electrical appliances remotely with the EWeLink app or by voice with Amazon Alexa or Google Home. It allows you to create different scenarios, group appliances by switching on/off multiple devices with a single touch, set timers and schedules, monitor the status of your devices in real time, and share their control. Link your eWeLink with IFTTT application and extend your scene capabilities. Thanks to configurable local LAN support Sonoff smart home system can work without a cloud server.
Features:

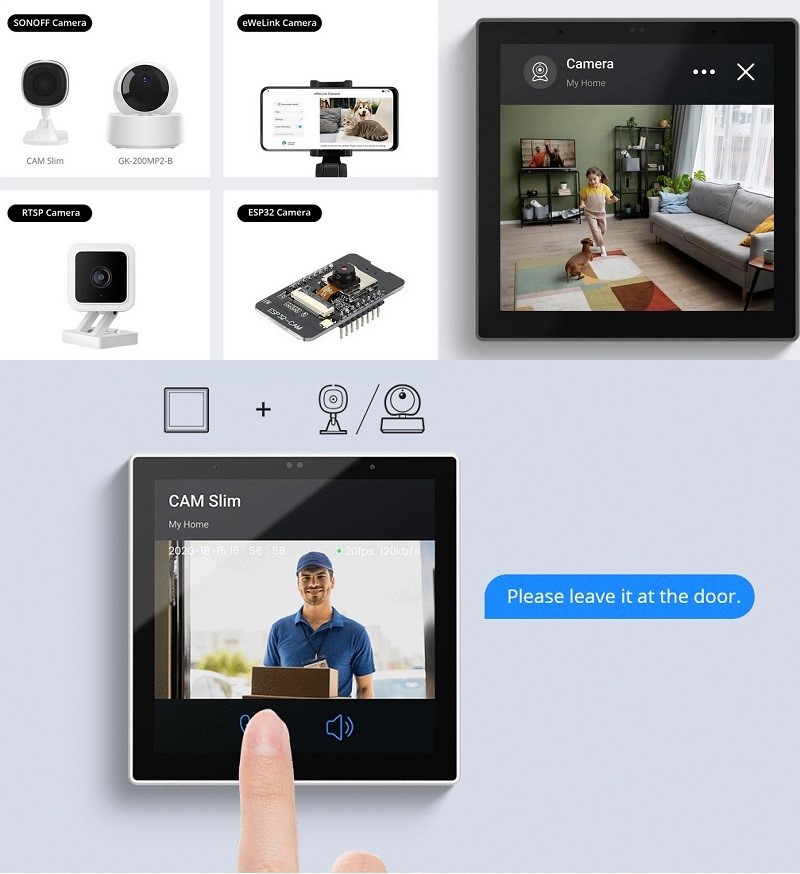

Sonoff NSPanel-Pro is a powerful multifunctional smart home control panel. With integrated Zigbee 3.0 gateway with home security functions, microphone, speaker, light sensor, supports the connection of up to 4 video cameras, and has a wide range of practical functions such as electricity statistics, thermostat, call intercom, etc. Its compatibility, with further updates coming soon, make this promising device your wonderful choice.
The NSPanel-Pro control panel offers centralised control of the security system, smart home appliances, lights, switches, heaters, coollers, curtains, and all your smart devices can be controlled, while at the same time being a smart device. You see the date, time and weather on its screen, open your saved websites, stream video from a connected camera, watch recordings, check energy consumption graph, customize wallpaper and more.
Use it as an alarm clock, timer, doorbell or intercom, as the panel has a microphone and speaker and allows two-way talking. Phone-to-panel or panel-to-panel calls are supported.

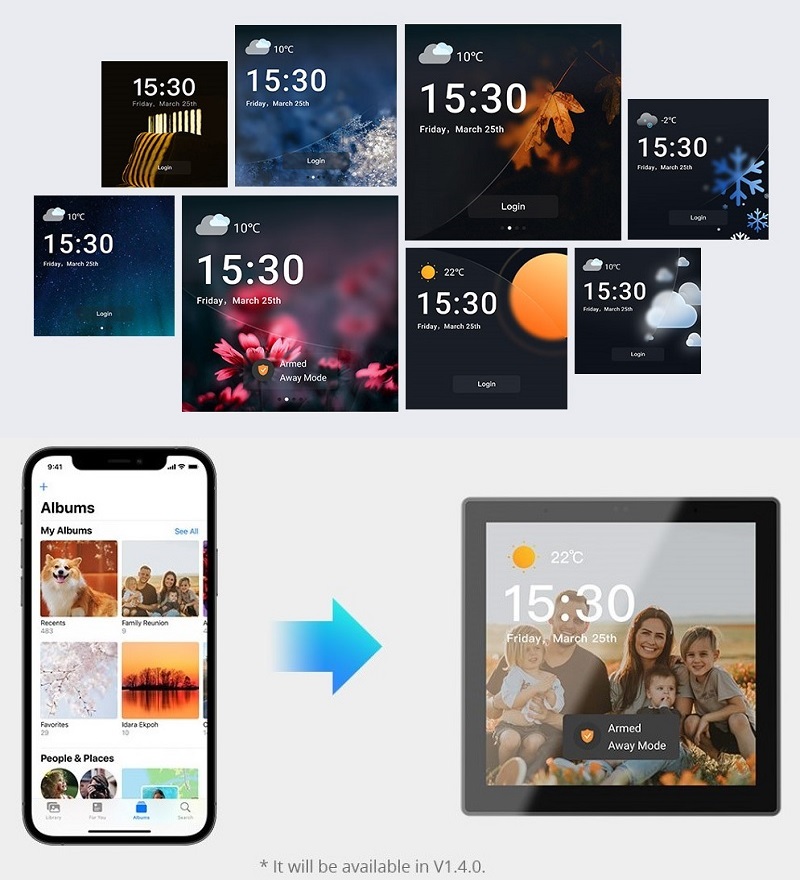

Choose a desktop image according to the current weather conditions, on request or download from your phone.
By connecting temperature sensors and controls, the panel allows you to switch on/off heating or cooling devices, automatically maintain a stable room temperature, adapting to your preferences.
This smart home controller supports all Sonoff Zigbee devices and many third-party Zigbee devices, such as controlling Philips Hue Zigbee and IKEA Zigbee bulbs.
This panel supports three safety modes: Home, Away, Sleep. The active mode can be set both in the eWeLink app (on your phone) and on the NSPanel-Pro touchscreen. You can set which sensors should be active in Home/Away/Sleep modes.
This panel supports all the functions of the Sonoff smart home system: timer, smart scene, device grouping, sync status, share, etc. Control the lights, set timers for rooms heating/ventilation or activate smart scenes according to your preferences.
The panel is easy to install in place of a regular wall switch. It fits M5 switches and is suitable for installation in their frame. The stylish, modern design is compatible with other Sonoff devices and blends seamlessly into the interior.
Technical specification:

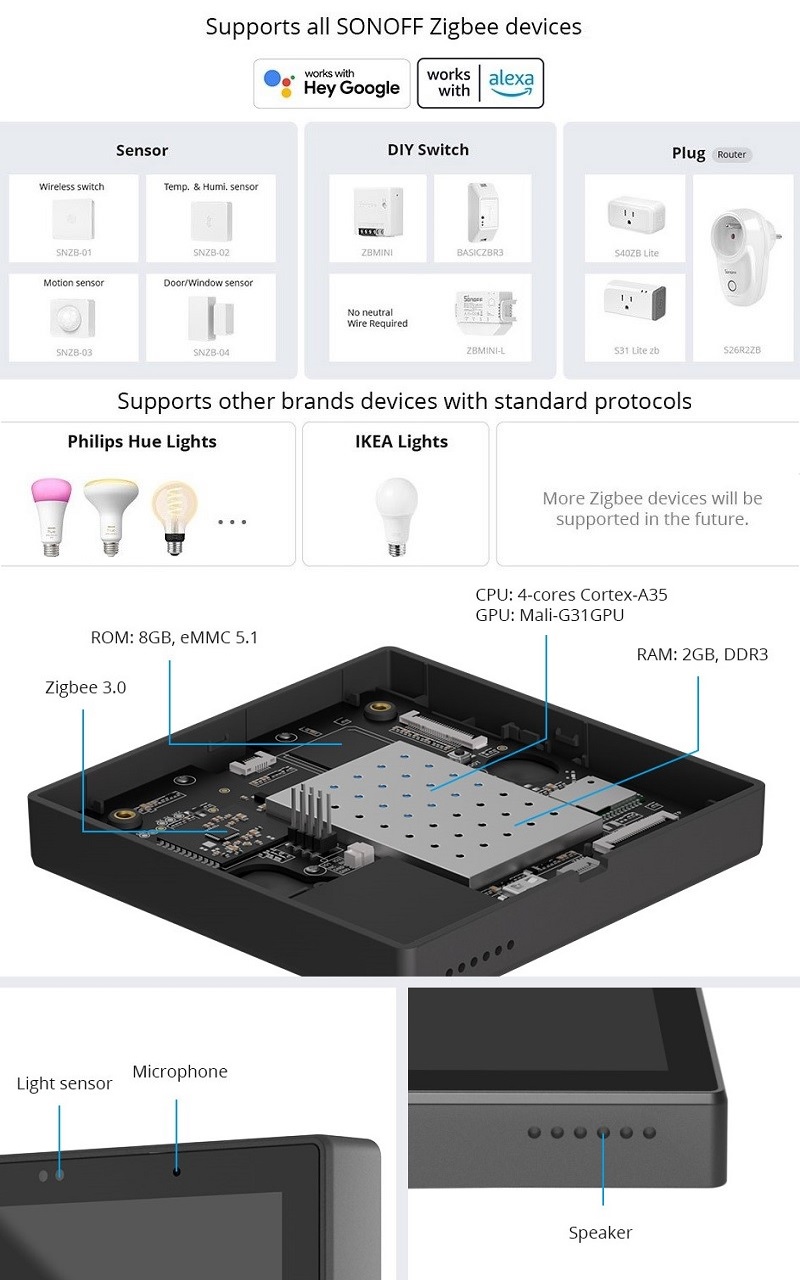

CPU: 4-core Cortex-A35.
GPU: Mali-G31GPU.
ROM: 8GB, eMMC 5.1.
RAM: 2GB, DDR3.
Input: 100V~240V AC, 50/60Hz 0.15A.
Output: 100V~240V AC, 50/60Hz.
Consumption: 150mA, max. 5W.
Compatible with: Sonoff POWR3, MINIR3, TH Elite, TH Origin, DW2-Wi-Fi, TX, M5, B05 LED, 4CHPROR3, BASICR2, ZBCurtain etc.
Wi-Fi frequency: 2.4 GHz.
Wi-Fi standard: IEEE802.11b/g/n.
Zigbee standard: IEEE802.15.4, Zigbee 3.0.
TFT LCD screen size: 3.95" (touch panel), 16.7M colours.
Screen resolution: 480 x 480 pixels, 2500K-6500K.
Microphone: 1W.
Sensors: ICC light sensor.
App: eWeLink (Android, iOS).
Works with Amazon Alexa & Google Assistant.
Installation: power outlet.
Display material: tempered glass.
Housing material: PC V0 (flame-retardantt) + CRS.
Operating temperature: 0°C~40°C.
Dimensions: 86 x 86 x 39.5mm.
Weight: 180g.
Colour: black.
Certifications: CE / RoHS / SRRC.
Warranty: 24 months.
